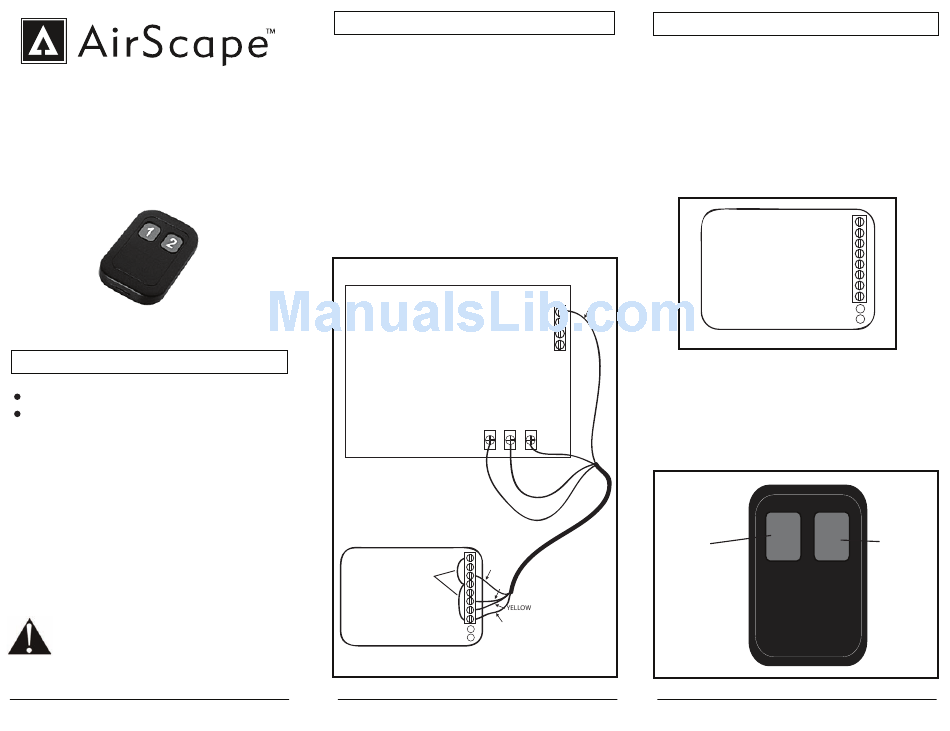

AirScape AS-RMT-FM Operation Manual

Whole House Fan
Wireless Remote Kit

Operation Guide

MODEL#: AS-RMT-FM
What's Included
Remote Control AS-TRANS-FM
Receiver (factory installed)
CONGRATULATIONS on your purchase of the
Airscape Wireless Remote Kit.
Please take a few minutes to read over the following
sections to make sure you are prepared for the
installation and operation of your kit.
If you (or your installer) have any questions regarding
the installation, operation, or maintenance of this
product, please contact technical support.
Local codes and standards must be followed in the
installation of the wireless remote kit. Make sure your
whole house fan is unplugged before performing the
following steps.
Page 1 © 2008 AirScape Inc. | All Rights Reserved
Installation Instructions
The following steps have already been performed for
you if you ordered a wireless remote kit with your
AirScape unit. Skip to the "Operating Tips" section.
STEP 1) Remove the circuit board cover plate on your
whole house fan and route the wiring of your remote
control receiving unit through one of the electrical knock-
outs on the circuit board.
STEP 2) Connect the wires from your remote control
receiving unit to the appropriate locations on your whole
house fan circuit board as shown in the diagram. (see
Figure 1) **Make sure to replace the circuit board cover
plate when finished.
Figure 1
HI-SPD START
(Blue) (Black)
WHF CIRCUIT BOARD
GREEN
GREEN
Jumper
connections
BLACK
RED
Red LED
Green LED
REMOTE RECEIVING UNIT
Page 2
© 2008 AirScape Inc. | All Rights Reserved
Remote Programming/Operation
To operate your whole house fan you will need to program
both buttons 1 and 2. Follow these steps to program your
remote. (see FIGURE 2 for reference)
STEP 1) Press "MODE" switch #1 for three seconds on
the remote control receiving unit. The green LED will blink
rapidly. While the LED is blinking, press button 1 on your
remote control. The LED will flash now flash once,
confirming that programming is successful.
Figure 2
J1 1
YELLOW
STEP 2) Press the "MODE" switch #2 for three seconds
on the remote control receiving unit. The red LED will blink
rapidly. While the LED is blinking, press button 2 on your
remote control. The LED will now flash once, confirming
COM
(Red)
that programming is successful. You are now finished.
Remote Button Operation
RED
BLACK
ON/OFF
Page 3
Red LED
Green LED
REMOTE RECEIVING UNIT
1 2
HIGH/
LOW
SPEED
© 2008 AirScape Inc. | All Rights Reserved
