Page 1: User Manual

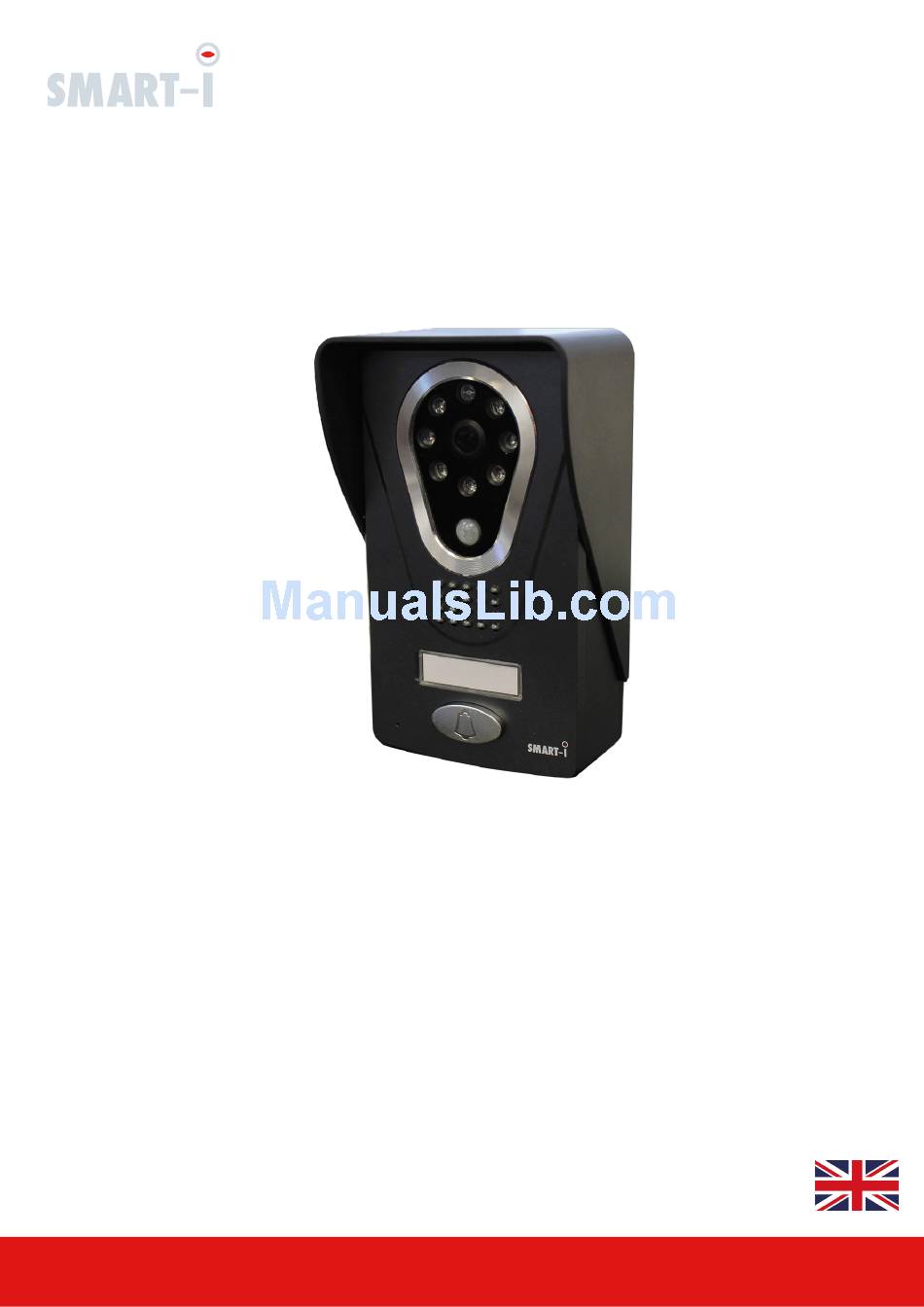

Smart Wireless Doorbell User Manual Designed & Engineered Version 1 in the United Kingdom... -
Page 2: Table Of Contents
2. Installation ................... 2.1. DIY Installation ............... 2.2. Professional Installation ............2.3. Smartbell Overview ..............3. App Setup ................... 3.1. Installing Smartbell App ............3.2. Connecting to View Remotely ..........4. Software Use ..................4.1. Settings ................... 4.2. Software Settings .............. -
Page 3: Precautions
Safety Instructions 1. Please install your system according to this manual to avoid any malfunctions or damage. 2. Never open the smartbell, please contact your installer or place of purchase in the event of product malfunction. 3. Keep the smartbell away from extreme heat sources and water. -
Page 4: Product Overview
IR LEDs - For low light viewing Motion Detection Weatherproof - IP55 1.2 Contents Standard Version: smartbell Smart Wireless Doorbell User Manual Designed & Engineered Version 1 in the United Kingdom 1x Wireless... -
Page 5: Installation
The red wire into the number 1 slot and black into the number 2 slot. To do this, push and hold the grey clip in while pushing in the red//black cables. -
Page 6: Professional Installation
5. If you will using a wired connection to your router, run your ethernet cable through the hole and connect to the back of the smartbell. Attach as shown above. If you are connecting wireless, skip to step 6. 5. If you choose a wired connection to your router/home 6. - Page 7 20m extension lead. Put the same colours from the of the smartbell. The red wire into the number 1 slot and 20m extension into the matching connections on black into the number 2 slot.
-
Page 8: Smartbell Overview
5. If you will using a wired connection to your router, run your ethernet cable through the hole and connect to the back of the smartbell. Attach as shown above. If you are connecting wireless, skip to step 6. 7. If you choose a wired connection to your router/home 8. -
Page 9: App Setup
1. Turn on the wireless on your Smartphone or Tablet by going to your settings and selecting the wifi option shown below (right). 2. Select the smartbell wifi from the search list. When selected, type in the password (default password is 12345678). - Page 10 7. The device number shown on screen should match with the sticker on the back of the unit. 8. Select the correct device and fill in the details for the smartbell. The default password for this is 88888888. Name: Enter any username, for example Smart-i Bell.
-
Page 11: Connecting To View Remotely
10. Press on the picture to view the smartbell camera and also listen through the microphone to check that you are connected. 3.2 Connecting to View Remotely 1. Go to the homescreen on the app and press the ‘Arrow’. 2. Press the ‘Change Device Network Mode’ option and press the SSID option. The smartbell will search for wireless routers. - Page 12 8. When you have connected, go back to the smartbell app and check it says connected. 9. Press the picture the picture next to the smartbell to check it is connected and you can view the smartbell live. If you have multiple devices to install, please repeat the steps.
-
Page 13: Software Use
Recording button 1. Snapshot: Take a snapshot of the view from the smartbell (Micro SD Card Needed). 2. Start Recording: Start recording video from the smartbell (Micro SD Card Needed). 3. Answer/Talk: Answer an incoming call from a visitor and enable microphone to speak. -
Page 14: Video
4.2.2. Video Click the option to view all the recorded videos. To view, click the video you wish to play. To search using the date function, click the icon in the top right corner of the screen. 4.2.3. Unlock the Door Press the icon to unlock the door. -
Page 15: Favourite
4.3.2 Change Device Info This option allows you to change the name and ID of the smartbell. When entered, press the save button in the top right screen. We recommend you make a note of the new name and device ID before and after changing. -
Page 16: About Device
4.3.8 SD Formatting Press this option to format the Micro SD Card in your smartbell. Please note that this will erase all recordings and images. Please remove the Micro SD Card and back-up images/videos on your PC if you wish to keep them. -
Page 17: Turn Off
Turn On: When a visitor activates the smartbell, you will receive an alert sound until the call is answered. In addition, in your smart device’s notification area, you will see the smartbell logo. Then, press on the notification to show the... -
Page 18: Ringer
5. Battery Cover 3. Change Melody Please note that your Ringer is already synced to your smartbell. Should you wish to re-sync, push the reset button on the bell and also the doorbell on the smartbell at the same time. -
Page 19: Specifications
6. Specifications Smartbell Specifications Input DC5 ~ 24V or AC9 ~ 16V Night Vision / IR Range Supported / 2 Metres Audio 2-way intercom Ethernet & Wifi Support Communications 1280x720 @ 30fps Resolution 640x480 @ 30fps PIR Distance 2 Metres... - Page 20 Manufactured for: Smart-i, Unit 2 Valley Point, Beddington Farm Road, Croydon Surrey CR0 4WP Designed & Engineered in the United Kingdom...
