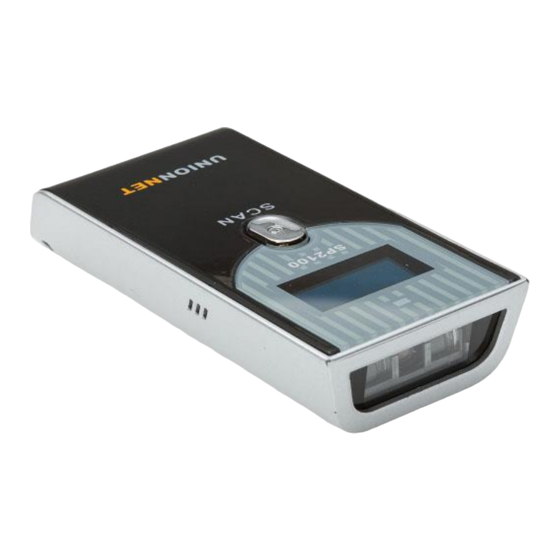

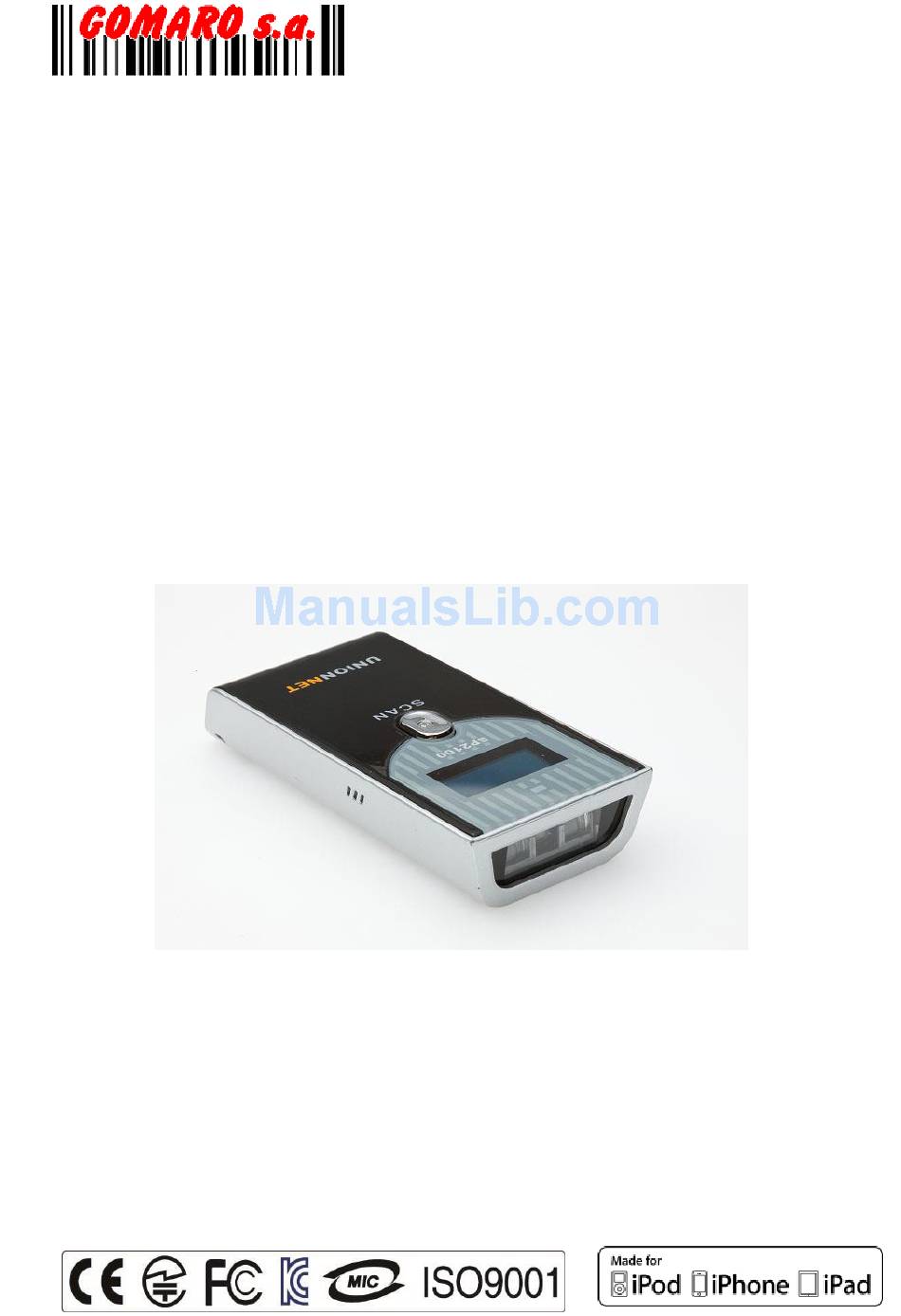

SMARTPHONE BLUETOOTH BARCODE SCANNER
REFERENCE MANUAL
[ SP-2100 ]
** For 1D Laser / 1D CCD / 2D CCD **
UNIONNET
Copyright@2010 UnionNet Co., Ltd
(Version 1.33)
GOMARO s.a.
La Rosaire 5
CH – 1123 Aclens (Switzerland)
Tel: +41 (0)21 869 97 70 Fax : +41 (0)21 869 96 02
www.gomaro.ch
1
