Summary of Contents for TQ-Systems MODUL NO.1

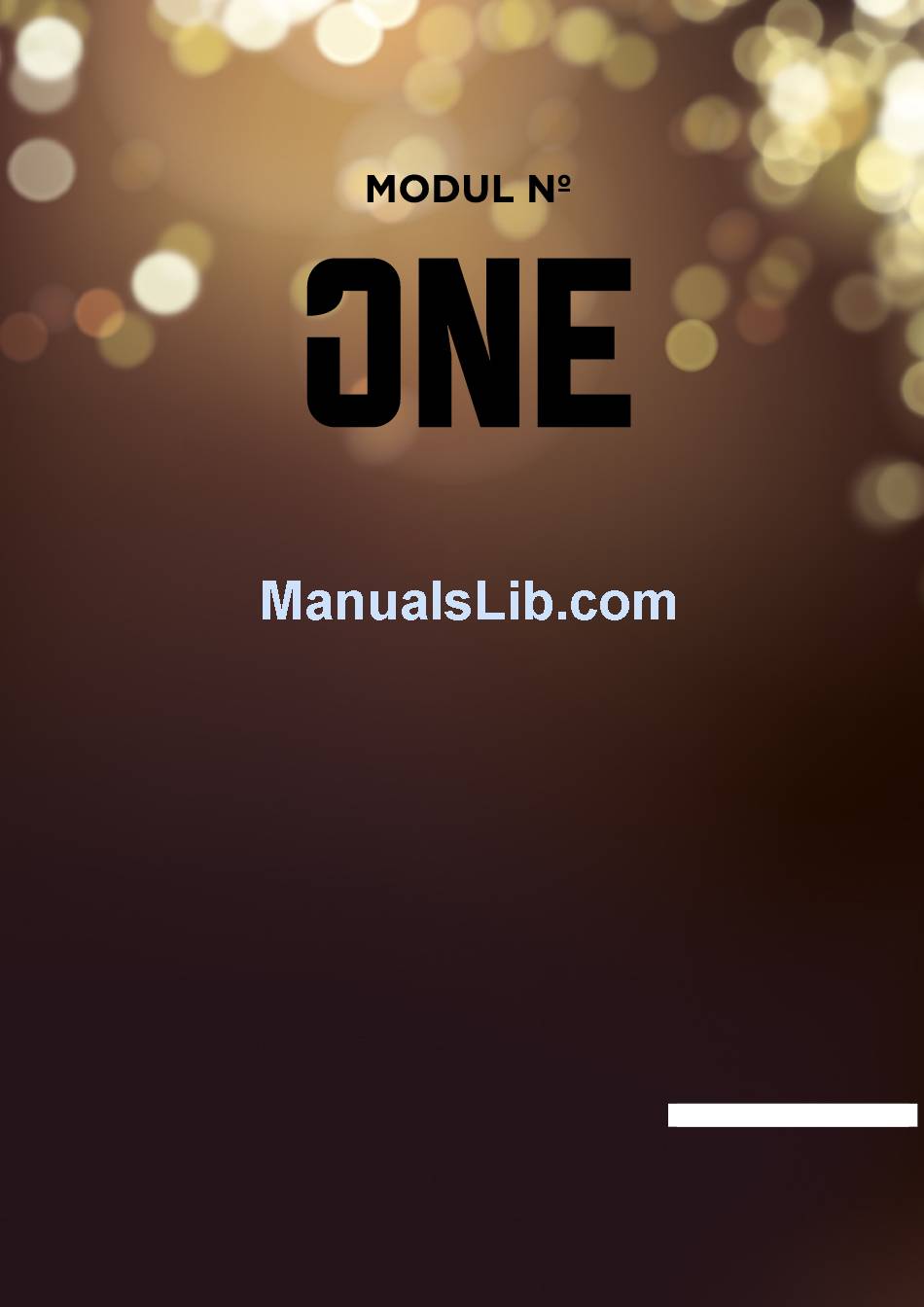

- Page 1 THE ULTIMATE IN REALTIME WIRELESS HD-VIDEO ENGLISH OPERATING INSTRUCTION Version: 1.0 WWW.MODUL-NO-1.DE Made in Germany Page 1 of 20...
- Page 2 Please read this manual carefully and make sure that you understand everything before installing and using the device. MODUL NO.1 is a powerful, wireless HD-SDI transmission device using the 5GHz band allowing you to transmit Full HD-Video data, uncompressed up to 1080p60 and 4:2:2 sampling, frame synchronous.
-
Page 3: Table Of Contents
Disclaimer ............................. 5 Warranty & Service ........................5 Safety Instructions ..........................6 Compliance with FCC guidelines ......................7 General information on MODUL NO.1 ....................7 Product versions ........................... 8 Scope of supply ..........................9 Checklist components ........................ 10 Technical Data ..........................11 4.4.1... -
Page 4: Directions For Use
DISPOSAL INFORMATION! 1.2 Copyrights and property rights This Operating Instruction contains information which is only meant for the purchasers of MODUL NO.1. The content of this manual is property of TQ-Systems Durach GmbH. As long as there is no explicit permission from TQ-Systems Durach GmbH this Operating Instruction is only intended for the operation or maintenance of MODUL NO.1. -
Page 5: Disclaimer
Warranty period for MODUL NO.1 is one year after purchase. Warranty will be voided within the warranty period, by MODUL NO.1 by any unauthorized repair attempts, by opening the housing, improper use, damage caused by failure to observe the operating instructions or... -
Page 6: Safety Instructions
Before touching please take note that during operation the casing may heat-up. However Velcro can be used. Do not stare at LED lights on the side panel of the MODUL NO.1, as this may cause damage to the eyes. ... -
Page 7: Compliance With Fcc Guidelines
MODUL NO.1 is a powerful, lightweight device not requiring a fan, offering optimal integrated multi- antenna system which uses all kind of reflections and therefore works properly even without line of sight. -
Page 8: Product Versions
4.1 Product versions MODUL NO.1 comes in two versions: Unicast (UC) and Multicast (MC). Unicast (UC) transmits video data to only one dedicated Receiver (RX). The Transmitter (TX) of this version cannot serve more than one Receiver (RX) simultaneously. The Multicast (MC) version transmits video and audio data up to four Receivers (RX) simultaneously. -
Page 9: Scope Of Supply
4.2 Scope of supply MODUL NO.1 is supplied in a special transportation- and storage case. Additional Receivers (RX) for Multicast (MC) enlargement are supplied in standard sales packaging. Components supplied depend on type of version: Article number Description Components Pieces TQD:F0001-X-1 Modul No.1 /SDI Wireless HD... -
Page 10: Checklist Components
4.3 Checklist components Transmitter (Transmitter: TX) Receiver (Receiver: RX) applicable version is marked: applicable version is marked: Unicast (UC) or Multicast (MC) Unicast (UC) or Multicast (MC) HR10/ D-Tap Adapter Additional ferrite for SDI- cable with ferrite, cable (75 Ohm), one each for one each for Transmitter Transmitter (TX) and Receiver (TX) and Receiver (RX) -
Page 11: Technical Data
4.4 Technical Data Latency <1ms Resolution 1080p60; 1080p50; 1080p30/29.97; 1080p25/24.97; 1080p23.98/24; 1080i60/59.94; 1080i50; 1080psf30; 1080psf25; 720p60; 720p50 Audio embedded Frequency band 5,180 - bis 5,825GHz DFS Frequencies 5,270 up to 5,550GHz and 5,670GHz for EU&US Modulation OFDM/QAM Übertragungsmethode MIMO (multiple in / multiple out) integrated multi-antenna system Protection class IP41 / splash protected Range... -
Page 12: Part Designation
4.5 Part designation Transmitter (TX) and Receiver (RX) Channel selection Only for Receiver: The blue LED display shows the selected channel where Transmitter has been programmed on Receiver prior to use. Receiver allows programming up to 4 different Transmitter. Selection button Using the selection button it is possible to change any time between the memorized channels (presets). -
Page 13: Set Into Operation
5 Set into operation Please mount MODUL NO.1 vertically to avoid antenna area is covered. 5.1 Connecting Transmitter (TX) and Receiver (RX) 5.1.1 Connecting Transmitter 1.) Use D-Tap adapter cable to connect Transmitter (TX) and power supply, please make sure that power supply range is within 10.5V to 36V DC. -
Page 14: Channel Programming
4.) After successful connection, status LED of video signal display (3) will continuously lit. 5.3 Pairing – Channel Storing All MODUL NO.1 sets are paired in delivery status. After System Reset (chapter 5.6), if a different configuration is needed, or additional Receivers should be connected to extend the multicast set up,... -
Page 15: Error-Handling
5.5 Error-handling Error Cause / source Solution No signal given by Connection between 1) Check whether LED indication (5) of Receiver (RX) Transmitter(TX) and field strength continuously lit. Receiver (RX) may be 2) Check whether Transmitter (TX) and interrupted or cannot be set Receiver (RX) are paired. -
Page 16: Error Codes
5.5.1 Error Codes In case of disfunction Video-LED (green) and Link-LED (green) flashes fast. According to current error or disfunction Channel-LED (blue) and/or Signal-LED (green) lit continuously. Video-LED and Link-LED flashes fast! Error Code Display / Indication Acknowledgement of pairing failed: 1.G LED (green) lits continuously Device discovery failed: 1.B LED (blue) and... - Page 17 Error Code Display / Indication Registration failed: 2.B LED (blue) and 1.G LED (green) lit continuously Connection attempt failed: 1.B and 2.B LED (blue) and 1.G LED (green) lit continuously Device disconnection failed: 3.B LED (blue) and 1.G LED (green) lit continuously Timer error;...
- Page 18 Error Code Display / Indication Timers could not be initialized: 2.B, 3.B, 4.B LED (blue) and 1.G, 2.G LED (green) lit continuously Memory allocation error: 2.B, 3.B, 4.B LED (blue) and 3.G LED (green) lit continuously System Error Function pointer has no valid address: 1.B, 2.B, 3.B, 4.B LED (blue) and 1.G LED (green) lit continuously Error handling error code:...
-
Page 19: System Reset
5.6 System Reset To revert to factory settings please follow the instruction below: 1.) Switch on Transmitter (TX) und Receiver (RX) using on/off switch. 2.) Press select button for 20 seconds (2) at Receiver (RX). 3.) Press select button for 20 seconds (2) at Transmitter (TX). 4.) Switch off both, Transmitter (TX) and Receiver (RX).
