Summary of Contents for OpenVox FD182

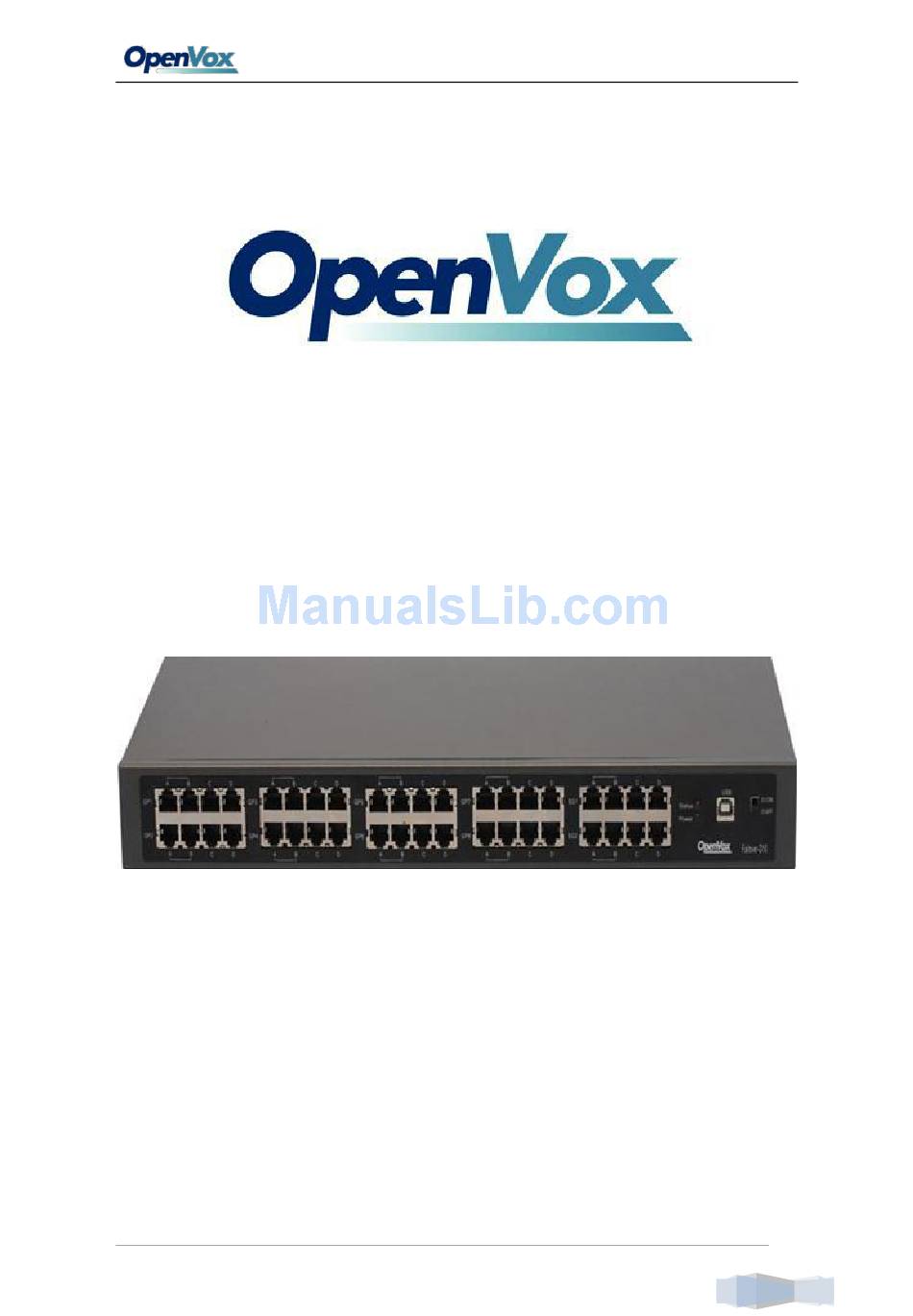

- Page 1 FD182 User Manual OpenVox FD182 User Manual OpenVox Communication Co. Ltd | www.openvox.c...
- Page 2 Address: F/2, Building No.14,Shangsha Science & Technology Park, No.9283,Binhe Road, Futian District, ShenZhen ,Guangdong 518048,China Tel:+86-755-82535095,82535461, Fax:+86-755-82535174 Email for Sales: sales@openvox.com.cn Email for Technical Support: support@openvox.com.cn Business Hours: 9:00AM-18:00PM from Monday-Friday Website： www.openvox.cn Thank You for Choosing OpenVox Products! OpenVox Communication Co. Ltd | www.openvox.c...
-
Page 3: Table Of Contents
FD182 User Manual Contents FD182 Description ................... 4 FD182 Features ..................5 FD182 Installation Guide ................6 Hardware Connection ..............6 Device Driver Detection ..............6 FD182 Working Instruction ............... 8 FD182 Software Installation ..............9 Software Download ................9 Software Installation ................ -
Page 4: Fd182 Description
How to eliminate this problem? The release of OpenVox FD182 failover box for BRI/PRI answers it. The FD182 can automatically switch the BRI/PRI line to the redundant server when the power of the main PBX server has been cut off and will automatically switch back to normal when the power is on again. -
Page 5: Fd182 Features
FD182 provides a reliable and flexible solution to Asterisk PBX. FD182 Features FD182 contains 8 E1 / T1 / BRI ports and two Ethernet ports. Easy installation; uses USB to connect computer or server. In order to provide more stable power supply, a USB interface for two connected hosts. -
Page 6: Fd182 Installation Guide
A or B, D connected to the main network，C connect backup network. FD182 Installation Guide Hardware Connection Device Driver Detection The device driver of FD182 has been integrated with many Linux distributions. Users can run the following command to see if the FD182 OpenVox Communication Co. Ltd | www.openvox.c... - Page 7 FD182 User Manual has been recognized or detected by the system. # dmesg | grep FTDI User can also run the lsusb command to check if the FD182 device is connected. # lsusb OpenVox Communication Co. Ltd | www.openvox.c...
-
Page 8: Fd182 Working Instruction
When the PBX Server is ON and Asterisk works, the signal goes from: 1->LAN(red) 2->Main Network(green) When the power of PBX cut off or Asterisk abnormal work, the signal goes form: 1->LAN(red) 2->Redundant Network(purple) OpenVox Communication Co. Ltd | www.openvox.c... -
Page 9: Fd182 Software Installation
1) Unzip the file #tar –xvzf failover-1.0.1.tar.gz #cd failover 2) Copy the file to res directory under asterisk # cp res_failover.c /usr/src/asterisk-**/res/ 3) Copy the configuration file to /etc/asterisk directory # cp failover.conf /etc/asterisk/ OpenVox Communication Co. Ltd | www.openvox.c... -
Page 10: Explanation Of Configuration Files
;autorun=yes [openvox_failover_1]：Name of FD182 Device, to distinguish from different devices, a must to configuration; device=/dev/ttyUSB0：Name of USB device that FD182 uses, a must to configuration; kick_time_interval：the time interval of software watch dog; the OpenVox Communication Co. Ltd | www.openvox.c... -
Page 11: Steps To Use
autorun：this decides if FD182 will start when asterisk boots; the default is yes which means the FD182 starts when asterisk boots; if no, the FD182 will not start when asterisk boots and user may need manually boot the device by running failover start command. - Page 12 FD182 User Manual 6) Check the connection *CLI>pri show spans 7)Reboot DAHDI *CLI>dahdi restart OpenVox Communication Co. Ltd | www.openvox.c...
-
Page 13: Technical Support
FD182 User Manual Technical Support If you meet any technical problems when using OpenVox products, you can check our Forum for help or contact us directly be the following ways: BBS feedback problems You can put your issued to our BBS encountered technical problems, we will in the shortest possible time solve the problem of you mentioned.
