GENERAL SAFETY INFORMATION
To avoid being killed or seriously injured, READ, UNDERSTAND, AND FOLLOW
ALL warnings and instructions in this manual before you use this stove.
This stove is a lightweight, compact device made for cooking outdoors. Please
consult with your local outdoor retailer to learn more about cooking outdoors. Seek
qualified instruction before you venture outdoors.
You are responsible for your own safety and the safety of those in your group. This
manual is not intended to replace your good judgment.
Fuel Canister Safety
This stove uses a liquid pressurized gas (LPG) canister that is highly flammable and
explosive. Use only MSR ® premium blend canister fuel, 70 Butane/30 Propane
or 80 IsoButane/20 Propane mix, certified to EN 417 (4 ounces/113 g or 8
ounces/227 g). For any fuel canister, follow this safety information:
• Listen and smell for leaking gas. Leaking gas is a serious hazard. LPG is
invisible and odorless, and strong odorant additives can fade over time.
Leaks are not always detectable by smell. Do not use this stove if it is leak-
ing, damaged, or does not operate properly.
• Check that the stove and fuel canister connection is secure and tight. If the
connection does not look or feel secure, or if you hear or smell leaking gas,
do not use stove or canister. Move stove to a well-ventilated area away from
any ignition source to locate and stop the leak. Only check for leaks out-
doors using soapy water. Do not try to detect leaks using a flame.
• Only change the canister outside and away from people.
• Never use fuel canisters larger than 8 ounces (227 g) or more than 4 inches
(10 cm) in height, because oversized canisters increase stove instability.
• Check the seals before connecting a new fuel canister to the stove. Do not
use stove if seals are damaged or worn.
• Keep stove and fuel canister away from other heat sources. If you expose the
fuel canister to high heat, the canister will explode or leak and you can be
killed or seriously burned.
• Follow all warnings on fuel canister regarding use and storage.
TURN STOVE ON
1. Open Flame Adjuster Valve (about 1/4 turn) to release fuel.
Listen for hiss as fuel flows into Burner Head.
2. Click AutoStart Button quickly to ignite fuel.
Fuel ignition may take several clicks.
3. Turn Flame Adjuster Valve to desired flame setting.
Proper flame will appear blue.
NOTE: To light fuel without AutoStart, hold lit match/lighter near Burner
Ports and slowly open Flame Adjuster Valve.
OPEN
CLICk
WARNING
Never place your head or body above the stove while lighting, or cook-
ing. Because stove maintains an open flame, placement of head or body
above stove is an unsafe practice that can cause fire, burns, severe injury
or death.

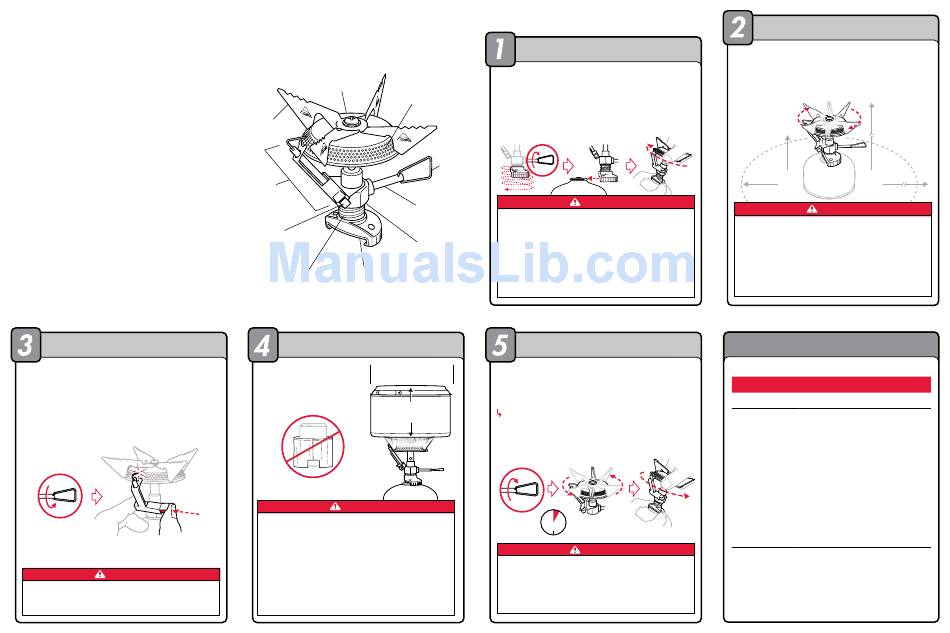

kNOW YOUR MSR SUPERFLY STOVE
® ™
Please familiarize yourself with the parts of your SuperFly stove and the following
instructions before connecting the stove to its fuel canister. Never use this stove in
any other way than is described in the following instructions.
Burner Head
Burner Ports
Pot Supports
AutoStart ™
Flame Adjuster
Valve
AutoStart
Button
Valve
Body
Multi-Mount ™
Threaded Stem
Grabber
(with O-ring Stop)
USE STOVE TO COOk
COOKWARE 8-in. (20.3-cm)
1. Add food or liquid to cookware.
DIA. MAX.
2. Place cookware onto the center of
the stove.
3. Turn Flame Adjuster Valve to
adjust heat.
5-in. (12.7-cm) HT. MAX.
8-lbs. (3.6-kg) WT. MAX.
NEVER USE WINDSCREEN
WARNING
Never move a burning or hot stove. Always extinguish stove and cool for
at least 5 minutes before moving. Moving a burning or hot stove can cause
fire, burns, severe injury or death. Never use cookware or an Outback
Oven™ with a diameter greater than 8 inches (20.3 centimeters). Never
place and operate two or more stoves together. Never operate stove with
empty or dry cookware. Never use non-MSR reflectors or diffusers. Use
®
of stove in any of the proceeding manners can result in the fuel canister
exploding and causing fire, burns, severe injury or death. Never use cook-
ware of any size that is ill-suited and/or inappropriate for use with stove,
particularly its pot supports (e.g., cookware with a convex or concave
bottom, some enameled cookware, etc.). Use of stove with ill-suited and/
or inappropriate cookware can result in cookware and/or stove instability
and a situation where hot cookware and/or cookware contents can spill
and cause fire, burns, severe injury or death.
SUPERFLY STOVE OPERATING INSTRUCTIONS
™
CONNECT STOVE AND CANISTER
The SuperFly stove attaches to fuel canisters differently than other stoves
because of its Multi-Mount technology.
™
1. Unfold Flame Adjuster.
2. Close Flame Adjuster Valve.
3. Screw Multi-Mount Grabber to the bottom of Threaded Stem.
4. Slide Multi-Mount Grabber under canister lip.
5. Hold Multi-Mount Grabber in place and finger-tighten stove until connec-
tion is secure.
Flame
Adjuster
CLOSE
WARNING
Never over tighten fuel canister to stove. Over tightening can damage
stove or canister causing fuel to leak. Leaking fuel can cause fire, burns,
severe injury or death.
Use extreme caution when using stove in temperatures below freezing. In
freezing temperatures O-rings can stiffen and leak fuel. Always check for
fuel leaks before and after lighting stove. Use of a leaking stove can cause
fire, burns, severe injury or death.
Keep children far away from stove and fuel—Cascade Designs, Inc. rec-
ommends no less than 10 feet (3+ meters). Never leave a burning or hot
stove unattended. An unattended stove can lead to fire and/or a situation
where children, pets, or the unwary can be burned, injured, or killed.
TURN STOVE OFF
1. Close Flame Adjuster Valve when cooking is done.
2. After flames are out, wait 5 minutes for stove to cool.
3. Fold Flame Adjuster.
4. Close Pot Supports.
5. Move stove assembly away from any ignition sources.
Hold Multi-Mount Grabber in place and unscrew stove from canister.
A small amount of gas may escape when unscrewing stove.
If canister is completely empty of fuel, follow proper disposal requirements
in your local area.
CLOSE
WAIT
5 MIN.
WARNING
Always disconnect stove from canister before storing it. Failure to discon-
nect stove from canister before storing may cause fuel to leak and cause
fire, burns, severe injury or death. Always store fuel canisters in a well-
ventilated location away from any possible heat or ignition source such
as: water heaters, stoves, pilot lights, or furnaces; or where temperatures
exceed 120 F (49 C). Storing fuel canisters near any heat or ignition
source or where temperatures exceed 120 F (49 C), can result in the can-
ister exploding and causing fire, burns, severe injury or death.
SET UP STOVE
1. Clear cooking area of combustible materials and flammable liquids or
vapors.
2. Place stove assembly on a solid, stable, even surface to ensure stability.
3. Rotate Pot Supports fully open.
Pot Supports should not touch AutoStart.
25-ft. (7.6-m) MIN.
4-ft. (1.2-m) MIN.
DISTANCE from
DISTANCE from
FLAMMABLE LIQUIDS/
COMBUSTIBLE MATERIALS
VAPORS
WARNING
Keep combustibles at least 4 feet (1.2 meters) away from the top and
sides of a burning stove, or a stove that you are in the process of lighting.
Keep flammable liquids and vapors at least 25 feet (7.6 meters) away
from the top and sides of a burning stove, or a stove that you are in the
process of lighting. This stove can ignite combustible materials, flammable
liquids and vapors creating a situation where fire, burns, severe injury or
death can result.
Never attempt lighting stove if flame adjuster valve is left open. If flame
adjuster valve is left open, close it immediately and thoroughly ventilate
area before lighting stove. Failure to ventilate area can result in an explo-
sion that can cause fire, burns, severe injury or death.
TROUBLESHOOTING
Problem
Poor Performance Cause Solution
Diminished flames Low fuel Replace canister
Stove does not light Cold canister Swap canisters
Windy conditions Shelter stove behind a
rock/natural barrier
Empty canister Replace canister
Damaged AutoStart Bend electrode closer
to Burner Ports (<3/16
in./4.8 mm)
Hold lit match/lighter
near Burner Ports and
slowly open Flame
Adjuster Valve
Replace AutoStart
Stove service must only be done by an individual authorized by Cascade
Designs, Inc. If you have any questions about these instructions, your stove,
replacement parts, or repairs, please contact:
Cascade Designs, Inc., USA - 1-800-531-9531 or 206-505-9500
Cascade Designs, Ltd., Ireland - (+353) 21-4621400
