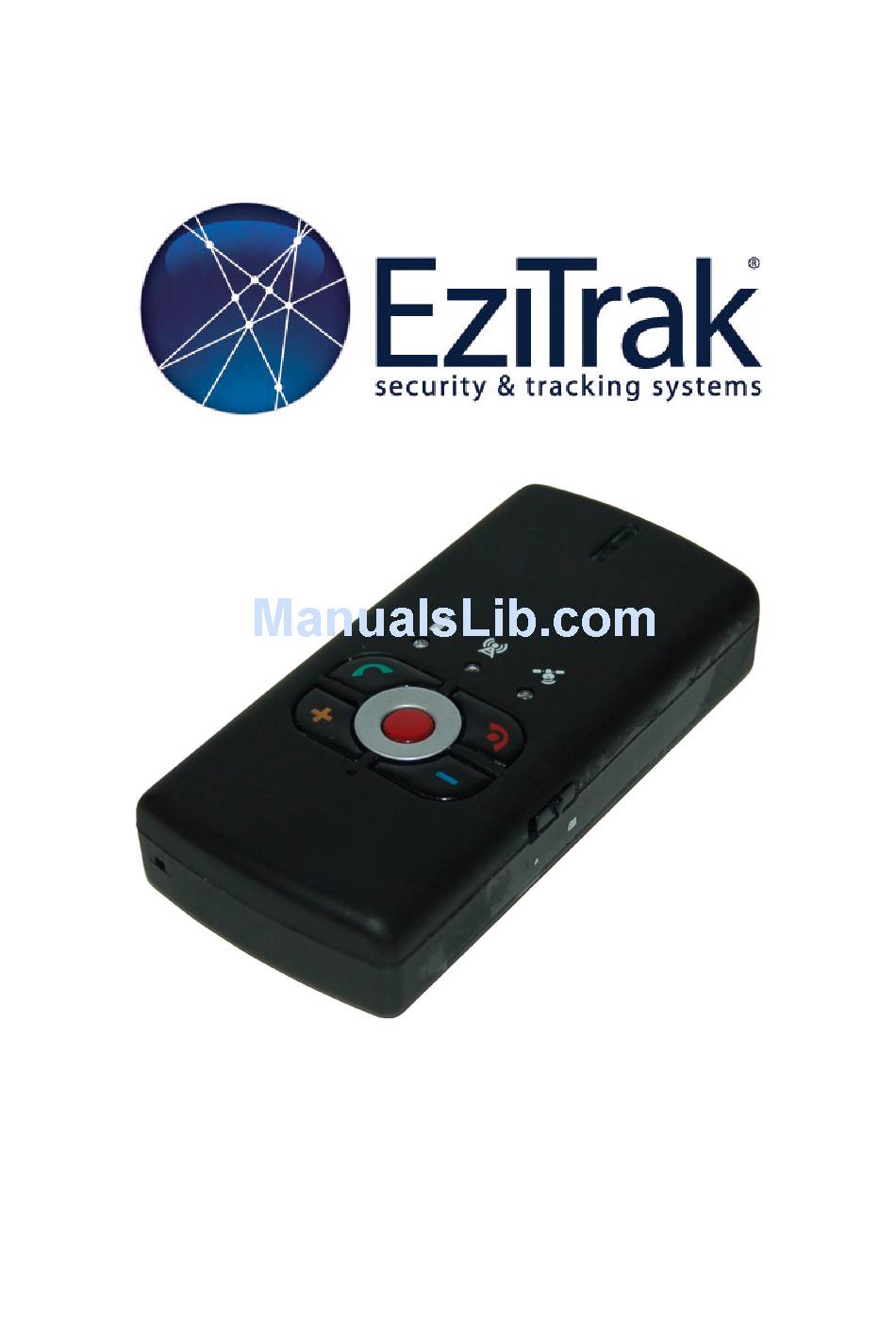

- Page 1 GH3000 User Manual v1.0...
-
Page 2: Table Of Contents
® EziTRAK GH3000 User Manual Contents Preface ................................5 Introduction ............................5 Protection of Copyrights ........................5 Contacts ..............................5 General Information ............................5 Package contents ..........................5 Defaults ..............................6 Getting Started .............................. 6 Insert SIM card, battery, attach a neck strap ..................6 Charging the battery .......................... - Page 3 ® EziTRAK GH3000 User Manual 8.2.1 Basic parameters.............................. 15 8.2.2 Cycle call method ............................. 15 8.2.3 GPRS or SMS method............................16 8.2.4 SMS method ..............................16 Call Function ............................... 16 Call function configuration ........................16 Call function activation ......................... 16 Answer incoming call ...........................
- Page 4 ® EziTRAK GH3000 User Manual 25.2.6 Configuration of Filter ............................26 25.2.7 Configuration of Man-Down options ........................26 25.2.8 Configuration of Parking ........................... 26 25.2.9 Configuration of Alarm ............................27 25.2.10 Configuration of Send Alarm by GRPS ......................27 25.2.11 Configuration of Send Alarm by SMS ......................
-
Page 5: Preface
1 PREFACE 1.1 Introduction GH3000 is a device with built-in function characteristics of a mobile phone and an integrated A-GPS receiver. This device is intended for the surveillance and protection of people, cargos and other objects. The A-GPS receiver will find the current location of the device and will sends this data via SMS or via data to the online tracking server. -
Page 6: Defaults
® EziTRAK GH3000 User Manual 2.2 Defaults The device automatically saves its position data in to the memory and has other default configuration. Periodical logging interval Every 20 sec. Configuration password 0000 Device name Rojone AGPS option Enabled Alarm method... -
Page 7: Charging The Battery
Note! GH3000 should be fully charged (100%). If charged not fully (less than 95%) indication of the battery discharge level can be not accurate. version 1.0... -
Page 8: Getting To Know The Device
® EziTRAK GH3000 User Manual 4 GETTING TO KNOW THE DEVICE 1. LED indicators - Indicates the status of device. 2. Speaker 3. Icons 4. Alarm button - Activates the alarm function. 5. End call button - Turn device on and off, cancel call. -
Page 9: Quick Device Configuration Via Sms
® EziTRAK GH3000 User Manual 5 QUICK DEVICE CONFIGURATION VIA SMS You can configure the device by sending special SMS commands. If an SMS command has been received and accepted then the device will reply with a special confirmation SMS, otherwise the device will not reply at all. -
Page 10: Change Periodical Data Logging
® EziTRAK GH3000 User Manual 5.3 Change periodical data logging By default device is logging its position in the memory every 20 seconds. We recommend that the logging period is not set under 5 seconds as this will use more data as more records are sent to the server. -
Page 11: Change Keyboard Settings
® EziTRAK GH3000 User Manual 5.5 Change keyboard settings Every key on the device keyboard has a number and can be configured to make a call to the determined phone number. By default Key1, Key2, Key3 and Key4 do not have any set functions. The Key5 is already set to turn alarm on (Panic Button). -
Page 12: Battery Charge Level Notification
® EziTRAK GH3000 User Manual 5.8 Battery charge level notification If you would like to be informed about the battery charge level then the battery notification function has to be configured first. By default this function is on and set to 10%, but you need to set the message destination number if you want a SMS alert and not just the warning tone from the unit.. -
Page 13: Device Monitoring
® EziTRAK GH3000 User Manual 6 DEVICE MONITORING 6.1 Review device location on the map Step 1 You can use the free map through the EziTrak® web site by going to www.ezitrak.com:8090/maps/locator.php Alternatively you can install Google Earth from the internet. It can be found at http://earth.google.com/download-earth.html... -
Page 14: For Your Safety
® EziTRAK GH3000 User Manual 7 FOR YOUR SAFETY Please read these basic recommendations. In disregarding them you may face danger or trespass existing laws. In case you wish to have more information, please read the brief user manual. 7.1 Switch on safely Do not switch on the device where it is prohibited to use a mobile phone or when such use may cause disturbances or a danger. -
Page 15: Safely Disconnect The Device
The device may be disconnected from the PC or charger by pulling out the USB cable from the computer USB socket or by pulling out the micro USB cable from GH3000. To avoid mechanical damages, it is advisable to carry the equipment in a shock proof package. The operation environment of the device has effect on its communication quality. -
Page 16: Gprs Or Sms Method
® EziTRAK GH3000 User Manual 8.2.3 GPRS or SMS method To configure this alarm method you need to configure data logging period, alarm duration time, SMS messages sending period and create a phone number list. Basically this method works only with GPRS, SMS method helps if there are some problems with server or GPRS and transferring data to server becomes impossible. -
Page 17: Authorised Incoming Call
The user can set the SMS using Track Assistant software. By default device sends: Message identification word (FIX!), device id (GH3000), IMEI number (IMEI), time (Time), device location (Fix), number of visible satellites (Sat), operator code (Op), GSM station number (Cell), GSM signal level (Sign_Lvl) and battery charge level. -
Page 18: Gps Function
® EziTRAK GH3000 User Manual 15 A-GPS FUNCTION Assisted GPS, generally abbreviated as A-GPS, enhances the start-up performance of a GPS satellite-based positioning system under poor GPS visibility conditions (when only 2 satellites are visible). In all other cases A-GSP may lead to additional GPRS-traffic costs and processing time due... -
Page 19: Minute Minder
® EziTRAK GH3000 User Manual 20 MINUTE MINDER The device beeps every minute, thus informing you of the call duration. 21 PARKING FUNCTION This function allows you to know if your assets are moving out of its safety zone. This function is like an auto Geo-Fence where an invisible 200m zone is created around the unit. -
Page 20: Special Sms Requests
SMS to the requesting person. Example: The requesting person sends an SMS with the content FIX? The device receives such an SMS message and will send back a status SMS. – GH3000 turns on the GPS receiver (if satellites are available), gets its location and sends it (in FIX? case of reception) to the requesting person. -
Page 21: Sms Configuration Protocols
® EziTRAK GH3000 User Manual 25 SMS CONFIGURATION PROTOCOLS Device configuration via SMS messages Device has unique ability to communicate through SMS without any physical connection. Device configuration can be changed via SMS messages. There are 2 types of configuration: fast (easy) and advanced configurations. -
Page 22: Change Alarm Settings
® EziTRAK GH3000 User Manual 25.1.4 Change Alarm settings There are three alarm modes in which device can work: M1 – SMS mode, M2 – Call mode and M3 – GPRS or SMS mode. For more details about these modes please read chapter Alarm function. -
Page 23: Change Parking Settings
® EziTRAK GH3000 User Manual 25.1.7 Change parking settings The minimum radius of parking zone is 200 meters. If you use configuration message without the radius, device will set the radius to its default one, or to the radius which was set in the last device configuration. -
Page 24: Advanced Sms Configuration
® EziTRAK GH3000 User Manual 25.2 Advanced SMS Configuration 25.2.1 Advanced SMS writing rules • Default configuration password is <0000> • SMS message length 160 symbols • Each command in same message is separated by semicolon—(;) • Configuration command from parameters must be separated by colon—(:) •... -
Page 25: Configuration Of Periodical Tracking By Sms
® EziTRAK GH3000 User Manual 25.2.4 Configuration of Periodical Tracking by SMS Settings Group Configuration command Periodical Tracking by PSW:<password>;CFG1;PTS:<p1>,<p2>,<p3><p4>;RST Action Parameter Value Description Enable Periodical <p1> 0 – 1 Enable – 1, Disable – 0. Default – 0. tracking by SMS SMS sending interval in seconds. -
Page 26: Configuration Of Agps Options
® EziTRAK GH3000 User Manual Call Terminated! Name:<id>; Time:<local_time>; 14 – Configuration changed Configuration changed! Name:<id>; Time:<local_time>; N<sms_id>; 15 – Charge battery Charge BATTERY! Name:<id>; Time:<local_time>; Live:<up_time>; BatLvl:<bat_level>; 16 – Cross! Cross! ID:<id>; Time:<local_time>; GeoZone:<geo_name>;<geo_cross>; Lat:<fix_lat>; Lon:<fix_lon>; CellId:<cell_id>; Default – 1. -
Page 27: Configuration Of Alarm
® EziTRAK GH3000 User Manual 25.2.9 Configuration of Alarm Settings Group Configuration command Alarm PSW:<password>;CFG1;ALM:<p1>,<p2>,<p3>,<p4>;RST Action Parameter Value Description Alarm duration time <p1> 1 – 2592000 Seconds. Default – 300. Pre alarm delay <p2> 0 – 65535 Seconds. Default – 0. -
Page 28: Configuration Of Send Alarm By Call
® EziTRAK GH3000 User Manual 25.2.12 Configuration of Send Alarm by Call Settings Group Configuration command PSW:<password>;CFG1;AM3:<p1>,<p2>,<p3>,<p4>,<p5>,<p6>,<p7>, Send Alarm By Call <p8>,<p9>;RST Action Parameter Value Description No Answer time out <p1> Seconds 10 – 180s. Default – 30 Numbers <p2>-<p6>... -
Page 29: Configuration Of Gsm
® EziTRAK GH3000 User Manual SMS send: 120 - for key0 122 - for key1 124 - for key2 126 - for key3 128 - for key4 0 - No action 64 - Hang up Incoming Call <p5> 0, 64, 66... -
Page 30: Configuration Of Action On Call
® EziTRAK GH3000 User Manual 25.2.17 Configuration of Action On Call Settings Group Configuration command Action On Call PSW:<password>;CFG1;AOC<n>:<p1>,<p2>;RST Action Parameter Value Description 7 – Alarm on 20 – Alarm off 24 – Alarm Switch 30 – SMS Track on 31 –... -
Page 31: Configuration Of Connections & Data (Gprs)
® EziTRAK GH3000 User Manual 25.2.19 Configuration of Connections & Data (GPRS) Settings Group Configuration command GPRS PSW:<password>;CFG1;GPRS:<p1>,<p2>,<p3>,<p4>,<p5>;RST Action Parameter Value Description Enable GPRS <p1> 0 – 1 Enable – 1, Disable – 0. Default – 0. Hold Server Connection <p2>... - Page 32 ® EziTRAK GH3000 User Manual 3 – LED & Audio 4 – Vibrator 5 – LED & Vibrator 6 – Audio & Vibrator 7 – LED, Audio & Vibrator 0 - Disable 1 – LED 2 – Audio 3 – LED & Audio Incoming Call <p8>...
- Page 33 ® EziTRAK GH3000 User Manual 10 – Audio & SMS 11 – LED, Audio & SMS 12 – Vibrator & SMS 13 – LED, Vibrator & SMS 14 – Audio, Vibrator & SMS 15 – LED, Audio, Vibrator & SMS Low battery level 0 –...
-
Page 34: Configuration Of Date And Time
® EziTRAK GH3000 User Manual 25.2.23 Configuration of Date and Time Settings Group Configuration command Date and Time PSW:<password>;CFG1;TIME:<p1>,<p2>;RST Action Parameter Value Description Change Time Zone e.g. 3.5 is GMT +3:30 (Tehran). (Daylight Saving <p1> -12 up to +13 Default – 0 Disabled) %Y –... -
Page 35: Configuration Of Sms Table
® EziTRAK GH3000 User Manual 25.2.26 Configuration of SMS Table Settings Group Configuration command PSW:<password>;CFG1;ST:<p1>,<p2>,,,<p5>;RST Action Parameter Value Description SMS ID number: 0 – for key0 or for first function 2 – for key1 or for second function ID number <p1>... -
Page 36: Status Indicators
® EziTRAK GH3000 User Manual 26 STATUS INDICATORS If you wish to find out in which mode and what the device is doing at the time, observe as carefully as possible the status of the three indicators. Each status indicator consists of 2-colored LED’s - one of which is indicating a failure (red) and the other one is indicating a process in progress (green). -
Page 37: Device Characteristics
® EziTRAK GH3000 User Manual 27 DEVICE CHARACTERISTICS 27.1 Specifications of the device Specification GPS Receiver uBlox 50-channels Sensitivity Indoor GPS: -160 dBm Internal Antenna Patch GSM frequencies Dual-Band 900/1800 or 850/1900MHz Vibro Keyboard 5 keys Keyboard lock Battery 1050mAh (Li-ion) -
Page 38: Battery Life Time
® EziTRAK GH3000 User Manual 27.2 Battery life time Transmissions per 24 hr. 1440 1440 Fixes per 24h 17280 1440 Duty cycle 100% Life Time (hr.) >6 27.3 Electronic specification Parameter Min.(avg.) Norm. (avg.) Max. (avg.) Supply voltage 4.5V DC 5V DC 5.5V DC... - Page 39 ® EziTRAK GH3000 User Manual All these recommendations are equally important for your device, battery, charger and any other supplement. If any of the devices do not function properly, bring it for examination to the nearest authorised repair centre. This sign on the packaging means that the electric and electronic equipment to be utilised must be stored separately.
