3.5" TFT LCD CCTV Service Viewer
LCD35SV is a type of product that summarizes views of first-line safety engineers and
it is developed specially for technical personnel to debug the front camera
conveniently. It has some functions, like on-site access to camera images and
providing temporary 12V DC power supply for the camera. The product is built with
18650 lithium battery, providing powerful and reliable power supply for the device,
along with the function that it will shut down automatically without video signal for 3
minutes. All the master controls use ultra low power decoder chips and MCU, providing
eight hours of long working time. LCD35SV is a practical tool for security project
commissioning and maintenance technicians.
Features
PAL / NTSC standard automatic detection
Display format RGB 320 x 240
6 hours operation time
Provide power to 12V DC / 300mA camera
Audio and video input
USB universal charging interface
Battery save sleep mode - 3 minutes
Battery over charge protection
Lithium Battery: 3.7V DC, 2200mA
Copyright © 2012 by AAS Technology
www.AAS.com.tw

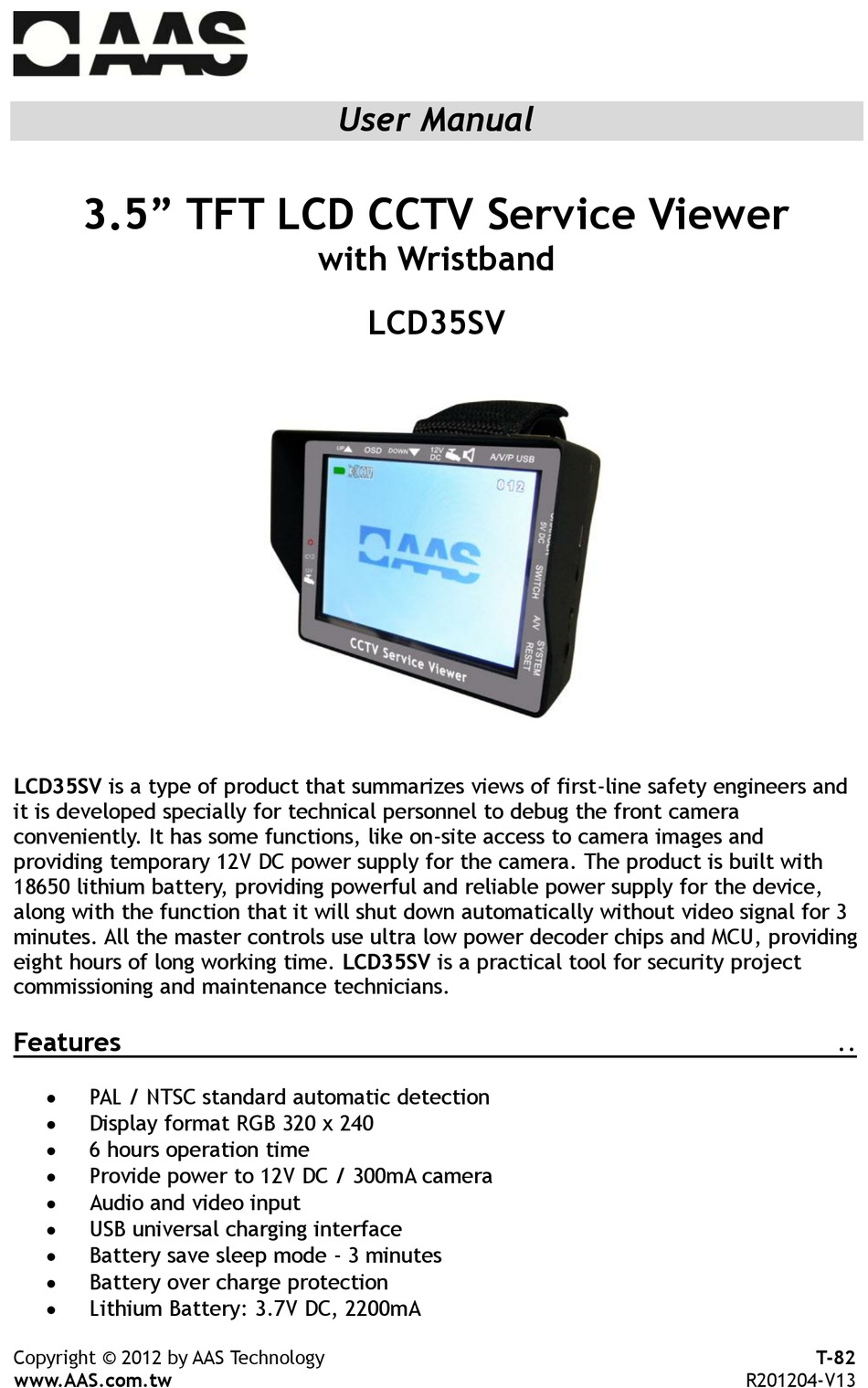

User Manual
with Wristband
LCD35SV
..
T-82
R201204-V13
Advertisement
Table of Contents
Related Manuals for AAS LCD35SV
Summary of Contents for AAS LCD35SV
- Page 1 Wristband LCD35SV LCD35SV is a type of product that summarizes views of first-line safety engineers and it is developed specially for technical personnel to debug the front camera conveniently. It has some functions, like on-site access to camera images and providing temporary 12V DC power supply for the camera.
- Page 2 Please read the Manual before attempting to use this product. Specifications and appearance are subject to change without notice. Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems). This symbol on the product or on its packaging indicates that this product shall not be treated as household waste.
- Page 3 5. Cleaning Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before cleaning. 6. Servicing Do not attempt to service this product by yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all service to qualified servicing personnel.
- Page 4 Parts & Functions DO NOT plug the A/V Cable into the 12V DC Out to Camera port! It will damage the center pin because the pin is fragile and easily damaged when pushed by force. Battery Charging: This product uses the 18650 lithium battery. When the electric quantity of the battery is less than 10%, the power light will flash, indicating that the device can hold for one hour.
- Page 5 According to USB compatibility, a high-quality cell phone charger (do not use low-quality cell phone charger), or plug it into a computer's USB port to charge the equipment. When charging, the battery LED indicator will blink green and the ON power LED indicator will blink red.
-
Page 6: Technical Specifications
Technical Specifications Model LCD35SV Display TFT 3.5 inch Shell Materials Engineering ABS plastic Battery 18650 lithium battery 3.7V DC, 2200mA ≤ 0.8 (12V emergency power does not open Power Consumption Charger 5V DC / 1A Emergency Power Output 12V DC / 200mA... - Page 8 MADE IN CHINA Copyright © 2012 by AAS Technology T-82 www.AAS.com.tw R201204-V13...
