Introduction

Welcome
The 2, 5, 7, and 10 button Chilli Control Panels from
Cooper Controls provide an elegant solution. These
buttons are used to output a memory or sequence which
has been previously programmed into the Chilli / Spice
dimmers on the network or to turn the outputs off.
Where fitted, raise, and lower buttons compliment the
usual selection buttons to allow immediate changes to
the intensity of any memory.
An optional infrared remote control allows similar
functionality from anywhere within the room via the
detector built into the front panel of the Chilli Control
Panel (2, 5, and 7 button only). The Chilli Control Panel
is connected to the dimmers using a Chilli Network
connection.

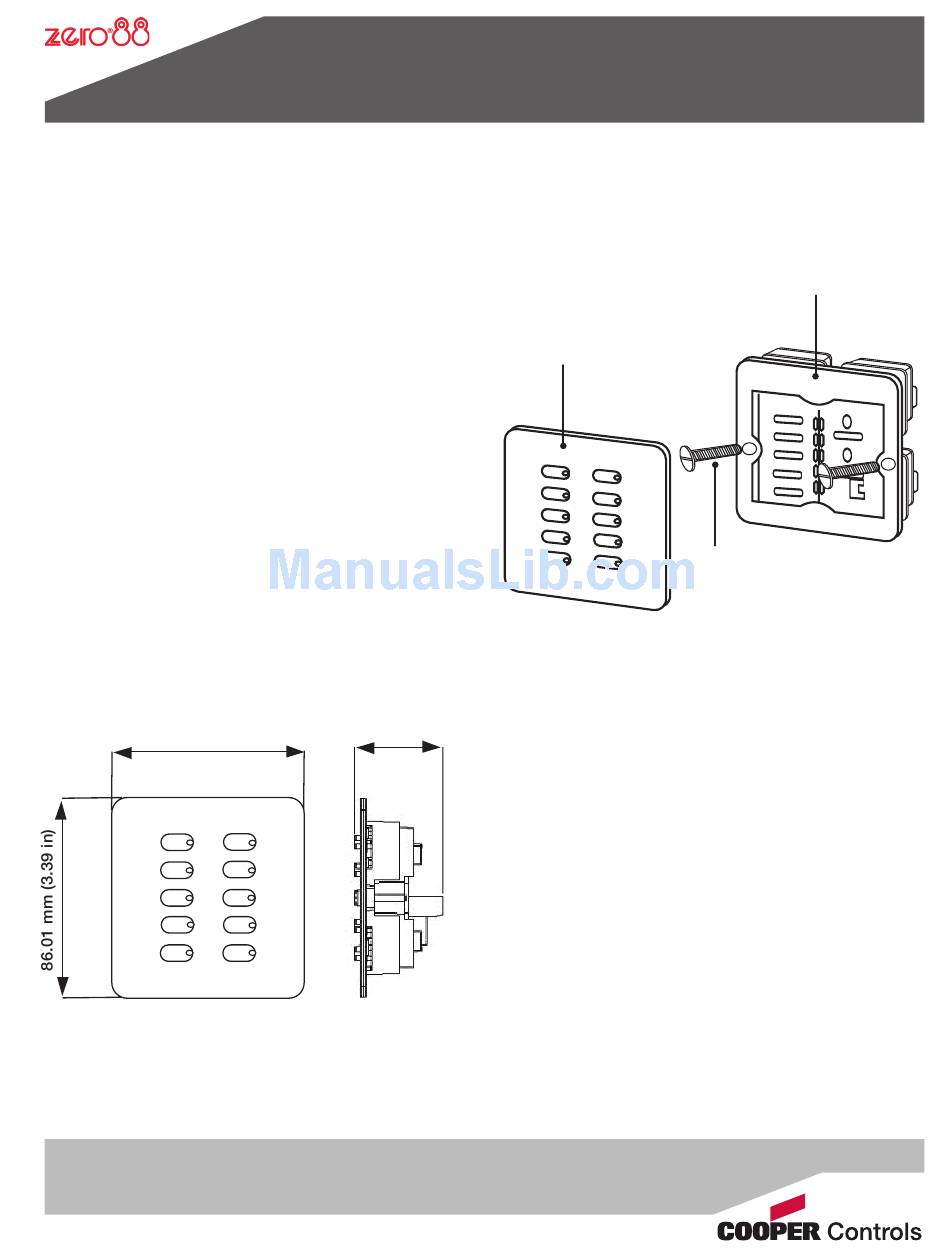

Dimensions
86.01 mm (3.39 in)
Chilli Control Panel

Installation guide

39.01 mm
(1.54 in)
Supplied parts
Front cover
Fixing to a wallbox
The Chilli Control Panel fits into standard single gang
47mm deep UK backbox. Backboxes available from
Cooper Controls.
Series 3 Panels (Clip-on Cover)
Use the screws provided to attach the panel to the
backbox before clipping the front cover onto the
assembly.
Main body
Screws

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2 Chilli Control Panel and is the answer not in the manual?

Questions and answers

Summary of Contents for Cooper Controls 2 Chilli Control Panel

  • Page 1: Installation Guide

    Chilli Control Panel Installation guide Introduction Welcome Supplied parts The 2, 5, 7, and 10 button Chilli Control Panels from Cooper Controls provide an elegant solution. These Main body buttons are used to output a memory or sequence which has been previously programmed into the Chilli / Spice dimmers on the network or to turn the outputs off.
  • Page 2 Control Wiring Termination Chilli Network The Chilli Network is a ‘daisy chain’ protocol that requires The Chilli Control Panel uses Chilli Network connections termination on the device located at either end of the to ensure reliable and responsive transfer of control chain.
  • Page 3 Operation Startup When a Chilli Control Panel is powered up the LEDs in all the buttons will flash once and then go off. The panel then goes into its default state with all the button LEDs off, except for the 10 button panel in which the “1-6”...
  • Page 4 Raise and Lower Buttons The 7 button Chilli Control Panel has Raise and Lower buttons which are used to adjust memory output levels. The Raise and Lower buttons only affect the relevant dimmer channels on the network if memory 1, 2, 3, or 4 for the corresponding area is currently being output.
  • Page 5 Network Locking All control panels can be remotely locked and unlocked from a Master Controller via the network. Manual Locking The 10 button Chilli Control Panel can be locked and unlocked manually. To Lock: press and hold the “1-6” and “7-12” buttons together for approximately 5 seconds, until all 10 lights in the buttons will turn on to indicate that the lock state has changed.
  • Page 6 Fax: +44 (0)1633 867880 www.zero88.com All products manufactured by Cooper Controls and identified with the Zero 88 brand are warranted to be free from defects in material and workmanship and shall conform to and perform in accordance with Seller’s written specifications.
