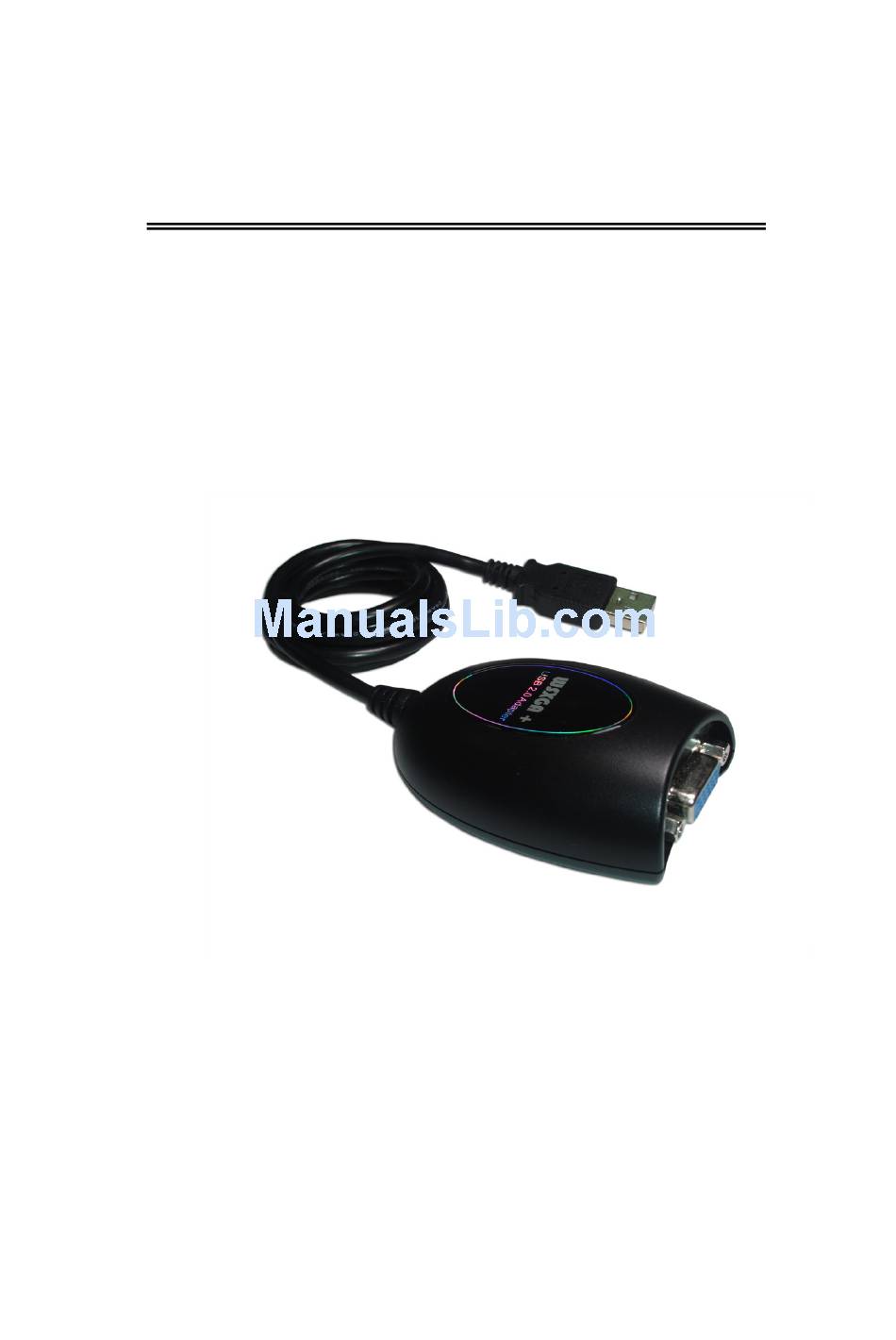

- Page 1 USB 2.0 to WSXGA+ Adapter User’s Manual 1-23...
-
Page 2: System Requirements
Introduction Thank you for purchasing USB to WSXGA+ Adapter. This Adapter enables you to connect one display devices (CRT/LCD monitor, projector) to your desktop or notebook PC. The connected display can act as mirrored or extended desktop of the main display on your PC. The flexibility of the common USB 2.0 technology saves the need to open the computer or struggling with compatibility issues related to the VGA card. -
Page 3: Supported Common Display Resolution
60Hz 1680 x 1050 16bit, 32bit 60Hz 1600 x 1200 16bit, 32bit 60Hz Technical Specifications Model No. UTV-100A1 Input USB Type A Male Connectors Output HD-15 Female Power Source Bus Powered Video Resolution 1680 X 1050 (32 bits) @ 60Hz... - Page 4 INSTALLATION ON WINDOWS 2000 / XP / VISTA / 7 & 8 Device Driver Installation Installing the device driver enables your computer’s operating system to recognize the USB to WSXGA+ Adapter once it’s connected. Please check your operating system and refer to the appropriate installation procedure to begin installing the device driver.
- Page 5 Step 4. The Microsoft Software Installation Certificate warning dialogue box, please select “Continue Anyway” to continue with the device driver installation. This will not affect the device driver installation and the device usage. Step 5. Setup is Searching for installed features……. *you may notice the screen flashes during hardware installation.
- Page 6 Notebook. ‧ When the Hardware installation Wizard dialog, please Click “ Continue Anyway” to complete the Hardware Wizard. The setup is completely now, and you will see an icon on the lower right taskbar, and the extended display will be shown on the attached display device. You may begin to use the USB DISPLAY ADAPTER with your display device Step 8.
-
Page 7: Verifying Device Driver Installation
VERIFYING DEVICE DRIVER INSTALLATION The following procedure allows you to verify the device driver installation. Please right click “My Computer”→ “Properties”→“Hardware” → “Device Manager”. Plug-in the USB to WSXGA+ Adapter, then double click “Display adapters”, and “Universal Serial Bus controllers”. It will show the new directions as below, Begin verification by make sure highlighted devices were added to the system. - Page 8 Begin verification by make sure highlighted devices were added to the system. (Multiple USB Display Adapter) 8-23...
-
Page 9: Device Driver Un-Installation
Device Driver Un-installation Step 1. Start menu: Click “Start” → “Control Panel” → “Add or Remove Programs” Select “ USB Display Device (Trigger 1+) 9.xx.xxxx.0159” (driver ver.),Click “Remove” button. Step 2. Unplug the USB to WSXGA+ Adapter and click “OK” to continue. Step 3. -
Page 10: Installation On Windows Vista
INSTALLATION ON WINDOWS VISTA / 7 / 8 Device Driver Installation. Installing the device driver enables your computer’s operating system to recognize the USB to WSXGA+ Adapter once it’s connected. Please check your operating system and refer to the appropriate installation procedure to begin installing the device driver. This section illustrates the simple device driver installation procedure for computer running Windows Vista / 7 / 8 operating system. - Page 11 Step 4. Windows Security warning dialogue box under Windows Vista / 7 / 8, it will not affect the device driver installation and usage the device. Please select “Always trust software from “Magic Control Technology Corp.”, then click “Install” to continue. Step 5.
- Page 12 Step 8. INSTALLATION OF MULTIPLE USB to WSXGA+ Adapter Please plug the additional USB to WSXGA+ Adapter into another available USB 2.0 port of your PC or Notebook The setup process will begin automatically. You may see below notification balloons for each additional To make sure the USB Display Adapter worked correctly, please reboot the computer after finished the installation.
- Page 13 VERIFYING DEVICE DRIVER INSTALLATION The following procedure allows you to verify the device driver installation. Please right click “Computer” → “Properties” → “Device Manager”. Plug-in the USB to WSXGA+ Adapter, then double click “Display adapters”, and “Universal Serial Bus controllers”. It will show the new directions as below, Begin verification by make sure highlighted devices were added to the system.
- Page 14 Begin verification by make sure highlighted devices were added to the system. (Multiple USB Display adapters) 14-23...
- Page 15 DEVICE DRIVER UN-INSTALLATION Step 1. Click “Start” →“Control Panel”. Under “Programs and Features” click “Uninstall or change a program” Look for “ USB Display Device (Trigger 1+) 9.xx.xxxx.0159” (driver ver.) Click “Uninstall” button. Step 2. Unplug the USB to WSXGA+ Adapter and click “OK” to continue. Step 3 Select “Yes, I want to restart my computer now”...
-
Page 16: Function Description
FUNCTION DESCRIPTION This section describes several friendly functions provided by the USB to WSXGA+ Adapter designed to ease your single or multiple USB display experience. A display device described in this section means devices such as CRT, LCD monitor, TV display, projector. ACCESS ADAPTER UTILITY Make sure the USB to WSXGA+ Adapter is attached to the PC. -
Page 17: Display Rotation
DISPLAY ROTATION 4 options available: “0°, 90°, 180°, 270° under the Extended or Primary display modes. It is a useful function for some rotated display device. DISPLAY MODES “EXTENDED” DISPLAY MODE (DEFAULT) A default display mode; this feature allows the attached USB Display enabled display device to work as “Extended”... -
Page 18: "Primary" Display Mode
The screen resolution setting on the USB Display enabled device will follow the on-board screen’s resolution. For example, if the on-board screen’s resolution is 1024x768x32bit, and the USB Display enabled device will set as the same resolution. “PRIMARY” DISPLAY MODE A unique feature to allow USB Display enabled device to act as the main working display. -
Page 19: Identify Monitors
“OFF” DISPLAY MODE This option disables the video output from USB to WSXGA+ Adapter IDENTIFY MONITORS Easy display identification via a serial number will be showed on the upper right corner of all attached display devices. MULTI-DISPLAY CONTROL PANEL A unique feature to allow much quicker and simpler working experience under multi-display environment. -
Page 20: Display Settings
The default setting of hotkeys can be found on the Hotkey List of “Multi-Display Control Panel” For example: Ctrl + 2 means: to move the window to the Display 2. DISPLAY SETTINGS Fast access to the system “Display Settings”. 20-23... - Page 21 Q & A This section describes the common Q&A regarding to the installation or operation of the USB to WSXGA+ Adapter.. Q: Why can’t I make the USB to WSXGA+ Adapter the primary display? A: Some video cards ship their product with a utility that prevent other video cards from being set as the primary card.
-
Page 22: Troubleshooting Tips
TROUBLESHOOTING TIPS This section describes the general troubleshooting tips regarding to the installation or operation of the USB DISPLAY DEVICE. Known Issues - Windows Vista Aero mode support will be available at MP version driver update (WDDM). ▓ WDDM driver update is also aimed to resolve most of video playback compatibility issue under Windows Vista. - Page 23 - Video/Media players have different decoding capability under different display modes. For better performance on watching DVD or certain video format on the USB graphics device attached display, it is recommended to use the following license free software. VLC Media Player: http://www.videolan.org/vlc/ Media Player Classic: http://sourceforge.net/projects/guliverkli/...
