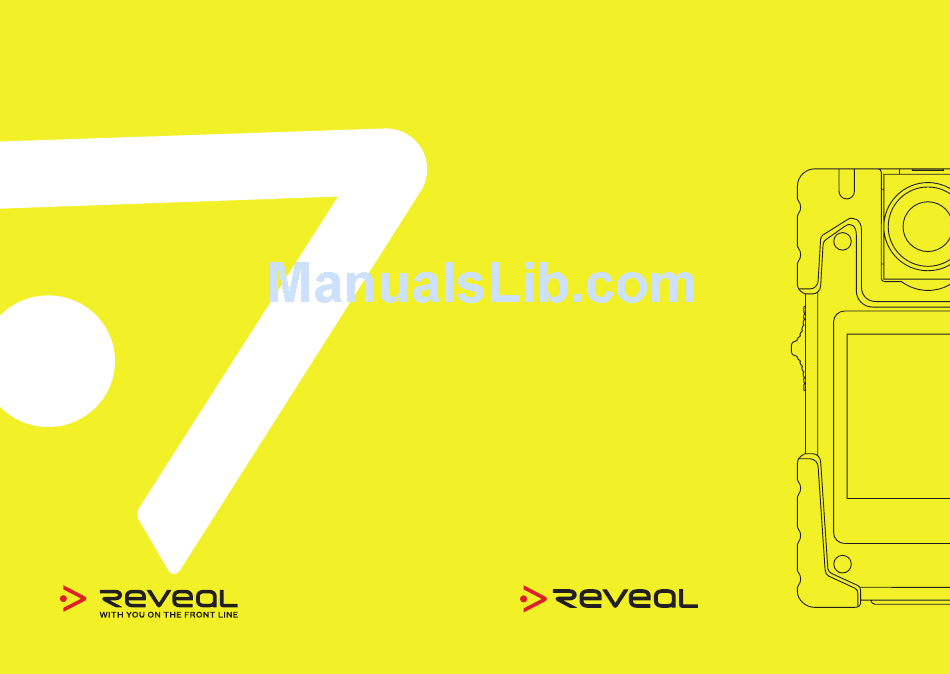

- Page 1 RS1 - SX With you on the front line Quick Start and User Manual REVEALMEDIA.COM...
-
Page 2: Quick Start
Quick start Quick start Charge Charge the camera for three hours or until the charging light turns green. Introduction Mount Welcome to our most Choose how to mount straightforward body camera. your camera; you can For your convenience, the use either the Klickfast camera is set up and ready to attachments, clips or a go in three easy steps. - Page 3 Quick start Quick start Charge Mount Open the cover on the Take your chosen clip system and slot side of the camera into place ensuring the 2 plates on the clip are between the 3 plates on the back of the camera and align the holes. Place the screw through the top hole in the clip and tighten at the desired angle.
-
Page 4: Operation
Quick start Operation Record Camera articulation Simply pull down the red sliding switch to record. CAUTION: DO NOT OVER ROTATE! The camera will beep The camera head rotates three times to let you 110 degrees vertically. know it is recording. In addition, the LED light will be flashing red, and the red recording light... -
Page 5: Microsd Card
Operation Operation Charging via USB (off when charged) Recording (flashing) On when connected to PC (via USB) Micro SD Flashing •REC 3050 MB Card space MicroSD Card record remaining indicator (up to 32Gb) * Recordings will stop automati- cally when full Date 2014-09-11 YY-MM-DD... - Page 6 Editing settings options Editing settings options 1. Connect RS1 - SX to 4. This will launch the first of two screens. Follow the your computer’s USB instructions on these screens. and turn on the camera. 1. Select the RS1 - SX camera you want to change settings on 2.
- Page 7 Editing settings options Editing settings options The following settings can be Once you have rebooted the RS1 - SX, you will see the following setup utility. Please enter the default password of changed by running the RS1 - SX “admin” to access the utility. setup utility Date and time (this takes the time from your PC so please ensure your PC’s clock is accurate)
- Page 8 Mounting and usage options Mounting and usage options Chest Mount Harness Attach with Klickfast or clip onto chest for the For use with loose most popular mounting fitting clothes or option. uniforms. (optional extra) Table top Lanyard For use in interviews For use in a non-con- and other static frontational environ-...
