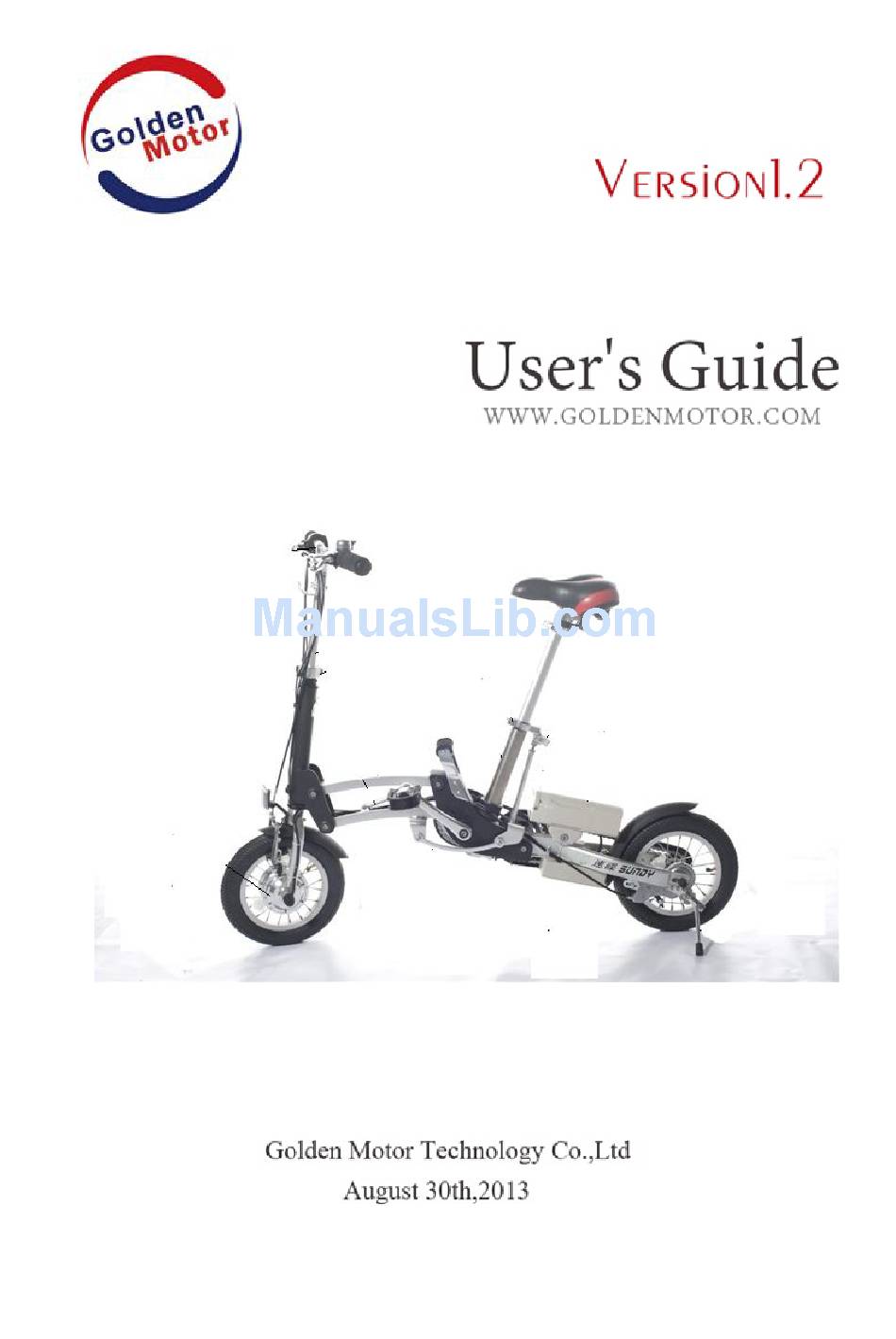

- Page 1 E-bike Shrinker...
- Page 2 PRECAUTIONS Thank you for buying E-bike Shrinker.We hope it brings you many hours of enjoyment and safe riding. For safe and compact shipping, some parts have been detached from E-bike Shrinker.Some Shrinker assembly is required before you can begin riding.
-
Page 3: Table Of Contents
5.5 Wheel Hub Tightening Adjustment 5.6 Adjustment of Chain 5.7 Assembly of the Pedal 6 CARE AND MAINTENANCE 7 MAIN TECHNICAL PARAMETER AND PERFORMANCE INDEX 8 E-CIRCUIT DIAGRAM OF THE E-BIKE SHRINKER 9 RETURN AND REPAIRS 10 WARRANTY 10.1 How the warranty applies... - Page 4 10.2 How the warranty does not apply 10.3 How the warranty works...
-
Page 5: Basic Structure Fig. And Name
E-bike Shrinker User’s Guide 1 Basic Structure fig. and Name Before assembly and riding ,please check and familiarize yourself with all the parts below: 11: Support Lock end 1: Saddle 12: Arc Link 2: Middle Seat Post 13: Top Four-bar link... -
Page 6: Operation-Process
E-bike Shrinker User’s Guide 2 Operation-process 2.1 Folding process Hold ③ and⑥ together by one hand, after they are in touch closer fold state, ② will slid down to the bottom automatically，and then lift ④ up quickly，by your hearing the sound of “click”, it means that⑤ is in locked status. Folding process is... -
Page 7: Unfolding Process
E-bike Shrinker User’s Guide 2.2 Unfolding process Lift the saddle①, let ③and ⑥ rise back in their right place， and then kick ⑨ back softly, the frame of the Shrinker will be pulled open quickly. Keep attention: Before riding, you must check whether ⑥ has been opened to its right position. -
Page 8: Attention Details During Your Riding
E-bike Shrinker User’s Guide the charger will shows red, that means the charger is on working. When the LED becomes green, it means the battery is fully charged. When you finished the charge work, please first take off the charger’s plug from the e-power source, and then depart the connector between the battery and the charger. -
Page 9: Adjustment Of Main Parts
E-bike Shrinker User’s Guide please pull out the seat post for its right height, after that lock the quick-release fastener ①. Adjustment of Main Parts 5.1 Handlebar Adjustment See in reference illustration A: · Insertion depth of the stem can not be less than the Minimum depth, to make sure that the safety line on the stem are invisible. -
Page 10: Front Brake Adjustment
E-bike Shrinker User’s Guide 5.3 Front Brake Adjustment See in reference illustration B: First let the single side touching, loose the terminal screw a little, there are three holes on the board, when moving up the spring, the elasticity will be raised to make the gap between brake and rim become bigger and vice versa. -
Page 11: Adjustment Of Chain
The screw thread direction of left Pedal is left-hand thread; its lock direction is shown as photo G. ▲ Please carefully read the manual before riding your E-bike Shrinker; please do not lend out your Shrinker to the persons who does not know the details. * Note：... -
Page 12: Care And Maintenance
E-bike Shrinker User’s Guide 5) During your Shrinker parking steady, please do not turn on the right switch throttle grip purposeless, it can cause a large start e-current, that may damage your Shrinker battery. If somebody often steadily starts your Shrinker e-bike like the above, it may limit the battery cycle lifetimes. -
Page 13: Main Technical Parameter And Performance Index
E-bike Shrinker User’s Guide the accident by the water dip into the electric parts and spare wire. Apply lubrication periodically (once per three months) in the following sections as: chain, freewheel,rear brake, head parts, kickstand, etc. if necessary. Main Technical Parameter and Performance Index 1.12’’... -
Page 14: Circuit Diagram Of The E-Bike Shrinker
E-bike Shrinker User’s Guide E-circuit Diagram of the E-bike Shrinker 9 Return and Repairs We offer a flexible 7 day return policy and are happy to accept items back for a refund or exchange if the items are damaged or faulty upon receipt or you simply don't like what you've ordered. -
Page 15: Warranty
Damage through abuse, neglect or accident Assembly in disregard of instructions in this manual. Repairs by persons other than Golden Motor Authorized Dealers. (If you need local repair and a Golden Motor dealer is not nearby, contact us for assistance in authorizing repair). - Page 16 E-bike Shrinker User’s Guide The battery pack is used incorrectly or damaged. This also applies to improper charging. Compensatory costs arising from damages or accidents, or cost incurred by loss of the bicycle’s usage. This warranty does not cover use for commercial purposes.
- Page 17 E-bike Shrinker User’s Guide Golden Motor Technology Co.,Ltd www.goldenmotor.com sales@goldenmotor.com Mobile:86 519 81004118...
