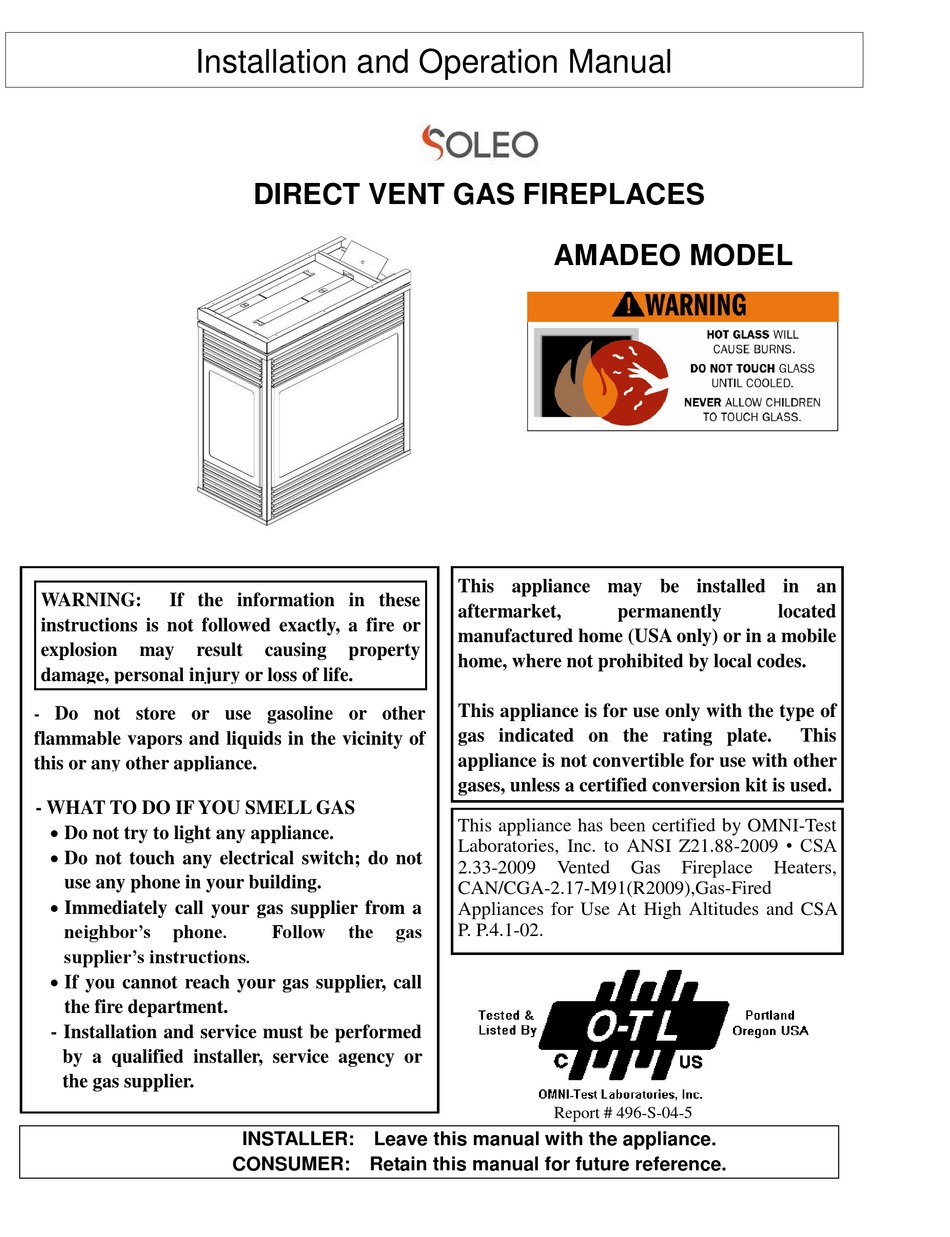

Installation and Operation Manual
WARNING:
If the information in these
instructions is not followed exactly, a fire or
explosion
may
result
damage, personal injury or loss of life.
Do not store or use gasoline or other
-
flammable vapors and liquids in the vicinity of
this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS
 Do not try to light any appliance.
 Do not touch any electrical switch; do not
use any phone in your building.
 Immediately call your gas supplier from a
neighbor's
phone.
supplier's instructions.
 If you cannot reach your gas supplier, call
the fire department.
- Installation and service must be performed
by a qualified installer, service agency or
the gas supplier.
DIRECT VENT GAS FIREPLACES
causing
property
Follow
the
gas
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.

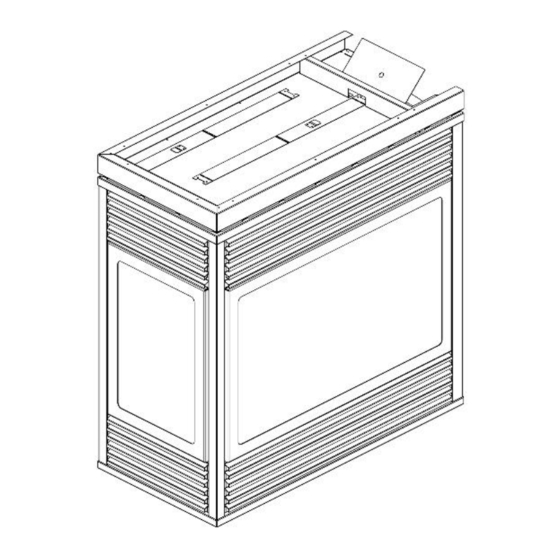

AMADEO MODEL
This appliance may be installed in an
aftermarket,
permanently
manufactured home (USA only) or in a mobile
home, where not prohibited by local codes.
This appliance is for use only with the type of
gas indicated on the rating plate.
appliance is not convertible for use with other
gases, unless a certified conversion kit is used.
This appliance has been certified by OMNI-Test
Laboratories, Inc. to ANSI Z21.88-2009 • CSA
2.33-2009
Vented
Gas
CAN/CGA-2.17-M91(R2009),Gas-Fired
Appliances for Use At High Altitudes and CSA
P. P.4.1-02.
Report # 496-S-04-5
located
This
Fireplace
Heaters,

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMADEO and is the answer not in the manual?

Questions and answers

Summary of Contents for Soleo AMADEO

  • Page 1 Installation and Operation Manual DIRECT VENT GAS FIREPLACES AMADEO MODEL This appliance may be installed in an WARNING: If the information in these aftermarket, permanently located instructions is not followed exactly, a fire or manufactured home (USA only) or in a mobile...
  • Page 2 DO NOT DISCARD It contains very important installation, operating and maintenance instructions included. Must read, understand and follow correctly these instructions and details for safety installation and operating. It has to be consulted by qualified personnel for installation, operation and maintenance. WARNING IF THE INFORMATION IN THESE INSTRUCTIONS IS NOT FOLLOWED EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY, OR DEATH.
  • Page 3 WARNING RISK OF FIRE  Provide adequate clearance around air openings, combustibles and service access.  Due to high temperatures, the appliance should be located out of traffic and away from furniture and draperies. Install appliance on hard metal or wood surfaces extending full width and depth of appliance. ...
  • Page 4  Check all fittings and connections.  Do not use open flame.  After the gas line installation is completed, all connections must be tightened and check for leaks with non-corrosive leak check solution and rinse it all after checking. ...

  • Page 5: Table Of Contents

    TABLE OF CONTENTS GENERAL SAFETY INFORMATION ............................... 7 1.1 CARBON MONOXIDE POISONING ..............................7 1.2 INSTRUCTIONS ....................................7 2. SPECIFICATIONS ................................... 10 2.1 CONSUMPTION, GAS PRESSURE AND EFFICIENCY .......................... 10 2.2 DIMENSIONS OF THE FIREPLACE ..............................11 PREPARING FOR INSTALLATION ............................... 12 3.1 INSTALLATION DESIGN AND PREPARATION ............................
  • Page 6 AMADEO – PROFLAMME 885 ..............................49 1. ELECTRICAL WIRING ..................................50 2. INITIALIZING THE SYSTEM FOR THE FIRST TIME ..........................51 3. LIGHTNING INSTRUCTIONS ................................52 4. REMOTE ......................................54 5. INSTALLATION PROCEDURE FOR THE CONVERSION KIT ........................58 AMADEO – NOVA 844 .................................. 63 1.

  • Page 7: General Safety Information

    INSTALLER MUST READ THIS MANUAL CAREFULLY BEFORE INSTALLING OR OPERATING THIS APPLIANCE. PLEASE CONSULT LOCAL CODES IF NECESSARY. 1. GENERAL SAFETY INFORMATION 1.1 CARBON MONOXIDE POISONING Early signs of carbon monoxide poisoning are similar to the flu with headaches, dizziness and nausea. If you have these signs, the fireplace may not have been installed properly.
  • Page 8 (wood, coal, paper, cardboard, etc.) in this fireplace. 14. All SOLEO Fireplaces, when installed with some electric accessories, must be electrically grounded in accordance with local codes, in case of the absence of local codes, use the National Electrical Code (ANSI/NFPA 70), or the Canadian Electrical Code (CSA C22.1).
  • Page 9 NOTICE 1. During heat-up or cool-down periods, cracking noises may occur, this is normal for steel heating appliances. 2. It is normal for all gas fireplaces to give off some odor the first time it is burnt. This is due to the paint and some materials used in the fireplace. When using of this fireplace for the first time, we strongly suggest that you open the widows in the room where this appliance is installed.

  • Page 10: Specifications

    2. SPECIFICATIONS 2.1 CONSUMPTION, GAS PRESSURE AND EFFICIENCY NATUREL PROPANE (LP) INPUT (NG) Input Rating - BTU/hr 27,000 27,000 Min. Input - BTU/hr 15,000 15,000 Orifice – DMS GAZ SUPPLY 3.8”w.c./0.95kPa 11.0”w.c./2.8kPa Manifold pressure 5.0”w.c./1.25kPa 12.0”w.c./3.0kPa Min. Supply Pressure 10.0”w.c./2.5kPa 13.0”w.c./3.3kPa Max.

  • Page 11: Dimensions Of The Fireplace

    2.2 DIMENSIONS OF THE FIREPLACE Model (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) 1057 1142 AMADEO ST 1028 1142 AMADEO 2 1028 1142 AMADEO 3 AMADEO SEE THROUGH AMADEO 2 FACES CORNER (LC, RC) AMADEO 3 FACES...

  • Page 12: Preparing For Installation

    3. PREPARING FOR INSTALLATION 3.1 INSTALLATION DESIGN AND PREPARATION This unit is designed to operate from an On/Off switch or a remote control. When planning a fireplace installation, it’s necessary to determine: Where the unit is to be installed. The vent system configuration to be used. Gas supply piping configuration.
  • Page 13 AMADEO-THROUGH INSTALLATION, FLUSH WALL ABOVE FIREPLACE – CLEARANCES TO ADJACENT COMBUSTIBLES...
  • Page 14 AMADEO CORNER INSTALLATION, FLUSH WALL ABOVE FIREPLACE – CLEARANCES TO ADJACENT COMBUSTIBLES...
  • Page 15 AMADEO 3 FACES INSTALLATION, FLUSH WALL ABOVE FIREPLACE – CLEARANCES TO ADJACENT COMBUSTIBLES...
  • Page 16 AMADEO 3 FACES PENINSULA INSTALLATION, ¾” (19mm) MANTEL TRIM, 4” (102mm) MANTEL OVERHANG – CLEARANCES TO ADJACENT COMBUSTIBLES...

  • Page 17: Clearances To Combustibles

    3.3 CLEARANCES TO COMBUSTIBLES WARNING Follow these instructions carefully to ensure safe installation. Failure to follow instructions exactly can create a fire hazard. The appliance cannot be installed on a carpet, tile or other combustible material other than wood flooring. If installed on carpet or vinyl flooring, the appliance shall be installed on a metal, wood or noncombustible material panel extending full width and depth of the appliance.

  • Page 18: Top Clearances

    CAUTION The unit does not have to be completely enclosed in a chase. The clearance on top of the unit is 0" to the standoffs so combustible building materials can be laid directly on top of the standoffs. You must maintain clearance from the vent to combustible materials.

  • Page 19: Finishing Material

    3.5 FINISHING MATERIAL WARNING Any remote wiring (i.e. remote control, wall switch) must be done prior to final finishing to avoid costly reconstruction. WARNING Never obstruct or modify the air inlet or outlet, this may create a fire hazard. Only noncombustible materials (i.e. brick, tile, slate, steel, or other materials with a UL fire rating of Zero) may be used to cover the black-painted faces of the appliance.

  • Page 20: Location Out Vent

    4.2 LOCATION OUT VENT VENT TERMINAL CLEARANCES VENT TERMINAL CLEARANCES Venting terminals shall not be recessed into a wall or siding...

  • Page 21: Schematic Chimney Installation Instructions

    4.3 SCHEMATIC CHIMNEY INSTALLATION INSTRUCTIONS DV131 CHIMNEY RUN COMBINATIONS (SAIL CHART) 40' [12,2m] ↙ THIS REGION, AIR RESTRICTORS 39' [11,9m] 38' [11,6m] COMPLETELY CLOSED 37' [11,3m] 36' [11m] ***MAXIMUM OF 3 90° ELBOWS 35' [10,7m] SECOND AND THIRD 90° ELBOWS 34' [10,4m] COUNT AS 4' [1,2m] OF 33' [10m]...
  • Page 22  Also, you must use a end cap. SOLEO When high-temperature sealant is applied between the 4" flue exhaust of the fireplace, apply it inside the 4" chimney duct to prevent the sealant from coming out of the joint upon  insertion on the fireplace.

  • Page 23: Exhaust And Intake Restriction Adjustment

    4.4 EXHAUST AND INTAKE RESTRICTION ADJUSTMENT The fireplace may be installed with a wide range of venting configurations. The minimum vent installation includes a 45° elbow with horizontal venting directly through the wall to a horizontal termination (vent cap). WARNING If this configuration is selected, note that the fireplace is not equipped with a baffle inside the firebox, so if the vent...
  • Page 24 Adjustment Instructions Résumé Symptom Adjustment Installation with minimal The 2 restrictors should be totally vertical rise. open (intake; position#1, exhaust; retracted) Installation with at least The 2 restrictors should be totally 25 feet (7.6m) of vertical closed (intake; position#5½, exhaust; rise* closed)* If the flames appear long...

  • Page 25: Flexible Vent Horizontal Termination

    The location of the termination cap must conform to the requirements in the Vent Terminal Locations diagram in the "Exterior Vent Termination Locations" section. SOLEO Direct Vent (Flex) System Termination Kit includes all the parts needed to install the AMADEO series with a maximum run of 10 feet.

  • Page 26: Rigid Pipe Venting Arrangements

    Notes: 1) Liner sections should be continuous without any joints or seams. Sections assemblies should be jointed using Flexible Chimney Junction [IP-FLX-JNCT]. SOLEO 2) Only flex pipe purchased from may be used for flex installation. SOLEO Direct Vent brackets [#IP-FLX-BR] (see figure 1) are needed every 3 feet to support the flexible SOLEO tubing.
  • Page 27 7¼"(184mm) diameter to (7½"(191mm) dia. for flex) hole is acceptable. Note: With Dura-Vent, the minimum height is achieved by installing a 45º elbow directly to the rigid pipe adaptor. Usage of a Dura-Vent system is accepted, but with the exclusive usage of a SOLEO end cap.
  • Page 28 Note: a) The horizontal run of vent must be level, or have a 1/4 inch rise for every 1 foot of run towards the termination. Never allow the vent to run downward. This could cause high temperatures and may present the possibility of a fire.

  • Page 29: Horizontal Terminations

    Wall Thimble  (#IP-THMBL) 4.7 HORIZONTAL TERMINATIONS Diagrams below show examples of horizontal termination arrangements using none (direct), one, two, or three 90º elbows (two 45º elbows = 90º elbows). Notes: 1) A maximum of three 90º elbows are permitted. 2) Min.

  • Page 30: Instructions For Vertical Terminations

    4.8 INSTRUCTIONS FOR VERTICAL TERMINATIONS 1) Maintain the 1" clearances (air spaces) to combustibles when passing through ceilings, walls [2 inches superior], roofs, enclosures, attic rafter, or other nearby combustible surfaces. Do not pack air spaces with insulation. Check the "Venting Arrangement" section for the maximum vertical rise of the venting system and the maximum horizontal offset limitations.
  • Page 31 Note: If an offset is necessary in the attic to avoid obstructions, it is important to support the vent pipe every 3ft, to avoid excessive stress on the elbow and possible separation. Wall straps are available for this purpose. SOLEO...
  • Page 32  IP-R-EXT + IP-R-EXBR ON ROOFTOP (#NVFL-FLX JNCT) IP-R-EXT + IP-FLSH + IP-CLLR + IP-EC-M ↓ ↓ ON ROOFTOP How to decide the vent height Roof pitch Minimum vent height 2’ (0.61m) Flat to 9/12 2-1/2’ (0.78m) Over 9/12 to 10/12 3-1/3’...

  • Page 33: Installation Procedures

    4.9 INSTALLATION PROCEDURES 1) Locate the unit in the framing, rough in the gas lines. Locate the centerline of the termination and mark the wall accordingly. Cut a 10"(254mm) hole in the wall (inside dimension) [venting needs 2" clearance on top, 1" clearance on its bottom 1"+7"+2"=10"] [in the case of passing through a ceiling, the hole must be 9"(229mm) , having 1"...

  • Page 34: General Venting System Installation Inspection

    CAUTION Do not locate termination hood where excessive snow or ice buildup may occur. Be sure to check vent termination area after snow falls, and clear to prevent accidental blockage of venting system. When using snow blowers, make sure snow is not directed towards vent termination area. 4.10 GENERAL VENTING SYSTEM INSTALLATION INSPECTION Qualified installer should check for contextual clues in order to insure proper operation conditions.

  • Page 35: Fireplace Installation

    5. FIREPLACE INSTALLATION CHECK GAS TYPE Use proper gas type for the fireplace you are installing. If you have conflicting gas type, do not install fireplace. See dealer where you purchased the fireplace for proper fireplace for your gas type or conversion kit. INSTALLING GAS PIPING TO FIREPLACE / BURNER SYSTEM LOCATION WARNING A qualified installer or service person must connect the appliance to the gas supply.
  • Page 36 CAUTION Use only new black iron or steel pipe. Internally tinned copper or copper tubing can be used per National Fuel Code, section 2.6.3, providing gas meets hydrogen sulfide limits, and where permitted by local codes. Gas piping system must be sized to provide minimum inlet pressure (listed on the specification plate) at the maximum flow rate (BTU/hr).

  • Page 37: Installation Code

    5.2 INSTALLATION CODE IMPORTANT: Install main gas valve (shutoff valve) in an accessible location. The main gas valve is for turning on or shutting off the gas to the fireplace. Check your building codes for any special requirements for locating the shutoff valve of the fireplace.

  • Page 38: Checking Gas Pressure

    5.4 CHECKING GAS PRESSURE 1. Check gas type. The gas supply must be the same as stated on the appliance’s rating decal. If the gas supply is different from the fireplace, STOP! Do not install the appliance. Contact your dealer immediately. 2.
  • Page 39 Note: To properly check gas pressure, both inlet and manifold pressures should be checked using the valve pressure ports on the valve. 1) Make sure the valve is in the "OFF" position. 2) Loosen the "IN" and/or "OUT" pressure tap(s), turning counterclockwise with a 1/8" wide flat screwdriver. 3) Attach manometer to "IN"...

  • Page 40: Finish

    6. FINISH 6.1 GLASS REMOVAL One glass door on the AMADEO model can be moved without any tool. 1) Take the top louver down and open the bottom louver 2) Pull hook forward and out of the slot on door bracket...

  • Page 41: Decorative Granulated Glass Installation

    6.2 DECORATIVE GRANULATED GLASS INSTALLATION Granulated glass comes with your device. Always wear gloves to prevent skin irritation caused by broken glass. After handling the granulate, wash your hands carefully with soap and water to remove all traces of glass. WARNING BEFORE ALL MANIPULATION, MAKE SURE THE FIREPLACE IS TURNED OFF GAZ AND ELECTRICAL INPUT MUST BE SHUT OFF...

  • Page 42: Operating Instructions

    7. OPERATING INSTRUCTIONS 1) Read and understand these instructions before operating this appliance. 2) Check to see that all wiring is correct and enclosed to prevent possible shock. 3) Check to ensure there are no gas leaks. 4) Make sure the glass in the door frame is properly positioned. Never operate the appliance with the glass removed. 5) Verify that the venting and cap are unobstructed.

  • Page 43: First Use Of Your Fireplace

    7.1 FIRST USE OF YOUR FIREPLACE The first fire in your fireplace is part of the paint curing process. To ensure that the paint is properly cured, it is recommended that you burn your fireplace for at least four (4) hours at the first time before you use it with the fan system on.

  • Page 44: Cleaning And Maintenance

    8. CLEANING AND MAINTENANCE A qualified service agency should conduct an annual inspection and maintenance of your fireplace including the overall installation and venting to keep it running safely. The following procedures should be performed only by a qualified service person. The gas supply should be turned off and the fireplace should be completely cool whenever a maintenance procedure is performed.
  • Page 45 Check: Condition of doors, surfaces, surroundings, glass, glass seal, glass assembly, logs, firebox, pilot and burner flames. Lubricate any moving parts (if applicable). Obstruction of ventilation, air and termination cap, proper reassembly and resealing of the vent system. Burner ignition, operation and air shutter adjustment. Gas connections and fittings.

  • Page 46: Glass Replacement

    8.3 GLASS REPLACEMENT WARNING Do not operate the appliance with any glass panel removed, cracked or broken. Replacement of the glass panels should be done by a qualified service person. WARNING Use only replacement glass, part number DV121G «Large Glass Panel» or DV121SG «Small Glass Panel»...

  • Page 48: Battery Replacement

    8.4 BATTERY REPLACEMENT The electronic ignition system of this device requires a 1.5V AA battery to operate. If the battery is empty and no spark is produced at the driver, replace the battery with the correct type.

  • Page 49: Amadeo - Proflamme 885

    AMADEO – PROFLAMME 885 INTERMITTENT PILOT IGNITION VALVE WARNING The following instructions are for the system with intermittent pilot ignition valve - PROFLAMME 885. For instructions on constant pilot ignition valve - NOVA 884, refer to pages 64-74 of this...

  • Page 50: Electrical Wiring

    1. ELECTRICAL WIRING...

  • Page 51: Initializing The System For The First Time

    2. INITIALIZING THE SYSTEM FOR THE FIRST TIME Position the rocker switch ON / OFF and CPI / IPI switch in the closed position. Ensure that four AA batteries in the battery compartment of the emergency block and the cursor is in "REMOTE"...

  • Page 52: Lightning Instructions

    3. LIGHTNING INSTRUCTIONS FOR YOUR SAFETY, READ BEFORE LIGHTING WARNING : If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. This appliance is equipped with an automatic intermittent pilot. Follow the instructions below to the letter. B.
  • Page 53 NORMAL LIGHTING APPLIANCE MAY START MANUALLY (1) - OR - AUTOMATICALLY WITH THE THERMOSTAT (2) Press the "ON / OFF" button on the remote. Make sure the thermostat is set to "OFF"  The controller must issue a single beep to confirm receipt of the signal. (In case of malfunction please refer to the programming guide on the remote) ...

  • Page 54: Remote

    4. REMOTE...

  • Page 55: Operating Procedure

    OPERATING PROCEDURE TEMPERATURE INDICATION DISPLAY With the system in the “OFF” position, press the Thermostat Key and the Mode Key at the same time. Look at the LCD screen on the remote to verify that a C or F is visible to the right of the Room Temperature display. TURN ON THE APPLIANCE With the system OFF, press the ON/OFF Key on the remote.
  • Page 56 ROOM THERMOSTAT (REMOTE OPERATION) The Remote Control can operate as a room thermostat. The thermostat can be set to a desired temperature to control the comfort level in a room. To activate this function, press the Thermostat Key. The LCD display on the will change to show that the room thermostat is “ON”...
  • Page 57 CONTINOUS PILOT / INTERMITTENT PILOT (CPI/IPI) SELECTION With the system in "OFF" position press the Mode Key to index to the CPI mode icon. Pressing the Up Arrow Key will activate the Continous Pilot Ignition mode (CPI). Pressing the Down Arrow Key will return to IPI. A single “beep”...

  • Page 58: Installation Procedure For The Conversion Kit

    5. INSTALLATION PROCEDURE FOR THE CONVERSION KIT WARNING À LIRE ATTENTIVEMENT AVANT L’UTILISATION DU KIT DE CONVERSION This conversion kit must be installed by a qualified service agency according to the manufacturer's instructions and all applicable codes and regulations of the authority having jurisdiction. If these instructions are not followed exactly, this can create a fire, explosion or production of carbon monoxide and cause property damage, injury or death.

  • Page 59: Installation Instructions

    Installation instructions Installation instructions are the same regardless the gas converts. Installation of assembly pressure regulator 1. Remove the bottom panel on the same side as the pressure regulator. 2. Close the gas supply by turning the knob on the control valve to the « OFF » position. 3.
  • Page 60 Installation of main burner orifice 1. Remove the glass door assembly of the fireplace front by loosening the two hooks of the notch in the door bracket. 2. Remove the floor simply by lifting. 3. Remove the burner, taking care to first remove the screws from both sides and then withdraw the burner primary air adjustment box.
  • Page 61 5. Remove the spring clip from the head of the pilot. Using an Allen key unscrew the nozzle of the burner. Replace the nozzle with the one provided in the conversion kit. 7. Replace the head of the pilot. Replace the burner, ensuring that the output of the gas is entering the burner pipe and tighten the two screws. 9.
  • Page 62 PRIMARY BURNER AIR ADJUSTMENT The fireplace also includes a primary burner air adjustment system. This is only used when converting from natural gas to LP gas (propane). For natural gas, the primary air adjuster screw should be turned fully in to restrict the amount of primary air reaching the burner.

  • Page 63: Amadeo - Nova 844

    AMADEO – NOVA 844 Constant pilot ignition valve ATTENTION constant pilot ignition valve – NOVA 844. The following instructions are for the system with For instructions on intermittent pilot ignition valve– PROFLAMME 885, refer to pages 50 à 62 of...

  • Page 64: Electrical Wiring

    1. ELECTRICAL WIRING This fireplace will work without any electrical supply. WARNING Electrical connections should only be performed by a qualified, licensed electrician. All wiring shall be in compliance with all local, city, and state codes. The appliance, if installed, must be electrically grounded in accordance with local codes, or in the absence of local codes, with the National Electrical Code ANSI/ NFPA 70 (latest edition) and Canadian Electrical Code, CSA C22.1.

  • Page 65: Initializing The System For The First Time

    2. INITIALIZING THE SYSTEM FOR THE FIRST TIME Verify that 4 AA batteries are in the battery compartment of the battery pack. Install three AAA batteries types in the battery compartment located at the bottom of the remote. Position the slide switch with three positions to "REMOTE".

  • Page 66: Lightning Instructions

    3. LIGHTNING INSTRUCTIONS WARNING IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE. FOR YOUR SAFETY, READ BEFORE LIGHTING A. This appliance has a pilot which must be lighted by hand. When lighting the pilot, follow these instructions exactly. BEFORE LIGHTING, smell all around the appliance area for gas.

  • Page 67: To Turn Off Gas To Appliance

    TO TURN OFF GAS TO APPLIANCE Rotate the bottom louver panel to the open position to access the gas controls. It is hinged at the bottom Switch the ON-OFF switch to “OFF” position or set the remote control to the “OFF” position or set the thermostat to the lowest setting. Turn off all the electric power to the appliance.

  • Page 68: Remote

    4. REMOTE...
  • Page 69 OPERATING PROCEDURE TEMPERATURE INDICATION DISPLAY With the system in the “OFF” position, press the Thermostat Key and the Mode Key at the same time. Look at the LCD screen on the remote to verify that a C or F is visible to the right of the Room Temperature display. TURN ON THE APPLIANCE With the system OFF, press the ON/OFF Key on the remote.
  • Page 70 KEY LOCK This function will lock the keys to avoid unsupervised operation. To activate this function, press the MODE and UP Keys at the same time. To de-activate this function, press the MODE and UP Keys at the same time. LOW BATTERY POWER DETECTION The life span of the remote control batteries depends on various factors: quality of the batteries used, the number of ignitions of the appliance, the number of changes to the room thermostat set point, etc.

  • Page 71: Installation Procedure For The Conversion Kit

    5. INSTALLATION PROCEDURE FOR THE CONVERSION KIT WARNING This conversion kit shall be installed by a qualified service agency in accordance with the manufacturer’s instruction and all applicable codes and requirements of the authority having jurisdiction. If the information in these instructions is not followed exactly, a fire, explosion or production of carbon monoxide may result causing property damage, personal injury or loss of life.
  • Page 72 6. Remove the main burner orifice with a socket wrench. It is located on the right side of the inside of the burner sink. To prevent damage to the gas fittings, be sure to use a second wrench (open-ended) to secure the elbow that the orifice threads into. Next, install the gas main burner orifice included with the conversion kit.
  • Page 73 Make sure the screw is clean; clean if necessary. Turn the screw. See Figure 3. Using the hex key tighten (Without excess) the screw. See Figure 4. Make sure you see the red ring of the screw in the case of a conversion of NG to LPG. See Figure 5 Replace the protective cap.
  • Page 75 PRIMARY BURNER AIR ADJUSTMENT The fireplace also includes a primary burner air adjustment system. This is only used when converting from natural gas to LP gas (propane). For natural gas, the primary air adjuster screw should be turned fully in to restrict the amount of primary air reaching the burner.

  • Page 76: Troubleshooting

    TROUBLESHOOTING STANDING PILOT IGNITION SYMPTOM POSSIBLE CAUSE SOLUTION 1. Spark igniter will A. Wire disconnected. A. Open door and check to make sure wire is not light pilot after B. Defective igniter. connected to the igniter and battery box. repeated triggering C.

  • Page 77: General Troubleshooting

    D. Turn valve knob to “On” and switch to “ON.” Take a reading at the thermopile leads (TP & TP/TH) on the valve. If the meter reads greater than 175 mV and the burner does not light, replace defective valve. 4.

  • Page 78: Spare Parts

    SPARE PARTS Small door Glass for small door Small glass gasket Big door Glass for big door Big glass gasket Door hook Spring Small louver assembly Small Clean face louver Big louver assembly Big Clean face louver Controller box Battery holder Inlet pipe burner Switch Spark generator...
  • Page 79 Spare parts are available from: SOCA INDUSTRIES INC. 11740 PHILIPPE-PANNETON MONTREAL,QC H1E 4G4...

  • Page 80: Chimney Accessories

    CHIMNEY ACCESSORIES...
  • Page 81 INSTALLATION RECORDS THE FOLLOWING INFORMATION MUST BE RECORDED BY THE INSTALLER FOR WARRANTY PURPOSES AND FUTURE REFERENCE. SOLEO Model: _____________________________________ Name of Owner: _____________________________________ Address: _____________________________________ _____________________________________ _____________________________________ Phone: _____________________________________ Name of installer: _____________________________________ Address: _____________________________________ _____________________________________ _____________________________________ Phone: _____________________________________ Distributed by: SOCA INDUSTRIES INC.

  • Page 82: Limited Lifetime Warranty

    1- This warranty is not transferable; it applies to original owner only. 2- All components and parts made by others manufacturers. 3- Any modifications to original product from SOLEO. 4- The warranty will be void if: The fireplace is not installed with a complete, SOCA INDUSTRIES INC approved venting system.
