Summary of Contents for Power Edge Pro

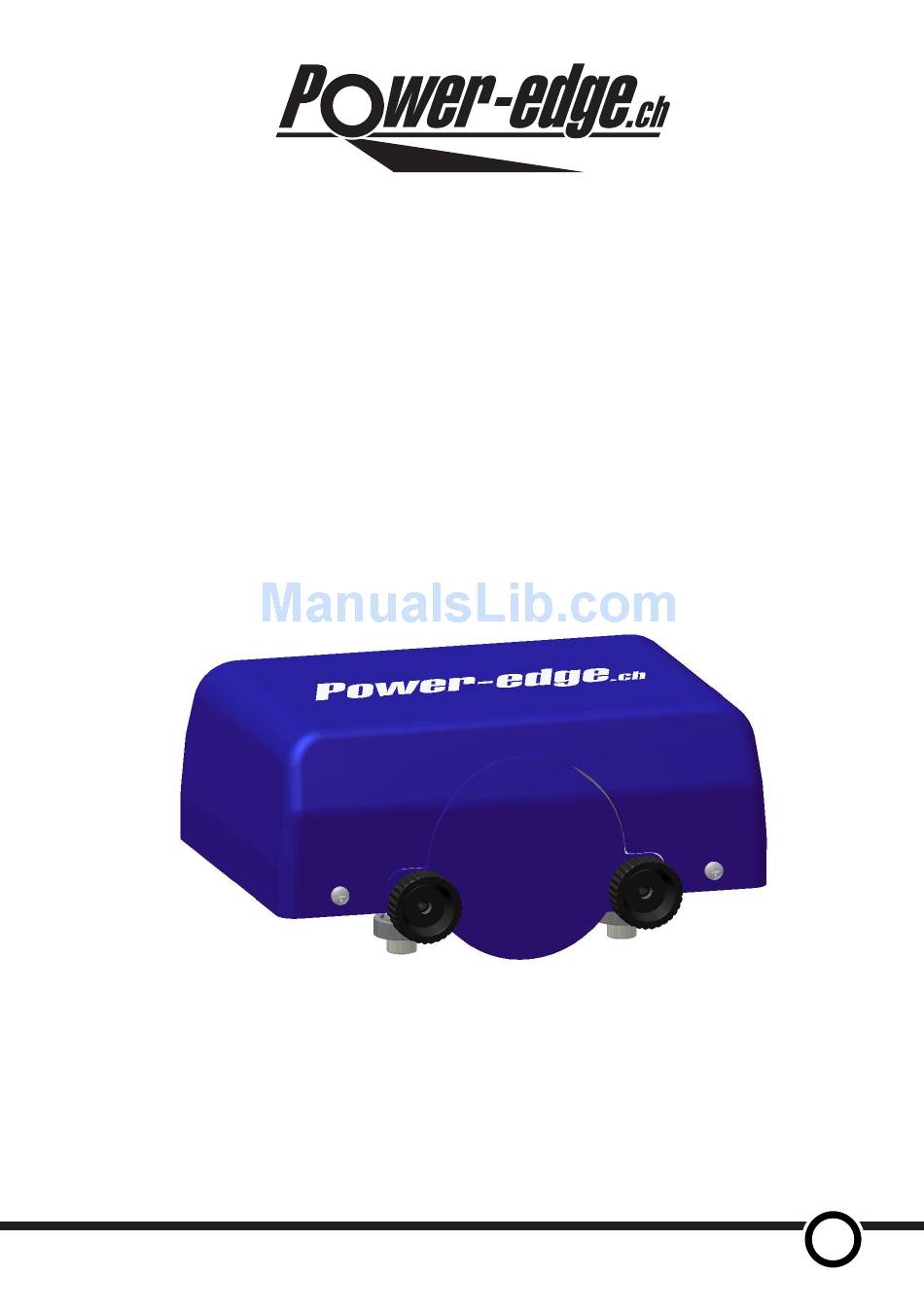

- Page 1 Power-edge User manual Power-edge Pro User Manual...
-
Page 2: Important Information
Your Power-edge Pro will allow you to grind regular or hardened ski and/or snowboard edges like a professional tuner to any angle from 86° to 90°. With minimal effort, you can grind your skis and/or snowboards with very high levels of precision. -
Page 3: Table Of Contents
Maintenance operations ................10 Replacing or reversing the grinding disc ..........12 Using different grinding wheels ..............13 Handling, transporting and storage ............14 Technical Data .................... 14 Troubleshooting ..................14 Warranty ...................... 15 Warranty exclusions................. 15 Power-edge Pro User Manual... -
Page 4: General Warnings And Cautions
• Perform frequent inspections and maintenance of the Power-edge. See ‘Maintenance’ section. • After any prolonged use, ensure that any grinding residue under the wheel cover is removed before storage. Power-edge Pro User Manual... -
Page 5: Operating Parts
86° to 90° in infinite increments using a screwdriver ON / OFF rocker switch Turns the Power-edge on Engage/release button and off in two stages Safety cover Safety cover retaining nuts Grinding disc Disc retaining nut Edge guide wheels Power-edge Pro User Manual... -
Page 6: Setting Up
Connect the power supply to the socket Insert the adaptor main power supply plug into a 230/110 Volt outlet. Connect the power supply to the Power-edge Insert the adaptor’s secondary plug into the corresponding socket on the Power-edge Power-edge Pro User Manual... -
Page 7: Using The Power-Edge
Use a screwdriver to adjust both angle-adjustment screws to the desired angle (commonly 88° but check the ski/board manufacturer first). Make sure both screws are set to the same angle. Ensure both angle adjusters ( ) are set to the same angle Power-edge Pro User Manual... -
Page 8: Position The Power-Edge
Press and hold the engage/release button ( Upside-down ski/board Edge guide wheels ( overhang the edge. Edge grinding creates hazardous dust! DANGER Please wear protective goggles and a mask when operating the Power-edge! Power-edge Pro User Manual... -
Page 9: Power On And Begin Grinding
It is recommended to always use the same angle on the same pair of skis/ snowboard to avoid unnecessary edge removal. Allow the unit to cool periodically when sharpening for longer stints to avoid overheating the unit. Power-edge Pro User Manual... -
Page 10: Maintenance Operations
• Use only original grinding discs. • Never use damaged grinding discs. • Do not open the Power-edge. There are no user-serviceable parts inside the unit. • Never use a different power supply from the one supplied. Power-edge Pro User Manual... - Page 11 • Allow the unit to cool down after prolonged use, before replacing it in the case. • After prolonged use, check for possible build-up of hot abrasive particles under the cover and remove if necessary. Power-edge Pro User Manual...
-
Page 12: Replacing Or Reversing The Grinding Disc
When re-mounting the grinding wheel, simply reverse the removal procedure. Please do not over-tighten the retaining nut – the direction of rotation while operating stops the nut from loosening off. Safety cover Safety cover retaining nuts Grinding disc Disc retaining Power-edge Pro User Manual... -
Page 13: Using Different Grinding Wheels
Using different grit grinding wheels will optimise the efficiency of the grinding operation (e.g. a coarse grit will cut more quickly and aggressively than a fine one). Different grits are colour-coded on the flange of the disc and can be identified through the cut-out on the drive-wheel. Power-edge Pro User Manual... -
Page 14: Handling, Transporting And Storage
Clean pores with wire brush or dressing stone. Ensure adequate sidewall removal before grinding. Use a coarser grinding wheel. The grinding disc strikes Dress the grinding disc flat again with a dressing during grinding stone or dressing diamond. Power-edge Pro User Manual... -
Page 15: Warranty
This warranty is for free repair of the Power-edge within this period and is only valid when a faulty Power edge is returned together with the original proof of purchase. - Page 16 Address & contact information Manufacturing Power Edge Tannliweg 415 5112 Thalheim Switzerland Email: technik@power-edge.ch www.power-edge.ch Power-edge Pro User Manual...
