PACKAGE CONTENTS
• Media remote for PlayStation 4
• USB receiver
• AAA batteries (2)
• Quick Setup Guide
FEATURES
• Fully navigate the XMB™ and PlayStation menu
• Navigate within most apps
• Control most DVD and Blu-ray™ functions

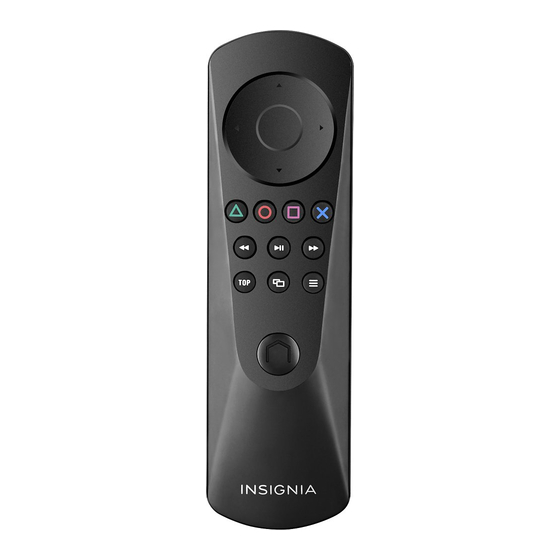

Enter button
Directional button
Back button Sub-menu button
Option button Confirm button
Play/pause button
Fast-forward button
Rewind button
Menu button
TOP menu button
Information and Blu-ray
play menu button
Home/PS button
Before using your new product, please read these instructions to prevent any damage.
V3
FINAL
FOR PRINT
SETTING UP YOUR REMOTE
1 From the back of the remote, slide off the battery compartment
door.
2 Remove the USB receiver from the storage slot in the battery
compartment.
Quick Setup Guide |
3 Place the two AAA batteries (included) into the battery
compartment. Make sure that the batteries are in the correct
position as shown in the battery compartment.
4 The USB receiver should already be paired with your media remote
and should be ready to use. If the remote does not work (and you
have tried new batteries), we suggest that you try to pair the USB
receiver to the remote control.
• Make sure the PS4 is powered on.
• Press and hold the Confirm and HOME/PS button on the remote
control.
• While continuing to hold these buttons, unplug the USB receiver
from the PS4 and then plug it back in.
• Wait two seconds and then release the Confirm and Home/PS
buttons. The USB receiver and remote control should now be
paired.
Artwork size (W×H): 380 × 140 mm.
Final folded size (W×H): 95 × 70 mm.
NS-GPS4RC101/NS-GPS4RC101-C
Media Remote for PlayStation® 4
5 The PS4 Media Remote appears as "External Keyboard" on your TV
screen.
USERNAME
EXTERNAL KEYBOARD
USING YOUR REMOTE
For PS4 menu NAVIGATION:
BUTTON: FUNCTION: BUTTON: FUNCTION:
Enter Confirm/select No function

Move the selection cursor Additional menu when
highlighting an
Information
application
Back
Information
No function
Additional menu when
Confirm/select highlighting an
application.
No function
Home/PlayStation button
Back to main XMB
menu/select
