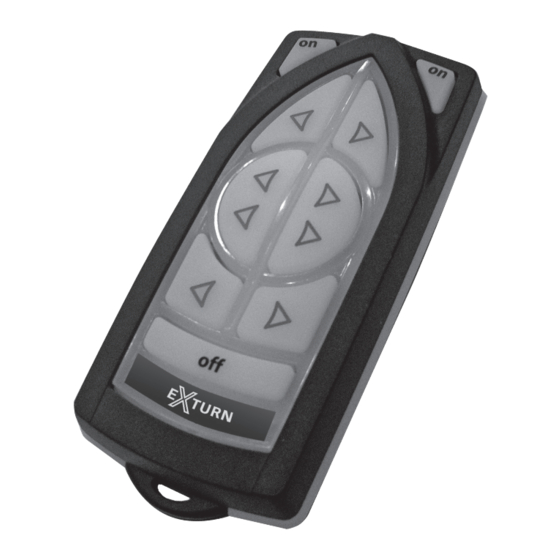

Summary of Contents for Sleipner-Marinno EXTURN RC-10XE

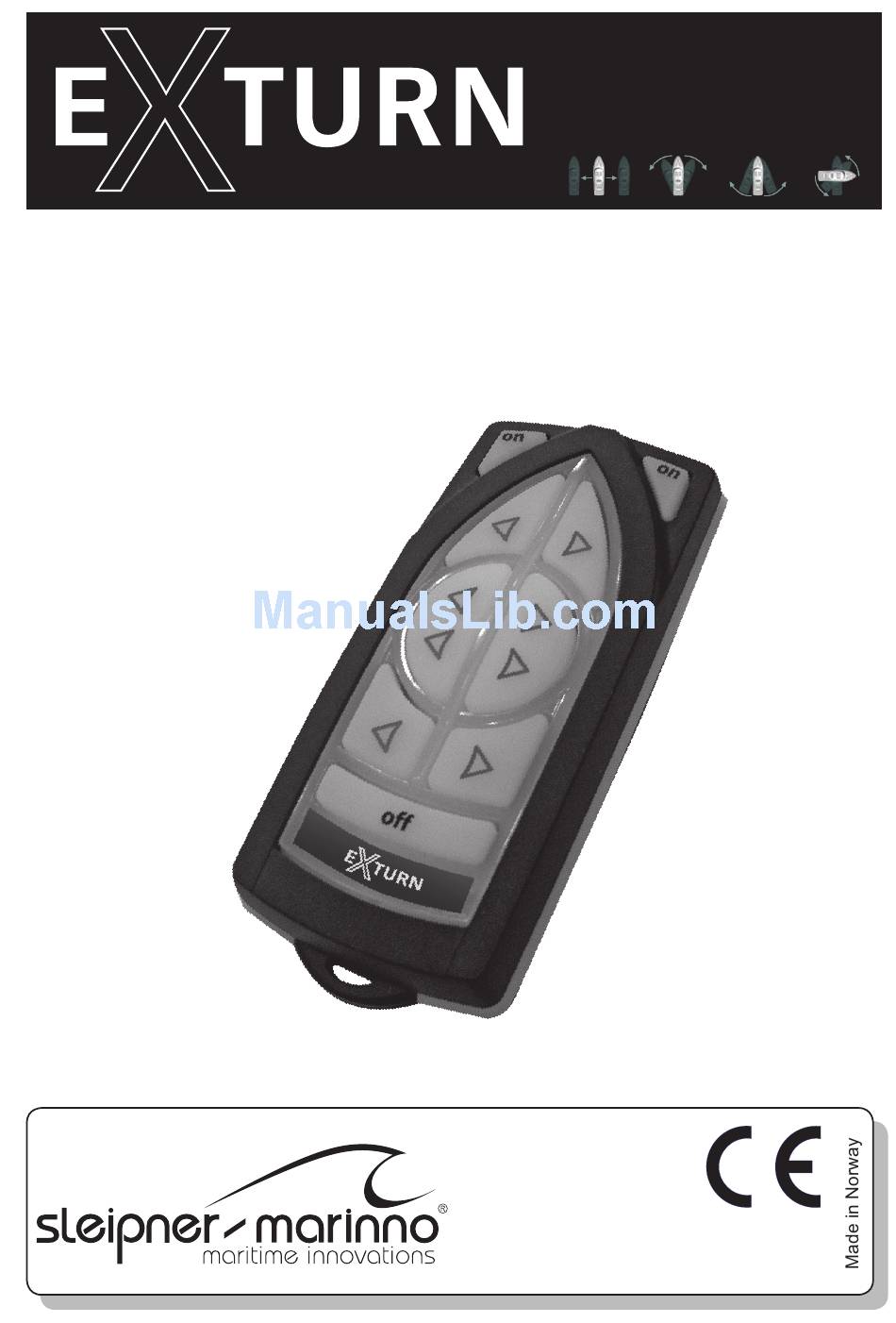

- Page 1 Radio Remote RC-10XE w w w . m a r i n n o . c o m i n f o @ m a r i n n o . c o m © Sleipner-Marinno GmbH version 1.0 - 2012...
-
Page 2: Table Of Contents
When additional transmitters are to be used, the receiver must be programmed again for all trans- mitters (please see programming section on page 7). We Sleipner-Marinno Gmbh declare that this device complies with health and safety requirements according to the Directives EN301 489-3 V1.4.1:2002... -
Page 3: Technical Specifications
Technical specifications Transmitter Receiver Model RCT-10XE RCR-1XE Power feed 1 x 3V battery (type: CR2032) From thruster Frequency (MHz) 433,2 433,2 Operation temp. -10°C / +55°C -15°C / +55°C HxWxD (mm) 95x48x25 89x68x33 Weight (g) Voltage: 8-30V Load, max Operating range: 15m under normal operating conditions Important precautions • You must always install at least one original Exturn panel. -
Page 4: Receiver Installation
(RC-EXT) to relocate the antenna. - Above sea level - Away from sources of electrical interference. Note! Faulty installation will render all warranty given by Sleipner-Marinno GmbH void. Installation & User Manual, Radio Remote RC10XE Page 4... - Page 5 Installation & User Manual, Radio Remote RC10XE Page 5...
-
Page 6: Visual Wiring Diagram
Receiver installation If the receiver is mounted against a wall, us spacers Mount the receiver by using between the receiver and the the 2 screwholes. wall to avoid moisture in the receiver. Visual wiring diagram To bow thruster To bow thruster control panel Yellow: Automatic main switch (optional) Black: 12/24V Batt. - Page 7 Programming additional receivers Push the Pair Button with a plastic stick The original transmitter and receiver have the same factory preset code so that no programming is necessary. When additional transmitters are to be used, the receiver must be programmed again for all transmitters.
-
Page 8: Replacing The Battery
Replacing the battery Battery WARNING: Before working on the transmitter, deactivate the transmitter and the receiver (push “OFF” on the transmitter(s)) and turn off the power to the receiver as well as the thruster mainswitch. 1. Open the transmitter. 2. Take out the battery by inserting a screwdriver or similar between battery and holder at point A, and gently flip the battery out, taking care not damaging the battery grips at point B 3. -
Page 9: User Precautions
Important user precautions • Ensure that you know the location of the main battery switch that disonnects the thruster from all power sources (batteries) so that the thruster can be turned off in case of a malfunction. • If a Exturn automatic main switch is fitted, the “OFF” button on your transmitter will shut off the main switch providing no other control panels are “ON”. - Page 10 Bow + Stern thruster Remote control “ON” Turn boat to Port Turn boat to Starboard Remote control “OFF” Auto-OFF appr. 4 min. Hold for 2 seconds How to use a bow thruster 1. Turn the main power switch for the bow thruster on. Turn on the power to the receiver. 2. Turn on the transmitter by pushing both “ON” buttons at the same time. The remote system is now activated and then turns off automatically appr.
- Page 11 Electric schematics 4-lead & 1-lead connector Channel B Channel A Installation & User Manual, Radio Remote RC10XE Page 11...
- Page 12 Sleipner – Marinno GmbH Alemannenstrasse 49 • A – 6830 Rankweil T +43(0)5522 44273 – 0 • F +43(0)5522 44273 – 31 www.marinno.com • info@marinno.com...
