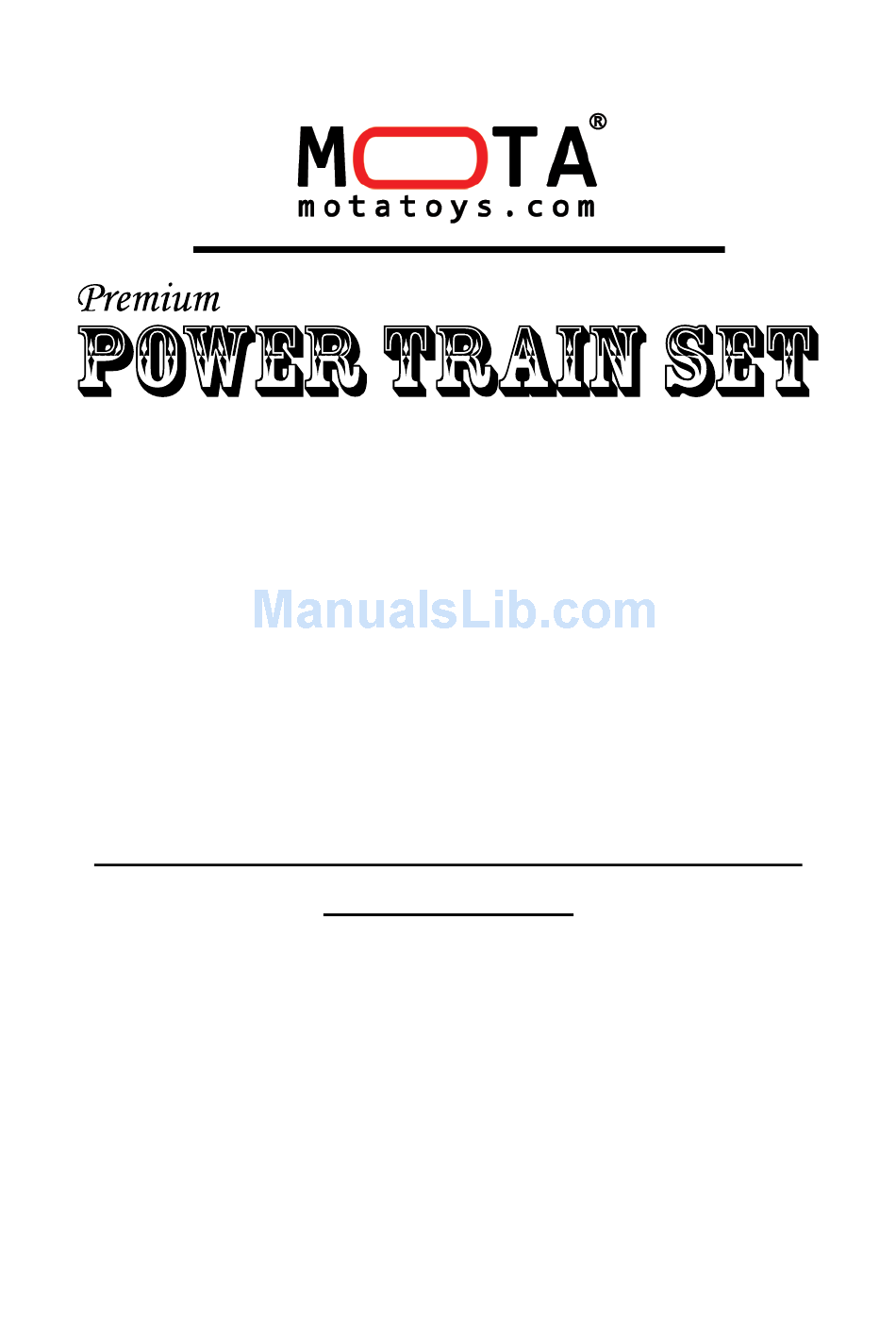

MOTA Premium Power Train Set Owner's Manual And Assembly Instructions

Hide thumbs
Table of Contents

Advertisement

Quick Links

and Assembly Instructions
Please read and retain this document as it contains
important operational and safety information.
Meets or Exceeds ASTM F963; GB6675; EN 62115
Support: www.MotaToys.com/support/
Copyright© 2012 MOTA Toys® by UNorth®.
All Rights Reserved.
Owner's Manual
Safety Standards.
MOTA TOYS – UNORTH, LLC
PO BOX 1116
Campbell, CA 95009-1116
USA
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Premium Power Train Set and is the answer not in the manual?

Questions and answers

Related Manuals for MOTA Premium Power Train Set

Summary of Contents for MOTA Premium Power Train Set

  • Page 1 Please read and retain this document as it contains important operational and safety information. Meets or Exceeds ASTM F963; GB6675; EN 62115 Safety Standards. MOTA TOYS – UNORTH, LLC PO BOX 1116 Campbell, CA 95009-1116 Support: www.MotaToys.com/support/ Copyright© 2012 MOTA Toys® by UNorth®. All Rights Reserved.
  • Page 2 In the event of damaged, defective, or non-working unit, DO NOT RETURN THIS TRAIN SET TO THE STORE WHERE IT WAS PURCHASED. Please review the information in this document. If service is required, please contact MOTA Toys ® Support by visiting http://www.MOTAToys.com/support/ or call +1-720-466-3869.
  • Page 3 Adult supervision is required. Please examine the product for potential hazards. Any damage parts must be repaired or replaced immediately. NOTE: Similar to an actual train or any machinery, your MOTA ® train will work best after a few hours of running time. Support: www.MotaToys.com/support/ Copyright©...

  • Page 4: List Of Parts

    4. Curved Tracks x 12 5. Straight Tracks x 5 6. Terminal Rerailer x 1 7. Speed Controller x 1 8. Power Adapter x 1 9. Terminal Wire x 1 Support: www.MotaToys.com/support/ Copyright© 2012 MOTA Toys® by UNorth®. All Rights Reserved.
  • Page 5 It is recommended to place the tracks loosely on the flat surface to ensure there is enough space for complete assembly. NOTE: Improper assembly will result in interrupted electrical current and/or derailment of the train. Support: www.MotaToys.com/support/ Copyright© 2012 MOTA Toys® by UNorth®. All Rights Reserved.
  • Page 6 (figure 1) while making sure the rail and rail connectors are aligned properly as shown in figure 2. NOTE: Ensure rail connectors do not slip under the rails without properly connecting. Support: www.MotaToys.com/support/ Copyright© 2012 MOTA Toys® by UNorth®. All Rights Reserved.
  • Page 7 Run your finger on the track rails to ensure proper setup. If there are any issues, please carefully check the rail connectors or use a pair of pliers to make minor adjustments as necessary. Support: www.MotaToys.com/support/ Copyright© 2012 MOTA Toys® by UNorth®. All Rights Reserved.

  • Page 8: Power Pack

    Do not connect this unit to AC outlet in bathroom, near any sink, or in any other damp area. Do not operate this unit when the power cord or cover enclosure is damaged. Periodic examination is recommended. Support: www.MotaToys.com/support/ Copyright© 2012 MOTA Toys® by UNorth®. All Rights Reserved.
  • Page 9 AC OUTPUTS AS IT WILL CAUSE THE LOCOMOTIVE MOTOR AND LIGHTS TO BURNOUT. AC outputs are used for accessories that may be attached to this unit at a later time. Support: www.MotaToys.com/support/ Copyright© 2012 MOTA Toys® by UNorth®. All Rights Reserved.
  • Page 10 7. Be sure all wheels are properly on the track before operating your train. Support: www.MotaToys.com/support/ Copyright© 2012 MOTA Toys® by UNorth®. All Rights Reserved.

  • Page 11: Power Pack - Operation

    Observe the direction in which the locomotive travels. If it moves backward when control indicates forward, simply flip and reconnect the terminal wire / track connectors as shown in figure 9. Support: www.MotaToys.com/support/ Copyright© 2012 MOTA Toys® by UNorth®. All Rights Reserved.

  • Page 12: Operation

    NOTE: Do not leave your train running unattended. You will extend the mechanical life of your train by not running it for prolonged periods in your absence. Unplug the power pack when not in use. Support: www.MotaToys.com/support/ Copyright© 2012 MOTA Toys® by UNorth®. All Rights Reserved.

  • Page 13: Troubleshooting

    Solution Improper track connection Please check the section where it produced a bump or derailing. Ensure all tracks are properly installed and connected. Refer to track assembly for instructions. Support: www.MotaToys.com/support/ Copyright© 2012 MOTA Toys® by UNorth®. All Rights Reserved.
  • Page 14 Possible Cause Solution NORMAL Power pack will usually make “hum” when plugged in. This is normal. Issue: Train stops Possible Cause Solution Short circuit Please refer to short circuit section. Support: www.MotaToys.com/support/ Copyright© 2012 MOTA Toys® by UNorth®. All Rights Reserved.

  • Page 15: Short Circuit

    Your power pack is protected by a circuit breaker that automatically resets after a short circuit is detected. Allow up to five minutes for circuit breaker to reset before resuming operation. Support: www.MotaToys.com/support/ Copyright© 2012 MOTA Toys® by UNorth®. All Rights Reserved.

  • Page 16: Cleaning And Maintenace

    Do not use common household lubricants as they may damage your train. Contact your local hobby store for proper lubrication products and procedures. Support: www.MotaToys.com/support/ Copyright© 2012 MOTA Toys® by UNorth®. All Rights Reserved.
  • Page 17 If you have any questions, please contact MOTA® Support via http://www.MotaToys.com/support or by calling +1-720-466-3869 Support: www.MotaToys.com/support/ Copyright© 2012 MOTA Toys® by UNorth®. All Rights Reserved.
