lev-co Air Pod III Owner's Manual

Free standing ambient air cleaners
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

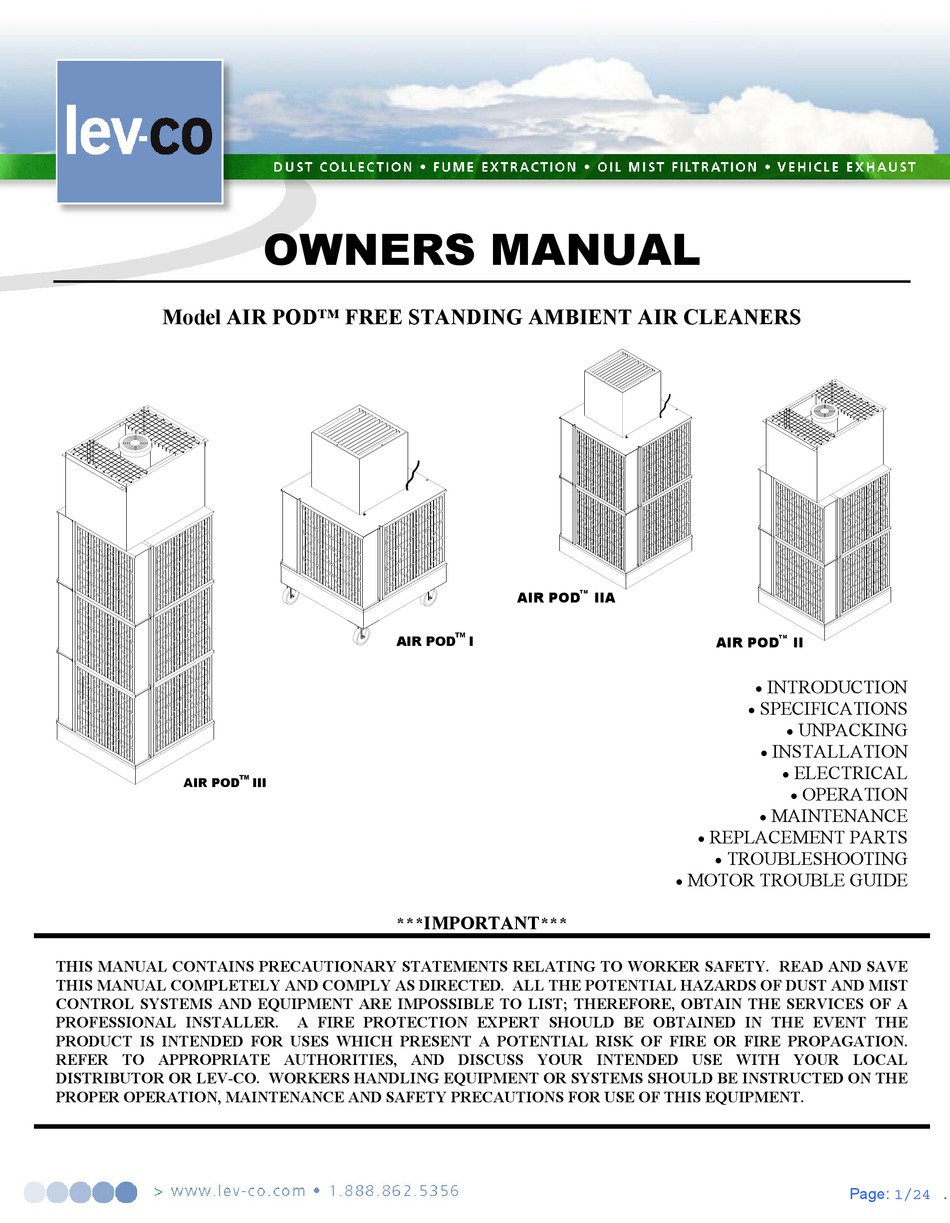

Model AIR POD™ FREE STANDING AMBIENT AIR CLEANERS
AIR POD III
THIS MANUAL CONTAINS PRECAUTIONARY STATEMENTS RELATING TO WORKER SAFETY. READ AND SAVE
THIS MANUAL COMPLETELY AND COMPLY AS DIRECTED. ALL THE POTENTIAL HAZARDS OF DUST AND MIST
CONTROL SYSTEMS AND EQUIPMENT ARE IMPOSSIBLE TO LIST; THEREFORE, OBTAIN THE SERVICES OF A
PROFESSIONAL INSTALLER.
PRODUCT IS INTENDED FOR USES WHICH PRESENT A POTENTIAL RISK OF FIRE OR FIRE PROPAGATION.
REFER TO APPROPRIATE AUTHORITIES, AND DISCUSS YOUR INTENDED USE WITH YOUR LOCAL
DISTRIBUTOR OR LEV-CO. WORKERS HANDLING EQUIPMENT OR SYSTEMS SHOULD BE INSTRUCTED ON THE
PROPER OPERATION, MAINTENANCE AND SAFETY PRECAUTIONS FOR USE OF THIS EQUIPMENT.
OWNERS MANUAL
AIR POD I
TM
***IMPORTANT***
A FIRE PROTECTION EXPERT SHOULD BE OBTAINED IN THE EVENT THE
AIR POD IIA
TM
TM
AIR POD II
TM
INTRODUCTION
SPECIFICATIONS
UNPACKING
INSTALLATION
ELECTRICAL
OPERATION
MAINTENANCE
REPLACEMENT PARTS
TROUBLESHOOTING
MOTOR TROUBLE GUIDE
Page: 1/24 .

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Air Pod III and is the answer not in the manual?

Questions and answers

Summary of Contents for lev-co Air Pod III

  • Page 1 PRODUCT IS INTENDED FOR USES WHICH PRESENT A POTENTIAL RISK OF FIRE OR FIRE PROPAGATION. REFER TO APPROPRIATE AUTHORITIES, AND DISCUSS YOUR INTENDED USE WITH YOUR LOCAL DISTRIBUTOR OR LEV-CO. WORKERS HANDLING EQUIPMENT OR SYSTEMS SHOULD BE INSTRUCTED ON THE PROPER OPERATION, MAINTENANCE AND SAFETY PRECAUTIONS FOR USE OF THIS EQUIPMENT.
  • Page 2 INTERNET: Inspect your LEV-CO unit for shipping damage immediately upon receipt. Damaged carton(s), broken crate(s), etc. are indications that the unit may have been damaged in shipment. It is also possible shipping damage may be concealed and not noticed until the unit is installed and in operation. If any damage is found, notify your delivery carrier at once and enter a claim.

  • Page 3: Table Of Contents

    Sets the Standard ....................Applications ..........................Air Pod I Specifications - Model ..................Air Pod IIA Model .................. Air Pod II and Air Pod III Models ..........Inspection ..........................Preparation and Installation ....................Optional Pressure Gauge Installation.................. Electrical........................... Single Phase ......................

  • Page 4: Safety

    READ THIS MANUAL CAREFULLY BEFORE ATTEMPTING TO INSTALL YOUR MODEL AIR POD FREE STANDING AMBIENT AIR CLEANER. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE. SAFETY RULES Follow all electrical and safety codes as well as the National Electrical Code (NEC), National Fire Protection Association (NFPA), and the Occupational Safety and Health Act (OSHA).

  • Page 5: Lev-Co ® Sets The Standard

    The Air Pod I & II A come with a 110/1/60 direct drive forward curve blower assembly and the Air Pod II and Air Pod III come standard with a 3 HP TEFC motor and backward-inclined, Class II, non-sparking blower in an acoustic lined blower compartment.

  • Page 6: Specifications - Model Air Pod I

    SPECIFICATIONS*: MODEL AIR POD I AMBIENT AIR CLEANER (*) LEV-CO has a policy of continuous research and improvement, and reserves the right to change design and specifications without notice. STD DIM 00" W x 31.00"D x 54.50" H [0.79 m W x 0.79 m D x 1.38 m H] WEIGHT: 192 lbs.

  • Page 7: Model Air Pod Iia

    SPECIFICATIONS*: MODEL AIR POD IIA AMBIENT AIR CLEANER (*) LEV-CO has a policy of continuous research and improvement, and reserves the right to change design and specifications without notice. STD DIM 00" W x 31.00"D x 72.00" H [0.79 m W x 0.79 m D x 1.83 m H] WEIGHT: 248 lb.

  • Page 8: Models Air Pod Ii And Air Pod Iii

    SPECIFICATIONS*: MODEL AIR POD II & AIR POD III AMBIENT AIR CLEANER (*) LEV-CO has a policy of continuous research and improvement, and reserves the right to change design and specifications without notice. AIR POD II STD DIM 00" W x 31.00"D x 76.00" H [0.79 m W x 0.79 m D x 1.93 m H]...

  • Page 9: Inspection

    INSPECTION AND UNPACKING Inspect your LEV-CO unit for shipping damage immediately upon receipt. Damaged carton(s), broken crate(s), etc. are indications that the unit may have been damaged in shipment. It is also possible shipping damage may be concealed and not noticed until the unit is installed and in operation. If any damage is found, notify your delivery carrier at once and enter a claim.
  • Page 10 FLUSH MOUNT 3. Drill a 2 5/8” hole in the desired location for the gauge. Be sure to cut away any silencing material inside the cabinet first. Install the pressure gauge and gasket using the supplied bracket (not shown) according to the directions included with the gauge. 4.

  • Page 11: Electrical

    9. Run clear tubing (supplied) from the “Low” port of the gauge through the installed grommet(s). NOTE: Spray some WD-40 on the clear tubing to ease penetration thru the grommet. 10. Reference “Filter Service” for reading of gauge. 11. Re-connect power to the unit. ELECTRICAL All Air Pod 115V, single-phase units, have a toggle switch located on the top of the unit.

  • Page 12: Three Phase

    THREE PHASE MOTOR - AIR POD II and AIR POD III The Model Air Pod II and Air Pod III are three phase units with the wiring terminated inside of the motor junction box. Motor starters and disconnects are not supplied with the unit unless purchased as an option. Any customer supplied device must meet local and National Electrical Code.

  • Page 13: Bi Blower

    BI BLOWER The BI motor (Figure 14) requires little or no routine servicing. The motor, blower wheel, and motor compartment gaskets should be checked twice a year under normal usage. It is very important that the blower wheel be aligned correctly to prevent interference with the inlet horn and also to maximize the air flow performance.

  • Page 14: Operation

    OPERATION Operation of any Air Pod model is very straightforward. Place the unit in the desired work area and arrange it so that no equipment will come into contact with the unit and/or power cords. Switch the unit ON as required. FILTER MAINTENANCE The Air Pod 6”...

  • Page 15: Filter Service

    FILTER SERVICE Filter service is required when a reduction of airflow (suction) is observed. The optional pressure gauge (Figure 18) is used to judge the amount of particulate collected on the filter. In most applications, a reading of 2.0” is typical of when the filter(s) should be replaced. Figure 18.

  • Page 16: Ad Module - Refillable

    AD MODULE - REFILLABLE: WEAR ADEQUATE PERSONAL PROTECTIVE DEVICES WHEN REFILLING AS AIRBORNE CARBON DUST IS RELEASED DURING THIS OPERATION. AD’s are NOT factory-filled and must be filled with charcoal before unit operation. The adsorption material (activated carbon or other) can be emptied from the module and refilled with fresh adsorber. Refer to Figure 22. It is important to get the AD module as full as possible as any low spots or air gaps will allow the gas being captured to by-pass or be exposed to a reduced amount of scrubbing.

  • Page 17: Other Service

    Replacement parts are available from your LEV-CO distributor. The following section lists replacement parts for the Air Pod unit.

  • Page 18: Replacement Parts

    REPLACEMENT PARTS – AIR POD AMBIENT AIR CLEANER Listed below are common replacement parts for the Air Pod ambient air cleaner. If a part is not listed below, contact your local LEV-CO Distributor or LEV-CO. Refer to Figure 24 for parts illustrations. ITEM QTY...
  • Page 19 Figure 24. Page: 19/24 .

  • Page 20: Troubleshooting

    The troubleshooting guide included in this manual is for qualified personnel only. A Motor Trouble Guide is included in Appendix A. If the unit does not function properly after following the guidelines in this manual, consult a LEV-CO Representative for further help.

  • Page 21: Notes

    NOTES RECORD START UP DATA HERE MODEL: Air Pod I, Air Pod IIA, Air Pod II, Air Pod III SERIAL NO.: DATE PURCHASED: DATE INSTALLED: MOTOR VOLTAGE (MEASURED): MOTOR CURRENT (MEASURED): MOTOR FLA (FROM NAME-PLATE): MOTOR VOLTAGE (FROM NAME-PLATE): ...

  • Page 22: Appendix

    APPENDIX 1. BRANCH WIRING ................2. MOTOR TROUBLE GUIDE..............Page: 22/24 .
  • Page 23 Page: 23/24 .
  • Page 24 Page: 24/24 .

This manual is also suitable for:

Air pod iAir pod iiaAir pod ii
