Instruction Manual for Centaur Mixers
MAC20, MAC30 & MAC60
- IMPORTANT SAFETY NOTICE -
This manual contains important safety instructions which
must be strictly followed when using this equipment.
WARRANTY REGISTRATION
SCAN THE QR CODE WITH YOUR MOBILE DEVICE OR GO TO
WWW.GLOBESLICERS.COM TO FILL OUT AND SUBMIT YOUR
WARRANTY REGISTRATION.
http://www.globeslicers.com/site/warranty.asp

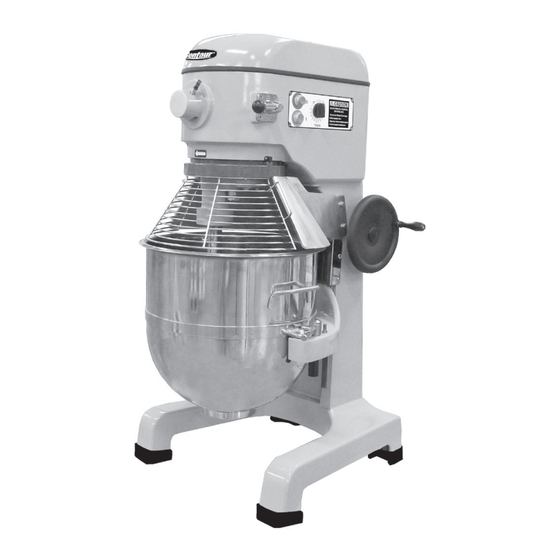

Model MAC60
Model #:
Serial #:
Advertisement
Table of Contents
Summary of Contents for Centaur MAC20
- Page 1 Model #: Serial #: Model MAC60 Instruction Manual for Centaur Mixers MAC20, MAC30 & MAC60 - IMPORTANT SAFETY NOTICE - This manual contains important safety instructions which must be strictly followed when using this equipment. WARRANTY REGISTRATION SCAN THE QR CODE WITH YOUR MOBILE DEVICE OR GO TO WWW.GLOBESLICERS.COM TO FILL OUT AND SUBMIT YOUR...
-
Page 3: Table Of Contents
CLEANING INSTRUCTIONS ............................11 IMPORTANT POINTS ...............................12 RECOMMENDED MAINTENANCE ..........................12 CAPACITY CHART ..............................13 TROUBLESHOOTING ............................14-15 LIMITED MIXER WARRANTY ...........................16 WARRANTY CONTACT INFORMATION: CENTAUR SERVICE 877-234-8287 CENTAUR SERVICE Printed in the U.S.A. 1-2012 for Centaur products © 2012 vr1.3 6-2012 Page 3... -
Page 4: Attention Owners And Operators
Attention Owners and Operators This equipment is designed to provide safe and productive processing of food products as long as the equipment is used in accordance with the instructions in this manual and is properly maintained. Unless the operator is adequately trained and supervised there is a possibility of serious injury. -
Page 5: Key Components Of The Mixer
Bowl Lift Lever Planetary Grease Fitting Bowl Lift Wheel (Model MAC60) Planetary Shaft Bowl Handle Bowl Clamp MAC30 FRONT VIEW Power Controls on the MAC20 Bowl Lock Clamp on the MAC20 Speed Control Stop Button Timer Start Button Bowl Guard Splash Guard... -
Page 6: Installation
Installation UNPACKING Unpack the mixer immediately after receipt. If the machine is found to be damaged, save the packaging material and contact the carrier within fifteen (15) days of delivery. Immediately contact your source of the equipment. You have no recourse to damage after fifteen (15) days. TO AVOID SERIOUS PERSONAL INJURY: ALWAYS install equipment in work area with adequate light and space. -
Page 7: Operating Instructions
Installation CONNECTING TO ELECTRICAL POWER cont’d. Units Without Power Cord or Plug: Have a licensed electrician connect the unit to the power supply. 9. Complete the warranty registration online at www.globeslicers.com/warranty.asp. 10. Clean the mixer prior to using it. Follow the cleaning instructions on page 11. NOTE: It is normal for the factory to apply a generous amount of grease in and on the machines before initial use. - Page 8 Operating Instructions ATTACHING THE AGITATOR TO THE MIXER (i.e., Beater, Hook, Whip) NOTE: It is easier to install the agitator prior to adding the ingredients into the bowl. 1. Rotate the bowl guard to the left so it rests in the open position (see fig 8-1). Excessive force used to open and close the bowl guard may damage the spring lock and bowl guard microswitch, and will void the warranty.
- Page 9 NOTE: The mixer is equipped with a motor overload protection. If the mixer shuts off during operation reduce the batch size and a. MAC20 and MAC30 models: Press the stop button then press the overload reset button. b. MAC60 model: Wait two minutes. Press the stop button then press the start button.
- Page 10 Operating Instructions 12. Push each bowl clamp backwards to unlock the bowl from the bowl cradle. 13. Lift up slightly on the bowl so it clears the pins on the bowl cradle. Most batches are heavy. Always use two people to remove and transport the loaded bowl after mixing is complete.
-
Page 11: Cleaning Instructions
Cleaning Instructions • Dilute detergent per supplier’s instruction. DO NOT hose down or pressure wash any part of the mixer. • NEVER use a scrubber pad, steel wool, or abrasive material to clean the mixer. • • NEVER use bleach (sodium hypochlorite) or bleach based cleaner. •... -
Page 12: Important Points
Important Points Your new mixer will provide years of uninterrupted service, but only if you do the following. Installation • Do not use an extension cord to connect electrical power. Operation • Turn off the mixer prior to changing speeds. •... -
Page 13: Capacity Chart
The following maximum capacities are intended as a guideline only, varying factors such as the type of flour used, temperature of water used, and other conditions may require the batch to be reduced. Product Agitator MAC20 MAC30 MAC60 Speed Waffle or Hot Cake Beater 8 qts. -
Page 14: Troubleshooting
Building circuit breaker is off. Check breaker box. Internal overload tripped. MAC20 & MAC30: Press stop button then press reset button. MAC60: Wait two minutes. Press stop button then press start button. (If overload continues to trip, reduce batch size and/or adjust recipe!) Gear not engaged. - Page 15 Troubleshooting Problem Possible Causes Action Required Mixing time is too long. Batch size too small. Increase batch size or use smaller bowl adapter kit. (Contact dealer for purchase) Incorrect recipe portions or Follow portions and temperatures per recipe temperatures. instructions. Bowl raise sticking Lack of lubrication on bowl slides Lubricate bowl slides with mineral oil or food quality or not operational...
-
Page 16: Limited Mixer Warranty
(15) days of delivery and immediately contact your source of the equipment. You have no recourse to damage after fi fteen (15) days of receipt. All Allied Buying Corporation (Centaur) food equipment was tested for proper operation before leaving our factory.
