Summary of Contents for ACME CarcamOne

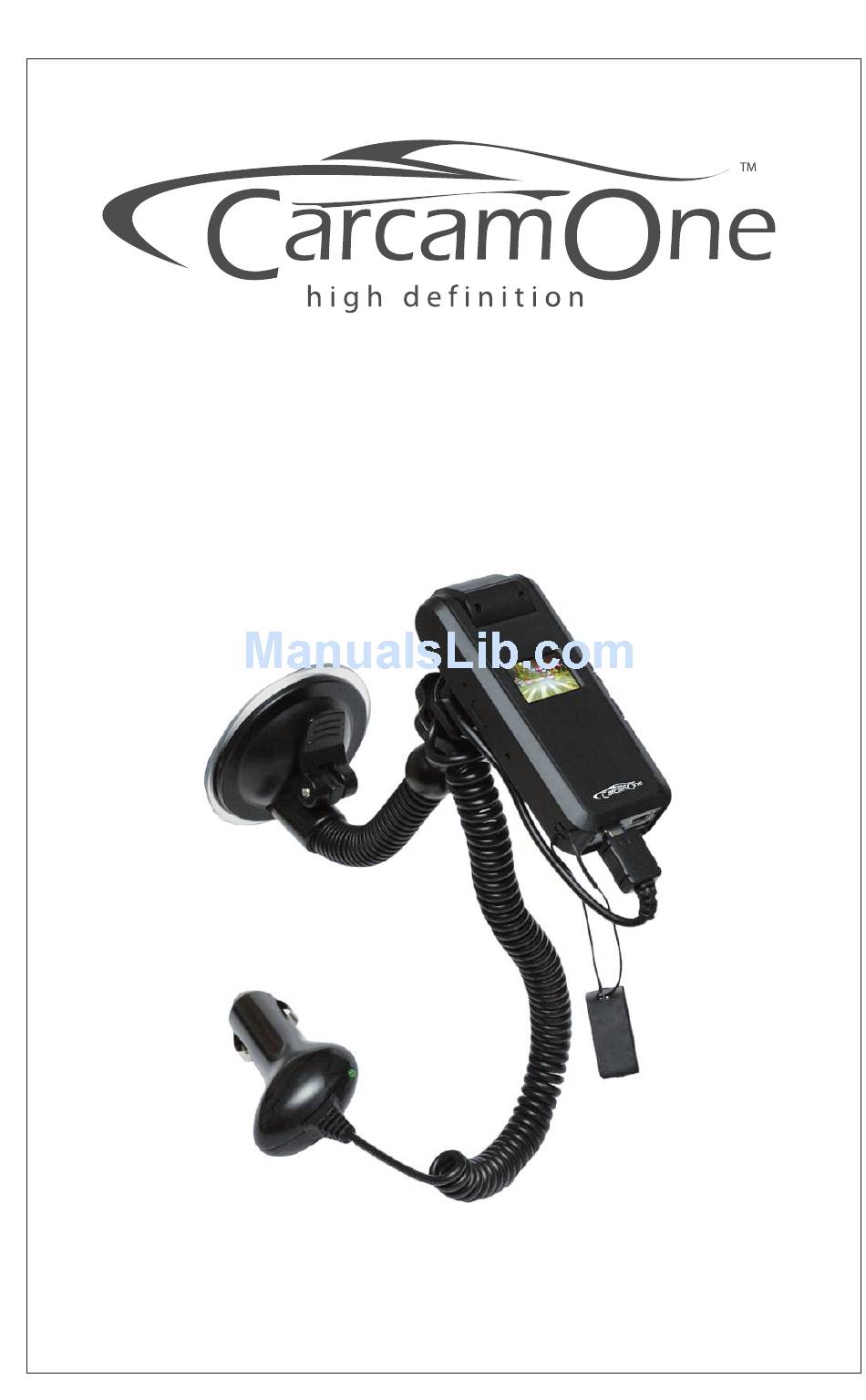

- Page 1 Manual Manual Download as PDF www.camonetec.com CamOne, FlyCamOne, CarCamOne and the CarCamOne Logo are registered Trademarks of ACME the game company, Germany © copyright 2013 by ACME the game company GmbH Version: 2.0...
-
Page 2: Content Of The Box
Content of the box Please make sure that the set is complete before starting CarCamOne High Defi nition 720p Camera CarCamOne Cable Suction cup Eyelet string USB-Cable 10Pin – RCA AV-Cable Manual... -
Page 3: Table Of Contents
Playback at the computer (MS Windows) Using the camera as a webcam Different type of mount Connecting the optional screen Exchange the lens Tighten / Untighten the head Firmware update Technical data Troubleshooting CarCamOne HD Accessoires Safety advice Service & Support... -
Page 4: Preparation
ACME will not be responsible in any case for any consequential or direct problems that will lead to a loss of recorded or edited data. Furthermore ACME will not guarantee the content in case the recording or saving is not working properly. The above limitations are as well valid in case the unit has been repaired. -
Page 5: Funktional Diagramm
- AV-Out - 5V IN - Signal IN for external start/stop (CarcamOne / Motion detection) Due to limitations in the technology of the display production, single or few dark or light dots might appear. This is not a defect and will not have any impact to the recorded video or photo! -
Page 6: Compatible Memory Cards
Press those for 3 seconds to get the second command. Start the camera Press the button at the left side of the cam to start the camera. CarCamOne will be On/Off displayed at the beginning. For usage inside the car you do not need to... -
Page 7: Permanent Recording Inside A Car
After stopping the engine, rotating bars appear and the recording will be fi nished. The CarCamOne records in 15 Minutes blocks. If the remaining memory for the next recording is not suffi cient, the fi rst recording will be deleted automatically. This causes a minimal gap of 3 seconds between the videos. -
Page 8: On-Screen Icons
Usage as a regular camera Flip 180° Changing the direction of the head requires to fl ip the picture by 180°. Press the „right” button for 3 seconds to adjust the direction according to your requirements. Can’t be changed once the recording has been started. Full screen The camera is not displaying the full frame as recorded. -
Page 9: Video Recording
Following menus appear: Serial pictures in photo mode Video Select the running time of the recording. Confi rm selected mode Standard with „Start”. Leave the submenu by pressing the “M” button. 15 Min Time Lapse will record with only one frame per second – 30 Min specially used for nature recordings. -
Page 10: Setup
By using the keypanel, you can switch through the menu and choose the modes by pressing the Record/OK- button. System Change between FlyCamOne HD or CarCamOne HD surface. (without effect on the options) Language Select the language English, German, French or Spanish... -
Page 11: Playback At The Computer (Ms Windows)
Playback at the computer (MS Windows) The videos can be displayed at the PC in an easy way. We recommend to use the VLC Player (freeware) www.vlc-player.org Connect the camera using the USB cable to your PC. Select the appearing „MSC” Mass storage Container to use the camera as a drive. -
Page 12: Different Type Of Mount
Different type of mount The line-Up of the FlyCamOne HD contains different type of fi xing systems Tripod adaptor The tripod adaptor fi xes the camera to every standard tripod. (Art.-Nr.: FCHD25) Pendulum mount The pendulum mount can be screwed or glued to a RC model - it enables the pan movement by a servo. -
Page 13: Connecting The Optional Screen
(Art.-Nr.: FCHD02) The Y-cable enables the simultaneous use of the CarCamOne-cable and screen! Exchange the lens Please Note! The opened camera head and connectors can be damaged easily. -
Page 14: Firmware Update
Firmware update To make the best out of your camera, make sure your fi rmware is up to date, which is displayed by pressing the M button for several seconds. Compare your fi rmware version with the currently listed version on our website. Website: www.CamOneTec.com When needed, the most recent fi... -
Page 15: Troubleshooting
Your car has power saving Close the red jumper inside at every traffi c light or when system and stops the engine. the CarCamOne-cable adaptor. stopping the car. The camera stops during normal Your car has power saving Close the red jumper inside the... -
Page 16: Carcamone Hd Accessoires
CarCamOne HD Accessories Please note: CarCamOne HD shares accessories of the FlyCamOne HD 720p marked with „720” Items marked with “1080” only cannot be used with the CarCamOne HD! Find more details at: www.CamOneTec.com Docking station! Compatible Art-No.: Item Camera... - Page 17 Space for your notes...
-
Page 18: Safety Advice
(p. 19). Information for Users on Disposal of electrical and electronic equipment. According to the company principles of CamOneTec / ACME the game company GmbH quality reusable components have been installed in this product. This symbol on the products and / or accompanying documents means that the product must be disposed at the end of the general household waste. -
Page 19: Service & Support
Telefon: +49 2944 97 383 0 E-Mail: service@camonetec.com http://www.camonetec.com A list of our world-wide service points is available here: http://www.camonetec.com/service CamOne, FlyCamOne, CarCamOne and the CarCamOne Logo are registered Trademarks of ACME the game company, Germany © copyright 2013 by ACME the game company GmbH... - Page 20 CamOneTec.com...
