OPERATION MANUAL
Tone Amplifier
AM5xs
Main Features:
Standard Audio Tone Technology with Variable Interrupt Rate
'qTrace' Tracer Tone Technology Provides Visual Accurate Wire Location
'Touch' Button Technology
Quick Change Battery
JSD TestPhone Ltd
Low Battery Indication
Unit E2
High Impact Resistance
Formal Industrial Estate
Fully Sealed to IP67
Treswithian
Two Year Warranty
Cornwall
Probe AM5xs
TR14 0PY
Five Sensitivity Levels
info@jsdtestphone.com
Digital Circuit Indication (10-350kHz)
www.jsdtestphone.com
Selectable Filter Mode (Normal or 800-1500Hz Pass)
Quick Change Probe Tip for Conductive/Inductive Pickup
Issue 2.02; 17/5/2012
Headset 17A Connection with Auto Power-up
Advertisement
Summary of Contents for JSD TestPhone AM5xs
-
Page 1: Operation Manual

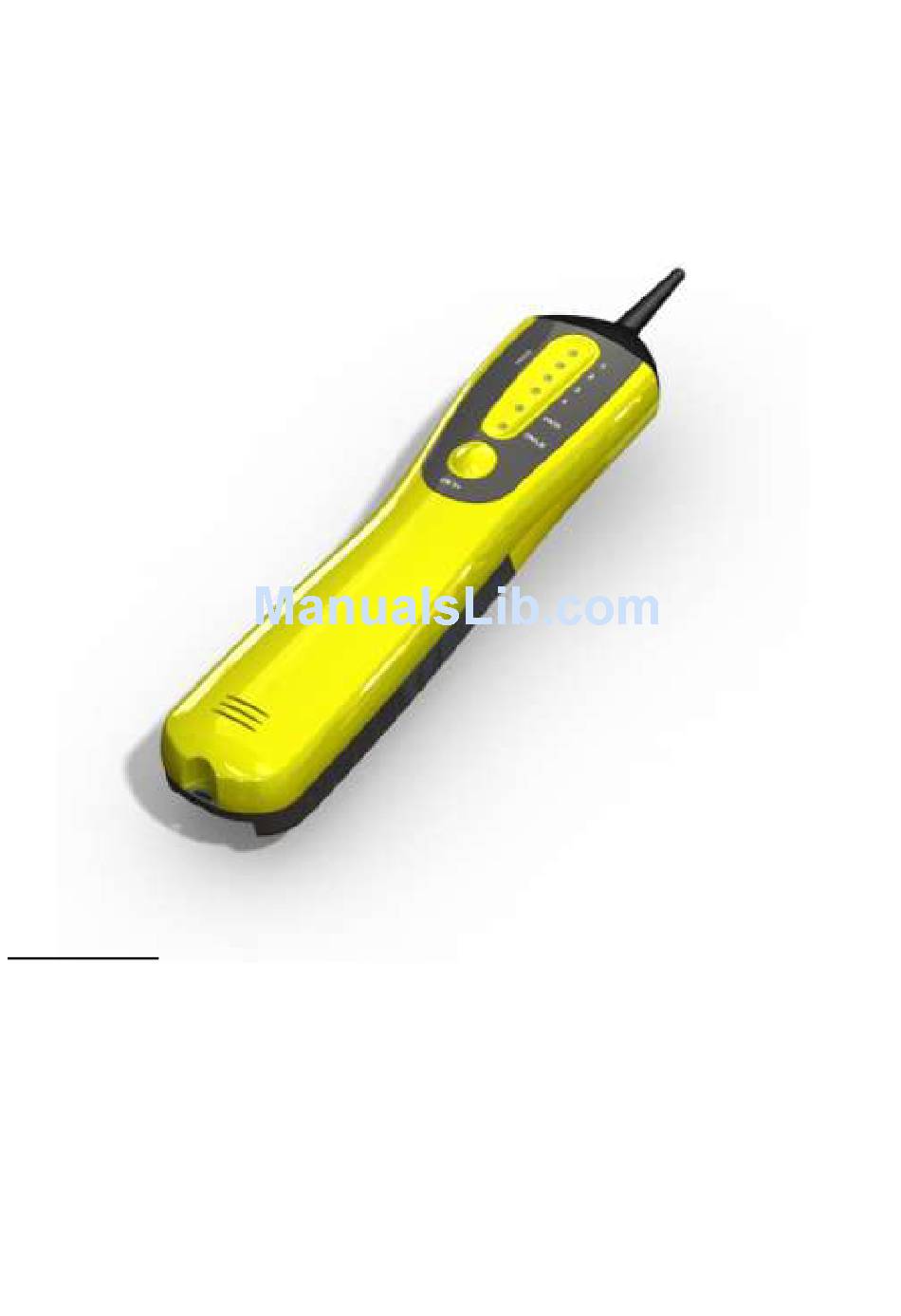

Main Features: Standard Audio Tone Technology with Variable Interrupt Rate 'qTrace' Tracer Tone Technology Provides Visual Accurate Wire Location 'Touch' Button Technology Quick Change Battery JSD TestPhone Ltd Low Battery Indication Unit E2 High Impact Resistance Formal Industrial Estate Fully Sealed to IP67... - Page 2 Introduction The JSD TestPhone AM5 Tone Amplifier product provides a means of tracing the audible signal generated by the TG5 Tone Generator product across a copper cable network. The product features five (5) sensitivity levels with selectable band-pass filtering and either contact or inductive pickup of the audible signal which is amplified and reproduced on the internal loudspeaker or external Headset.
- Page 3 Data Circuits If the AM5xs is presented to a circuit that is carrying data, the AM5xs will identify the presence of the data by illuminating the ‘DATA’ indicator and producing a BEEP-BOP tone in the loudspeaker every two (2) seconds.
-
Page 4: Fault Finding
Operating Enviroment -25°C - +70°C; humidity up to 80% Dimensions 16.0 x 6.5 x 3.0 (cm) Weight 247 (g) AM5xs DC Characteristics Battery voltage 9V nominal (PP3/6LR61/1604A Alkaline) Battery supply current 75uA RMS (OFF), 62mA (ON and idle) 250mA (Max sensitivity/input signal)
