CAT5 VGA/DATA Transmitter
International HQ
Jerusalem, Israel
Tel: + 972 2 535 9666
minicom@minicom.com
www.minicom.com
Installation Guide
North American HQ
Linden, New Jersey
Tel: + 1 908 4862100
info.usa@minicom.com
German Europe
Zurich, Switzerland
Tel: + 41 1 455 6220
info.german@minicom.com
Customer support - support@minicom.com
Italy
Rome
Tel: + 39 06 8209 7902
info.italy@minicom.com
5UM40088 V1.1 11/02
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Minicom CAT5 VGA/DATA Transmitter
Summary of Contents for Minicom CAT5 VGA/DATA Transmitter
- Page 1 CAT5 VGA/DATA Transmitter Installation Guide International HQ North American HQ German Europe Italy Jerusalem, Israel Linden, New Jersey Zurich, Switzerland Rome Tel: + 972 2 535 9666 Tel: + 1 908 4862100 Tel: + 41 1 455 6220 Tel: + 39 06 8209 7902 minicom@minicom.com...

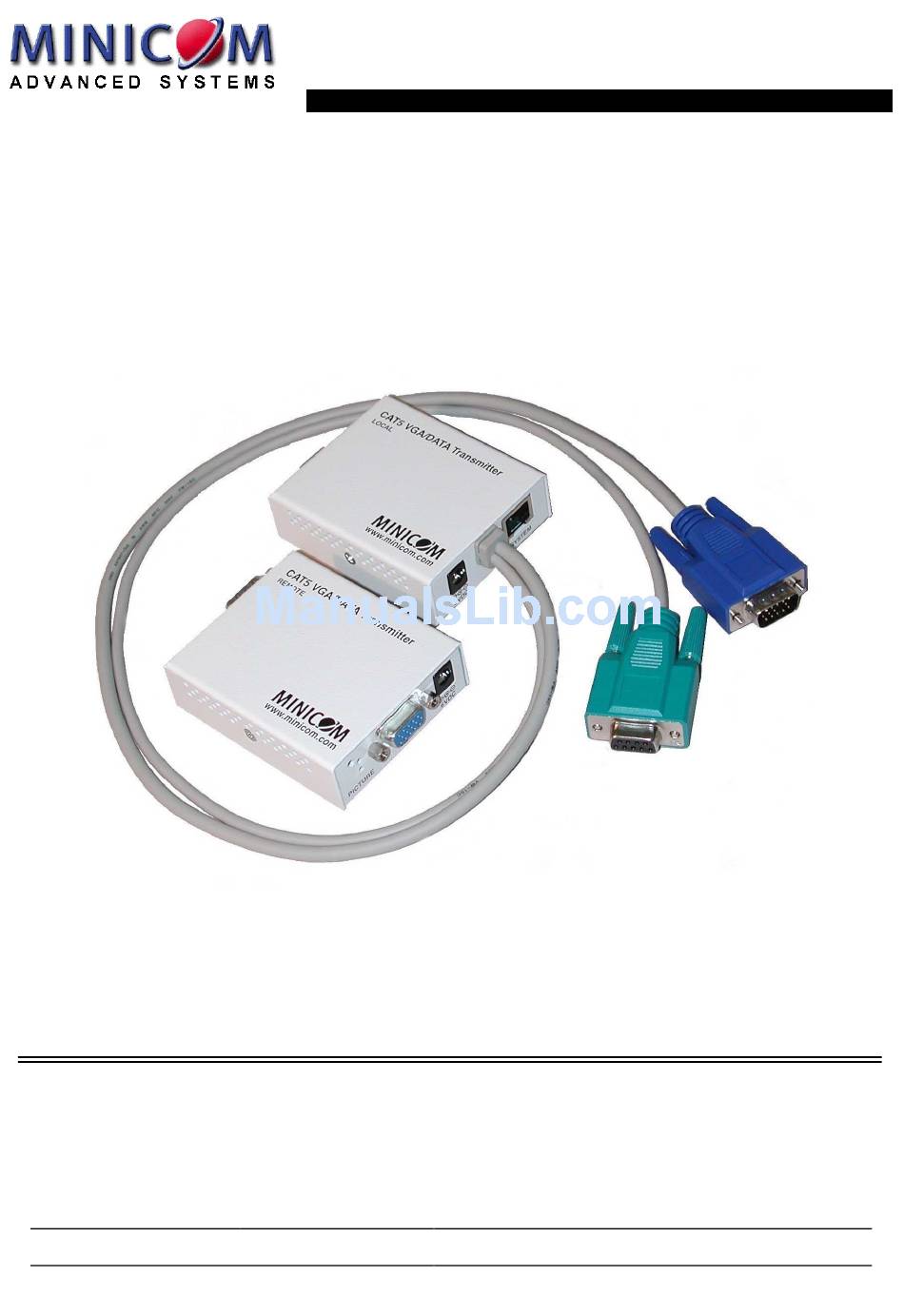

- Page 2 CAT5 VGA/DATA TRANSMITTER What is the CAT5 VGA/DATA Transmitter? The CAT5 VGA/DATA Transmitter (VDT) from Minicom transmits high-resolution computer video (VGA) and RS232 signals along a shielded CAT5 cable. (The RS232 signals are Transmit and Receive only). This Installation Guide illustrates the VDT and explains how to install it.
- Page 3 INSTALLATION GUIDE P1 10 To Screen port CAT5 VDT CAT5 VDT CAT5 VDT CAT5 VDT Local unit Local unit Local unit Local unit To System port To RS232 port To Video card Shielded CAT5 cable To RS232 port To System port CAT5 VDT CAT5 VDT CAT5 VDT...
-
Page 4: Technical Specifications
CAT5 VGA/DATA TRANSMITTER Technical specifications System Resolution Up to 1600 x 1200 @ 75Hz System cable Shielded CAT 5 FTP cable Maximum distance 110m/360ft RS232 connection Bi-directional Transmit/Receive only System order number 0VS23003 Shipping weight 880g Package dimensions 335 x 150 x 110 mm...
