Tevion Digital Freeview Receiver Quick Setup Manual

1. Standby Indicator
2. Remote Control Sensor
3. USB Input
1. RF IN
2. RF Loop Through
3. VCR Scart
4. TV Scart
5. COAXIAL
6. Mains Cable
Note : When connecting your digital set top box to other equipment, e.g, TV or VCR , make sure to refer to the
relevant user manual for instructions. Also make sure you disconnect all the equipment from the mains power supply.
Helpline No. UK/Northern Ireland 01270 508538 Rep. Ireland 1800 995 036
Web Support www.quesh.co.uk
Model Number: 44217
Digital Freeview Receiver
Quick Set-Up Guide

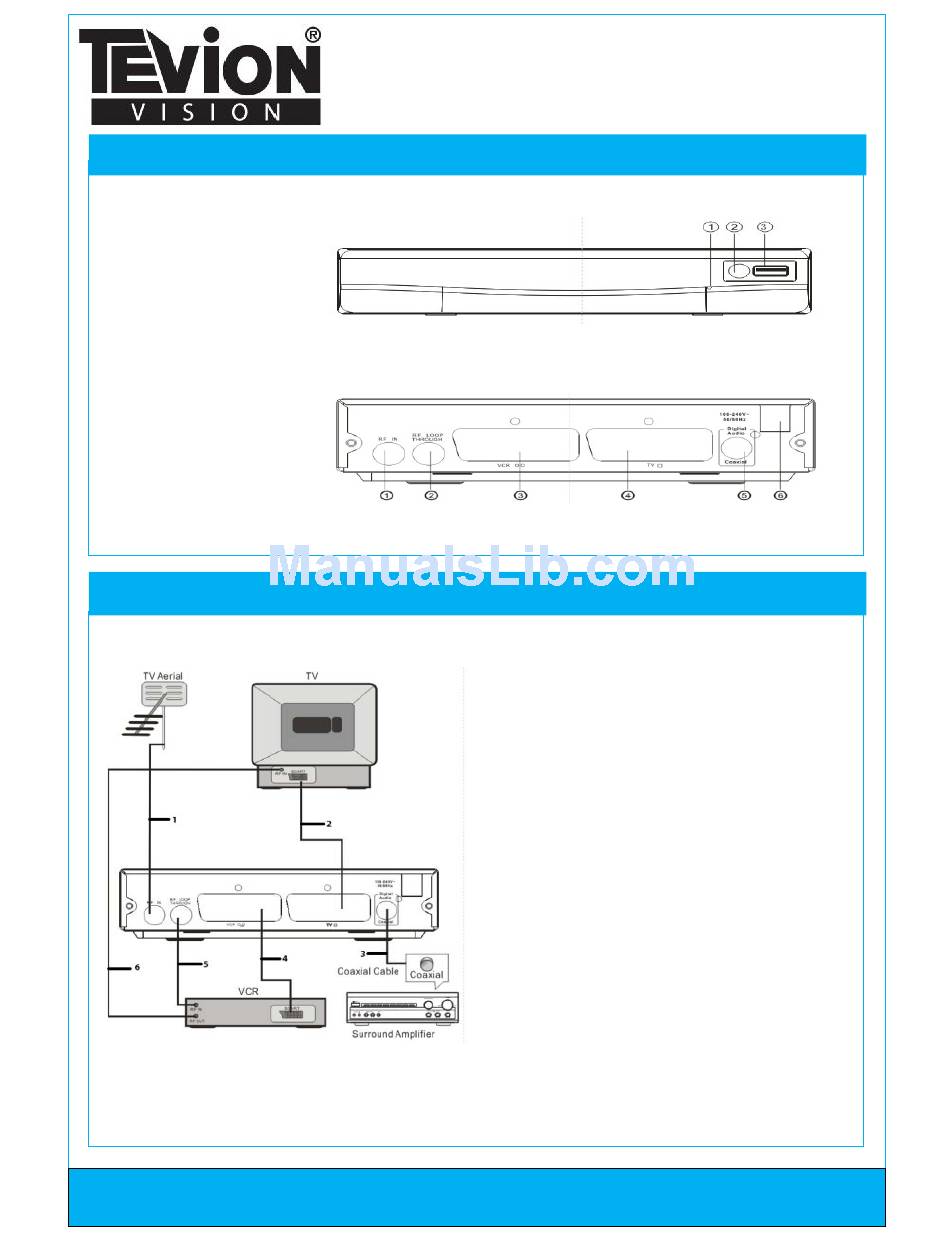

FUNCTIONS AND CONNECTIONS
Front Display
Rear Display
CONNECTING TO YOUR TV
1. To connect your set top box to your TV,
simply follow these steps:
2. Connect the set top box to your existing
aerial point.
3. Insert one end of the scart cable (provided)
into the TV scart socket on the set top box,
then simply connect the other end to an
available scart socket on your TV.
4. (Optional) Insert one end of a COAXIAL cable
into the COAXIAL socket on the back of the
set top box, connect the other end to the
COAXIAL socket on our surround sound
system.
5. (Optional) Insert one end of a scart socket in
to the VCR socket, then connect the other
end into your VCR/DVD player.
6. (Optional) Insert one end of your RF loop
through cable into the RF LOOP THROUGH
socket on the set top box, then connect the
other end into your VCR's RF IN socket.
7. (Optional) Insert one end of your RF cable
into the RF out socket on your VCR, then
connect the other end into the RF in socket
on the back of your TV.
