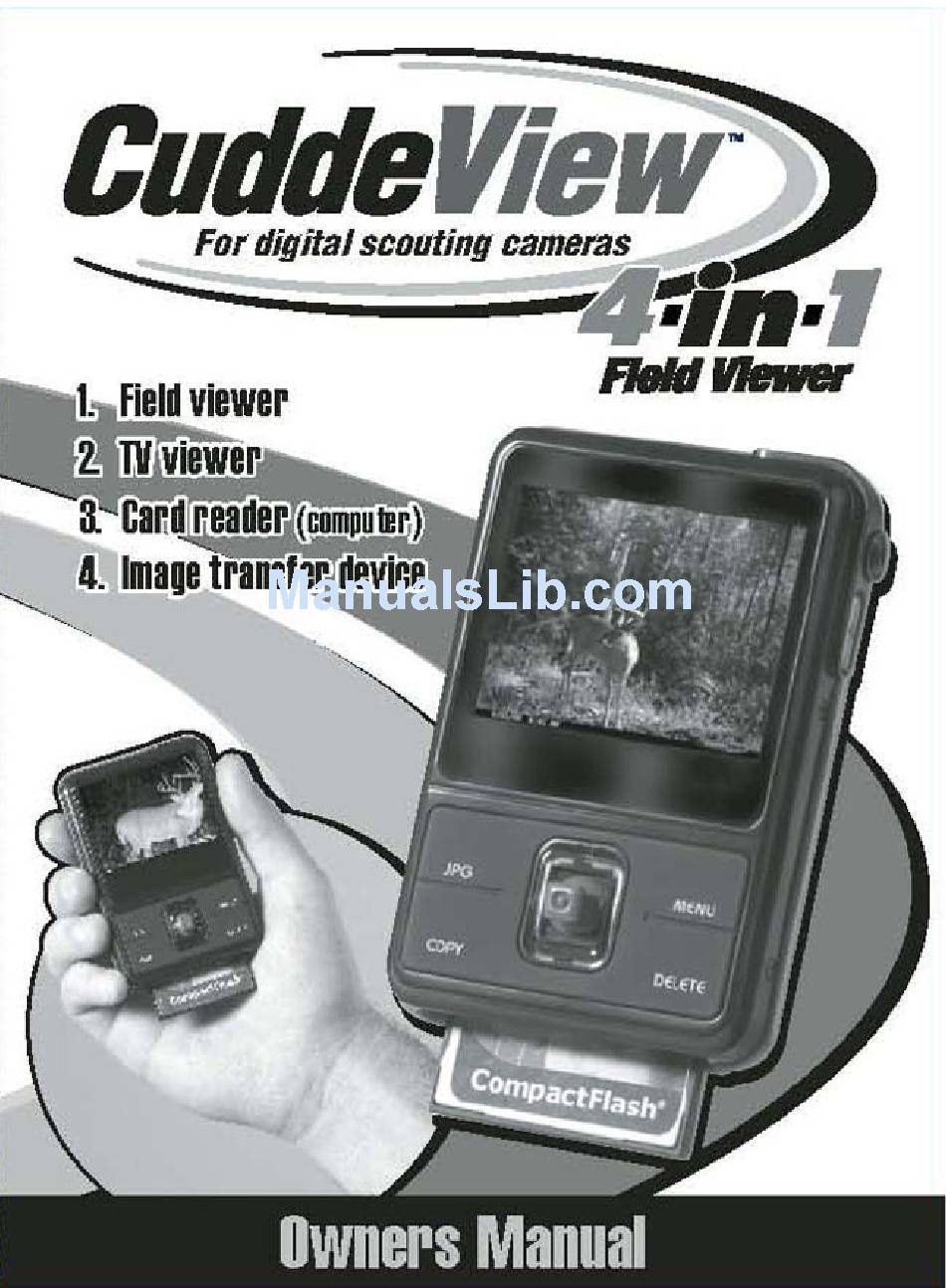

CuddeView 4-in-1 Field Viwer Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4-in-1 Field Viwer and is the answer not in the manual?

Questions and answers

Summary of Contents for CuddeView 4-in-1 Field Viwer

  • Page 2: Table Of Contents

    Attaching the Strap………………….……….. 11 3. JPG Mode (Pictures Playback)…………………… 12 Loading SD card……………………………… 12 Loading CF card……………………………… 12 Powering CuddeView On/ Off………………. 13 Playback Pictures from SD/CF card..……… 14 Pictures Playback…………………………. 14 Using Playback Zoom……………….…… 15 4. Copy Mode………………………………………….. 16 CF to SD.………………………………………...
  • Page 3 Table of Contents 8. Making Connection………………………………… 23 Connecting to PC……………….……………. 23 Download Pictures……………………………. 24 Connecting CuddeView to TV ……………… 26 PictBridge Function………………………….. 27 9. Appendix…………………………………………….. 28 Specifications…………………………………. 28...
  • Page 4 CuddeView allows you to view your images in the field, on TV or on a computer. The required connection cables are included.

  • Page 5: Precautions

    Improper use creates the risk of serious accident. • Do not try to open the case of CuddeView or attempt to modify CuddeView in any way. High-voltage internal components create the risk of electric shock when exposed.
  • Page 6 CuddeView may lead to overheating, distortion of the equipment, fire, electrical shock or other hazards. • CuddeView may become slightly warm during use. This does not indicate malfunction. • If the exterior of CuddeView needs cleaning, wipe it with a soft, dry cloth.
  • Page 7 FCC Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 8: Preparation

    2. Preparation Standard Accessories Photo Viewer Manual Carry Bag Strap USB cable TV cable...

  • Page 9: Parts Names

    Part Names Front View Back View...

  • Page 10: Charging The Battery Pack

    CuddeView is fully charged. The lithium-ion battery used in CuddeView recharges automatically when CuddeView is plugged into a PC via the provided USB cable. When the battery is charging, the red LED will light up. When charging is complete, the red LED will be off.
  • Page 11 Or you could charge the battery by AC adaptor (not supplied) to a power outlet. Any USB AC adapter will function with CuddeView. Battery power status CAUTION * It takes approximately 4 hours to fully charge a depleted battery. * The photo viewer can be charge at ambient temperatures between 0℃...

  • Page 12: Attaching The Strap

    Attaching the Strap 1. The small loop goes through the strap holder. 2. Then the small loop goes through one clutch of the loop again and pulls tightly.

  • Page 13: Jpg Mode (Pictures Playback)

    3. JPG mode (Pictures Playback) Loading SD Card Insert SD card into SD memory card slot and push it all the way in. Use finger nail to push out the SD card. Loading CF Card Insert CF card into CF memory card slot. It is fully installed when it is.

  • Page 14: Powering Cuddeview On/ Off

    Powering the photo viewer ON/ OFF Power ON 1. Press the Power Button to turn on CuddeView’sj LCD Monitor. 2. When the LCD Monitor has been activated. CuddeView is ready to playback the images of SD or CF card. Power OFF 1.

  • Page 15: Playback Pictures From Sd/Cf Card

    Playback Pictures from SD/ CF card Picture Playback 1. Press JPG Button for play back the images from SD or CF card. 2. Push to scroll the pictures.

  • Page 16: Using Playback Zoom

    Using Playback Zoom 1. Push to pan the center of the picture to view. Push to zoom in and zoom out. 2. Press OK Button to fix the zoom frame from purple to blue. Push to move to a specific area you want to zooming inward and press OK button again.

  • Page 17: Copy Mode

    4. COPY Mode One of the most useful features of your CuddeView is the ability to transfer images and videos, from SD card to CF card or from CF card to SD card. 1. Press Copy Button once, to copy pictures on CF card to SD card.

  • Page 18: Delete Mode

    5. DELETE Mode 1. Press Delete Button once. Push to select “ ” and press OK Button to delete current review picture. 3. Press Delete Button twice. Push to select “ ” and press OK Button to delete all pictures. Press JPG Button to return pictures playback status.

  • Page 19: Menu Mode

    6. MENU mode Press MENU Button to enter Setting Mode and then push forward to select setting modes. Auto Power Off 1. Select MENU Mode. 2. Press OK Button. 3. Push to select the 5 min for power saving or “X” is turn off auto power off function which you want to change, and press OK Button to set.

  • Page 20: Language

    Language 1. Select MENU Mode. 2. Push to select Language Mode and press OK Button. 3. Push to select languages you want to change, and press OK Button to set. 4. Language reference table English Traditional Chinese German Simplified Chinese French Japanese Spanish...

  • Page 21: Buzzer

    Buzzer 1. Select MENU Mode. 2. Push to select Buzzer Mode and press OK Button 3. To select “ ” to turn on, “X” is turn off the buzzer function. Sound 1. Select MENU Mode. 2. Push to select Sound Mode and press OK Button to adjust the volume.

  • Page 22: Tv System

    TV system 1. Under MENU Mode. 2. Press to select TV system Mode and press OK Button. 3. Push to select NTSC/ PAL you want to change, and press OK Button to set. Use NTSC setting in USA and Canada. Memory Status 1.

  • Page 23: Additional Function

    7. Additional Function LED Light On/Off CuddeView has a built in LED light that you can use as a mini-flashlight. This can be used to help operate your scouting camera in low light conditions. 1. Press MENU mode. 2. Press Delete button to change the LED flash on.

  • Page 24: Making Connection

    8. Making Connection Connecting to PC Window 2000/ XP/ Vista- No Driver Required: 1. Power on the viewer first. 2. Plug the USB cable to the viewer and computer properly.

  • Page 25: Download Pictures

    Download Pictures 1. Power on the camera first and plug in USB cable 2. For Windows 2000: Double click “My Computer” icon on the Windows Desktop. For Windows XP: Select “Open Folder view files using Windows Explorer” and click “OK” 3.
  • Page 26 When SD card installed 1. Double click on the DCIM folder to open. 2. Double click on the 100CUDDY folder for pictures or You could find 100CDY folder which copy pictures from CF card. 3. You can copy the pictures to your designated folder or album.

  • Page 27: Connecting Cuddeview To Tv

    Use NTSC setting in USA and Canada. 3. Plug the provided TV cable (the black end) into the AV port on CuddeView and connect TV cable to your TV. Yellow to yellow (video-in). 4. You can review the pictures on TV.

  • Page 28: Pictbridge Function

    If you have a printer that supports PictBridge you can print your images by connecting CuddeView directly to the PictBridge-compatible printer without using a PC 1. Plug the USB cable to CuddeView and computer properly. 2. Power on CuddeView, select PictBridge symbol and press OK button to set.

  • Page 29: Appendix

    9. Appendix Specifications Image Sensor CMOS Built-in Memory 16MB Flash memory External Memory SD card memory slot CF card memory slot LED Flash Flash off, Flash on Zoom 8X digital zoom for playback Display 2.4” TFT color display PC Interface USB 2.0 Microphone Built-in...
