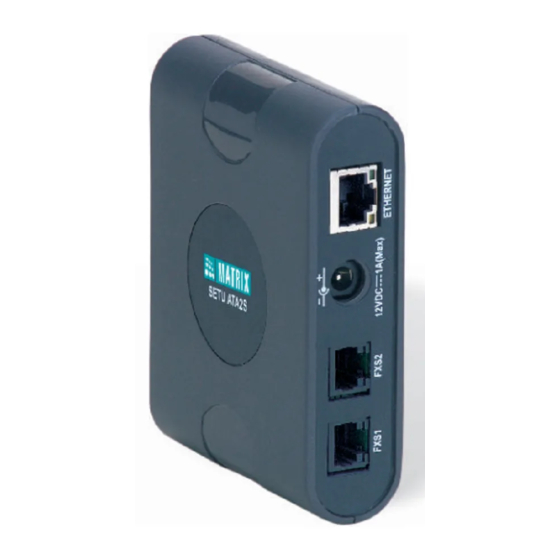

SETU ATA2S
System Manual
Magyarországon a Matrix Telecom Ltd. képviselete,
Matrix termékek importőre, kizárólagos forgalmazója:
1095 Budapest, Mester u. 34.
Telefon: *218-5542, 215-9771, 215-7550, 216-7017, 216-7018
Fax: 218-5542 Mobil: 30 940-1970, 20 949-2688
E-mail: delton@delton.hu Web: www.delton.hu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SETU ATA2S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Matrix SETU ATA2S

Summary of Contents for Matrix SETU ATA2S

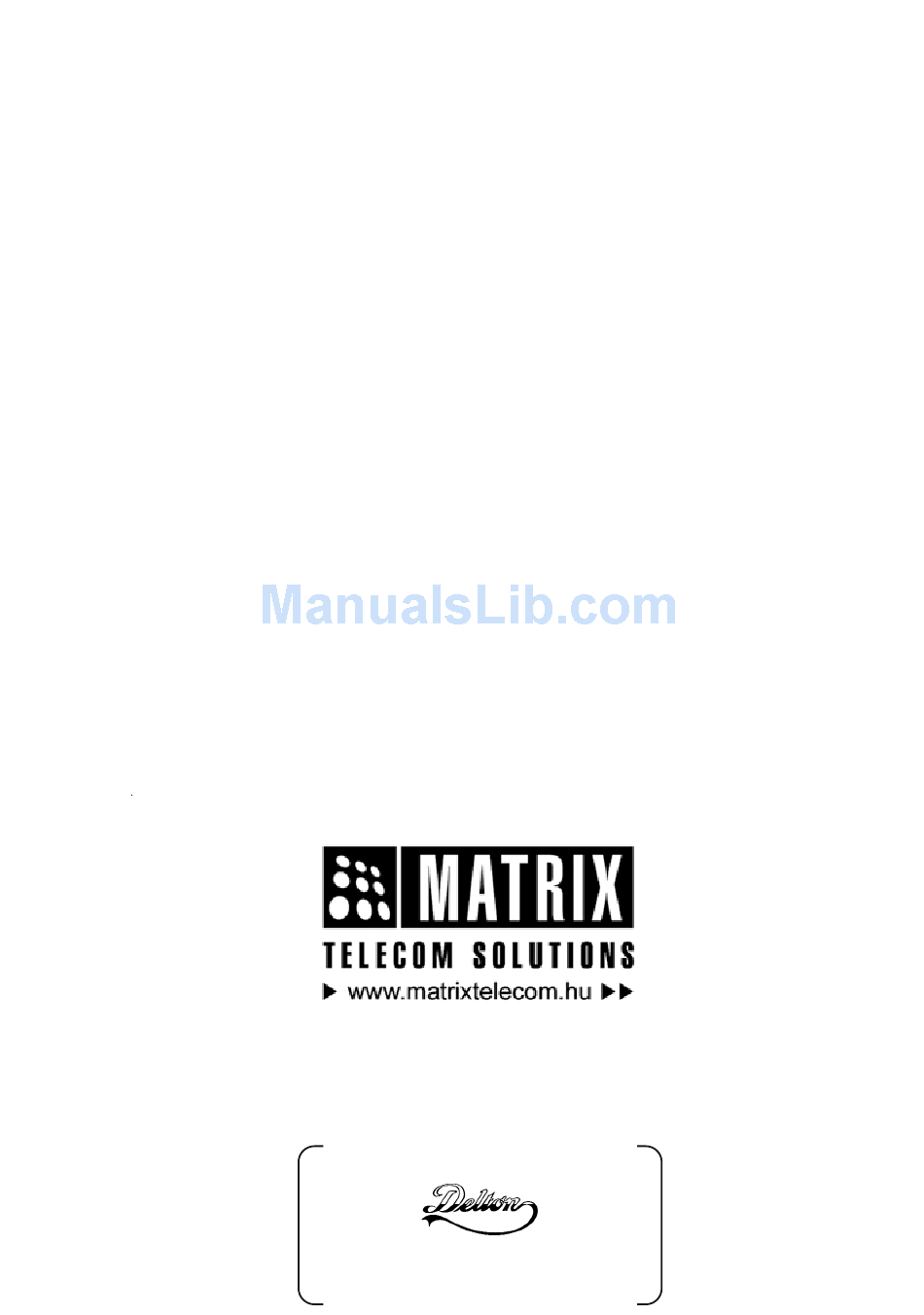

  • Page 1 SETU ATA2S System Manual Magyarországon a Matrix Telecom Ltd. képviselete, Matrix termékek importőre, kizárólagos forgalmazója: 1095 Budapest, Mester u. 34. Telefon: *218-5542, 215-9771, 215-7550, 216-7017, 216-7018 Fax: 218-5542 Mobil: 30 940-1970, 20 949-2688 E-mail: delton@delton.hu Web: www.delton.hu...
  • Page 2 Neither Matrix Telecom nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs or expenses incurred by purchaser or third parties as a result of: accident, misuse...

  • Page 3: Table Of Contents

    Contents Section 1: Introduction ..............5 Welcome ..................7 Packing List ..................9 Warranty Statement ..............10 Protecting the System ..............13 Introducing the System ..............15 Getting Started ................18 Section 2: Features and Facilities ..........27 Auto Configuration ............... 29 Dial Plan ..................
  • Page 4 Index ................... 112 Notes ..................115 Programming Register ............. 117...

  • Page 5: Section 1: Introduction

    Section 1: Introduction...

  • Page 7: Welcome

    Matrix dealers are trained and ready to give you the support you need to get the most from your Matrix product. In fact, most problems reported are minor and can be easily solved over the phone.
  • Page 8 • SIP Accounts 60 • Dial Plan 32 • Phone Book 58 • Software Upgrade 65 • Auto Configuration 29 • System Name 81 VoIP ATA ‘Phone Adaptor’ and ‘SETU ATA2S’ are used as synonymous in this manual. SETU ATA2S System Manual...

  • Page 9: Packing List

    Matrix Packing List The ideal sales package for SETU ATA2S is as mentioned below: Accessories Qty. SETU ATA2S System Manual Adaptor 12V, 1.25Amp. Mounting Screw 30/7 Screw Grip Warranty Card set Support Card RJ11 Cable RJ45 Cable Mounting Template SETU ATA2S CD •...

  • Page 10: Warranty Statement

    Matrix Warranty Statement Matrix warrants to its consumer purchaser any of its products to be free of defects in material, workmanship and performance for a period of 15 months from date of manufacturing or 12 months from the date of installation which ever is earlier.
  • Page 11 The Purchaser shall have to either insure the product or assume liability for loss or damage during transit. Matrix reserves the right to waive off or make any changes in its warranty policy without giving any notice. If Matrix is unable to repair or replace, as applicable, a defective...
  • Page 12 This warranty is not transferable and applies only to the original consumer purchaser of the Product. Warranty shall be void if the warranty card is not completed and registered with Matrix within 30 days of installation. SETU ATA2S System Manual...

  • Page 13: Installation Precautions

    • Do not allow anything to rest on the power cord of product or AC- DC Adapter. Do not place this product where the cord will be misused by people walking on it. SETU ATA2S System Manual...
  • Page 14 If the product has been dropped or the cabinet has been damaged. f) If the product exhibits a distinct change in performance. • Do not use the telephone of the product to report a gas leak in the vicinity of the leak. =X=X= SETU ATA2S System Manual...

  • Page 15: Introducing The System

    Introducing the System • Matrix offers the “Voice over IP-Analog Telephone Adaptor”, VoIP ATA or Matrix Phone Adaptor (SETU ATA2S) which is a SIP based VoIP product. • Sending voice signals over the Internet is called Voice over IP or VoIP.
  • Page 16 • Status page display of main parameters • By default, Static IP Address of ATA2S is : 192.168.001.151. • Before proceeding further, please ensure that you have an Internet access and a SIP Account already set up. SETU ATA2S Photograph: SETU ATA2S System Manual...
  • Page 17 Matrix Relevant Topics: 1. Glossary 103 2. VoIP Basics 83 =X=X= SETU ATA2S System Manual...

  • Page 18: Getting Started

    3. Basic steps for configuration. 4. Making phone calls. Getting to know the phone adapter The Matrix ATA’s ports are located on side panel and LEDs are on front panel. Both are explained below: • Connection of Right Side panel ports.
  • Page 19 This is a WAN Port. Connection to cable modem/ ADSL modem or router or LAN switch. Ethernet RJ 45 with Ethernet activity LED (Green) is glowing. two LED’s PC can be connected from Ethernet switch to access the ATA. SETU ATA2S System Manual...
  • Page 20 IC Call-Ring Event/OG Call-Number Slow Blinking being dialed. FXS port On-hook. IC Call/OG Call-Speech and Off- Hook. Error condition during IC/OG Fast Blinking FXS2 call/Busy Condition. IC Call-Ring Event/OG Call-Number Slow Blinking being dialed. FXS port On-hook. SETU ATA2S System Manual...
  • Page 21 IC, OG : Incoming, Outgoing Instruction for connecting the phone adapter This section describes the instructions on, how to connect the Matrix ATA to internet network and telephones. Unpack the box. Get satisfied with the contents and the condition of the parts.
  • Page 22 • Enter the programming access code #19 followed by password 1234. You get programming tone. • Enter the WAN IP Address, using command 11-<WAN IP Address>-#*. For e.g. to enter IP Address 192.168.001.151. Enter command 11-<192168001151>-#*. • You get confirmation tone followed by system restarting. SETU ATA2S System Manual...
  • Page 23 • After SIP1 and/or SIP2 LED is ON, just dial the SIP ID numerical number e.g. 4567 which is registered to the same ITSP provider. • If SIP account is 4567@provider.com then the SIP ID number is 4567 and SIP service domain is ‘Provider.com’. SETU ATA2S System Manual...
  • Page 24 FXS port number. You can also call another ATA or IP- Phone by dialing its IP Address if Peer-to-Peer is enabled. For e.g. Just dial 192*168*1*21, to call the IP number 192.168.1.21. Mechanical dimension of SETU ATA2S: SETU ATA2S System Manual...
  • Page 25 Matrix 104.00 mm (4.09 Inch) =X=X= SETU ATA2S System Manual...

  • Page 27: Section 2: Features And Facilities

    Section 2: Features and Facilities...

  • Page 29: Auto Configuration

    Call Forward are provided by the ITSP. Hence, it is desirable that the ATA is configurable by the ITSP from the central location. Matrix ATA supports this by providing Auto Configuration feature. • The ITSP will keep the folders of configuration files in Central Server for different ATA units as per LAN/WAN MAC Address number of the ATA.
  • Page 30 ATA. Default = Blank Config 40 Characters max. Provided by ITSP. Enter here the path Default = Blank of the folder in which the configuration Folder Path files are stored. For e.g. Matrix/SetuATA . SETU ATA2S System Manual...
  • Page 31 Important Points: • ATA will not restart, if user clicks on ‘Submit” on this page. • This feature can also be used when ATA is connected to an IP PBX. Relevant Topic: 1. Status 66 =X=X= SETU ATA2S System Manual...

  • Page 32: Dial Plan

    Matrix Dial Plan • Generally Matrix ATA user can assign two SIP Account numbers to two FXS Ports, one for each. Hence if Call from FXS1 needs to use SIP2 Account, then it can be done by assigning SIP2 to FXS1 in the FXS Port parameters screen.
  • Page 33 Default = Blank SIP 1 and SIP 2 Enter the SIP Account Number Account Default = SIP1 provided by ITSP. Relevant Topics: 1. FXS Port 34 2. SIP Accounts 60 =X=X= SETU ATA2S System Manual...

  • Page 34: Fxs Port

    • Different types of tones are played during specific event of establishing the call, speech duration and termination of the call. As per ITU standard these tones are of different specification for different country. For example, Dial Tone for India consists of SETU ATA2S System Manual...
  • Page 35 ‘Call Forward’, Do Not Disturb (DND)’, etc. and it remains for 7 secs. • ATA plays the CCWT when an incoming call arrives while the user is connected to another party. The time duration and the tone, when it is matured are as per following table 1: SETU ATA2S System Manual...
  • Page 36 Combo Box for FXS1 and FXS2 to program the Call Progress Tone. Ring Type: • The Matrix ATA supports different cadence for the ring when incoming call lands on FXS1 or FXS2. • These cadence is standardized for different country. For example, India supports: 25Hz, 0.4 ON 0.2 OFF, 0.4 ON 2.0 OFF (Sec.).
  • Page 37 Packet Voice Protocol and prevents the encoder output from being transported across the network. • Click on “FXS” • FXS Ports SETU ATA2S System Manual...
  • Page 38 List of countries ATA is installed. Refer table-3 Ring Type refer table 3. for the cadence of various Default = India rings supported 01-99 seconds Select the time period to play Ring Timer Default = 60 the ring. SETU ATA2S System Manual...
  • Page 39 Default = 600 ms. Echo Cancellation Enable Default = Yes Click if the feature required 8 msec Select such that delay is 16 msec Tail Length 32 msec minimum so that Voice quality Default = 32 is improved. msec. SETU ATA2S System Manual...
  • Page 40 FXS1 and FXS2 will use FXS1 and SIP2 for OG-Call. for FXS2 Peer-to-Peer Yes/No Select 'Yes' if direct IP Enable Default = No Calling feature is required. Note 2: Polarity Reversal on FXS port is as per following table: SETU ATA2S System Manual...
  • Page 41 0.375on 0.4on 0.35off 350+440 cont. 400+450 0.4on 2.0off 0.375off 0.225on 0.525off 0.4on 0.2off 0.375on 0.4on 0.35off 350+440 cont. 400+450 0.4on 2.0off 0.375off 0.225on 0.525off USA/Canada 350+440 cont. 440+480 2.0on 4.0off 480+620 0.5on 0.5off 480+620 0.25on 0.25off SETU ATA2S System Manual...
  • Page 42 Code Country (Hz) ON 1 OFF 1 ON 2 OFF 2 Australia Brazil China Egypt France Germany 0.79 Greece India Israel Italy Japan Korea Malaysia New Zealand Poland Portugal Russia Singapore South Africa Spain Thailand USA/Canada SETU ATA2S System Manual...
  • Page 43 Matrix Relevant Topics: 1. Peer-to-Peer Calling 55 2. SIP Accounts 60 3. Supplementary Services 70 4. Dial Plan 32 =X=X= SETU ATA2S System Manual...

  • Page 44: Jeeves

    HTML-based interface. The Matrix ATA has this provision. • WWW is an abbreviation of Internet’s World Wide Web. Matrix ATA needs Web browser IE6 with SP2 (Service Pack) patch or Mozilla Fire Fox installed on the PC. Description of following features related to web will help in programming the system.
  • Page 45 • While computers and network hardware work with IP addresses to perform tasks such as addressing and routing, humans generally find it easier to work with hostnames and domain names (such as www.example.com) in URLs and e-mail addresses. SETU ATA2S System Manual...
  • Page 46 • Enter IP Address at Address Bar after confirming from SE. Let us say IP Address 192.168.1.10 is entered at Address Bar on opening page of Microsoft Internet Explorer. • Note that Matrix ATA2S default IP Address is 192.168.001.151. • ATA displays Welcome page with a field for entering ‘Password’. Field Name...
  • Page 47 Click, to set all parameter on the Default All screen to factory default The ‘Main Menu List’ will be displayed as shown below: • Password • System Name • Time Settings • FXS Ports • Supplementary Services • WAN Port SETU ATA2S System Manual...
  • Page 48 This is to upgrade any file of the software using Upgrade FTP feature. This is a brief status of important parameters like Status WAN address. Peer-to-Peer This is for programming Peer-to-Peer Call entries. Calling Default the ATA This is for downloading default parameters. SETU ATA2S System Manual...
  • Page 49 To use Dial Plan feature for outgoing call. 1. After entering suitable IP address in address field the welcome page look, as below: 2. After Login, the welcome page displays the time after which login expires as shown below: SETU ATA2S System Manual...
  • Page 50 Matrix 3. Click on ‘SIP Accounts”. Enter SIP ID Numbers and registrar Server Address provided by ITSP and enable SIP accounts as shown below: SETU ATA2S System Manual...
  • Page 51 SIP1 as default. But any number dialed from FXS2 will use ‘SIP Accounts2’ only as shown below: 5. Click on ‘Dial Plan’. Enter the required number string that will be dialed from FXS1 and use the specific SIP account as shown below: SETU ATA2S System Manual...
  • Page 52 Matrix Example 2: 1. Click on ‘SIP Accounts’ and select ‘Route to BOTH’ for incoming calls field, as shown below. If any IC call comes on SIP1, both phones will ring. SETU ATA2S System Manual...
  • Page 53 FXS port and then select the name of country from the list of the combo box of ‘Call Progress Tones’ and ‘Ring Type’, as shown below: Relevant Topics: 1. Password 54 2. Software Upgrade 65 =X=X= SETU ATA2S System Manual...

  • Page 54: Password

    Password • For system security, it is advisable to change the default ‘System Password’ after configuring the parameters. • Matrix ATA supports this feature. For this, old Password, New Password and Retyping of the new-password are required to be entered.

  • Page 55: Peer-To-Peer Calling

    ‘FXS Port’ screen in FXS1 column then any IC call on 4001 will land on FXS1 port. But, if incoming call doesn’t have perfect match and only IP Address of Matrix ATA is called, then call will land on both FXS1 and FXS2.
  • Page 56 3001 2001 SETU SETU 192.168.1.10 192.167.1.20 ATA2S ATA2S 2002 3002 192.168.1.11 192.167.1.21 Router Router PC Phone PC Phone 192.168.1.15 192.167.1.24 2004 SETU 192.168.1.12 192.167.1.22 ATA2S 2005 PC Phone 3005 SETU 192.167.1.23 192.168.1.13 ATA2S 3006 PC Phone SETU ATA2S System Manual...
  • Page 57 Default = Blank to be called. Maximum 15 digits Enter IP Address of the IP Address (0-9, '.') user agent to be called. Default = Blank Relevant Topic: 1. FXS Port 34 =X=X= SETU ATA2S System Manual...

  • Page 58: Phone Book

    SIP number is stored in the = Blank phone book. Enter SIP Account number on which the OG call will be made, SIP 1 and SIP 2 Account when dialing the specified number. Relevant Topic: 1. SIP Accounts 60 =X=X= SETU ATA2S System Manual...

  • Page 59: Resetting The Ata

    • Use following access code to set only the login password (SE Password) to default value: #***. It is not required to enter programming mode. • Use following SE command to default the system: 21-Reverse SE Password-#*. Relevant Topic: 1. Getting Started 18 =X=X= SETU ATA2S System Manual...

  • Page 60: Sip Accounts

    This timer is set by the register server. Hence, in order to be registered always, the ATA should send a SETU ATA2S System Manual...
  • Page 61 • Single: If single is selected, preferred Vocoder only will be offered. Valid Range is G.711 a-law, G.711 u-law, G.723 and G.729. • List : If clicked here, system will negotiate with remote phone from the available Vocoders when call is established. If list is selected, SETU ATA2S System Manual...
  • Page 62 SIP server’s port address. Valid Range is from 1025 to 65535. By default, Outbound Proxy Server Port is 5060. STUN: • Enable: Click, if there is a NAT router between the ATA and the ITSP’s SIP server. SETU ATA2S System Manual...
  • Page 63 • SIP QOS: This field specifies the QOS type viz. TOS (Precedence, also called Priority), or DiffServe for voice traffic. The ATA sends all the voice packets with this QOS setting. Precedence uses 3 bits and DiffServe uses 6-bits. Valid range SETU ATA2S System Manual...
  • Page 64 00 to 63. This parameter is same for SIP1 and SIP2. By default, Precedence is 5 and DiffServe is 46. Relevant Topics: 1. VoIP Basics 83 2. Glossary 104 3. FXS Port 34 4. Time Settings 82 =X=X= SETU ATA2S System Manual...

  • Page 65: Software Upgrade

    • To upgrade an ‘appli’ file, first old one must be deleted and then new file is copied. • Finally ATA has to be restarted for applying new file application. • Mozilla-Client will not work for upgrading the Software. Relevant Topics: 1. Password 54 2. Jeeves 44 =X=X= SETU ATA2S System Manual...

  • Page 66: Status

    What’s this? • ATA user may require to view remotely for WAN Addresses and registration status. Matrix ATA has this facility. The registration time is provided by the server. User can quickly have a glance for WAN address and can change it from respective page, if required.
  • Page 67 NAT Symmetric Behind is detected by ATA, then Firewall, Blocked 'Unknown' is displayed. When STUN is enabled N.N.N.N. Public IP 'Public IP' is displayed N = 001 to 255 here. SETU ATA2S System Manual...
  • Page 68 NAT Symmetric, Symmetric Behind is detected by ATA, then Firewall, Blocked 'Unknown' is displayed. When STUN is enabled N.N.N.N. Public IP 'Public IP' is displayed N = 001 to 255 here. SETU ATA2S System Manual...
  • Page 69 Configuration Fail', 'Auto Configuration Success'. Message displays after Auto Configuration is Statistics Blank applied: for e.g. 'Files Downloded/Configured =X/Y'. Relevant Topics: 1. WAN Port 93 2. SIP Accounts 60 3. System Name 81 4. Auto Configuration 29 =X=X= SETU ATA2S System Manual...

  • Page 70: Supplementary Services

    Also, while in speech with second call, he can talk to first user by using call toggle access code (except type 3 users). The user can also have conference between three parties by dialing conference access code. SETU ATA2S System Manual...
  • Page 71 • Type 3 user cannot use this feature. 3-Party Conference • Telephone user dials Conference access code to have Conference between the User and the two callers. • When the user dials the Conference access code (with one held SETU ATA2S System Manual...
  • Page 72 • The following table shows the feature codes for various features to be used in three different types of feature code sets. • Type 1 is a set of access codes used by Matrix-ATA. • Type 2 is made considering the European access codes.
  • Page 73 Select Type from Type1, Type2 Type1 Type2 Type3 and Type3 as per the country in Feature which ATA is installed. Select Code Type1 for Matrix System, Type2 Type for European System and Type3 Default = Type 1 for American System. SETU ATA2S System Manual...
  • Page 74 Note 2: This field will be activated only if Call Forward-When No Reply is selected. Note 3: Call Forward and DND applies to SIP account and not ‘FXS’. SETU ATA2S System Manual...
  • Page 75 B responds to A, after 45 secs. (programmable) with No answer and A needs no one picking up the to contact C. phone. A is automatically Talk between A, C. forwarded to C. SETU ATA2S System Manual...
  • Page 76 A gets error tone, if transfer isn’t successful due to either timeout or invalid codes have been entered. By default, Matrix Flash key Command. • Call transfer with consultation (Attended Transfer) Event 1: When A&B are in communication, A puts B on hold and then dials Number of C plus the pound key #.
  • Page 77 Talk is ON. A, hears second dial tone, B A presses Flash. hears nothing. B is on Hold. A can press again Talk between A, B. Flash. Programming using phone: • Call Forward and DND: Use following commands: SETU ATA2S System Manual...
  • Page 78 Use command if DND Set DND 61-SIP Account-#* feature required on a SIP Account Use command if DND feature is not required Cancel DND 62-SIP Account-#* on a SIP Account. 1 for SIP1 and 2 for SIP2. SETU ATA2S System Manual...
  • Page 79 Note: Matrix ATA supports display of Caller ID of the third party’s number when he is trying to call to a Matrix ATA, which is busy with speech. This feature requires that the phone connected to ATA, which supports Call Waiting, should be programmed for offline CLIP.
  • Page 80 CW tone for IC call. In case any of the FXS ports rejects the waiting call, other port doesn’t get CW tone. • ‘Call Forward-always’ has priority over DND. Relevant Topics: 1. Time Settings 82 2. FXS Port 34 3. SIP Accounts 60 =X=X= SETU ATA2S System Manual...

  • Page 81: System Name

    This shall help SE to confirm that he is programming the correct system. • Click on ‘System Name’. Value/Default Description 24 char. Max. may be Enter the name to System Name ASCII. Default = Matrix identify ATA SETU ATA2S Relevant Topic: 1. FXS Port 34 =X=X= SETU ATA2S System Manual...

  • Page 82: Time Settings

    Matrix Time Settings • Matrix ATA can be configured for correct time based on the Simple Network Time Protocol (SNTP). • SNTP is a protocol built on top of TCP that ensures accurate local time-keeping with reference to radio and atomic clocks located on the Internet.

  • Page 83: Voip Basics

    The peers in a session are called User Agents (UAS). A user agent can function in one of the following roles: • User agent client (UAC)-A client application that initiates the SIP request. SETU ATA2S System Manual...
  • Page 84 NAT (Network Address Translation-RFC 1631), is the translation of IP address of a host in a packet. For example, the source address of an outgoing packet, used within one network is changed to a different IP address known within another network. SETU ATA2S System Manual...
  • Page 85 Furthermore, only the external host that receives a packet can send a UDP packet back to the internal host. SETU ATA2S System Manual...
  • Page 86 NAT is known as ‘SIP ALG’, SIP Application Layer Gateways. If ATA is behind ALG, it eliminates need to use STUN or Outbound Proxy for NAT traversal. SIP Call flow: A simple example of how SIP requests and responses are sent will help understanding SIP and RTP. SETU ATA2S System Manual...

  • Page 87: Jitter Buffer

    This will ensure good voice quality. It is not programmable. Voice Compression: • Voice compression is a technique to reduce the band width of voice channel, using suitable codec or Coder-Decoder. The codec SETU ATA2S System Manual...
  • Page 88 DiffServe-compliant network services along the route, based on the application types and traffic flow. Packets are marked with DiffServe Code Point (DSCP) indicating the level of service desired. Relevant Topic: 1. Glossary 104 =X=X= SETU ATA2S System Manual...

  • Page 89: Wan Explanation

    User Name and Password are entered. • Programming are explained with two options as mentioned below: • Configuring IP Address of WAN port of ATA using computer • Configuring IP Address of WAN port of ATA using conventional phone instrument. SETU ATA2S System Manual...
  • Page 90 DNS address if required. • Once the new setting take effect the SE will have to re-enter the web server with new URL. Note: Ensure that the subnet of WAN and PC is same. SETU ATA2S System Manual...
  • Page 91 For e.g. To enter IP address 192.168.9.10, enter command 11-192168009010-#*. • You get confirmation tone for 5 secs. followed by programming tone. SETU ATA2S System Manual...
  • Page 92 • When SIP is not registered or Ethernet cable is not connected, error tone is coming on both FXS ports, but programming by phone is still possible. Relevant Topics: 1. Jeeves 44 2. Glossary 104 3. Supplementary Services 70 4. WAN Port 93 =X=X= SETU ATA2S System Manual...

  • Page 93: Wan Port

    Matrix WAN Port Matrix ATA is receiving and transmitting data to the Internet Network through Wide Area Network (WAN) port. • There are three ways to obtain WAN IP-address as mentioned below. Depending upon type of Internet connection, one of this is used.
  • Page 94 N.N.N.N = 1.0.0.1 To IP Address 255.255.255.254. Provided by ITSP Default = Blank. Blank (40 char.). Domain Name Allow Extended ASCII Provided by ITSP set. Relevant Topics: 1. Glossary 104 2. VoIP Basics 83 3. Supplementary Services 70 =X=X= SETU ATA2S System Manual...

  • Page 95: Section 3: Appendices

    Section 3: Appendices...

  • Page 97: Appendix A: Troubleshooting

    Matrix Appendix A: Troubleshooting This section describes trouble shooting procedures for the Matrix ATA. Some most common Problems and Corrective Action are described below: Symptom Probable Corrective Action The Power LED does not Go through this checklist : • light up Unplug the power adapter from the Phone Adapter.
  • Page 98 SIP1 and SIP2 are enabled connected at FXS1 or and on FXS port page for OG FXS2, goes OFF-Hook Calls, SIP1 assigned to FXS1 and SIP2 is assigned to FXS2 =X=X= SETU ATA2S System Manual...

  • Page 99: Appendix B: Applications

    Normal VoIP calls: • Today the Internet Connection from the service provider is available at most of the places. Hence, Matrix ATA can be used widely in a home or small offices, for making and receiving VoIP calls through the ITSP.
  • Page 100 Matrix Calling via PBX: Not only SOHO applications, but Enterprises also have wide applications of Matrix-ATA. This is by way of providing facility to call PSTN and IP network through the PBX. Refer following figures: PABX Telephone PSTN Telephone FXO1...

  • Page 101: Appendix C: Product Specifications

    • Two SIP Accounts can be used simultaneously • DTMF: Inband and Outband (RFC2833) • Call Progress Tone Generation: Select as per the country • QoS: RTP QoS and SIP QoS using DiffServ and ToS (Precedence) • Full Duplex Audio SETU ATA2S System Manual...
  • Page 102 • STUN • NAT Keep Alive Provisioning, Administration and Maintenance: • Auto Configuration • Programming Using Web Page • Software Upgrade using FTP • Phone Programming of some parameters like: • WAN IP Address • DND SETU ATA2S System Manual...
  • Page 103 Power Consumption : 5W (Typical) Environmental: Operating Temperature : -10°C to 50°C (140° to 122°F) Operating Humidity : 5-95% RH, Non-Condensing Storage Temperature : -40°C to 85°C (-40°F to 185°F) Storage Humidity : 0-95% RH, Non-Condensing =X=X= SETU ATA2S System Manual...

  • Page 104: Appendix D: Glossary

    See also a-law and μ-law. Compression The running of a data set through an algorithm that reduces the space required to store or the bandwidth required to transmit the data set. Compare with companding and expansion. SETU ATA2S System Manual...
  • Page 105 It is Foreign Exchange Station. An FXS interface connects directly to a standard telephone and supplies ring, voltage, and dial tone. Matrix- ATA’s FXS interface is an RJ-11 connector that allows connections to basic telephone service equipment and PBXs.
  • Page 106 IP addresses. NAT allows an organization with addresses that are not globally unique to connect to the internet by translating those addresses into globally routable address spaces, also known as Network Address Translator. SETU ATA2S System Manual...
  • Page 107 802.1 networks, SONET, and IP-routed networks that may use any or all of these underlying technologies. The primary goal of QoS is to provide priority including dedicated bandwidth, controlled jitter and latency (required by some real-time and interactive traffic), and improved loss characteristics. SETU ATA2S System Manual...
  • Page 108 The response accepts, rejects or redirects the request. User Datagram Protocol-A network protocol for transmitting data that does not require acknowledgment from the recipient of the data that is sent. SETU ATA2S System Manual...
  • Page 109 VoIP enables a router to carry voice traffic (for example, telephone calls and faxes) over an IP network. In VoIP, the DSP segments the voice signal into frames, which then are coupled in groups of two and stored in voice packets. =X=X= SETU ATA2S System Manual...

  • Page 110: Appendix E: Features At A Glance

    Matrix Appendix E: Features at a Glance Description Feature Code To enter SE Mode. #19-SE Password To exit SE Mode. To dial a phone book number. #8-Index Number To default SE Password #*** =X=X= SETU ATA2S System Manual...

  • Page 111: Appendix F: System Commands

    Set Call Forward Ring Timer 57-SIP Account-Timer 61-SIP Account-#* Set DND 62-SIP Account-#* Cancel DND 66-FXS-#* Send Caller ID Block Caller ID 67-FXS-#* Enable Call Waiting beeps 72-FXS-#* Disable Call Waiting beeps 73-FXS-#* Cancel all features 99-#* =X=X= SETU ATA2S System Manual...
  • Page 112 DTMF Option-Refer SIP Accounts 60 Direct IP Calling-Refer Peer-to-Peer Calling 55 Echo Cancellation-Refer FXS Port 34 Flash Timer-Refer FXS Port 34 Forward Error Correction-Refer FXS Port 34 FXS Port Name-Refer FXS Port 34 FXS Port 34 SETU ATA2S System Manual...
  • Page 113 Outbound Proxy-Refer SIP Accounts 60 Password 54 Peer-to-Peer Calling 55 Phone Book 58 Polarity Reversal-Refer FXS Port 34 Precedence-Refer SIP Accounts 60 QoS-Refer SIP Accounts 60 Ring Types-Refer FXS Port 34 Registrar Server-Refer SIP Accounts 60 SETU ATA2S System Manual...
  • Page 114 Tones and Rings-Refer FXS Port 34 Time Settings 82 ToS-Refer SIP Accounts 60 Upgrade-Refer Software Upgrade VAD-Refer Glossary 104 VoIP Basics 83 Volume Control-Refer FXS Port 34 Vocoder-Refer SIP Accounts 60 WAN Explanation 89 WAN Port 93 =X=X= SETU ATA2S System Manual...
  • Page 115 Matrix Notes SETU ATA2S System Manual...
  • Page 116 Matrix Notes SETU ATA2S System Manual...
  • Page 117 Matrix Programming Register S.N. Date Major Programming Changes made SETU ATA2S System Manual...
  • Page 118 Matrix Programming Register S.N. Date Major Programming Changes made SETU ATA2S System Manual...
