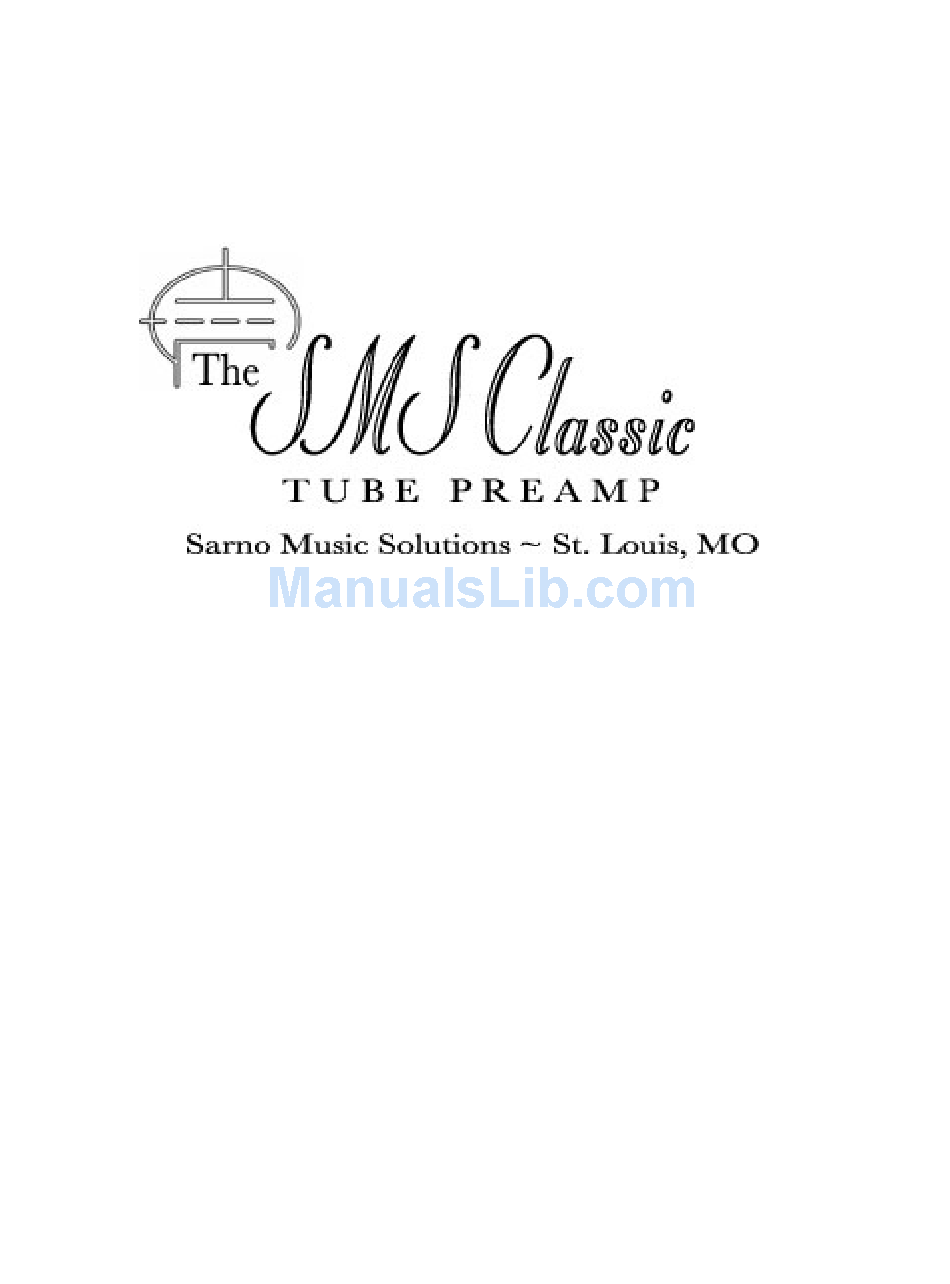

- Page 1 Jerry Garcia Version OWNER’S MANUAL Rev. 2 – 7/11/2014 SMSC-JG2B...
-
Page 2: Table Of Contents
TABLE OF CONTENTS PAGE Introduction How It Works WARNINGS Tube Information / Specifications Warranty Service Information Tone Settings for Garcia sound INTRODUCTION Congratulations on your purchase of the SMS Classic Tube Preamp – Jerry Garcia model. The "Classic" is a boutique quality preamplifier using the finest selected components for the ultimate pristine clean tube guitar tone. -
Page 3: How It Works
HOW IT WORKS INPUT jack - This is an instrument level input with a typical 1MegΩ input impedance. It should comfortably handle most any guitar, steel guitar, bass guitar, or acoustic instrument levels. GAIN - This knob controls the loudness, obviously. One thing to remember is that this preamp is very much designed as a clean machine, and it is not meant to be cranked up and overdriven like other preamps. -
Page 4: Warnings
OUTPUT - On the back of the preamp there is an output jack. This jack is an unbalanced type output which means you should use a simple guitar-type cord to make the connection. It's best to keep the length of your cable run as short as possible. The output level from the preamp can be very high if you drive the preamp hard enough, so keep that in mind when you connect the preamp to a power amplifier, a DI box, an effects unit, a recording interface, or whatever. ... - Page 5 1. Obey all warnings on the SMS Classic Tube Preamp and in the SMS Classic Tube Preamp Owner’s Manual. 2. Do not perform service operations beyond those described in this manual. In the following circumstances, all repairs should be performed by qualified service personnel only: Liquid is spilled into the unit Ø...
-
Page 6: Specifications
SPECIFICATIONS Tubes (2 total): 12AX7 or similar Weight: 4.5 lbs. Dimensions: Width: 19” Standard rack mount width Height: 1-3/4” Standard single space rack unit height (1 RU) Depth: 7.5” Fuse: Internal 1/2-AMP Slo-Blo Mains: Internally set for either 115VAC (North America) or 230VAC (across the pond and down under) Input Impedance: 1MegΩ... -
Page 7: Warranty
Tube Preamp™ made AFTER the above stated warranty period shall be the responsibility of the Buyer 3. It is expressly agreed that the Buyer or User shall have no claim against Sarno Music Solutions with respect to either personal injury or damage to property or loss of profit resulting from any defect or for any consequential damages, such as, but not so limited, loss of business opportunities, property or personal injury losses, etc. -
Page 8: Service Information
SERVICE INFORMATION Service and repairs of Sarno Music Solutions, LLC products are to be performed only at Sarno Music Solutions, LLC unless otherwise authorized in advance. Unauthorized service, repair, or modification will void this warranty. Return Authorization is required prior to sending products for repair. All items MUST be shipped to Sarno Music Solutions, LLC prepaid, insured, and properly packaged –... -
Page 9: Tone Settings For Garcia Sound
Garcia’s guitar rig. Without Jerry with us to consult, we can’t expect to be 100% in every respect, but we feel very strongly these days that we’re honing in on it like never before. Enjoy! Sarno Music Solutions...
