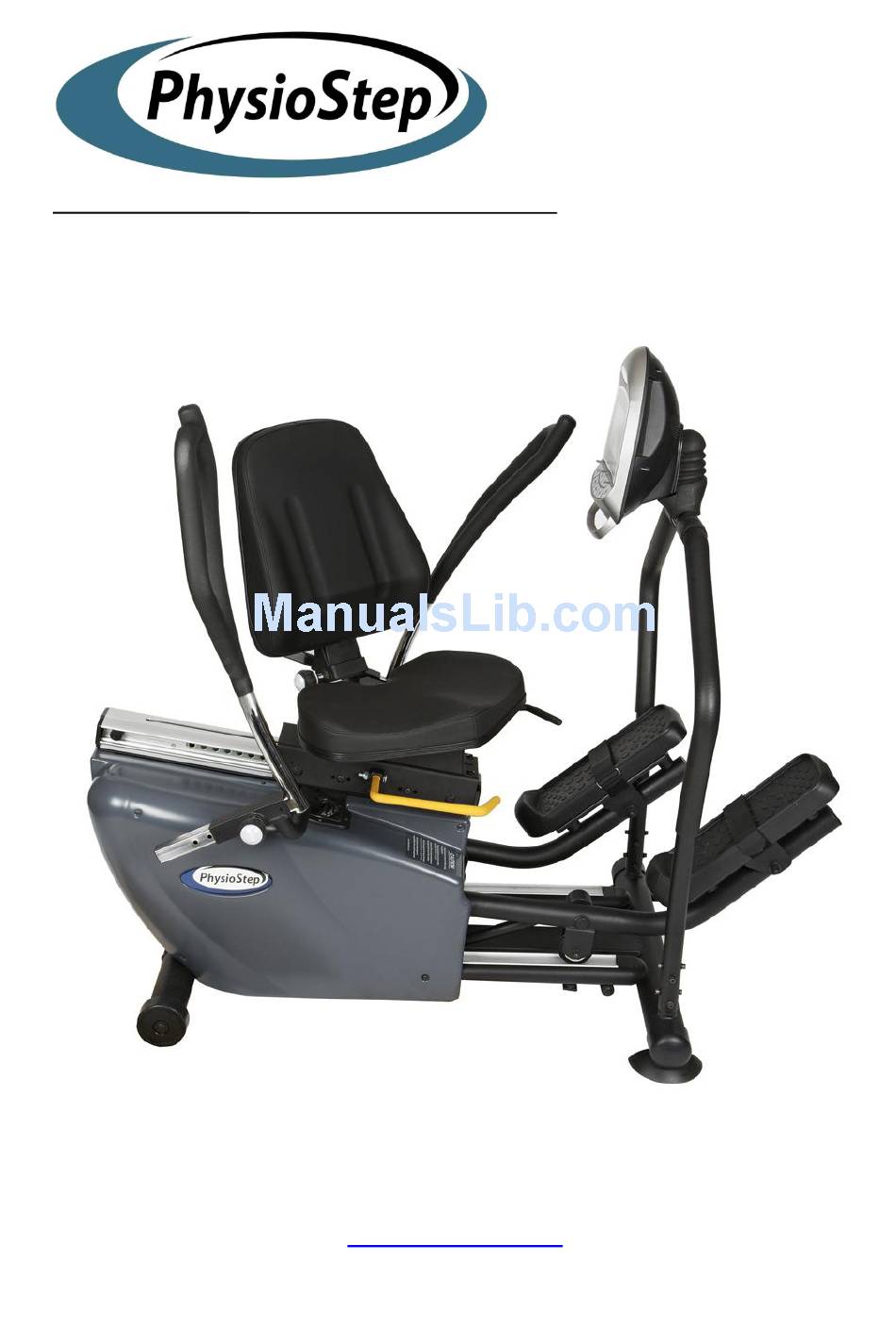

MDX

OWNER'S MANUAL

Healthcare International, Inc.

PO Box 1509, Langley, WA 98260

www.HCIFitness.com

p.360.321.7090

- 1 -

Table of Contents

Need help?

Do you have a question about the PhysioStep MDX and is the answer not in the manual?

Questions and answers

Summary of Contents for HCI Fitness PhysioStep MDX

Page 1 OWNER’S MANUAL Healthcare International, Inc. PO Box 1509, Langley, WA 98260 www.HCIFitness.com p.360.321.7090 - 1 -...
Page 2: Safety Precautions
SAFETY PRECAUTIONS This exercise equipment was designed and built for optimum safety. However, certain precautions apply whenever you operate a piece of exercise equipment. Be sure to read the entire manual before assembly and operation of this machine. Also, please note the following safety precautions: 1.

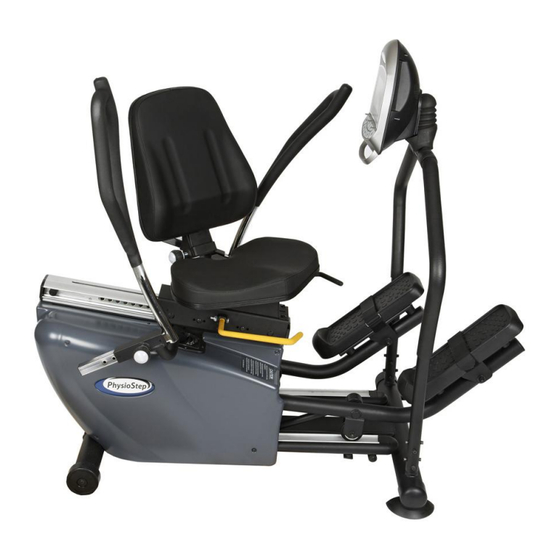

Page 3 PhysioStep RXT – MDX Model with Swivel Seat Thank you for your purchase! At HealthCare International, our goal is to provide high-quality and affordable products for Health, Wellness, Fitness & Active Aging. Using the PhysioStep will give you an easy & effective low-impact total body workout.
Page 4: Exploded Drawing
EXPLODED DRAWING - 4 -...
Page 5: Parts List
PARTS LIST Description Description 30 Control Board Main Frame Front Support Handle Post 31 Rear Leg Wheel EMS System 32 Screw for roller M8*15L Pedal Axle 33 Washer OD23*ID8.5*2T Pulley 34 Aluminum Track Base 40*80*470L Mushroom Screw M6*15L 35 Aluminum Track Base Holder Nylon Nut M6 36 Aluminum Track 348L Belt 460-6J-PJ1092...
Page 6 Description Description 59 Seat 90 Display Support Upper 60 Seat Moving Set 91 Display Support Lower 61 Bushing 92 Allen Key Bolt M8*55L 62 Dipping Handle 93 Rubber Cover 32.4*54*80 63 Pin ∮16*67L 94 Meter with PhysioStep Label 64 Spring∮2.0*∮18.5*36 95 Meter Back Rubber Cover 96 Rubber Cover...
Page 7 TOOL SET: (112) 5m/m L Type Tool (113) 6m/m L Type Tool (111) 13*15 Tool NOTE Before you start to assemble this unit, please check to be sure you have the correct quantity of parts that are listed above. NOTE Some of the parts and screws needed for assembly are already in place on the unit.
Page 8 ASSEMBLY Step 1 Assembling the Seat Back Remove the Bolts (No.53) from the seat back (No.75). Attach seat back (No.75) to seat back support (No.70) using bolts (No.53).Secure the bolts tightly. Be sure to retighten periodically. Step 2 Attaching the Arms Insert Right Arm (No.25) and Left Arm (No.26) into corresponding brackets.
Page 9 ASSEMBLY Step 4 Assembling Front Support Handles Connect Connectors (No.87 and 86) Carefully so not to pinch the wires, slide the left side front handle (No.2) over upright support handle, use bolts (No.54) and washers (No.111) to secure the front handle to the main frame.
Page 10 ASSEMBLY Step 7 Connect Power Put the end of the Adapter (No.106) in the input socket (No.100) on the back of the Main frame (No.1), then plug the other end of the adapter (No.106) into the power outlet. NOTE: Possible Wire Harness Pinch Points When Assembling ...
Page 11 INSTRUCTION MANUAL: PhysioStep Display Console 1. Display: The Console is an LCD screen displaying RPM, SPEED, TIME, DISTANCE, CALORIES, WATTS, PULSE (HEART RATE). 2. Modes: 2.1 POWER UP Mode: When powered on, there is a long beep, and all LCD functions light up for 2 seconds, then the display enters initial workout mode and is ready to begin.
Page 12 INSTRUCTION MANUAL: PhysioStep Display Console 3. Computer Function – Setting up your User Profiles *Please note: Quick Start requires no setup 3.1 Select User 1 or User 2: The screen will display “U1”and a scrolling message that reads “SELECT USER”. By pressing the UP or DOWN key you can toggle between User 1 (“U1”) and User 2 ( “U2”).
Page 13: Program Selection
INSTRUCTION MANUAL: PhysioStep Display Console 4. Program Selection:  “SELECT WORKOUT PROGRAM” will scroll across the screen before the program names are displayed. The screen will display the resistance profile of each program. Press the UP or DOWN keys to scroll through all the program names. ...
Page 14 INSTRUCTION MANUAL: PhysioStep Display Console 4.3 Resistance Level:  (MANUAL, ROLLING HILL, PEAK, PLATEAU, MOUNTAIN CLIMB, HILL INT., STRENGTH INT. only)  The maximum RESISTANCE LEVEL for the profile is displayed in the Level window (flashing) and the resistance profile is displayed on the screen. The scrolling message will read “ENTER MAXIMUM RESISTANCE LEVEL”...
Page 15: Key Functions
INSTRUCTION MANUAL: PhysioStep Display Console 5. Functions: Item # Item Display Range Zeroing Default Stored Description 1.W hen set value is 0:00, counting up cycles. 2.W hen set value is 01:00-99:00, 0：00-99：00 TIME 20:00 it will count down, when it reaches 0, it beeps.
Page 16: Start/Stop Key
INSTRUCTION MANUAL: PhysioStep Display Console 6.3 RESET KEY  During Stop Mode only, press this key to clear up the set value to zero, except for work level in custom program and age program.  Only in Pause State, press this key to switch the current program into another program.
Page 17 INSTRUCTION MANUAL: PhysioStep Display Console PROFILES: Rolling Hill Peak 1 0 11 1 2 1 3 1 4 1 5 1 6 1 7 1 8 1 9 2 0 1 0 11 1 2 1 3 1 4 1 5 1 6 1 7 1 8 1 9 2 0 Plateau Mountain Climb 1 0 11 1 2 1 3 1 4 1 5 1 6 1 7 1 8 1 9 2 0...
Page 18: Maintenance Tips
MAINTENANCE AND TECHNICAL DATA 1.1 Maintenance Tips  Keep the PhysioStep well maintained to ensure peak performance and safety.  Clean the display console and all exterior surface parts routinely. Use a soft cotton cloth and a soft cleaner for best results. Do not use Ammonia or acid based cleaners. ...
Page 19: Warranty Information
1.3 Trouble Shooting Guide for the PhysioStep MDX Malfunction Cause Solution The Display does not turn on 1. Console wire is disconnected 1. Detach and Re-connect when pedaling lightly. or connected improperly. console wires to make 2. Low Batteries in the Display sure they are connected 3.
