Summary of Contents for Funkwerk GSM 900

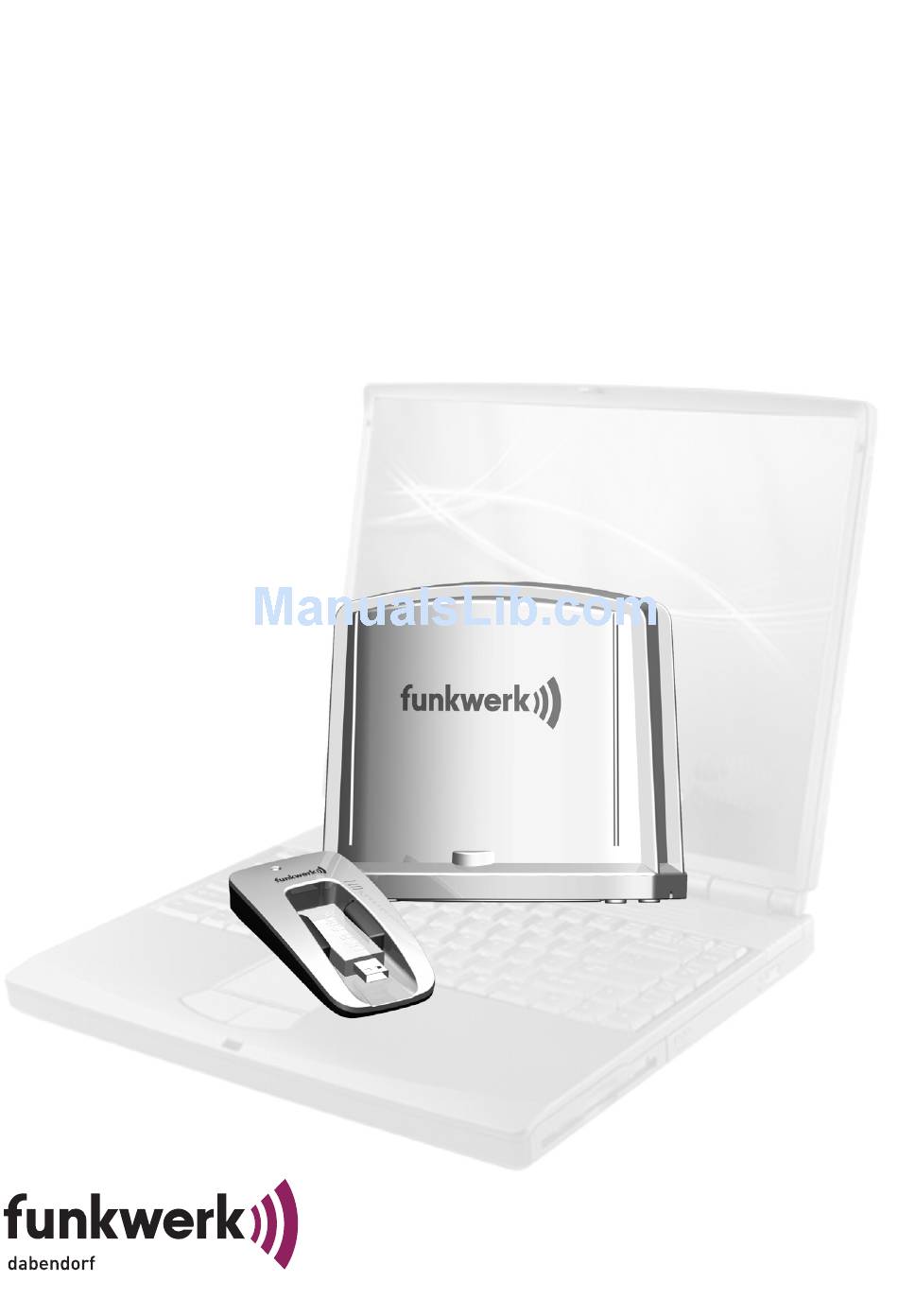

- Page 1 Active antenna 155 8000 0.03 Ein Unternehmen der Funkwerk AG.
-
Page 2: Declaration Of Conformity
Introduction Thank you very much for opting in favour of the ACTIVE ANTENNA of Funkwerk Dabendorf GmbH! The ACTIVE ANTENNA takes care of the very best transmission and reception power and thus ensures improved operation of your UMTS terminal device. - Page 3 The device may only be opened and serviced by specialist personnel! Only use approved accessories! Before using the antenna in/on buildings, please make sure you are informed of the minimum distances required to sensitive devices (e.g. in hospitals, at gas stations, at places labelled as especially endangered, including explosive ma- terials, combustible fluids and gases etc.) Do not rely on this device for emergency communication!
-
Page 4: Function Description
Function Description The Active Antenna À is suitable for the frequency band range GSM 900, GSM 1800 and UMTS Band I. It supports the transmission process GPRS, HSCSD, EDGE, UMTS, HSDPA and HSUPA. The connection to the terminal devices is effected using the mounting ... -
Page 5: Scope Of Supply
Scope of Supply À À - active antenna with 15 m coaxial line and protection hood - coupler casing (FAKRA) for coaxial line - mounting for UMTS data stick - power supply unit ... -
Page 6: Mounting And Getting Started
Mounting and getting started Before installation Please check the supplies for completeness. Test whether your UMTS data stick fits into the mounting . The coupler casing included in the supplies is for the safe connection between coaxial line and the mounting of the UMTS data stick. ATTENTION! Do not stick the coupler casing ... - Page 7 6. Draw the protection cap carefully from the coaxial line. Note! The protection cap is needed for the wall duct. Connect the HF contact that is now exposed carefully with the middle connector of the data stick mounting The antenna is in operation when the green LED of the data stick mounting ...
- Page 8 Permanent Mounting Slip the protection cap over the HF contact of the connector as protection against soilage for possible wall ducts and when laying the cable! Now plan the laying of the coaxial cable. Within the house (example without wall duct) Lay the cable to the place where you want to set up the mounting ...
- Page 9 Mounting to the Wall Drill a sufficiently large hole through the house wall. Now mount the mounting bra- cket near the wall duct with the mounting material found in the supplies. Holes for mounting to Holes for the wall. mounting to the antenna.
-
Page 10: Troubleshooting
Mounting to the Antenna Mast Install the mounting brackets supplied to the bot- tom of the antenna with the screws supplied. Now insert the loop clamps through the lateral holes of the mounting bracket. Tighten the mounting bracket [incl. antenna] with the loop clamps to the mast and align it to the transmitter mast. -
Page 11: Technical Specifications
: 230 V from power supply unit Maximum transmission power ERP*) : UMTS band 1 approx. 30 dBm [1W] in main radiation direction : GSM 900/1800 passive [without amplification] omni- directional Amplification for UMTS band 1 : the amplification is set to precisely balance... -
Page 12: Transmission Speed
28,000 kbit/s [typical: 3,600, or 7,200 kbit/s] Funkwerk Dabendorf GmbH Märkische Straße D-15806 Dabendorf Telefon +49 (0) 3377 316 - 0 Telefax +49 (0) 3377 316 - 300 eMail info@fwd-online.de service@fwd-online.de Internet www.fwd-online.de Ein Unternehmen der Funkwerk AG.
