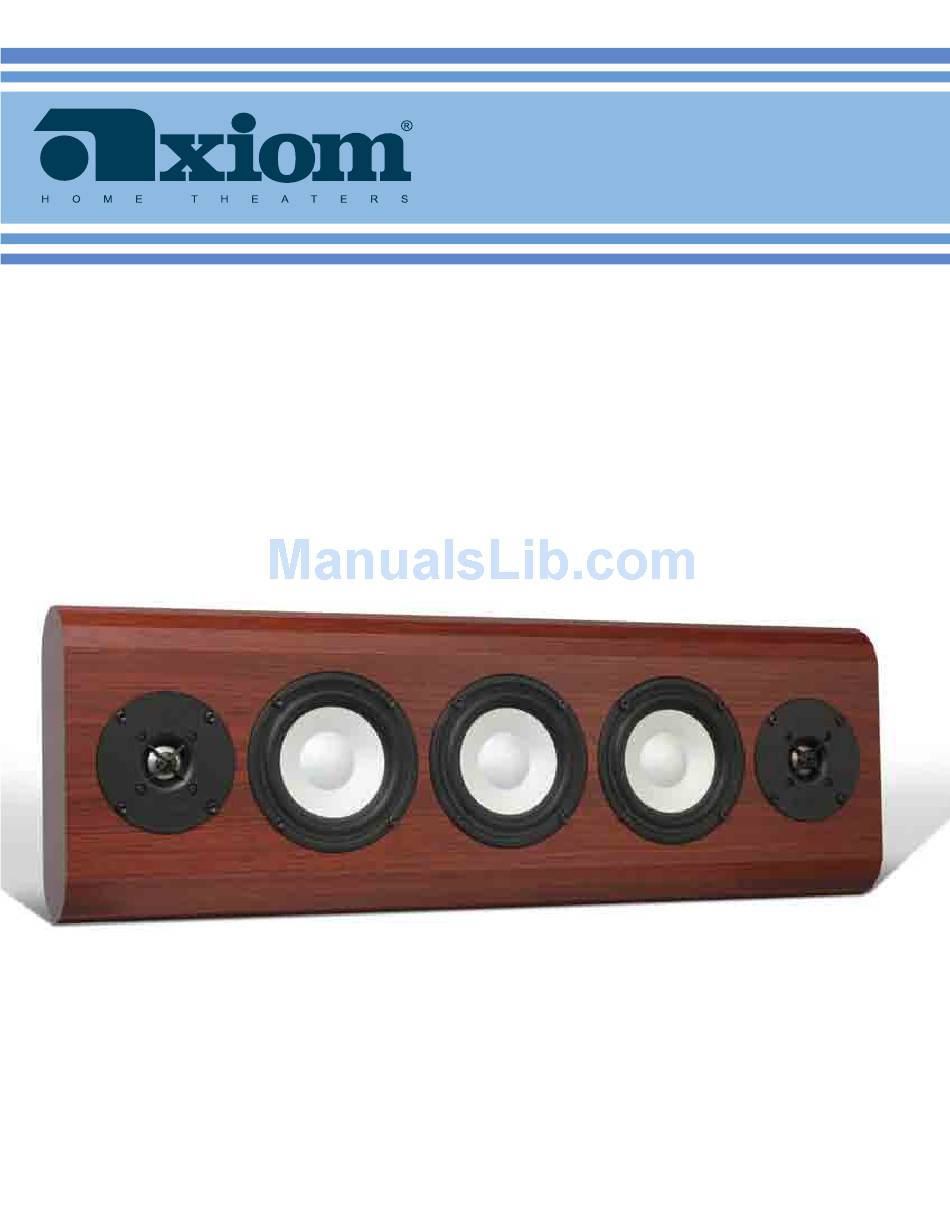

- Page 1 VP150 On-Wall - CENTER CHANNEL SPEAKER Quick Setup Guide ENCEINTE CENTRALE MURALE VP150 Guide d’installation rapide...
- Page 2 Bienvenue Welcome Every member of our Axiom team, myself included, is pleased Chaque membre de notre équipe Axiom (y compris moi- that you have decided on one of our products. We have all même) est enchanté que vous ayez fixé votre choix sur l’un worked hard to bring the highest level of satisfaction to de nos produits.
-
Page 3: Les Enceintes
AXIOM QUICK-START SPEAKER SETUP INSTALLATION RAPIDE DES ENCEINTES AXIOM Positionnement Placement This is by far the most important step before you even begin the installation. Ceci est de loin l’étape la plus importante avant même le début de Mount the VP150 On-Wall center channel speaker above or below your TV l’installation. - Page 4 AXIOM QUICK-START SPEAKER SETUP INSTALLATION RAPIDE DES ENCEINTES AXIOM The Cables Les Câbles Examine your speaker cables. On the ends, there may be spade lugs or banana Examinez vos câbles de haut-parleur. Il y aura peut-être à chaque extrémité des plugs, each one color-coded red or black like your speaker binding posts to help cosses à...
-
Page 5: Installation
AXIOM QUICK-START SPEAKER SETUP INSTALLATION RAPIDE DES ENCEINTES AXIOM Installation Installation STEP 1 ÉTAPE 1 Retirez le support mural « Axiom Power Bracket » en le faisant glisser vers Remove the Axiom Power Bracket from the speaker by sliding it down. le bas. STEP 2 ÉTAPE 2 Using a pencil and a level, draw intersecting horizontal and vertical lines on Sur le mur, à... -
Page 6: Banana Plugs
ACCESSORIES ACCESSOIRES Banana Plugs Fiches banane These high-quality gold-plated single and dual banana plug / cable Ces fiches banane de haute qualité et plaquées or sont chapeau- adaptors are topped by five-way binding posts. tées par des bornes d’attache à cinq voies. Elles sont offertes en configuration simple ou double. -
Page 7: Specifications
SPECIFICATIONS CARACTÉRISTIQUES SPL vs Freq dBSPL 30 Hz Axiom listening window amplitude response @1 meter / 2.83 volts Impedance vs Freq 20 Hz QC Approved * 6 ohms (if your amplifier does not rate 6 ohms use as 8 ohms) According to IEC/EN 60268-5 the nominal impedance (or more correctly the rated impedance) is to be no greater than 1.25 times the minimum impedance within the pass band. - Page 8 Axiom Audio Head Office 2885 Highway 60 Siège Social Axiom Audio Dwight, ON Canada P0A 1H0 Toll Free (North America) 1-866-244-8796 Worldwide • International 1-705-635-3090 Email • Courriel: info@axiomaudio.com www.axiomaudio.com Visit www.axiomaudio.com/manual_index.html for this Owner’s Manual with live links to further helpful information Pour accéder ŕ...
