Pasternack PE-9201 User Manual & Installation Manual

is Mini wireless portable dual-way communication keypad, more work with wireless alarm control
PE-9201
panel, built-in LCD screen indication, it has the higher sensitivity work with wireless alarm control panel within 100
meters via external antenna, wireless coding or enter the 9 digit address code with alarm control panel, it will
display the alarm zone number, arm, disarm, home arm and alarm status via wireless single transmit from alarm
control panel, and also can control back to alarm panel to realize dual-way communication.

Features:

1. adopted special micro-power low consumption CPU
2. adopted unique multi code wireless protocol
3. Code: 28-digit ID, 8-digit function code, 36 digit date code in total
4. working status report automatically
5. dual-way communication work with wireless alarm control panel
6. default user password is 1234
7. default system password is 987699
8. LCD screen will close after 8 seconds on time interface if no any
operation
9. LCD screen will close after 10 seconds on setting interface if no any
operation
10. if 15 seconds no any operation, it will be back to time interface on
system setting
11. working voltage is 6.0V (AAA LR03 1.5V Alkaline Battery x 4 pcs)
12. current consumption: ≤30uA (static) / current emitting: ≤25mA (alarm)
13. wireless emitting frequency: 433MHz / 868M
14. wireless emitting distance: 100m (in open area / built in Antenna)
15. working temperature is -10℃ ～ +50℃
16. dimension is 120*75*30mm / ivory white color

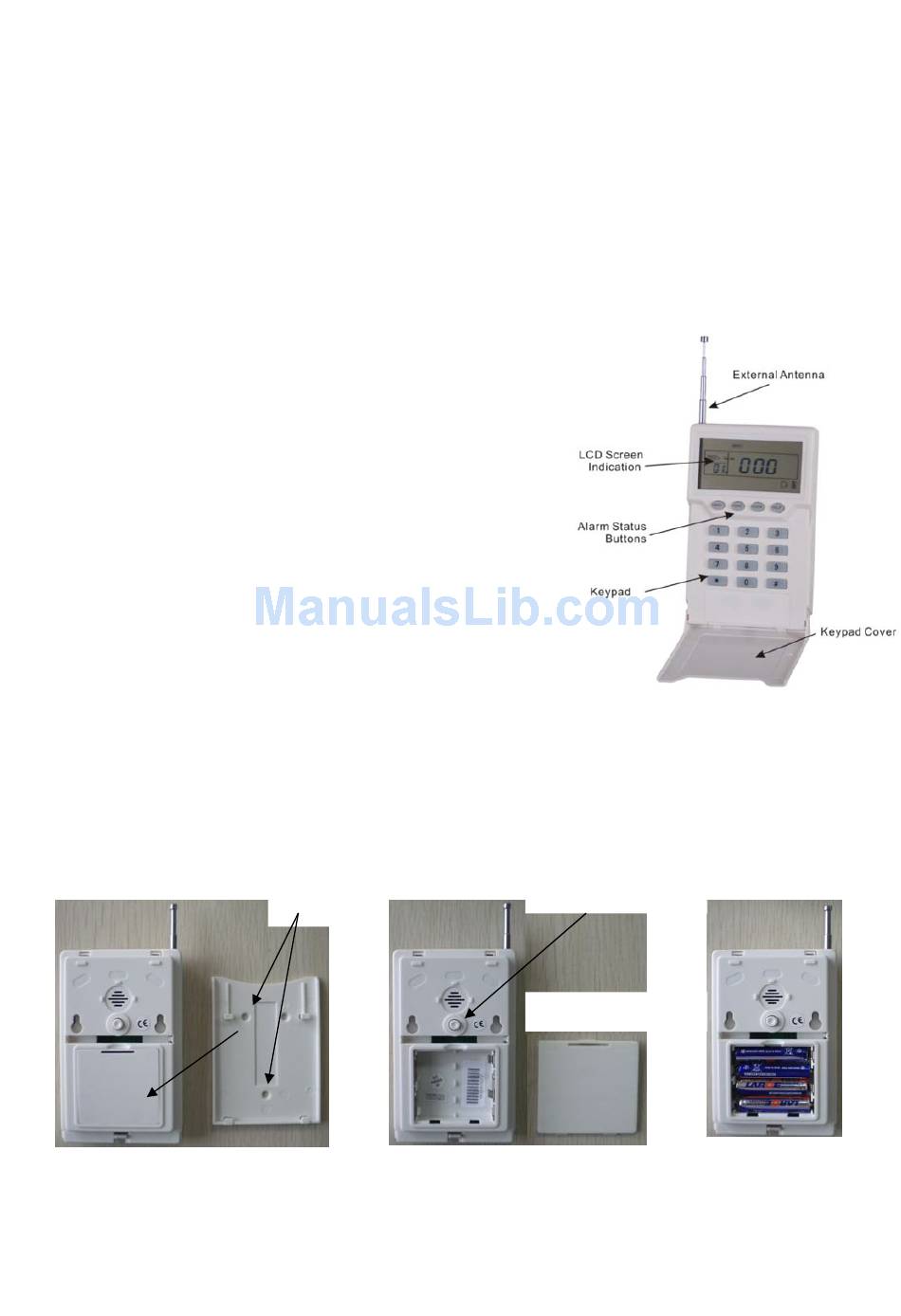

Installation:

1. remove the mounting frame from the wireless keypad, hold the frame against the mounting surface and mark
the 3 drilling points through the mounting holes.
2. drill the holes and fix frame to the wall using the screws with countersink heads which had packed in the
package.
PE-9201 – Wireless
drill holes
User Manual / Installation Guide
Portable Keypad
tamper switch button
9 digit address code
1

User Manual
