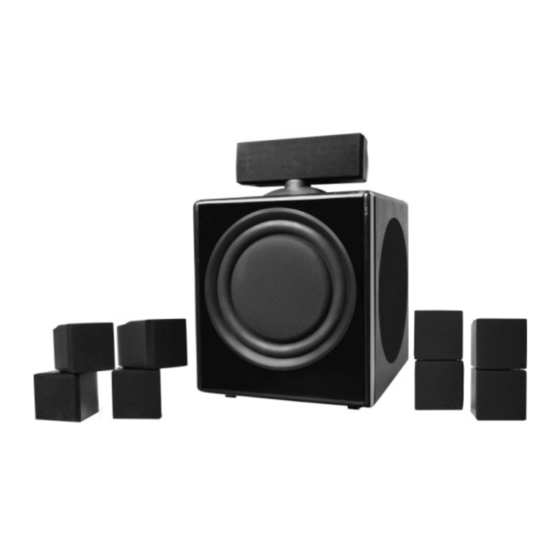

Summary of Contents for Jonsson JO-5100

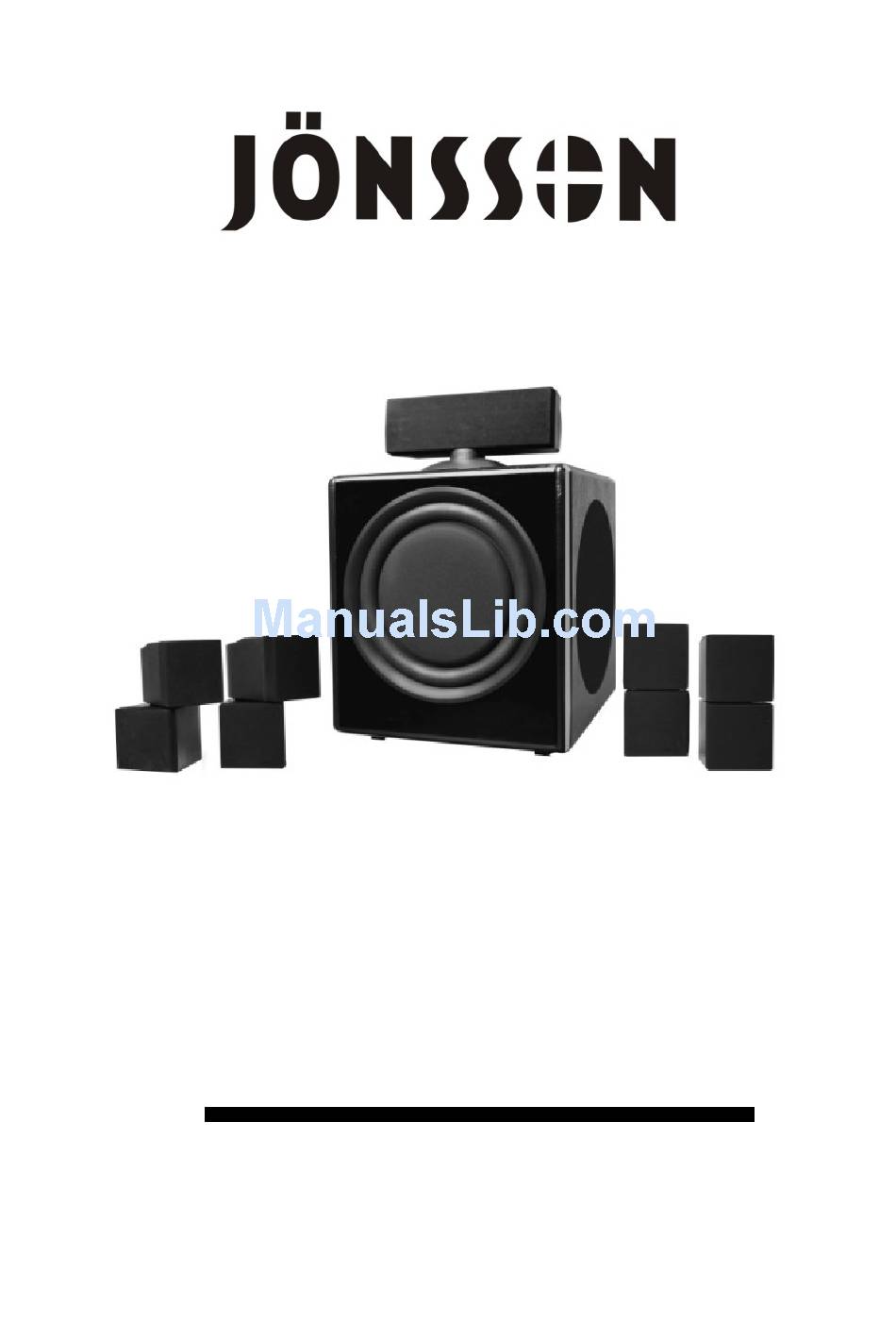

- Page 1 JO-5100 Owner’s Manual www. jönssonaudio.com...
- Page 2 Jönsson Audio THE ART OF SOUND REPRODUCTION In the long search for the perfect hi-fi, the Kevlar Acoustics’ philosophy is simple: to maintain the purity and integrity of the original signal at all times. This, we believe, is the only route to achieving true hi-fi sound quality. At Jönsson Audio we believe music should be heard as originally intended by, composers, and performers we admire.
- Page 3 Fitting ----------------------------------------------------------------------------------------- On The Wall The front, centre and surround speakers include mount holes for wall mounting. You can hang the front and surround speakers on the wall vertically, and the centre speaker horizontally. For vertical mount, you use only one screw and hang the speaker from its upper mount hole only. For horizontal mount, you need to set two screws into the wall at the appropriate distance so that you can hang the speaker from both mount holes.
- Page 4 Connection 1( If you use 5 channels output amplifier, please refer this connection Be sure to turn off your amplifier before connecting or disconnecting speakers...
- Page 5 Connection 2( If you use 5.1 channels output amplifier, please refer this connection Be sure to turn off your amplifier before connecting or disconnecting speakers...
-
Page 6: Specifications
Specifications ----------------------------------------------------------------------------------------- Front speakers, Surround speakers Nominal impedance.........8Ω Maximum input power........280w Sensitivity..........80 ±3dB Frequency Range.....200 – 16 KHz Center speaker Nominal impedance..........8Ω Maximum input power........280w Sensitivity..........85 ±3dB Frequency Range.....200 – 16 KHz Subwoofer Nominal impedance.........8Ω Maximum input power........600w Sensitivity..........87 ±3dB Frequency Range.....35–... - Page 7 JO-5100 Owner’s Manual...
