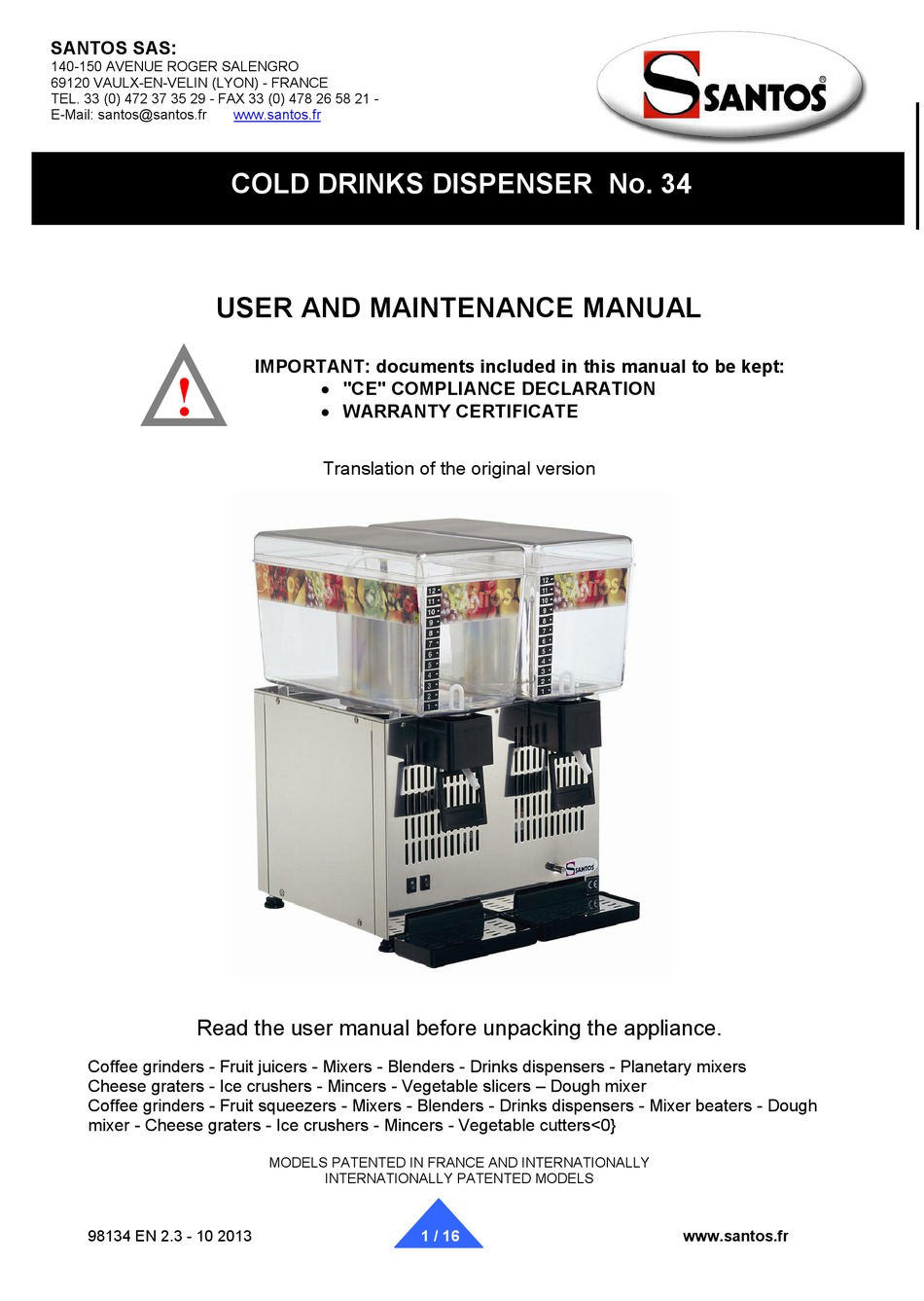

SANTOS SAS:
140-150 AVENUE ROGER SALENGRO
69120 VAULX-EN-VELIN (LYON) - FRANCE
TEL. 33 (0) 472 37 35 29 - FAX 33 (0) 478 26 58 21 -
SANTOS: User and maintenance manual
E-Mail: santos@santos.fr
USER AND MAINTENANCE MANUAL
!
Read the user manual before unpacking the appliance.
Coffee grinders - Fruit juicers - Mixers - Blenders - Drinks dispensers - Planetary mixers
Cheese graters - Ice crushers - Mincers - Vegetable slicers – Dough mixer
Coffee grinders - Fruit squeezers - Mixers - Blenders - Drinks dispensers - Mixer beaters - Dough
mixer - Cheese graters - Ice crushers - Mincers - Vegetable cutters<0}
98134 EN 2.3 - 10 2013
www.santos.fr
COLD DRINKS DISPENSER No. 34
IMPORTANT: documents included in this manual to be kept:
• "CE" COMPLIANCE DECLARATION
• WARRANTY CERTIFICATE
Translation of the original version
MODELS PATENTED IN FRANCE AND INTERNATIONALLY
INTERNATIONALLY PATENTED MODELS
1 / 16
www.santos.fr
Advertisement
Table of Contents
Related Manuals for Santos 34
Summary of Contents for Santos 34
- Page 1 TEL. 33 (0) 472 37 35 29 - FAX 33 (0) 478 26 58 21 - SANTOS: User and maintenance manual E-Mail: santos@santos.fr www.santos.fr COLD DRINKS DISPENSER No. 34 USER AND MAINTENANCE MANUAL IMPORTANT: documents included in this manual to be kept: • "CE" COMPLIANCE DECLARATION •...
-
Page 2: Table Of Contents
SANTOS: User and maintenance manual CONTENTS "EC" COMPLIANCE DECLARATION .................. 3 SAFETY RULES ........................4 DO NOT: .......................... 4 INSTALLATION........................ 5 ELECTRICAL CONNECTION: ..................5 TURNING ON FOR THE FIRST TIME (Fig. A )............... 5 RECYCLING THE PRODUCT AT THE END OF ITS SERVICE LIFE ......6 APPLIANCE DESCRIPTION .................... -
Page 3: Ec" Compliance Declaration
SANTOS: User and maintenance manual "EC" COMPLIANCE DECLARATION THE MANUFACTURER: SANTOS - 140-150, Av. Roger SALENGRO 69120 VAULX-EN-VELIN (LYON) FRANCE declares that the appliance intended for the professional market described below: Description: COLD DRINKS DISPENSER 34-1, 34-2, 34-3 Type number: complies with: •... -
Page 4: Safety Rules
9. Unplug the appliance before carrying out any work on it: cleaning, maintenance or repair. 10. The use of spare parts other than certified SANTOS original parts is prohibited. 11. Use the appliance if the power cord is damaged. It must be replaced by a special assembly available from an approved SANTOS dealer or from SANTOS itself. -
Page 5: Installation
or on the identification plate on the last page of this manual. • If the power supply lead is damaged, it must be replaced by a special assembly available from approved SANTOS dealers or from SANTOS. TURNING ON FOR THE FIRST TIME (Fig. A ). -
Page 6: Recycling The Product At The End Of Its Service Life
2002/96/CE (WEEE) – Professional Equipment section – so that it can be either recycled or disassembled in order to reduce any impact on the environment. For further information, please contact your dealer or SANTOS. For the elimination or recycling of the appliance components, please contact a specialist company or contact SANTOS Electronic products which have not been out-sorted are potentially dangerous for the environment. -
Page 7: Appliance Description
Cafés, Hotels, Restaurants, Collective caterers, etc. • Refrigerated drinks dispensers No. 34 are available with 1, 2 or 3 containers, each of a capacity of 12 litres • The temperature of each container is controlled by a thermostat which can be set to between 4 and 12°C. -
Page 8: Cleaning
SANTOS: User and maintenance manual However, if it is excessively hot, check the air inlet at the back of the appliance (minimum 15 cm free space). In any event, if the drink in the container is cold, the appliance is working properly. -
Page 9: Maintenance
To access the condenser: unplug the appliance and unscrew the side panels (9). Spare parts: IMPORTANT: The use of spare parts other than certified SANTOS original spare parts is prohibited Apart from the monthly maintenance, this machine requires no specific maintenance. -
Page 10: Fault Finding
SANTOS: User and maintenance manual FAULT FINDING Identify the exact cause of the appliance stoppage The paddles do not turn: • Make sure that you have indeed actuated (position 1) the respective switches (8) • Check the mains power supply and the condition of the power supply lead. -
Page 11: Appliance Technical Specifications
SANTOS: User and maintenance manual APPLIANCE TECHNICAL SPECIFICATIONS ELECTRICAL SPECIFICATIONS (1) Model no. 34 34-1 (1 bowl) 34.2 (2 bowls) 34-3 (3 bowls) type Power supply voltage 100-120 220-240 220-240 100-120 220-240 220-240 100-120 220-240 220-240 Frequency (Hz) 50/60 50/60... -
Page 12: Electrical Wiring Diagram 110-120V 50/60Hz
SANTOS: User and maintenance manual Electrical wiring diagram 110-120V 50/60Hz Green / Yellow Black Brown Black Blue Blue Compressor Black Black Thermostat 1 Black ON/OFF 1 Paddle 1 Thermostat 2 Brown ON/OFF 2 Paddle 2 Brown Brown Blue Green / Yellow 98134 EN 2.3 - 10 2013... -
Page 13: Electrical Wiring Diagram 220-240V 50Hz
SANTOS: User and maintenance manual Electrical wiring diagram 220-240V 50Hz Green / Yellow Black Brown Black Blue Blue Compressor Black Black Thermostat 1 Black ON/OFF 1 Paddle 1 Thermostat 2 Brown ON/OFF 2 Paddle 2 Brown Brown Blue Black Green / Yellow 98134 EN 2.3 - 10 2013... -
Page 14: Electrical Wiring Diagram 220-240V 60Hz
SANTOS: User and maintenance manual Electrical wiring diagram 220-240V 60Hz Green / Yellow Black Black Black Blue Blue Blue Compressor Black Capacitor (optional) Black Black Thermostat 1 Black ON/OFF 1 Paddle 1 Thermostat 2 Brown ON/OFF 2 Paddle 2 Brown... -
Page 15: Figures
SANTOS: User and maintenance manual Figures Fig. A REF Description Juice container Paddle Evaporator Pourer spout Distribution nozzle Evaporator seal Paddle switch Side panels Base/casing Lever Thermostat Fig. 98134 EN 2.3 - 10 2013 15 / 16 www.santos.fr... -
Page 16: Warranty Certificate
In case of revelation of an imperfection during the warranty period, the Distributor has to, unless a different written agreement of SANTOS, indicate to his customer to stop any use of the defective product. Such a use would release SANTOS of any responsibility.
