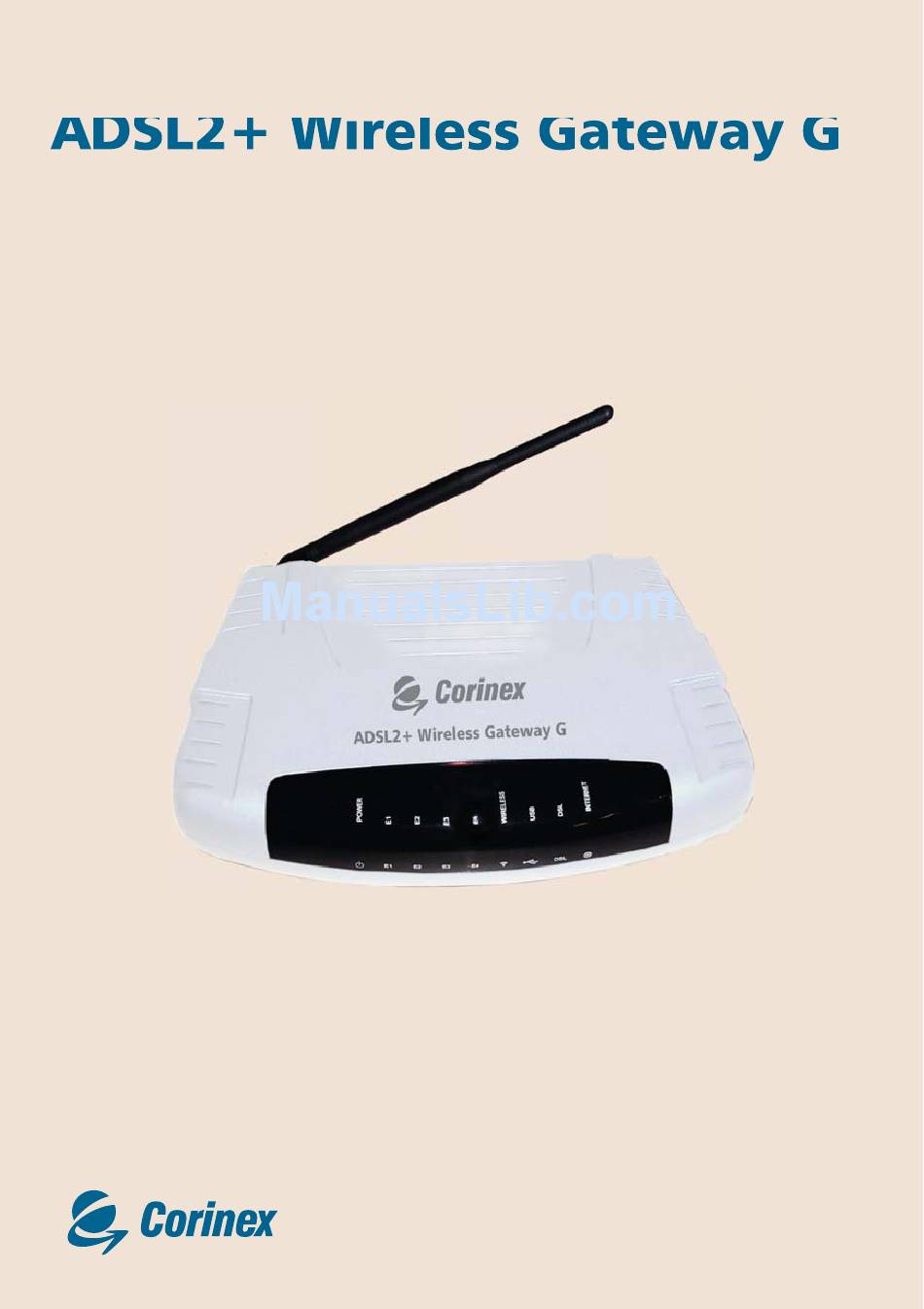

Corinex
ADSL2+ Wireless Gateway G
Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADSL2+ Wireless Gateway G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Corinex ADSL2+ Wireless Gateway G

  • Page 1 Corinex ADSL2+ Wireless Gateway G Quick Start Guide...
  • Page 2: Declaration Of Conformity

    • In Italy the end-user must apply for a license from the national spectrum authority to operate this device outdoors. • In France outdoor operation is only permitted using the 2.4 – 2.454 GHz band: Channels 1 – 7. Corinex ADSL2+ Wireless Gateway G...
  • Page 3: Rfi Warnings & Instructions

    This device cannot be used with handheld PDAs (personal digital assistants). Use in other configurations may not ensure compliance with FCC RF exposure guidelines. This device and its antenna must not be co-located or operate in conjunction with another antenna or transmitter. Corinex ADSL2+ Wireless Gateway G...
  • Page 4: Copyright

    The use of the product or its features described in this document may be restricted or regulated by law in some countries. If you are unsure which restrictions or regulations apply, you should consult your regional Corinex office or the authorized reseller.
  • Page 5: Table Of Contents

    3.3 Connecting to the Power Outlet and Powering On ........9 Configuring Your Ethernet Network Card / Installing Your USB Device ..10 4.1 Configuring Your Ethernet Network Card ............ 10 4.2 Installing the USB Device Driver ..............11 Connnecting to the Internet ................13 Corinex ADSL2+ Wireless Gateway G...
  • Page 6: Introduction

    Introduction Introduction Congratulations on your purchase of the Corinex ADSL2+ Wireless Gateway G! This gateway allows you to share a high-speed broadband Internet connection with multiple computers using a single device with a wired, or wireless, connection. This document describes only the initial setup and basic configuration of the Corinex ADSL2+ Wireless Gateway G.
  • Page 7: Wireless-G Router Overview

    ADSL connection is established. No telephone jack is connected. Blinking The gateway is attempting to establish a connection with your ADSL Service Provider. 6 INTERNET green PPP connection is established. No PPP connection is established. Corinex ADSL2+ Wireless Gateway G...
  • Page 8 NOTE: By executing the reset procedure, all customized settings that you have saved will be lost and the gateway will be set back to the original factory default settings as they are described in this document. Corinex ADSL2+ Wireless Gateway G...
  • Page 9: Installation Overview

    This Guide will assist you with the hardware installation and basic configuration of your Corinex ADSL2+ Wireless Gateway G. It will show you how to connect your Wireless Gateway G to the internet. If you require a more sophisticated configuration, please refer to the Corinex ADSL2+ Wireless Gateway G User Guide, which is available on the enclosed Installation CD.
  • Page 10: Connecting The Gateway To Your Computer

    Connecting to the Ethernet Connect your computer(s) to the ADSL2+ Wireless Gateway G by plugging one end of the supplied Ethernet cable (RJ45) to the network card of your computer, and the other end of the cable to one of the gateway’s four Ethernet LAN ports (E1~E4).
  • Page 11: Configuring Your Ethernet Network Card / Installing Your Usb Device

    Communications > Network Connections. 2. Right-click on the Local Area Connection icon that reflects the model of Ethernet Card which you have connected to the Corinex ADSL2+ Wireless Gateway G, and click Properties. 3. Make sure that the field Connect Using indicates the model of Ethernet Card that is connected to the gateway.
  • Page 12: Installing The Usb Device Driver

    Please wait until the installation of the drivers is finished and then click Close to finish the installation wizard. 2. Plug the Corinex ADSL2+ Wireless Gateway G into a USB port on your computer. These are often located on the front on desktop computers, and on the back on laptops.
  • Page 13 Next. You may get a security warning about the drivers not being Microsoft-certified or not passing Microsoft Logo testing, but click Continue Anyway. The installation of the USB driver is now complete. You may click Finish. Corinex ADSL2+ Wireless Gateway G...
  • Page 14: Connnecting To The Internet

    Configuring the Gateway Connecting to the Internet If you want to configure the Corinex ADSL2+ Wireless Gateway G’s connection to the internet, you can access the device through the web user interface by following these steps: 1. Open your Internet Browser and enter 192.168.1.1 in the address bar, and press Enter.
  • Page 15 Configuring the Gateway 2. Upon Login, the main page will be displayed. Click on Setup in the upper bar. The following window will appear. Corinex ADSL2+ Wireless Gateway G...
  • Page 16 5. The gateway will now connect to your Internet Service Provider. A few screens displaying the connection status will appear. If all the required authentication data was entered correctly and the gateway is connected to the DSL line, a screen similar to the one below will appear. Corinex ADSL2+ Wireless Gateway G...
  • Page 17 Configuring the Gateway 6. Your ADSL2+ Wireless Gateway G is now connected to the internet. 7. Click on Save All Settings once you’ve successfully established a connection, so that all settings are saved. Your gateway will then connect to the internet automatically after restart.
