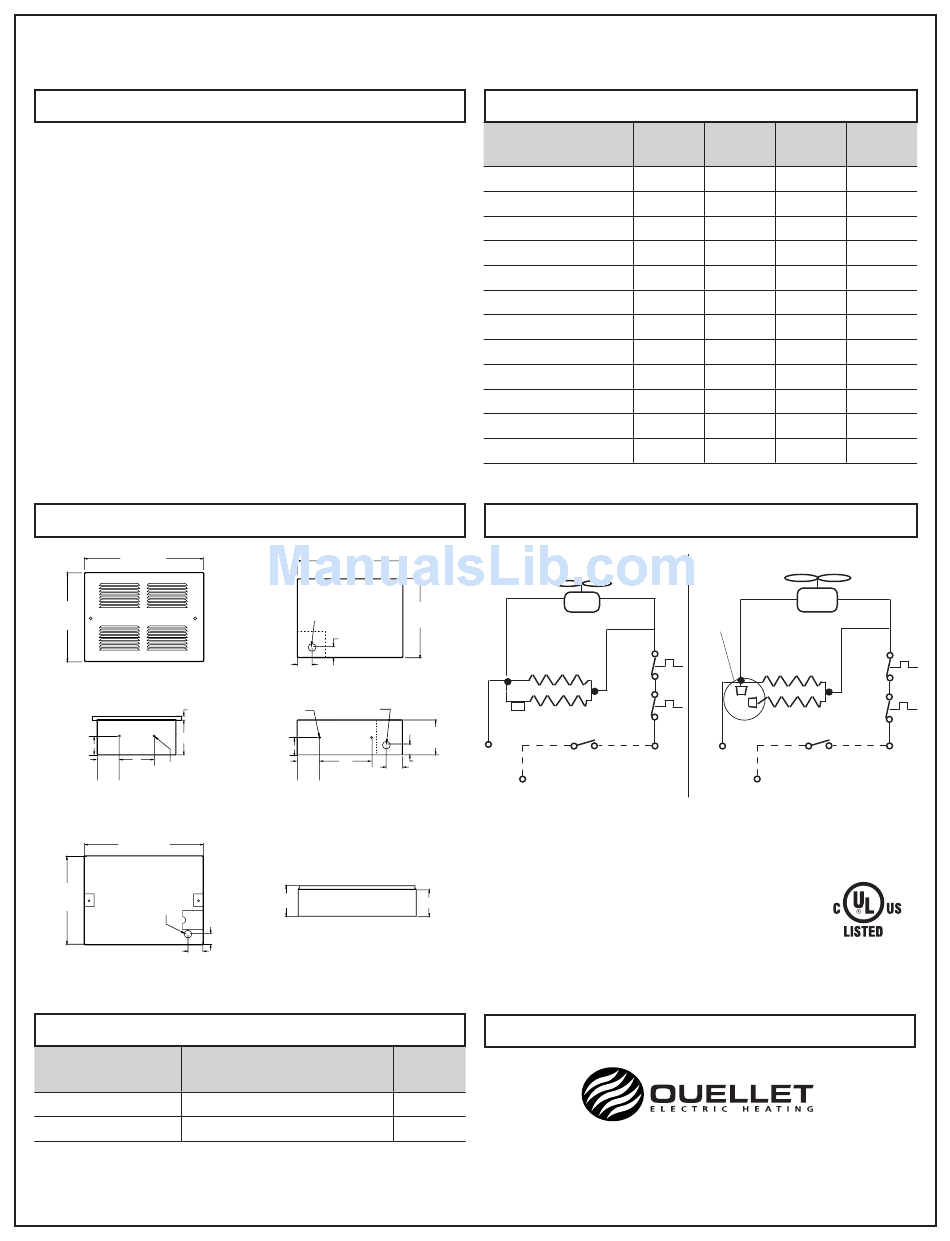

Wiring Diagram; Features; Models; Dimensional Drawing - KING WHFC1205 Installation Instructions

FEATURES

• 500 to 1500 Watts (1706 - 5120 Btu).
• 120 - 208 - 240 Voltages Available.
• 95 CFM tangential (squirrel cage) blower,
55 dBA at 3 pi (0.9 m).
• Large 75 cubic inch wiring compartment for easy installation.
• 20 gauge grill in white powder coat finish.
• Grill has large intake and outlet openings.
• 20 gauge ceiling recess box.
• Elements are helical coil nickel-chromium alloy wire
protected by mica insulation.
• Motor is vibration isolated by a shock absorbing rubber
end cap.
• Unique motor cooling system extends motor life.
• Listed under UL2021 - standard for electric air heating.
DIMENSIONNAL DRAWING
346.2 mm
13 "
5/8
263.6 mm
10 "
3/8
Front View
16 mm
"
5/8
51.5 mm 88.9 mm
2 " 3
1/32 1/2
ø 4.8 mm
114.3 mm
"
3/16
4 "
1/2
57.9 mm
2 "
9/32
Side View
346.2 mm
13 "
5/8
263.6 mm
10 "
3/8
KOE ø22 mm
KOE ø "
7/8
45 mm
Front View
1 "
3/4

OPTIONS

Products # Description
WHSC-C Surface mounting box
WHFG Replacement grill
1 The fan heater assembly must be removed from the recess box and installed into
the surface mounting box.
WHFC CEILING HEATER
304.8 mm
12"
KOE ø22 mm
KOE ø "
7/8
30.2 mm
1 "
3/16
33.3 mm
1 "
5/16
Rear View
KOE ø22 mm
ø 4.8 mm
KOE ø "
" 7/8
3/16
51.5 mm
" 2 "
1/32
165.1 mm
33.3 mm
6 "
1/2
66.6 mm 1
5/16
2 "
5/8
Top View
Surface Box
102.5 mm
4"
Rear View
31.5 mm
1 "
1/4
1
Products #
WHFC1205
WHFC1207
WHFC1210
WHFC1215
WHFC2005
WHFC2007
WHFC2010
WHFC2015
WHFC2405
WHFC2407
WHFC2410
WHFC2415
Two Element - Factory Wiring
FAN
230.2 mm
9 "
1/16
E1
Element
E2
Tag
102.4 mm
4 "
1/32
L 1
Thermostat
25.4 mm
(optional)
1"
"
L 2 Power supply
90 mm
3 "
9/16
Weight
4.0
2.1
180, 3 Avenue, L'Islet (Québec) G0R 2C0 CANADA
e
Phone: 1 800 463-7043 • 418 247-3947
Fax: 1 800 662-7801 • 418 247-7801
info@ouellet.com • www.ouellet.com

MODELS

Volts Watts
120 500
120 750
120 1000
120 1500
208 500
208 750
208 1000
208 1500
240 500
240 750
240 1000
240 1500

WIRING DIAGRAM

Single Element - Factory Wiring
Capped
Ends
E1
Limit
Element
E2
Limit
L 1
L 2
L 2 Power supply
DISTRIBUTED BY:
Btu Weight
1706 8.0
2559 8.0
3413 8.0
5120 8.0
1706 8.0
2559 8.0
3413 8.0
5120 8.0
1706 8.0
2559 8.0
3413 8.0
5120 8.0
FAN
Limit
Limit
Thermostat
L 2
(optional)
