Summary of Contents for KALATEL CBR-KB3

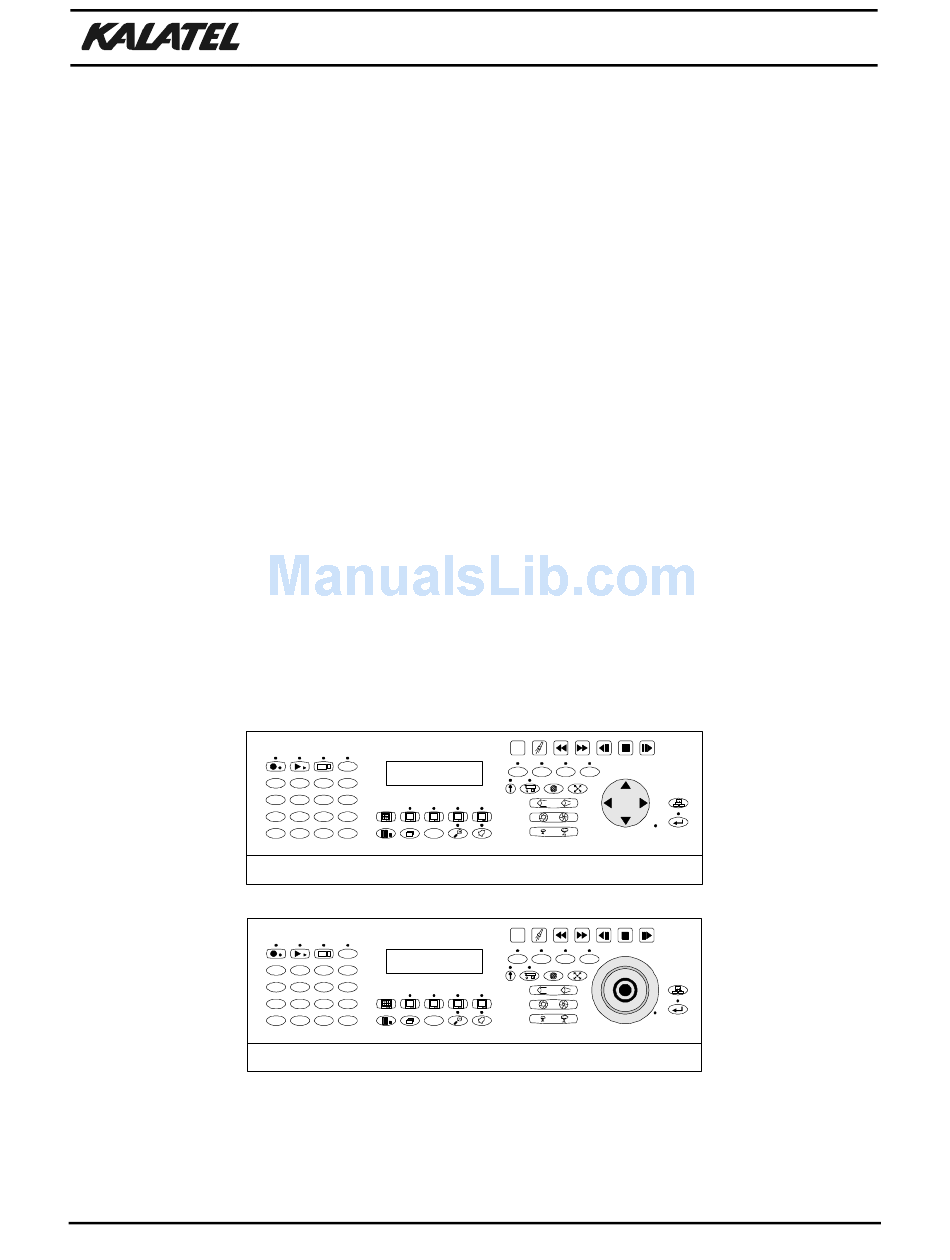

- Page 1 Installation and Operation Manual CBR-KB3 CBR-KB3/J Remote Keyboards Installation and Operation Manual AUX1 AUX2 AUX3 AUX4 AUX1 AUX2 AUX3 AUX4 Revision B 0150-0133...
- Page 2 Installation and Operation Manual WARNING! To prevent fire and electric shock, do not expose this product to rain or moisture. The exclamation point, within an equilateral The lightning flash with the arrowhead symbol, triangle, is intended to alert the user to the within an equilateral triangle, is intended to alert presence of important operating and maintenance the user to the presence of uninsulated...
- Page 3 Software and/or firmware included with this equipment are the sole proprietary property of, confidential to, and copyrighted by Kalatel, Corvallis, Oregon, USA. The software/firmware are not to be copied or disclosed in any manner without the express written consent of Kalatel.
- Page 4 Installation and Operation Manual This page intentionally left blank 0150-0133 Revision B...
-
Page 5: Table Of Contents
2.1 Product Description..................2-1 2.2 Installation Site Considerations ..............2-1 ..............3-1 ONTROLS AND NDICATORS Model CBR-KB3 Keyboard ..................3-1 3.2 Model CBR-KB3/J Keyboard ................3-1 3.3 LCD Display Description .................3-2 3.4 Common Equipment Controls ................3-2 3.5 The ALT Key .....................3-3 3.6 Device-Specific Controls.................3-4 ..............4-1... - Page 6 Installation and Operation Manual This page intentionally left blank 0150-0133 Revision B...
-
Page 7: Important Safeguards
Installation and Operation Manual MPORTANT AFEGUARDS Read Instructions Read all the safety and operating instructions before operating the unit. Retain instructions Retain the safety and operating instructions for future reference. Heed Warnings Observe all the warnings on the unit and in the operating instructions. Follow Instructions Follow all operation/use instructions. - Page 8 Installation and Operation Manual Ventilation Openings in the enclosure, if any, are provided for ventilation and to ensure reliable operation of the unit and to protect it from overheating. These openings must not be blocked or covered. This unit should not be placed in a built-in installation unless proper ventilation is provided. Do not place directly on other hot equipment that may increase its operating temperature.
- Page 9 Installation and Operation Manual Adjustments If the unit does not operate normally by following the operating instructions: • Adjust only those controls that are covered by the operating instructions. • Improper adjustment of other controls may result in damage, or void the warranty, and often requires extensive work by a qualified technician to correct.
- Page 10 Installation and Operation Manual This page intentionally left blank 0150-0133 Revision B...
-
Page 11: Initial Considerations
ONSIDERATIONS Product Description The CBR-KB3 series of remote keyboards are accessories for the Calibur 10, and 16 channel range of multiplexers as well as the MMX (multiplexer / matrix) units and DVMR (digital video multiplexer / recorder) units. It allows the user to set up a centrally controlled system of up to 32 devices, with telemetry controlled (PTZ) cameras. - Page 12 Installation and Operation Manual This page intentionally left blank 0150-0133 Revision B...
-
Page 13: Controls And Indicators
Installation and Operation Manual ONTROLS AND NDICATORS Model CBR-KB3 Keyboard TELEMETRY FRAME FAST FAST ON/OFF FORWARD UNIT REVERSE FORWARD FRAME SHIFT SELECT RECORD PLAY REVERSE AUXILLIARY LIVE SEARCH GLOBAL CAMERA KEYS 1-4 DISPLAY STOP MENU KEYS AUX1 AUX2 AUX3 AUX4... -
Page 14: Lcd Display Description
Currently selected camera number (1-32). The CBR-KB3's network ID number (1-32). The network ID of the multiplexer to which the CBR-KB3 is connected (Range: 1-32). While there is no connection, DD is displayed as ?? Table 3-1. LCD Display Description (see the rectangular diagram above). -
Page 15: The Alt Key
(for example, Preset 1) to all cameras. Table 3-2. Common Controls (see diagram on page 3-2). The ALT Key Appears only on Triplex, MMX and is also used when working with Kalatel NOTE: dome presets. If selected, (LED ON), then selected other keys have alternate functions. Used... -
Page 16: Device-Specific Controls
Installation and Operation Manual Device-Specific Controls Matrix/Multiplexer Controls NOTE: These keys are used only with the Matrix/Multiplexer (MMX) units. MON-C Sets keys to act on MON-C (Spot) only. Indicator: LED above key. MON-D Sets keys to act on MON-D (Spot) only. Indicator: LED above key. MON-E Sets keys to act on MON-E (Spot) only. - Page 17 The Calibur ProBridge manuals cover these variations for what the AUX buttons control when not using Kalatel telemetry equipment. Special features are available when using the Kalatel Mini-Dome. The following table lists the functions for these keys: Auxiliary Function...
- Page 18 Installation and Operation Manual The AUX 1 Key This feature is used for commanding the CyberDome to activate tour number one. Each time the key is pressed tour number one will start, regardless of the AUX 1 LED status, or previous setting. The LED indicator does not indicate that a tour is active or inactive.
-
Page 19: Wiring And Connections
IRING AND ONNECTIONS The following diagram shows the wiring configuration when connected to Kalatel telemetry equipment. A Calibur ProBridge is required when connected to selected other manufacturers equipment, Wiring and operation for these other devices is discussed in the specific ProBridge manual for that manufacturer. - Page 20 Although the multiplexer is capable of powering a single keypad from the multiplexer internal power, Kalatel recommends that the external power adapter, supplied with the unit, always be used. The provision to supply power to the single keypad is intended for demonstration purposes only.
-
Page 21: Start-Up
Supply power to the CBR-KB3 using the 110-240 VAC to 12 VDC adapter. Test the operation of the CBR-KB3 to verify the integrity of the connections and that it operates in a correct manner as follows (For front panel controls, refer to the pages preceding this section.) Connect the CBR-KB3 keypad to the multiplexer using a RJ-45 to RJ-45 adapter cable, as illustrated above. -
Page 22: The Rs-422 Network
If this is the first or last device on the network, terminate the device with a 100-ohm terminator plug. (Usually available from unit supplier.) Most Kalatel units have looping RS-422 network connectors, meaning that the signal is looped in and out of the unit on the same connector. -
Page 23: Keyboard Operations
The bottom line of the display shows: (SS | ??) (where SS - The CBR-KB3’s network ID.) The user can change the CBR-KB3’s network ID, or select to connect to any multiplexer that is free by using the # key. Connected State In this state, the Keyboard has established a connection with one of the multiplexers on the network. - Page 24 Standing by ... this is quickly followed by: (32 | ??) The CBR-KB3 remains in the Standing by ... state. If the user picks the ID used by the CBR-KB3 itself, the display Cannot connect to Myself! shows: If the chosen unit number is connected to the network, but is...
- Page 25 Disconnecting From a Multiplexer Disconnection by an Operator The CBR-KB3 cannot be connected to more than one multiplexer at the same time. When an operator has completed control actions on a specific multiplexer, before the CBR-KB3 can connect to a new multiplexer, it must disconnect from the current multiplexer.
-
Page 26: Network Interfacing
In order to update the CBR-KB3’s memory as to the new state of the network, it is possible for the operator to request a complete polling of the network. This is done as follows: The display shows: Press the Global key. -
Page 27: Other Available Keyboard Functions
Selecting the Monitor Mode of Operation With all other Kalatel units, there can only be a single keyboard connected at a time. But, with the MMX-165C(x), there can be more than one keyboard connected, allowing control of the additional monitors. - Page 28 Installation and Operation Manual The keyboard LCD display shows: Monitor mode multiplexer ID ? The keyboard LCD display Enter the multiplexer ID shows: number for the multiplexer Multiplexer whose monitors are to be (_ _) (_ _ is the multiplexer ID controlled.
- Page 29 Installation and Operation Manual Testing the Preset Test the correct operation of the preset by moving the camera to a completely different view, and then commanding the camera to return to the preset as follows: Press the PRESET key on The keyboard LCD GO TO PRESHOT the keyboard one time.
-
Page 30: Kalatel Cyberdome Programming
The receivers connected to the second multiplexer, will have addresses of 32 to 63, etc. 5.5 Kalatel CyberDome Programming This section will explain how the user can access the Kalatel Dome programming menu. The following keys are available when the Kalatel CyberDome Programming menu is active. - Page 31 Pan/Tilt/Zoom functions. ® The CBR-KB3 does not have a ZERO (0) key, so the TEN (10) key is given this function. Accessing the Kalatel CyberDome Programming Menu The KB3 should be in the Telemetry mode. If it is not, press the Telemetry key on the KB3 keypad.
- Page 32 Installation and Operation Manual NOTE: Please refer to Kalatel CyberDome Programming Instructions (Kalatel Document #: A06-8S4C-A) for more detailed instructions on programming the CyberDome. Exiting the Kalatel CyberDome Programming Menu Press the MENU key EXIT The KB3 LCD displays (1 second): KALATEL MENU once.
-
Page 33: Pecifications
Installation and Operation Manual PECIFICATIONS Physical Metal enclosure with integral stand for desktop use. Rack mountable Housing with optional kit (see options below). Dimensions D x H x W: 5 X 2 X 13.5 in (127 x 51 x 343 mm) Weight 2.8 lb. - Page 34 Replacement power supply, 12 VDC, 1 A. (NTSC) 4010-0008 Replacement power supply, 12 VDC, 1 A. (PAL) All specifications are subject to change without notice. Kalatel believes that all NOTE: specifications are correct, but no liability is assumed for omissions or errors.
-
Page 35: Service And Warranty
CBR-KB3 are not user serviceable. Factory Service If the CBR-KB3 ever requires factory service, contact the dealer who supplied the unit for the correct procedures to return the unit to the factory or the nearest factory service center. - Page 36 Products or such other equipment, component or system as originally paid by the Reseller. In no event shall Kalatel be liable for any incidental, consequential, indirect, or special damages, including (without limitation) damages...
- Page 37 Installation and Operation Manual Revision B 0150-0133...
- Page 38 Installation and Operation Manual Kalatel P. O. Box 3004 Corvallis, OR 97339 United States of America Telephone: (800) 343-3358 (7:00 to 4:30 , Pacific time) In Oregon: (541) 754-9133 Facsimile: (541) 754-7162 (24 hours a day) 0150-0133 Revision B...
