Summary of Contents for ETRONIX POLSE ex2 sport

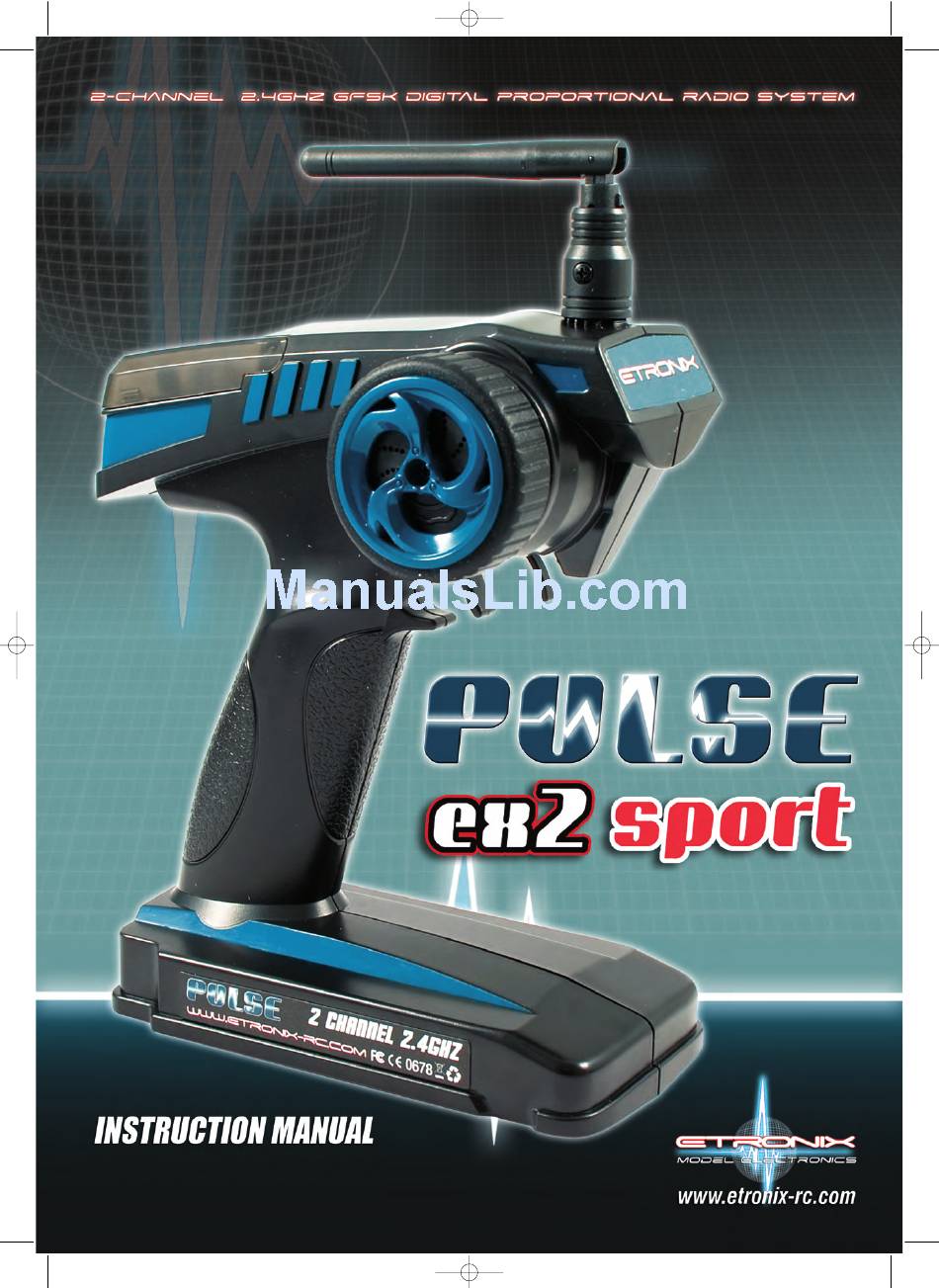

- Page 1 EtronixPulseRXInstructions 6/6/11 09:17 Page 1...

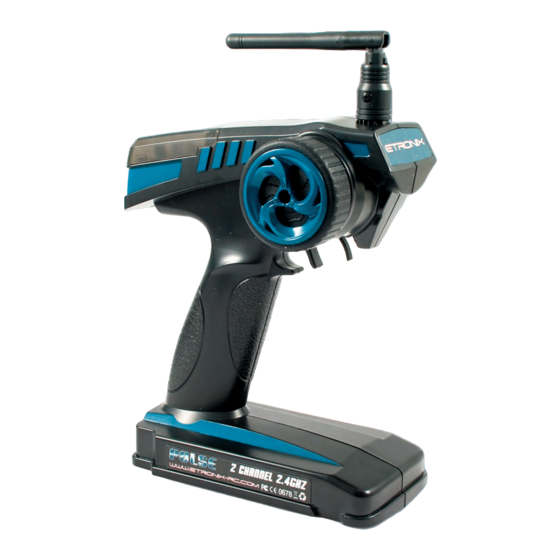

- Page 2 Transmitter 1) INTRODUCTION. Thank you for choosing this Etronix 2.4GHz radio system, it has been designed for land use but could also suit any 2 channel boat. If you are using this type of product for the very first time, please make sure you read all the information provided before installing in your vehicle.
-
Page 3: Transmitter Specification
EtronixPulseRXInstructions 6/6/11 09:17 Page 3 7) TRANSMITTER SPECIFICATION. Channels : Frequency: 2.4GHz RF Power : <20 dbm Modulation: GFSK Code Type: Digital Sensitivity: 1024 Power: 12V DC (8 x 1.5V AA) Low Voltage Warning: <9V DC Charger Port: 5mm Centre Positive (Charger Not Included) DSC Port: 3.5mm... -
Page 4: Transmitter Functions
EtronixPulseRXInstructions 6/6/11 09:18 Page 4 9) TRANSMITTER FUNCTIONS. Beneath the folding Control Panel Cover (D) you will find an array of useful adjustments, plus the Power Switch (P). A vertical aerial achieves maximum range, so the short 2.4GHz aerial (A) can be folded and rotated to achieve the most vertical position once you are holding the handset comfortably. -
Page 5: Receiver Installation
EtronixPulseRXInstructions 6/6/11 09:18 Page 5 When the Power Switch (P) is moved left to the ‘On’ position, the 11) RECEIVER INSTALLATION. RED LED (J) lights up, as does the Green LED (K), this shows a The receiver should be securely mounted flat and level in your good battery condition. - Page 6 09:18 Page 6 13) RECEIVER FAILSAFE OPERATION. This Etronix receiver incorporates a digital protection system known as a failsafe. If the model goes beyond the usable range, or the signal is interrupted, the failsafe will automatically set the throttle (channel 2) to a preset position so long as power is still supplied to it.
- Page 7 EtronixPulseRXInstructions 6/6/11 09:18 Page 7 NOTES:...
- Page 8 EtronixPulseRXInstructions 6/6/11 09:18 Page 8 DISTRIBUTORS OF QUALITY MODEL & HOBBY PRODUCTS Saxon House, Saxon Business Park, Hanbury Road, Bromsgrove, Worcestershire. B60 4AD. England Tel: +44 (0) 1527 575349 Fax: + 44 (0) 1527 570536 E-mail: info@cmldistribution.co.uk Web site: www.cmldistribution.co.uk...
