Elu ELU27158 User Manual

1/2" drill
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

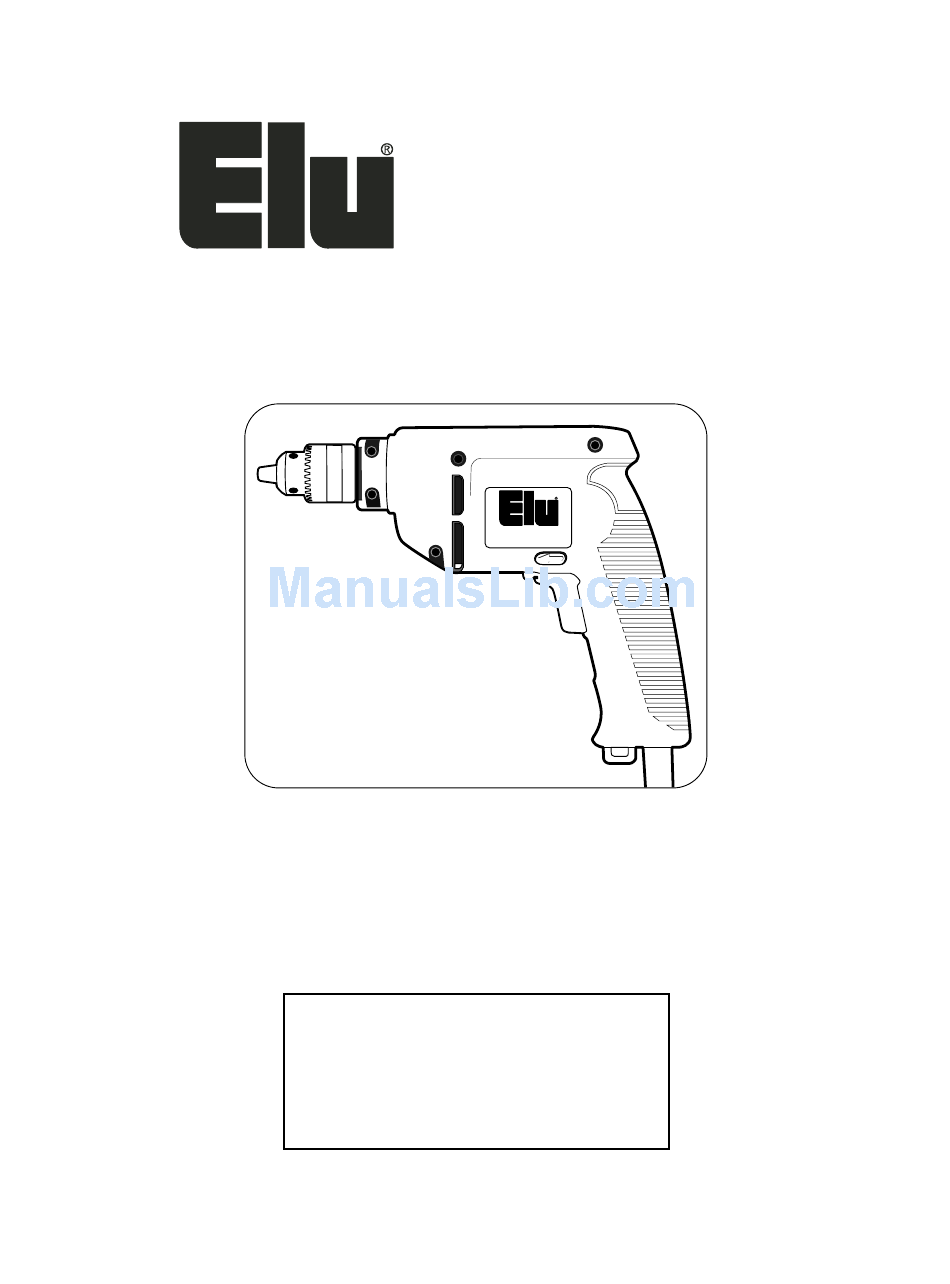

1/2" Drill
ELU27158
IMPORTANT
Please make certain that the person who is to use
this equipment carefully reads and understands these
instructions before starting operations.
The Model and Serial No. plate is located on the main
housing of the tool. Record these numbers in the
spaces below and retain for future reference.
Model No. ______________________________________
Type ___________________________________________
Serial No. _______________________________________

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ELU27158 and is the answer not in the manual?

Questions and answers

Related Manuals for Elu ELU27158

Summary of Contents for Elu ELU27158

  • Page 1 1/2" Drill ELU27158 IMPORTANT Please make certain that the person who is to use this equipment carefully reads and understands these instructions before starting operations. The Model and Serial No. plate is located on the main housing of the tool. Record these numbers in the spaces below and retain for future reference.

  • Page 3: Table Of Contents

    Improper operation, maintenance or modification of tools or equipment could result in serious injury and property damage. There are certain applications for which tools and equipment are designed. Elu strongly recommends that this product NOT be modified and/or used for any application other than for which it was designed.

  • Page 4: Safety Guidelines

    SAFETY GUIDELINES - DEFINITIONS It is important for you to read and understand this manual. The information it contains relates to protecting YOUR SAFETY and PREVENTING PROBLEMS. The symbols below are used to help you recognize this information. indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

  • Page 5: General Safety Rules

    GENERAL SAFETY RULES Read and understand all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury. SAVE THESE INSTRUCTIONS WORK AREA • Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents.
  • Page 6 GENERAL SAFETY RULES continued PERSONAL SAFETY • Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use tool while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury, •...

  • Page 7: Additional Specific Safety Rules

    GENERAL SAFETY RULES continued SERVICE • Tool service must be performed only by qualified repair personnel. Service or maintenance performed by unqualified personnel could result in a risk of injury. • When servicing a tool, use only identical replacement parts. Follow instructions in the Maintenance section of this manual.
  • Page 8 SYMBOL DEFINITION V ..........volts A ..........amperes Hz ........hertz W ........watts min ........minutes ........alternating current ........direct current n o ........no load speed ........Class II Construction ........earthing terminal ........safety alert symbol .../min ........revolutions per minute MOTOR Many tools will operate on either D.C., or single phase 25 to 60 cycle A.C. current and voltage within plus or minus 5 percent of that shown on the specification plate on the tool.

  • Page 9: Functional Description

    18-20 SAVE THESE INSTRUCTIONS! FUNCTIONAL DESCRIPTION MOTOR BRUSHES ELU uses an advanced brush system which automatically stops the drill when the brushes wear out. This prevents serious damage to the motor. SWITCH To start drill, depress trigger switch; to stop the drill, release trigger.
  • Page 10 THE VARIABLE SPEED TRIGGER SWITCH This switch permits speed control: the farther the trigger is depressed, the higher the speed of the drill. NOTE: Use lower speeds for starting holes without a center punch, drilling in metal or plastics, driving screws or drilling ceramics. Higher speeds are better for drilling wood and composition boards, and for using abrasive and polishing accessories.

  • Page 11: Assembly

    ASSEMBLY NOTE: This tool is shipped completely assembled. No assembly time or tools are required. SIDE HANDLE A side handle may be supplied with your drill. The side handle clamps to the front of the gear case and can be rotated 360 degrees to permit right or left hand use.

  • Page 12: Maintenance

    (If applicable) For your continued safety and electrical protection, brush inspection and replacement on this tool should ONLY be performed by an AUTHORIZED ELU SERVICE STATION. At approximately 100 hours of use, take or send your tool to your nearest authorized service station to be thoroughly cleaned and inspected.

  • Page 13: Service

    WARRANTY Elu industrial tools are warranted for one year from date of purchase. We will repair, without charge, any defects due to faulty materials or workmanship. For warranty repair information, call your local Black & Decker service center. This warranty does not apply to accessories or damage caused where repairs have been made or attempted by others.
  • Page 16 BLACK & DECKER (U.S.) INC., 701 East Joppa Road, Baltimore, MD 21286 (JUN05) Form No. 633074-00 ELU27158 Copyright © 2005 Elu Industrial Power Tools...
