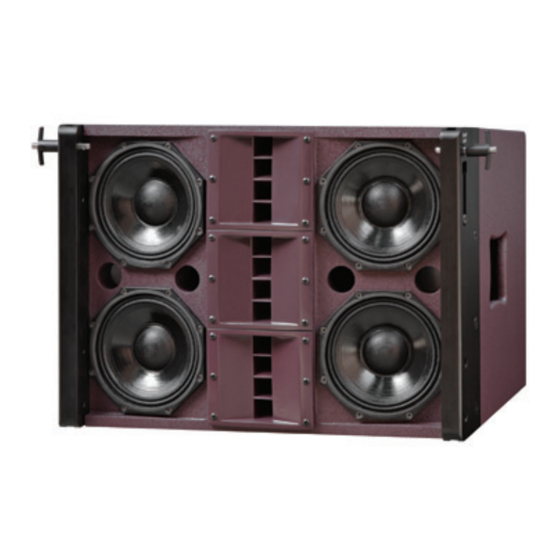

Summary of Contents for Void ARCLINE 6
- Page 1 OWNER'S MANUAL ARCLINE 6...
- Page 2 OWNER'S MANUAL ARCLINE 6 Arcline...
- Page 3 Insert both locking pins. Fit the rear mounting bar, adjust the tilt and then insert the locking pins. If a single Arcline 6 is to be used in a craddle insert 2 locking pins into the cradles telescopic tubes.
-
Page 4: Technical Specifications
Arcline TECHNICAL SPECIFICATIONS Arcline 6 Frequency Response : 60 Hz - 20 KHz -3dB Sensitivity : 101 dB 1w/1m Impedance : 8 ohms Power Handling : 800 watts rms Maximum Output : 129 dB cont 132 dB peak Dispersion :... -
Page 5: Worldwide Service
Failure to do so could delay the repair of your product. Warranty Registration Please take time to fill out the warranty registration form at the back of this manual and return it to Void Acoustics. Environmental WEEE Mark If you want to dispose of this product, do not mix with general household waste. -
Page 6: Limited Warranty
Authorised Void Dealer) that it is free of defects in materials and workmanship and that each product will meet or exceed all factory published specifications for each respective model. Void agrees to repair or replace (at its discretion) all defective parts at no charge for labour or materials; subject to following provisions:... - Page 8 Void Acoustics Unit 10B Dawkins Road Ind Est Poole Dorset BH15 4JD...
-
Page 9: Getting Started
Precautions Only connect an Arcline 6 to an Arcline X with a cable wired +2, -2 to +2, -2. If a cable wired +1, -1 to +1, -1 is used the Arcline 6 will receive the same signal as the Arcline X. - Page 10 Arcline Assembly Diagram Front Craddle mounting bar Telescopic tube Arcline 6 Craddle (bottom bar) Winch Up Tower Complete assembly of 2 x Arcline X and 2 x Arcline 6 Arcline X...
