Summary of Contents for Soraton PowerMax HPS-4C2-10.8V Li-Ion

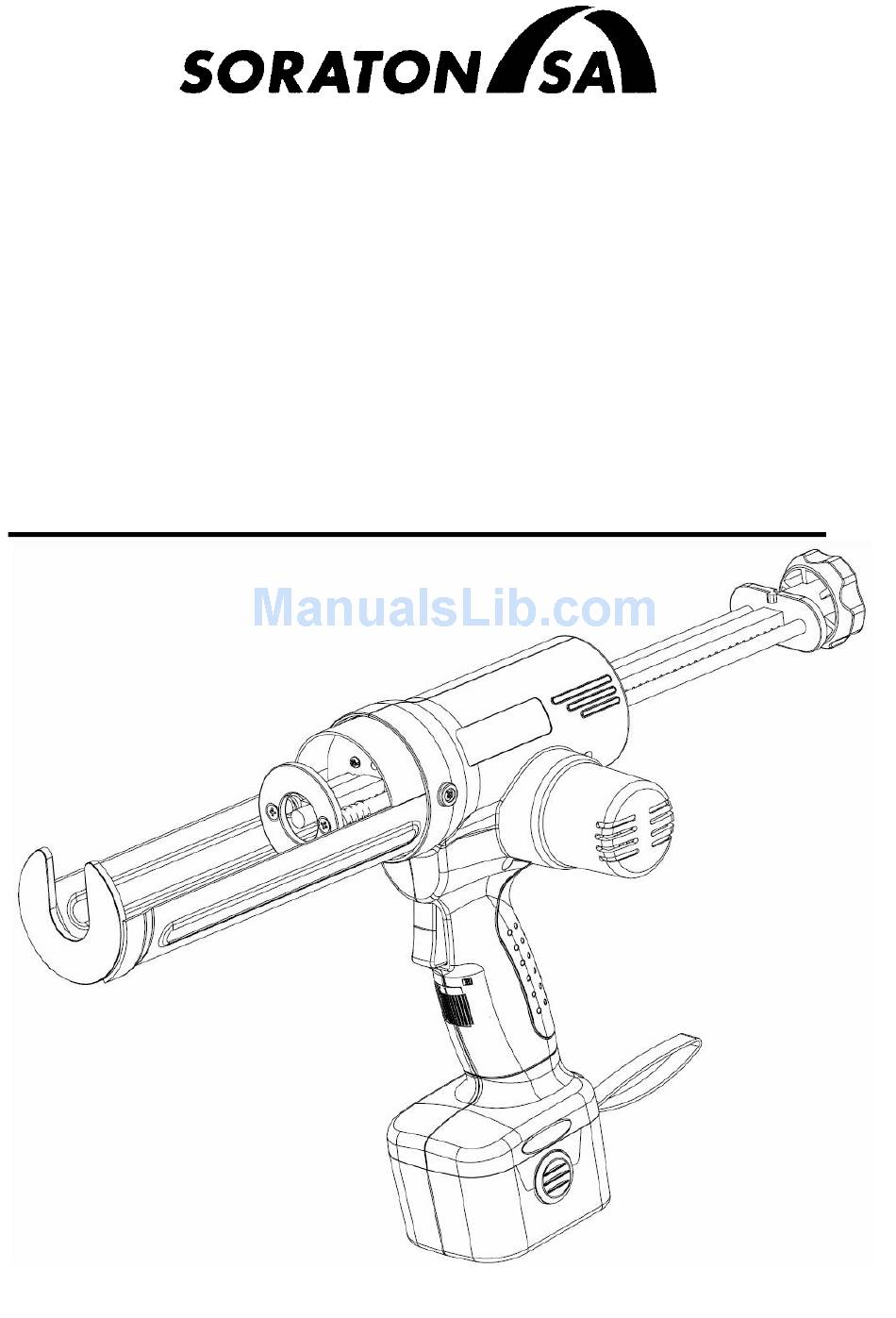

- Page 1 Operating Instructions ® PowerMax CORDLESS CAULKING GUN Modell: HPS-4C2-10.8V Li-Ion 380ml to 410ml (5:1)Coaxial Cartridges...
- Page 2 Operational Precautions General Safety Instructions △ ! WARNING 1. Consider work area environment. Do not expose tools to rain. Do not use tools in damp or wet locations：Keep work area clean and well lit. Do not use tools in the present of flammable liquids or gases. 2.
- Page 3 Product Safety Instructions △ ! WARNING 1. Disconnect battery pack from tool or place the main switch in the locked or off position before making any adjustments, changing accessories, or storing the tool. Such preventative safety measures reduce the risk of starting the tool accidentally.
- Page 4 Additional Safety Rules for Charger & Battery Pack △ ! WARNING 1. Do not charge battery pack when temperature is below 10°C (50°F) or above 40°C (104°F). 2. Do not attempt to use a set-up transformer, an engine generator or DC power receptacle.
-
Page 5: Specific Safety Rules And/Or Symbols
Hz-------Hertz W----------Watts kg-------Kilograms mm--------Millimeter d.c. -----Direct Current kg-cm-----Kilograms Per Centimeter ft-lb------Foot-Pound /min--------Revolutions or Reciprocations per Minute Specifications MODEL TYPE PowerMax HPD-4C2-10.8V Li-Ion VOLTAGE 10.8V d.c. LOW：2 mm/s NO-LOAD SPEED HIGH：4 mm/s EXPEL FORCE 550 kgf TOOL WEIGHT 2.340 kg (Without Battery) (1.5Ah Battery 0.336kg) - Page 6 View the Major Components Rack Rack Rear Knob Compound Holder Plunger Disk Rack Fixity Main Switch Speed Control Dial Belt Battery Knob Fuel Gauge Battery Pack Accessory Charger...
- Page 7 Operating Instructions (Slide-In) Installing or Removing Battery Pack (See Fig.1 Fig.2) 1. Always switch off the machine before insertion or removal of the battery pack. 2. To remove the battery pack, push the button on the battery pack and pull the tool unit from the battery pack in the direction.
- Page 8 LED Indication Function The Battery Pack has a “SW” button and 4-step green LEDs for indicating remaining capacity status and Over temperature condition. The remaining capacity (RC) and temperature protection status green LED indications ( 3 second ) when the “SW” button is momentarily pressed. Remaining Capacity LED Indication RC Status LED 1 (green)
- Page 9 The LED Light on the Charger Power On (Green light flashes slowly) Battery Low (Red light stays illuminated) Battery charged 80% (Green light flashes rapidly) Battery charged 100% (Green light stays illuminated) Battery Pack temperature is too hot or too cold (Red light flashes slowly) Battery Pack malfunction (Red and Green lights stay illuminated) △...
-
Page 10: Tool Operation
Tool Operation 1. Open the lid of the epoxy cartridge. 2. Screw the mixer tip to the epoxy cartridge. 3. Pull the Rear knob to extend rack, and put the cartridge into the epoxy gun. 4. Push the rear knob to have the disk slightly contact with cartridge to start operating the epoxy gun. -
Page 11: Maintenance
IMPROTANT NOTES AND KEY FEATURES 1. Do not insert cartridge if it is wet, or if the sealing compound has hardened. 2. If the tool is operated for long period of time, the motor may overheat. It is recommended to switch off from time to time. 3. - Page 12 !WARNING To reduce the risk of chemical exposure due to over-pressurization of the cartridge resulting in bursting: Always wear appropriate eye, skin, and respiratory protection. Always examine the cartridge prior to use. Do not use cartridge if there is any visible damage to the cartridge and/or if the nozzle is plugged. Always test for proper mixing and flow resistance by extruding a small amount of material into an appropriate waste receptacle.
