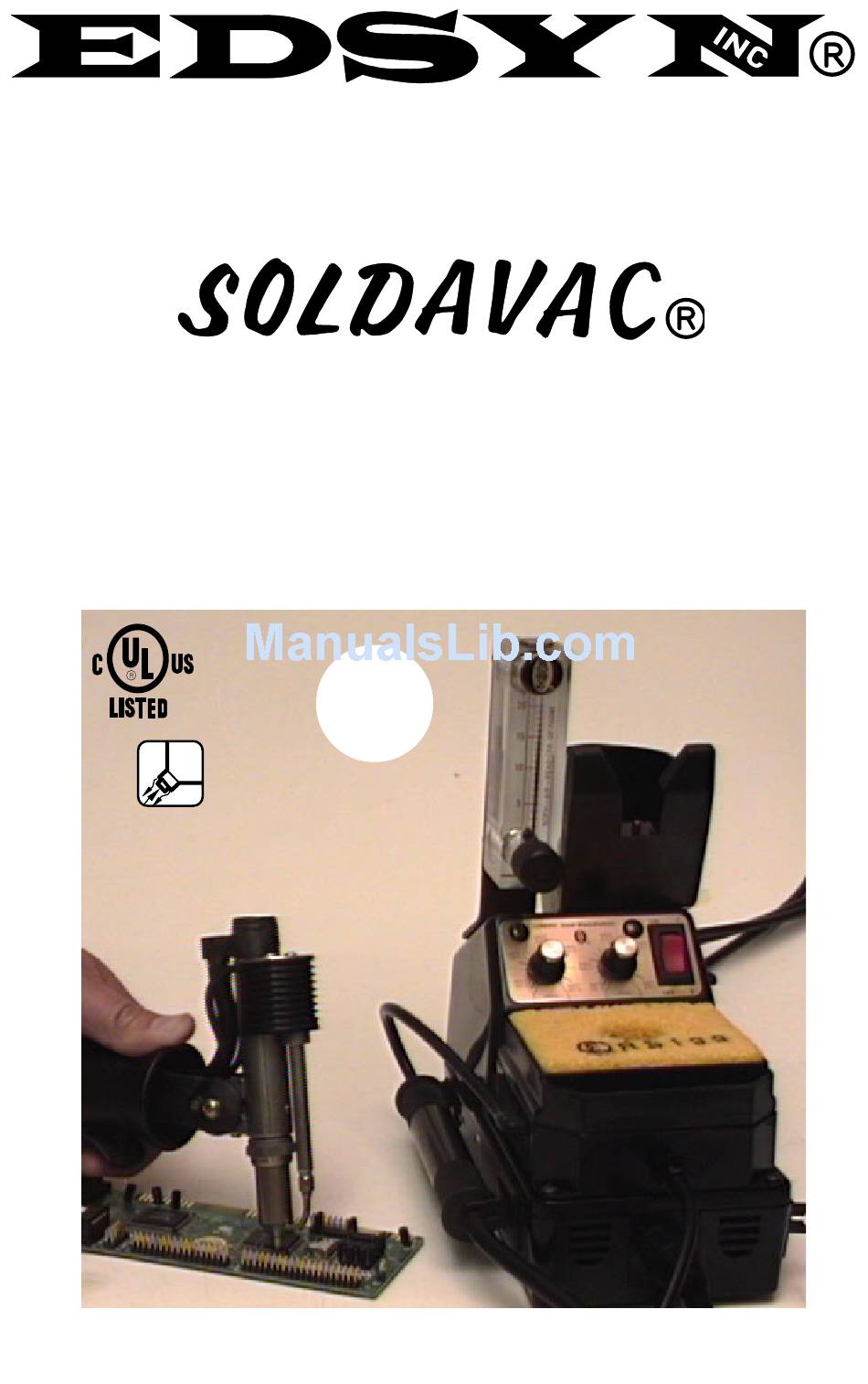

TSX70
SMT Reflow Vacuum
Workstation
ï COMPLIES WITH MIL-S-45743E, MIL-STD-2000, DOD-STD-2000-1B,
WS6536E AND ESD SPEC, DOD-STD-1686, DOD-HDBK-263
MADE
IN
U.S.A.
Hot Gas + Hot Tip
Desoldering
instruction manual
EDSYNÆ INC. PHONE (818) 989-2324 FAX (sales): 818-997-0895 FAX (service): 818-997-0460
Advertisement
Related Manuals for Edsyn Soldavac TSX70
Summary of Contents for Edsyn Soldavac TSX70
- Page 1 TSX70 SMT Reflow Vacuum Workstation ï COMPLIES WITH MIL-S-45743E, MIL-STD-2000, DOD-STD-2000-1B, WS6536E AND ESD SPEC, DOD-STD-1686, DOD-HDBK-263 MADE U.S.A. Hot Gas + Hot Tip Desoldering instruction manual EDSYNÆ INC. PHONE (818) 989-2324 FAX (sales): 818-997-0895 FAX (service): 818-997-0460...
- Page 2 TSX70 Static Safe Solder-Handling Station (Hot Gas & Hot Tip Desoldering) Table of Contents Specifications Features Connection & Hook-up Operation Hand Tool Adjustments Tip Replacement Cleaning & Maintenance Calibration Spare Parts Hand Tool 10. Spare Parts Power Supply SPECIFICATIONS ï 120V, 60 Hz, 39W - 330W ï...
- Page 3 G) Trigger, activates vacuum. H) Cleaning Tool. DAMAGED CORD SHOULD ONLY BE REPLACE BY AN EDSYN-CERTIFIEDTECHNICIAN ï Tool should be place in Holder when not in use. ï Hot Gas flow will stop if Tool is placed in the Holder.
- Page 4 CONNECTION & HOOK-UP Hand Tool Connectors must be turned clockwise to en- gage. Ideal air pressure input: 60 to 90 psi 413.7 - 620.5 KPA Gas Line 4.1 - 6.2 bar Inert Gas Input (color-coded sleeve): 13 psi max. Connector Vacuum Line 5 SCFH 2.4 Li/min.
- Page 5 ADJUSTMENT CHANGING TIP Should be done while the tool is REMOVING: cool. Loosen this first Lossen this last adjustment screws Use this wrench to remove or intall tips To tilt the Head Assembly, loosen (2) Adjust- ment Screws. Tilt the Head Assembly to de- sired position and retighten screws.
- Page 6 CLEANING & MAINTENANCE 1. Replace AF625 Filter. FC639 2. Clean SC525. OS130 3. Clean or replace OS133 if neccessary. OS132 4. Replace MS229. 5. Replace worn-out Tip. AF625 SC525 INSPECT OVER-ALL TIP OS133 CONDITION REGULARLY. MS229 O-Rings Replacement inside Valve Assembly a) Unscrew Lock Nut at the end of the Tool Handle.
- Page 7 CALIBRATION THERMOCOUPLE PROBES NOTE:The TI680 has only one input jack. Calibrate each heater separately. option1 Remove these. Then install thermocouple TC271 probes. TC383 for heater A for heater B heater A TI680 meter For heater A: 1. Using option 1, turn on power and set left Temperature Control Knob to 400∞F (205∞C).
- Page 8 TSX70-1 SOLDER HANDLING TOOL SPARE PARTS LIST Æ ITEM DESCRIPTION PART NO. REQ'D SR341 Heater Assy. 24V, Hollow Threaded SR342 Housing, Hot Gas Heater SR343 Set Screw HS304 Low Static Silicone Hose, 3/32 i.d. HT01 Hot Tube AC737 Accumulator Bushing SR007 Nut, Hex, 2-56 SR170...
- Page 9 ITEM PART NO. DESCRIPTION REQ'D SR006 Index Flange (nut side) SR122 Screw, Pan Hd, Slotted, 2-56 x 1/8 SR440 Housing, Desold Head Assy. SR345 Screw, Pan Hd, Phillips, 4-40 x 3/8 SR119 Teflon Spacer SR120 Heater Element, 24V, 70W SR117 Teflon Bushing SR118 Heater Restrainer...
- Page 10 TSX70-2 SOLDER HANDLING TOOL SPARE PARTS LIST Æ 79 51 60 59...
- Page 11 ITEM PART NO. DESCRIPTION REQ'D SR408 Solenoid & Vacuum Ejector Assy. SR068 Knob, Temperature Control, Front Panel SR376 Tool Pod, Holder for Hot Gas Tool SR375 Flow Meter SR443 Mounting Bracket for Flow Meter SR065 Power Switch SH232 Sponge Holder RS199 Cleaning Sponge LC363...
- Page 12 Coupling, Male, Quick-Disconnect, 1/8 Hose SR008 Screw, Flat Head, Slotted, 2-56 x 1 SR416 Holder, Wrench Hanger, Self-Adhesive SR415 Terminal, Crimp for VH Connector (10 per bag) SR229 Medallion, EDSYN Logo, Self-Adhesive HB359 Fitting, Quick-Disconnect Air Input, Male SR007 Nut, Hex. 2-56...
- Page 13 ITEM PART NO. DESCRIPTION REQ'D SR283 Hose, 1/8 i.d. Polyurethane, Black 2.5" (sold per foot) 3.5" SR429 Hose, 1/16 i.d.Polyurethane, Clear 1.5" (sold per foot) 3.5" SR417 Cover for Solenoid & Vacuum Ejector Assy. AF629 Felt Filter (set of 10) AF040 Foam Filter (set of 10)
- Page 14 SUBJECT TO CHANGE WITHOUT NOTICE. Property TIP STYLE ON SOLDERING, DESOLDERING AND HOT AIR TOOLS MAY VARY. PRINTED IN U.S.A. ©Copyright EDSYN, Inc. 1998 15958 Arminta Street, Van Nuys, CA 91406-1896 EDSYNÆ INC. PHONE (818) 989-2324 FAX (sales): 818-997-0895 FAX (service): 818-997-0460...
