Snapper mid frame Snowthrower Operator's Manual page 11

A
B

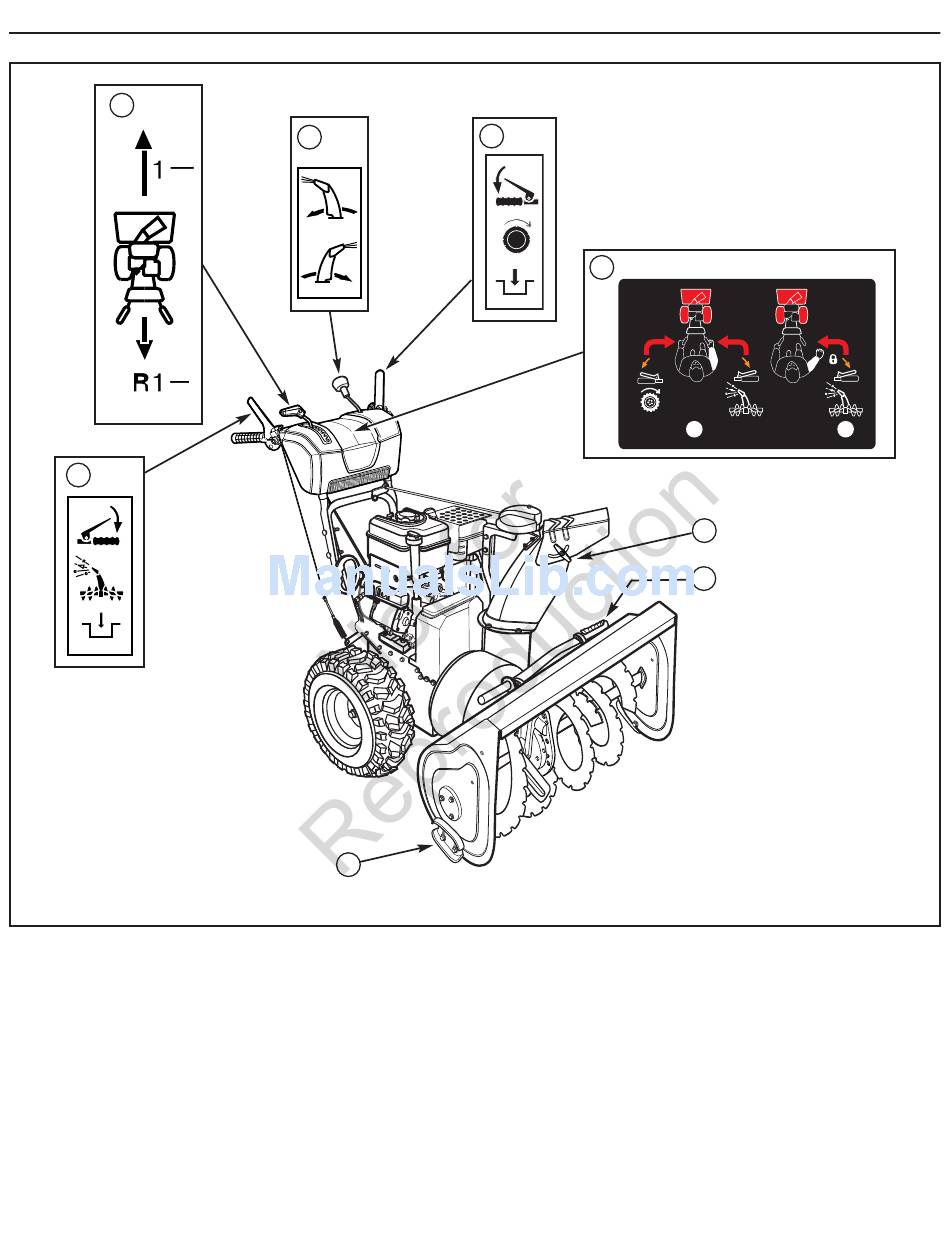

Snow Thrower Controls
B. Auger Control Lever — Used to engage and disengage the
auger and impeller. To engage push down, to disengage release.
C. Chute Rotation Crank — Used to rotate the discharge chute to the
left or right.
D. Chute Deflector Knob — Used to control the angle of the chute
deflector (up or down).
TM Control — After engaging the traction control (left
E. Free-Hand
hand) and auger control (right hand), allows the operator to
release the auger control lever to use the other controls.
C
G
11
F
E
F. Traction Drive Clutch Lever — Used to propel snow thrower for-
ward or reverse. Push down to engage, release to disengage.
G. Skid Shoe — Used to adjust ground clearance of auger housing.
H. Clean-Out Tool — Used to remove snow and debris from the dis-
charge chute and the auger housing.
FEATURES AND CONTROLS
1 2
D
H
Figure 3
