Summary of Contents for VOLKTEK NHL-2340NF
-

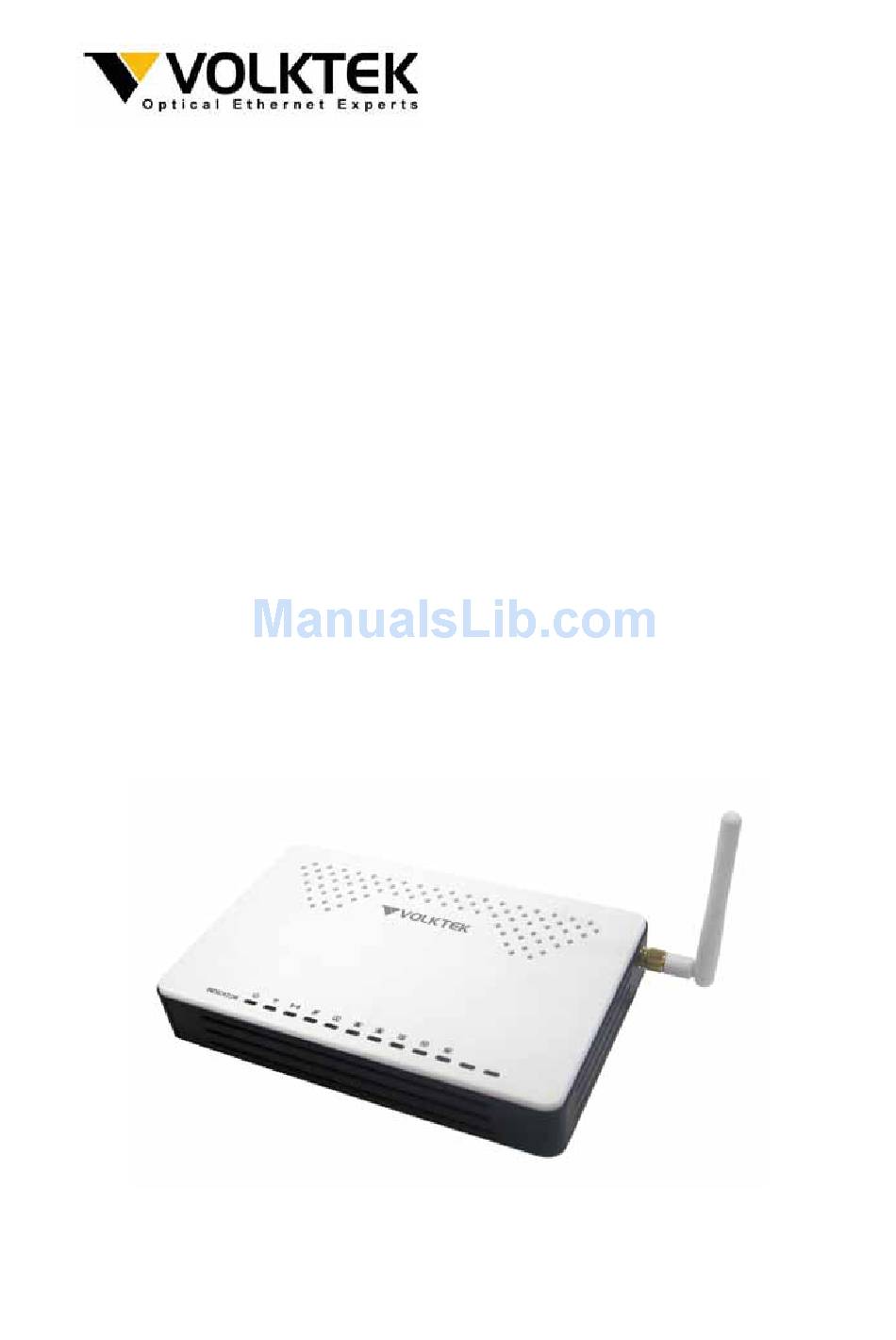

Page 1: User Manual
4-port 10/100 LAN and 1-port Fiber WAN 802.11n Wireless VoIP Gateway User Manual Version 1.2 March 2011... - Page 2 VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY http://www.volktek.com/ COPYRIGHT All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, whether electronic, mechanical, photo copying, recording or otherwise, without the prior written permission of the publisher.
-
Page 3: Table Of Contents
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY About This Guide ...................... 5 ................................5 ELCOME ................................5 URPOSE ..............................5 ERMS SAGE ................................5 EATURES .......................... 7 ECHNICAL PECIFICATIONS ..............................7 ACKING Hardware Description ....................8 Installation ......................... 8 ........................9 OWERING ... - Page 4 VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY Phone Book...............................64 Call Forward.................................... 64 Contact List....................................66 Group List....................................67 Block List ....................................68 DND White List ..................................69 QoS ..................................70 ............................... 71 ANAGEMENT TR069 ................................71 Auto Provision..............................72 ............................... 73 AINTENANCE System Settings...............................73 General ...................................... 73 Dynamic DNS ..................................74 Time......................................75 Log..................................76 Tools ..................................77...
-
Page 5: About This Guide
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY About This Guide Welcome Congratulations on choosing the NHL-2342NF 4-port 10/100 LAN and 1-port fiber WAN 802.11n Wireless VoIP Gateway, the next generation in broadband service fiber to the home devices. The NHL-2342NF Triple-Play VoIP Gateway allows users to play three types of content service on one device including high speed Internet (data), VoIP (voice), and Video on Demand/Video Conference/IPTV (video). - Page 6 VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY • DHCP client/server • DHCP option 60 • NAT (includes multi-to-multi NAT)*, 2048 NAT sessions • Port forwarding • Firewall: IP/Port/MAC filter • UPnP support (IGD) • Supports 16 IP Static route* (CLI only) •...
-
Page 7: Technical Specifications
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY Technical Specifications Power Characteristics: Power Supply Requirement: 12V AC 1A Switching power supply. Note various regional power supplies must be in place to meet different regional power standards. Environmental Characteristics: Operating Temperature 0°C to 40°C... -
Page 8: Hardware Description
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY Hardware Description Back Panel: NHL-2342NF NHL-2340NF Installation The location chosen for installing the Gateway may greatly affect its performance. When selecting a site, we recommend considering the following rules: • Install the Gateway in an appropriate place. See Technical Specifications for the acceptable temperature and humidity ranges. -
Page 9: Powering On The Gateway
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY Powering On the Gateway The Gateway uses an AC power supply 100~240V AC, 50~60 Hz. The power on/off button is located at the rear of the unit. The Gateway’s power supply automatically self-adjusts to the local power source and may be powered on without having any or all LAN segment cables connected. -
Page 10: Led Indicators
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY LED Indicators This NHL-2342NF is equipped with a variety of LEDs to enable users to determine the current status and display what is happening on all of the connections. They are as follows: Power/System Status POWER (Green/Red) Green On: Power and system are on. -
Page 11: Wps Button
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY Green Off: Modem power off, modem in bridged mode, or connection not present. Green Blinking: IP connected and IP traffic is passing through the device (either direction), flashing at 4 Hz with a 50% duty cycle... -
Page 12: Web Management
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY Web Management The Gateway provides Web pages that allow management through the Internet. Log into Web Management From a PC, open your Web browser, type the following in the Web address (or location) box: http://192.168.1.254 and then press <Enter>. -
Page 13: System Information
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY System Information The System Information folder contains a read-only Status window and a Device Mode window that allows the Gateway to be configured as either a Router or a Bridge. Status The Status window appears each time a user logs into the program. - Page 14 VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY change this setting. WAN Information IP Address This is the WAN port’s IP address. IP Subnet Mask This is the WAN port’s subnet mask. Connection Type This is the connection type status. This is the IP address of the DNS.
-
Page 15: Multiple Ap Table
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY Click Refresh to display current settings of the Gateway. Multiple AP Table Click the Multiple AP Table Detail hyperlink in the Status window. Read-only information includes SSID, Band, Encryption, BSSID, and Associated Clients. Multiple AP Table window... - Page 16 VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY Click Apply to commit the settings. Click Refresh to display current settings of this window. Click Close to close this pop-up window.
-
Page 17: Active Session Table
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY Active Session Table Click the Active Session Detail hyperlink in the Status window. Read-only information includes Index, Internal, Protocol, External, NAT (Port), and Time Out (sec). Active Session Table window The Active Session Table window contains the following parameters:... -
Page 18: Device Mode
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY Device Mode The Device Mode window allows users to select Router mode, Bridge mode, or a Mixed mode employing both Router and Bridge modes. Access this window by clicking System Information > Device Mode. - Page 19 VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY WAN window for DHCP Client The WAN window for DHCP Client contains the following parameters: WAN Settings (for DHCP Client) WAN Access Type Choose DHCP Client. The other options are Static IP or PPPoE.
- Page 20 VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY Through on VPN This encapsulates a complete IP datagram, forming a virtual Connection tunnel between IPSec-capable devices. Enable PPTP Pass Enable the PPTP Pass Through on VPN connection feature. Through on VPN Point-to-Point Tunneling Protocol (PPTP)
-
Page 21: Static Ip
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY Static IP Select Static IP if the WAN port IP information is provided by the ISP. Users will need to enter the IP address, subnet mask, gateway address, and DNS(es) provided by the ISP. Access this window by clicking Networking > WAN and then changing the WAN Access Type to Static IP. - Page 22 VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY peer network connectivity between devices. A UPnP device can dynamically join a network, obtain an IP address, convey its capabilities and learn about other devices on the network. In turn, a device can leave a network smoothly and automatically when it is no longer in use.
-
Page 23: Pppoe
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY PPPoE Point-to-Point Protocol over Ethernet (PPPoE) emulates a dial-up connection. It allows an ISP to use their existing network configuration with newer broadband technologies such as ADSL. The PPPoE driver on the NHL-2342NF is transparent to the computers on the LAN, which see only Ethernet and are not aware of PPPoE thus saving users the need to manage PPPoE clients on individual computers. - Page 24 VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY Idle Time Enter an age-out value, in minutes, between 1 and 1000. Attain DNS Click to attain DNS automatically. Otherwise, enter DNS Automatically manually using the field below. Set DNS Manually Click and enter the DNS server IP address(es) assigned by the ISP in the three fields below.
-
Page 25: Lan
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY A Local Area Network (LAN) is a shared communication system to which many computers are attached. A LAN is a computer network limited to the immediate area, usually the same building or floor of a building. The LAN windows can help users configure a LAN DHCP server, manage IP addresses, and partition the physical network into logical networks. - Page 26 VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY DHCP window displayed on the next page. Domain Name Enter the domain name. If this is left blank, the ISP may assign a domain name via DHCP. IP Alias IP Alias Choose Enable to configure the LAN network for the NHL-2342NF.
- Page 27 VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY Static DHCP The Static DHCP window allows users to set up static DHCP on the NHL-2342NF. Select an index between 1 and 20, enter an IP address, a MAC Address, and an optional identifying comment. A Static DHCP List at the bottom of the window displays the current static DHCP entries.
-
Page 28: Nat
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY NAT (Network Address Translation - NAT, RFC 1631) is the translation of the IP address of a host in a packet. For example, the source address of an outgoing packet, used within one network is changed to a different IP address known within another network. - Page 29 VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY only. Click Apply to commit the settings. Click Refresh to display current settings of the window.
-
Page 30: Dmz
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY Demilitarized Zone (DMZ) allows one IP address to be exposed to the Internet. This is useful for special-purpose services such as Internet gaming or video conferencing. However, as any user on the Internet can access in/out data from the DMZ host, care should be taken when using this feature to minimize security issues. -
Page 31: Port Forwarding
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY Port Forwarding Port forwarding allows users to define the local servers to which incoming services will be forwarded by creating a firewall between the internal network and the Internet. A tunnel is created so that computers on the Internet can communicate to computers on a user’s LAN through a single port. -
Page 32: Mbm (Media Bandwidth Management)
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY MBM (Media Bandwidth Management) The Bandwidth Maintenance window allows users to configure bandwidth rules for pre-defined services or applications. Access this window by clicking Networking > MBM. Media Bandwidth Management window The Bandwidth Maintenance window contains the following parameters:... -
Page 33: Vlan
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY Local IP Address Enter the IP address of the computer to which the bandwidth rule does not apply. Port This is the range of ports for which the bandwidth rule applies. Mode Choose Guaranteed minimum bandwidth or Restricted maximum bandwidth. - Page 34 VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY VLAN Settings VLAN Enable or disable VLANs. Index An index number for the VLAN entry (row) Enable Tick to enable the VLAN entry. Ethernet/Wireless This column displays the VLAN’s interface. This column displays whether the VLAN entry is a LAN or WAN/LAN WAN.
-
Page 35: Wireless
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY Wireless Wireless folders contain configuration windows for Basic Settings, Advanced Settings, Security, Access Control, and WPS. Basic Settings The Wireless Basic Settings window allows users to configure the Wireless LAN Interface. Access this window by clicking Wireless > Basic Settings. - Page 36 VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY Channel Width Select the channel width. Select 20MHz if no 802.11n wireless clients are being used. A standard 20 MHz channel offers transfer speeds up to 150Mbps whereas a 40 MHz channel uses two standard channels and offers speeds up to 300Mbps.
-
Page 37: Multiple Ap
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY Multiple AP The NHL-2342NF allows up to four APs to be enabled and configured on the Multiple AP window. Click the Multiple AP button next to the Mode on the Wireless Basic Settings window to open the Multiple AP window. -
Page 38: Active Wireless Client Table
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY Active Wireless Client Table The Active Wireless Client Table displays all current associated wireless clients. Click the Show Active Clients button on the Wireless Basic Settings window or the Show button in the Active Client List column of the Multiple AP window on the previous page to open this window. -
Page 39: Advanced Settings
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY Advanced Settings The Wireless Advanced Settings window allows users to configure the Wireless LAN Interface. Access this window by clicking Wireless > Advanced Settings. Wireless Advanced Settings window The Wireless Basic Settings window contains the following parameters:... - Page 40 VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY feature reduces the guard interval time thereby increasing data capacity. The drawback is that it can be less reliable and may create higher data loss. Block Intra-BSS Enable or disable Block Intra-BSS Traffic. A Basic Service...
-
Page 41: Security
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY Security The Wireless Security Setup window allows users to configure WEP, WPA, WPA2, and WPA-Mixed encryption. Access this window by clicking Wireless > Security. Wireless Security Setup window The Wireless Security Setup window contains the following parameters:... - Page 42 VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY Wireless Security Setup window for WEP The Wireless Security Setup window for WEP contains the following parameters: Wireless Security Setup for WEP Select SSID Select the desired Service Set Identity (SSID). Choose the encryption security type, WEP. The other...
-
Page 43: Wpa
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY Wi-Fi Protected Access (WPA) is an encryption security option designed to improve upon the features of WEP. It employs Temporal Key Integrity Protocol (TKIP) to scramble the keys using a hash algorithm and, by adding an integrity-checking feature, ensures that the keys have not been tampered with. - Page 44 VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY Wireless Security Setup for WPA Select SSID Select the desired Service Set Identity (SSID). Encryption Choose the encryption security type, WPA. The other encryption security options are: WEP, WPA2, WPA- Mixed, and Disable. The default is Disable.
-
Page 45: Wpa2
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY WPA2 Access this window by clicking Wireless > Security and then changing the Encryption to WPA2. Wireless Security Setup window for WPA2 (Personal (Pre-Shared Key)) Wireless Security Setup window for WPA2 (Enterprise (RADIUS)) The Wireless Security Setup window for WPA2 contains the following parameters:... -
Page 46: Wpa-Mixed
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY WPA2 Cipher Suite Tick the Cipher Suite type, TKIP or AES. Pre-Shared Key Format Select the PSK format, Passphrase or HEX – 64 characters. Pre-Shared Key Enter a simple common password for the PSK. The... - Page 47 VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY Wireless Security Setup window for WPA-Mixed (Enterprise (RADIUS)) The Wireless Security Setup window for WPA-Mixed contains the following parameters: Wireless Security Setup for WPA-Mixed Select SSID Select the desired Service Set Identity (SSID). Choose the encryption security type, WPA-Mixed. The...
-
Page 48: Access Control
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY Access Control The Wireless Access Control window allows users to configure wireless access control by creating a white list and a black list. This allows administrators to block users or only allow approved users to make a connection. Access this window by clicking Wireless >... -
Page 49: Wps
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY The Wi-Fi Protected Setup window allows users to quickly set up a wireless network with strong security, without having to configure security settings manually. WiFi Protected Setup (WPS) is an industry standard specification, defined by the WiFi Alliance. - Page 50 VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY AP PIN Indicates the access point personal identification number. WPS Action Enter the personal identification number and then click the Configure via PIN button. This is commonly known as the PIN method of setting up WPS.
-
Page 51: Firewall
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY Firewall Firewall folders contain configuration windows for Filter, Denial of Service, and Content Filter. Filter The Filter window allows users to display existing filters on the NHL-2342NF. To set up a new filter, click the Add button. Access this window by clicking Firewall > Filter. -
Page 52: Rule Configuration
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY Rule Configuration The Rule Configuration window allows users to set up filtering rules to filter IP addresses by blocking incoming TCP, UDP, or traffic using both protocols. Access this window by clicking Firewall > Filter > Add. -
Page 53: Denial Of Service
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY Denial of Service The Denial of Service window allows users to prevent various types of DoS attacks. Access this window by clicking Firewall > Denial of Service. Denial of Service window The Denial of Service window contains the following parameters:... - Page 54 VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY The default value is zero. TCP/UDP PortScan Tick to enable TCP/UDP port scan for DoS prevention and select a Sensitivity of Low or High. Per-Source IP Tick to enable per-source IP flooding for SYN DoS Flood: SYN prevention.
-
Page 55: Content Filter
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY Content Filter The Content Filter window allows users to specify keywords or IP addresses to block. Access this window by clicking Firewall > Content Filter. Content Filter window The Content Filter window contains the following parameters:... -
Page 56: Oip (Nhl-2342Nf Only )
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY VoIP (NHL-2342NF Only) VoIP folders contain configuration windows for SIP, Phone Setting, Phone Book, and QoS. The SIP window allows users to configure Session Initiation Protocol (SIP), a signaling protocol used for controlling multimedia communication sessions such as voice and video calls over Internet Protocol. - Page 57 VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY Register Server Enter the SIP register server’s address. If users were not Address provided a register service address, then enter the address used for the SIP Service Address again. Register Server Port Enter the SIP register server’s listening port. If users were not provided a register service port, then enter the port used for the SIP Server Port again.
-
Page 58: Advanced Setup
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY Advanced Setup The Advanced Setup tab allows users to configure SIP server settings, RTP port range, and voice compression. Access this tab by clicking VoIP > SIP > Advanced Setup. SIP window – Advanced Setup tab... - Page 59 VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY URL Type The URL type is SIP. Expiration Duration Enter an expiration duration, in seconds, between 20 and 65535. Register Re-send Enter a register re-send timer, in seconds, between 1 and Timer 65535 seconds.
- Page 60 VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY 5060. Use NAT Active Enable or Disable the usage of NAT. Server Address Enter a server address. Server Port Enter a server port between 1024 and 65535. The default is 5060. OutBound Proxy Active Enable or Disable the outbound proxy.
-
Page 61: Phone Setting
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY Phone Setting The Phone Setting window allows users to configure voice volume control, echo cancellation, fax option, and dialing interval select for analog phones. Access this window by clicking VoIP > Phone Setting. Analog Phone Phone Setting window –... -
Page 62: Speed Dial
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY VAD Support Enable or Disable Voice Activity Detection (VAD) support. Click Apply to commit the settings. Click Refresh to display current settings of the window. Speed Dial The Speed Dial tab allows users to configure up to ten phone numbers that can be accessed using the numeric keys between zero and nine. -
Page 63: Region
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY Region The Region tab allows users to configure region settings. Access this tab by clicking VoIP > Phone Setting > Region. Phone Setting window – Region tab The Phone Setting window Region tab contains the following parameters:... -
Page 64: Phone Book
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY Phone Book The Phone Book window contains configuration tabs for Call Forward, Contact List, Group List, Block List, and DND White List. Call Forward The Call Forward tab allows users to configure various call forwarding settings. - Page 65 VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY The Phone Book window Call Forward tab contains the following parameters: Call Forward Setup Active Enable to turn call forwarding on. This setting applies to all call forwarding on the NHL-2342NF. Allow Anonymous Enable to allow incoming calls that do not carry caller ID. If...
-
Page 66: Contact List
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY Contact List The Contact List tab allows users to see, add, and edit details of contacts. Access this tab by clicking VoIP > Phone Book > Contact List. Phone Book window – Contact List tab The Phone Book window Contact List tab contains configurable parameters, described in the table below. -
Page 67: Group List
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY Group List The Group List tab allows users to see and edit the calling groups to which the phonebook contacts belong. Access this tab by clicking VoIP > Phone Book > Group List. Phone Setting window – Group List tab... -
Page 68: Block List
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY Block List The Block List tab allows users to see and edit details of phone numbers that are prevented from making incoming calls. Access this tab by clicking VoIP > Phone Book > Block List. -
Page 69: Dnd White List
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY DND White List The DND White List tab allows users to see and edit details of people who can make incoming calls even when the DND (Do Not Disturb) feature is turned on. Access this tab by clicking VoIP >... -
Page 70: Qos
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY The QoS window allows users to configure TOS and VLAN tagging. Access this window by clicking VoIP > QoS. QoS window The QoS window contains the following configurable parameters, described in the table below. -
Page 71: Management
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY Management Management folders contain configuration windows for TR-069 and Auto Provision. TR-069 The TR-069 window allows users to configure a TR-069 Auto-Configuration Server (ACS). Access this tab by clicking Management > TR-069. TR-069 window... -
Page 72: Auto Provision
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY Auto Provision The Auto Provision window allows automatic updating of configurable settings for configuration files and image files via TFTP, FTP, or HTTP server. Access this window by clicking Management > Auto Provision. Auto Provision window... -
Page 73: Maintenance
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY Maintenance Management folders contain configuration windows for System Settings, Log, and Tools. System Settings The System Settings window’s General, Dynamic DNS, and Time tabs allow configuration of a number of important system settings including changing the system password and setting the time, date, and time zone. -
Page 74: Dynamic Dns
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY Click Apply to commit the settings. Click Refresh to display current settings of the window. Dynamic DNS Dynamic Domain Name System (DDNS) allows the use of a domain name with a dynamic IP address. Access this tab by clicking Maintenance > System Settings >... -
Page 75: Time
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY Time The System Settings’ Time tab allows time, date, and time zone configuration, including use of an NTP Server and setting up DST on the Gateway. Access this tab by clicking Maintenance > System Settings > Time. -
Page 76: Log
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY The Log window allows users to configure and display system logs. Access this window by clicking Maintenance > Log. Log window The Log window contains the following parameters: System Logs Enable Log Tick to enable the system log. -
Page 77: Tools
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY Tools The Tools window’s Firmware, Configuration, and Restart tabs allow users to upgrade firmware, backup and restore configuration files, restore factory default configuration files, and restart the Gateway. Firmware This window allows users to upgrade firmware. Access this window by clicking Maintenance >... -
Page 78: Restart
VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY Restore Configuration Choose File Click to choose the file name and file path of the configuration file to be restored. Upload Click to restore the selected configuration file. Restore Factory Default Configuration Click to restore the factory default configuration settings of Reset the NHL-2342NF. - Page 79 VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY VOLKTEK CORPORATION 4F, No. 192 Liancheng Road Zhonghe District, New Taipei, Taiwan TEL: +886-2-8242-1000 FAX: +886-2-8242-3333 Tech Support: +886-800-286-286 ISO 9001 Certified...
