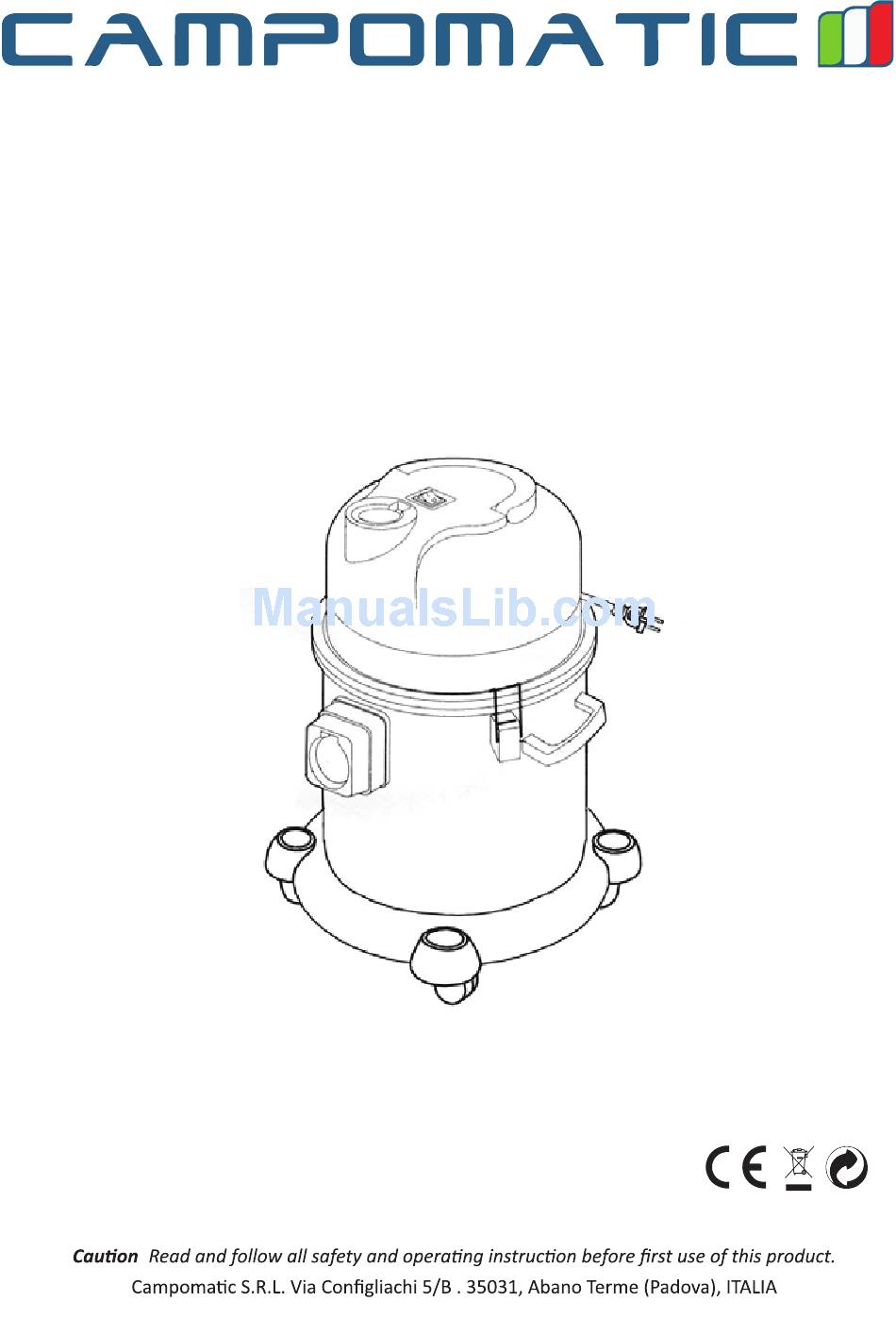

- Page 1 RC20BL Wet & Dry Dual Purpose Vacuum Cleaner Made in China INSTRUCTION MANUAL WWW.CAMPOMATIC.COM...
-
Page 2: Name Of Parts
RC20BL Characteristic Dry & Wet Dual Purpose 1400W Strong Suction Cord Retractable Safety Protection Device to ensure normal work of the motor Base with jack to store accessories easily Blowing function to satisfy deferent people’s requirement Name of Parts... - Page 3 RC20BL You can choose suitable accessories for different condition. Floor Brush Press down the side of bristle button with mark “ ”and then use the bristle extended for hard floor. Press down the side of bristle button with mark “━”and then use the bristle retracted for hard floor.
- Page 4 RC20BL For blowing the dust in the gap. Warning 1. Read this instruction booklet carefully. 2. This appliance is for domestic use only. Use as described in this instruction booklet. 3. Before using the appliance, check if the mains power voltage corresponds to the voltage shown on the rating plate.
- Page 5 RC20BL those tiny powder like power of lime, land plaster etc. They may block the filter bag and the flow of air. It may damage the mot or. (Fig6) those things that can produce lather like washing powder, cleanser etc. There may be some bubble blowing from the air exit. Please dry it first and then restart it.
- Page 6 RC20BL How to use 1. Ready for use Connection Insert the flexible tube into the air intake duct. To do this, slide intake duct cover insert the tube and press until it clicks into position. (Fig11) To remove it, press down the button and pull out the hose. (Fig12)
-
Page 7: Safety Device
RC20BL 2. Switch on the appliance Before use please check the filter bag is installed. Do not work with no filter back. 1. While pressing down the cable winding button with one hand, draw out the cable. When you find the yellow sign, please draw it slowly. If you find the red sign please stop drawing. -
Page 8: Maintenance
RC20BL Maintenance 1. Clean the dust barrel When finishing cleaning or the suction decreased obviously, cut off the power supply and empty the barrel in time. Refer to the following steps: (1) Release the lock button and lift the top cover. (Fig15) (2) Before remove the fi... -
Page 9: Troubleshooting
RC20BL Fig19 Fig20 Clean the accessories and vacuum with soft cloth dipping water or neutrality cleanser. (Fig21) (1) Do not clean the body of vacuum cleaner in petrol or oil-like liquid. Please wipe it with water or neutral detergent. (2)When you wipe the appliance please dry the soft cloth by screwing. -
Page 10: Circuit Diagram
RC20BL Technique parameter Model No. Power Voltage Frequency XXXX 1400W 220-240V～ 50/60Hz Circuit diagram... - Page 11 RC20BL ً ً • ً • ً ً • . ً •...
- Page 12 RC20BL ً ً...
- Page 13 RC20BL ً...
