Summary of Contents for ADSF Sprint

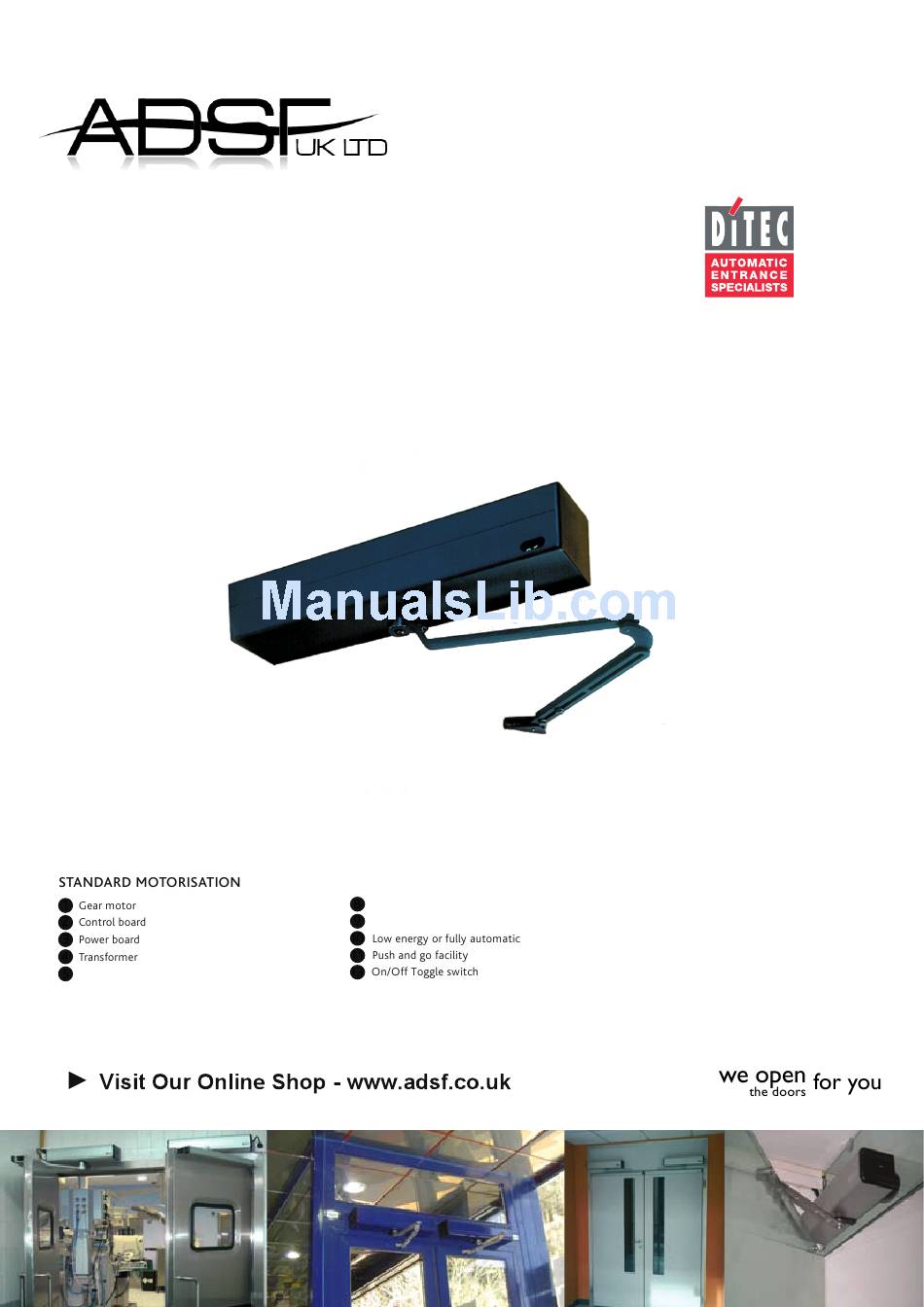

- Page 1 ADSF DITEC SPRINT SWING OPERATOR INSTALLATION Includes: MANUAL Silver Grey Cover On/Off Rocker Switch Push Or Pull Arm Max Door Leaf Weight 70 kg Motor Open Motor Close Max Door Leaf Weight 80 kg Battery Back Up...
- Page 2 Fig. 1 Fig. 2 SPRINT - IP1546...
-
Page 3: General Safety Precautions
When necessary, connect the motorised door or gate to a reli- Herewith declares that the electromechanical automatic system able earth system made in accordance with applicable safety for swing doors series SPRINT regulations. is intended to be incorporated into machinery or to be assem-... -
Page 4: Technical Details
(if necessary reinforce the frame). Any “door closes” must be eliminated or completely cancelled. OPEN Attention: check the correct working in the case of installation on max 300 doors that separate environments with different pressures. SPRINT - IP1546... - Page 5 Insert the sliding block [D] of the sliding arm in the guide [C]. Fasten the arm to the automation, ensuring it is inser- ted in the housing of the arm support. Insert the lid [E] and the two heads [F]. Slide Arm Opening in SPRINT - IP1546...
- Page 6 - Adjust the length of the arms [E] and [F] so as to form an an gle of 80÷90° in relation to the arm [M], with the door closed. Note: the SPRINTBRAS articulated arm is assembled for door wings with left-hand or right hand opening arms by rotating by 180 degree's SPRINT - IP1546...
-
Page 7: Electrical Connections
ON-OFF switch. Switch for activating/deactivating. When activating (ON posi- tion), the first operation is carried out with the acquisition of the stop positions. When deactivating (OFF position), the line power supply and the batteries are disconnected from the control panel. SPRINT - IP1546... - Page 8 4.6 Doors requirements for handicapped persons use If the SPRINT automation is used on doors for the passage of disabled persons, adjust the VM trimmer so that the opening and closing times (excluding deceleration) are the same as, or greater than, those indicated in the table.
-
Page 9: Troubleshooting
Check for the stability of the door and that the movement is steady, without friction. Check the condition of the pintles or hinges. Check that all controls and safety devices are properly functioning. ATTENTION: For spare parts, see the spares price list. SPRINT - IP1546... -
Page 10: Release Operation
OPERATING INSTRUCTIONS FOR SPRINT SWING DOORS AUTOMATION RELEASE OPERATION In the event of maintenance, malfunctioning or emergency, if you want to disconnect the automation, set the automation switch to OFF and move the door manually. If the door does not have an electric lock, use the appropriate key to release it. -
Page 11: Terms And Conditions
* All packaging, fixing kits and instructions are as new. * A re-stocking charge of 15% will be imposed. Send to ADSF UK LTD Unit 3 Millers Court, Windmill Road, Kenn, Clevedon BS21 6UL PLEASE SIGN BELOW TO ACCEPT OUR TERMS AND CONDITIONS ERREKA Registered Office: 20 –22 Bedford Row, London WC1R 4JS. - Page 12 NBS Specification ADSF Sprint swing door operator ADSF Sprint swing door operators are particularly suitable for use in a variety of door applications such as retail, hotels, offices, airports, stations, hospitals, schools, industrial and commercial premises. Internal light duty use only.
