Summary of Contents for Safevue F170

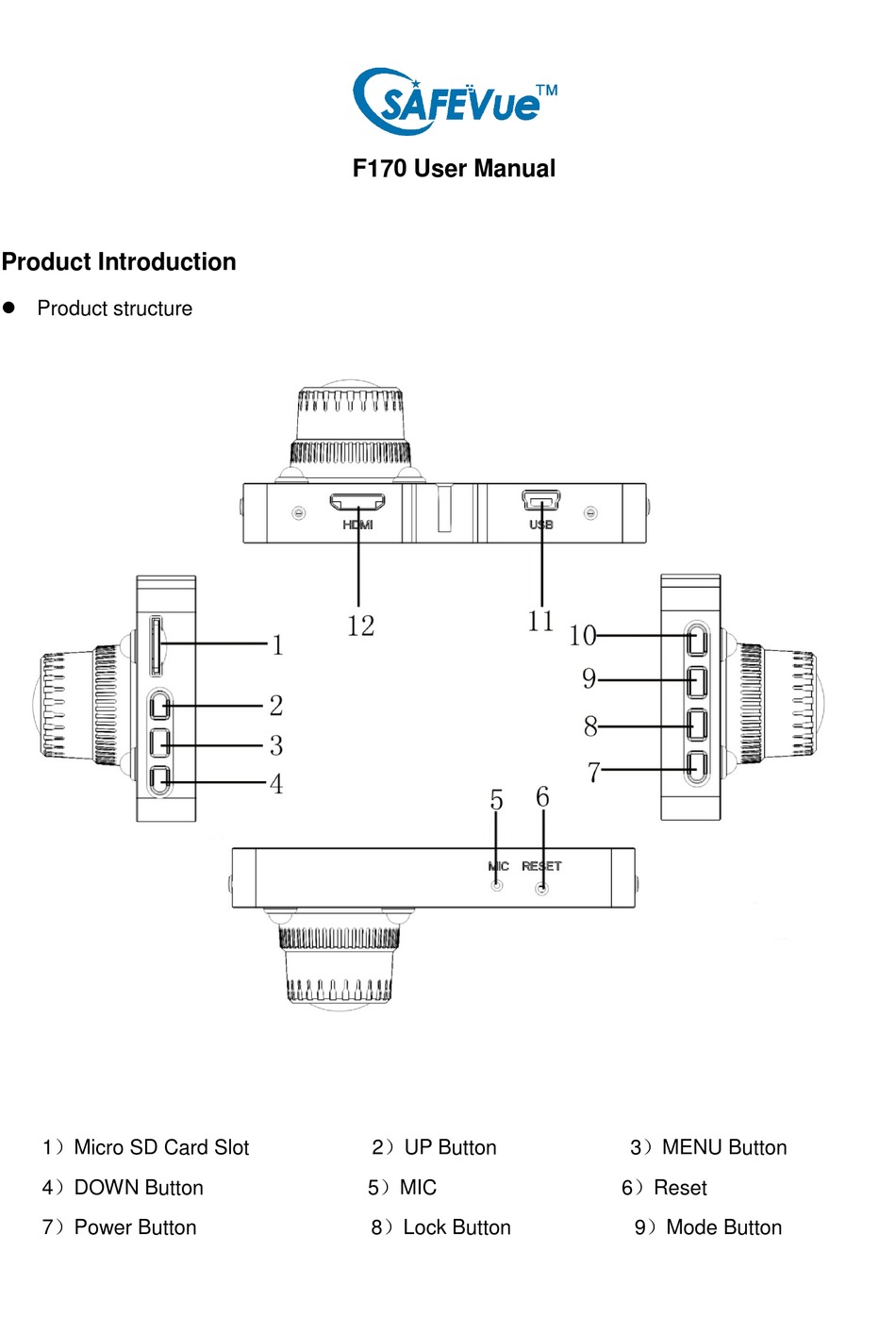

- Page 1 F170 User Manual Product Introduction Product structure 1）Micro SD Card Slot 2）UP Button 3）MENU Button 4）DOWN Button 5）MIC 6）Reset 7）Power Button 8）Lock Button 9）Mode Button...
-
Page 2: Up Button
10）OK Button 11）USB Port 12) HDMI Output Description of function of Keys : 1) Micro SD Card Slot Insert and Eject SD Card (Please use Micro SD Card Class 4 and above) 2）Up Button Move up to select the function keys in menu option; Zoom in in standby or recording mode;... -
Page 3: Loop Recording
12）HDMI-OUT Support Mini-HDMI Cable and able to output video to TV Operation: Resolution Recommend resolution: 1080FHD 1920x1080 720P 1280x720 Loop Recording Select the length of each video clip: 1mins, 3mins, 5mins No video gap between two video file, system will auto delete the earliest file when SD card recorded full ... - Page 4 Auto Power Off Power off device when device idle Beep Sound System button sound Language Support English, French, Spanish, Portuguese, German, Italian, Chinese Simplify, Chinese Traditional, Russian, Japanese Default Setting Set device back to system default ...
-
Page 5: Products Specifications
Full battery slightly low battery low battery battery empty Products specifications Features HD Camera, HD Video Ambarella （70CPU） Program G-sensor Built-in (car accident case of emergency save, will not be deleted) LCD screen size 3.0LTPS (16:9) Lens 170 degree A + grade high-resolution ultra-wide-angle lens English, French, Spanish, Portuguese, German, Italian, Language... - Page 6 Frequency 50HZ/60HZ USB function USB-Disk Power interface 5V 1A Battery Built-in 200mAh...
