Summary of Contents for GRILLS-MAX 45SCFT

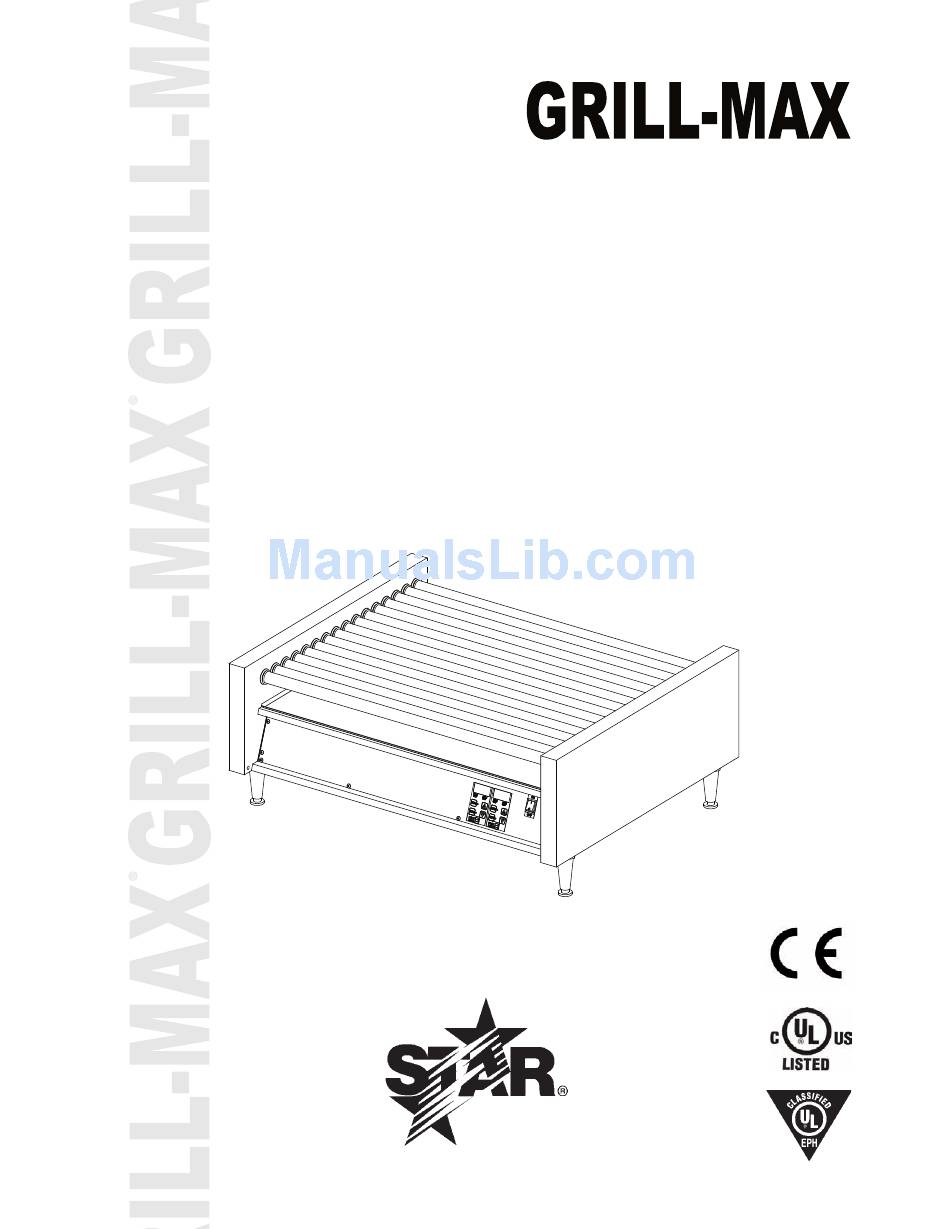

- Page 1 ® TRI-ZONE ROLLER GRILLS MODEL Infinite Controls 45SCFT, 75SCFT Electronic Controls 45SCFET, 75SCFET Installation and Operation Instructions 2M-Z14923 Rev. - 6/09/11 IL2271 75SCFET...
- Page 2 SAFETY SYMBOL These symbols are intended to alert the user to the presence of important operating and maintenance instructions in the manual accompanying the appliance. RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability.
-
Page 3: Table Of Contents
TABLE OF CONTENTS PAGE NUMBER GENERAL SAFTEY INFORMATION GENERAL INSTALLATION INFORMATION Connection Load GENERAL OPERATING INSTRUCTIONS Cleaning ELECTRONICALLY CONTROLLED: Start-up, Heating & Programing WARRANTY WIRING DIAGRAM EXPLODED VIEW (C Series) 10-11 PARTS LIST 45SCFT & 45SCFET MODEL SERIES 75SCFT & 75SCFET MODEL SERIES GENERAL SAFETY INFORMATION T his equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor CAUTION for use directly by the general public in food service locations. B efore using your new equipment, read and understand all the instructions & labels associated with the unit prior to putting it into operation. Make sure all people associated with its use understand the units operation & safety before they use the unit. A ll shipping containers should be checked for freight damage both visible and concealed. This unit has been tested and carefully packaged to insure delivery of your unit in perfect condition. If equipment is received in damaged condition, either apparent or concealed, a claim must be made with the delivering carrier. C oncealed damage or loss - if damage or loss is not apparent until after equipment is unpacked, a request for inspection of concealed damage must be made with carrier within 15 days. Be certain to retain all contents plus external and internal packaging materials for... -
Page 4: General Installation Information
An individual branch circuit is preferred. If connected to an overloaded circuit the grill will not operate properly. The unit should be level when installed. Models equipped with bun boxes must be level to utilize the self-closing feature of the bun drawer. Adjustable 4-inch legs are standard on the 75 series and available for all other models. This grill is equipped for the voltage shown on the nameplate. It will operate on alternating current only, however, the specified voltage must be applied. SPECIFICATIONS Model Voltage Wattage Cord INFINITE CONTROL 45SCFT 1,650 120V 5-15P 75SCFT 1,730 ELECTRONIC CONTROL 45SCFET 1,650 120V 5-15P 75SCFET 1,730 DO NOT CONNECT TO DIRECT CURRENT (DC). -
Page 5: General Operating Instructions
GENERAL OPERATING PROCEDURES INFINITE CONTROL The main switch located on the control panel controls all the power to the unit. With the main switch on, the rollers will turn, but no heat will be supplied unless the heat controls are turned on. For flexibility the heating section of the grill is divided into two individually controlled heat sections, but gives you three separate zones for products. The right control regulates the heat for the center section (COOK ZONE) and the left control regulates the heat to the front & rear section (COOK ZONE), see FEATURES & BENIFITS for Cook Zone section. The switch is lighted to indicate when the unit is turned on. On Infinite control grills a signal light is provided above each heat control and indicates when the heated section is on. An additional light is provided on the end housing of the unit. This light indicates the position of the main power switch when either the optional bun drawer front or merchandising door obstructs the control panel view. -
Page 6: Start-Up, Heating & Programing
OPERATING PROCEDURES FOR ELECTRONIC START-UP PROGRAMMING When initially turning on power to the electronic The electronic controls provide programmable HEAT controlled grill, it will be in the HOLD mode. The and HOLD settings for a variety of food products and displays will flash until the setpoint temperature is installation conditions. reached. The grill will beep once when it is up to To program the electronic roller grill: temperature. Infinite controlled grills have no notification when operating temperature is reached. 1. With the grill on, push and hold the and on the side you wish to program together for three seconds HEATING until the alarm beeps once and the display blanks. -
Page 7: Warranty
Visit our Website at: www.star-mfg.com Email: service@star-mfg.com THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in which the unit may be damaged in transit. In the event you discover any type of damage to your product upon receipt, you must immediately contact the transportation company who delivered the item to you and initiate your claim with same. -
Page 8: Wiring Diagram
SIDE PANEL PILOT LIGHT FRONT REAR REAR FRONT CONTROL CONTROL PILOT LIGHT PILOT LIGHT 15 AMP PLUG (NEMA 5-15P) ON / OFF SWITCH GREEN BLACK WHITE WIRE DIAGRAM, INFINITE CONTROL TRI-ZONE ROLLER GRILLS SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN STAR MANUFACTURING INTERNATIONAL, INC. - Page 9 REAR THERMISTOR FRONT THERMISTOR PILOT LIGHT 15 AMP PLUG FRONT (NEMA 5-15P) NEUTRAL LINE GRILL REAR GRILL RIBBON CABLE GREEN WHITE BLACK CONTROL BOARD ON / OFF SWITCH WIRE DIAGRAM, ELECTRONIC TRI-ZONE ROLLER GRILLS SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE MODEL: SEE ABOVE STAR MANUFACTURING INTERNATIONAL, INC.
-
Page 12: Parts List
PARTS LIST June 9, 2011, Rev. - Model: 45SCFT & 45SCFET Grill-Max Tri-Zone Rollergrill Fig No. Part Number Description Application A5-RG4581 BODY AY., 45 FLAT A5-Z2186 DRIP TRAY 45 A5-Z8411 BACK-CHAIN RETAINER 45/75 A5-Z8412 ANGLE-CHN RETAINER 45/75 A5-Z13866 SIDE PANEL 2N-Z2178 ELEMENT 120V 30/45... -
Page 13: 75Scft & 75Scfet Model Series
PARTS LIST June 9, 2011, Rev. - Model: 75SCFT & 75SCFET Grill-Max Tri-Zone Rollergrill Fig No. Part Number Description Application A5-RG75108 BODY AY., 75 FLAT A5-Z2306 DRIP TRAY 75 A5-Z8411 BACK-CHAIN RETAINER 45/75 A5-Z8412 ANGLE-CHN RETAINER 45/75 A5-Z13866 SIDE PANEL 2N-Z2982 ELEMENT 120V 105W A5-Z6615 CHAIN GUIDE - LOWER 2P-Z2266... - Page 14 STAR INTERNATIONAL HOLDINGS INC. COMPANY Star - Holman - Lang - Wells - Bloomfield - Toastmaster 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (314) 781-2777 www.star-mfg.com...
