Quickly Guider of LTE Router LTE-S4
User Manual
of

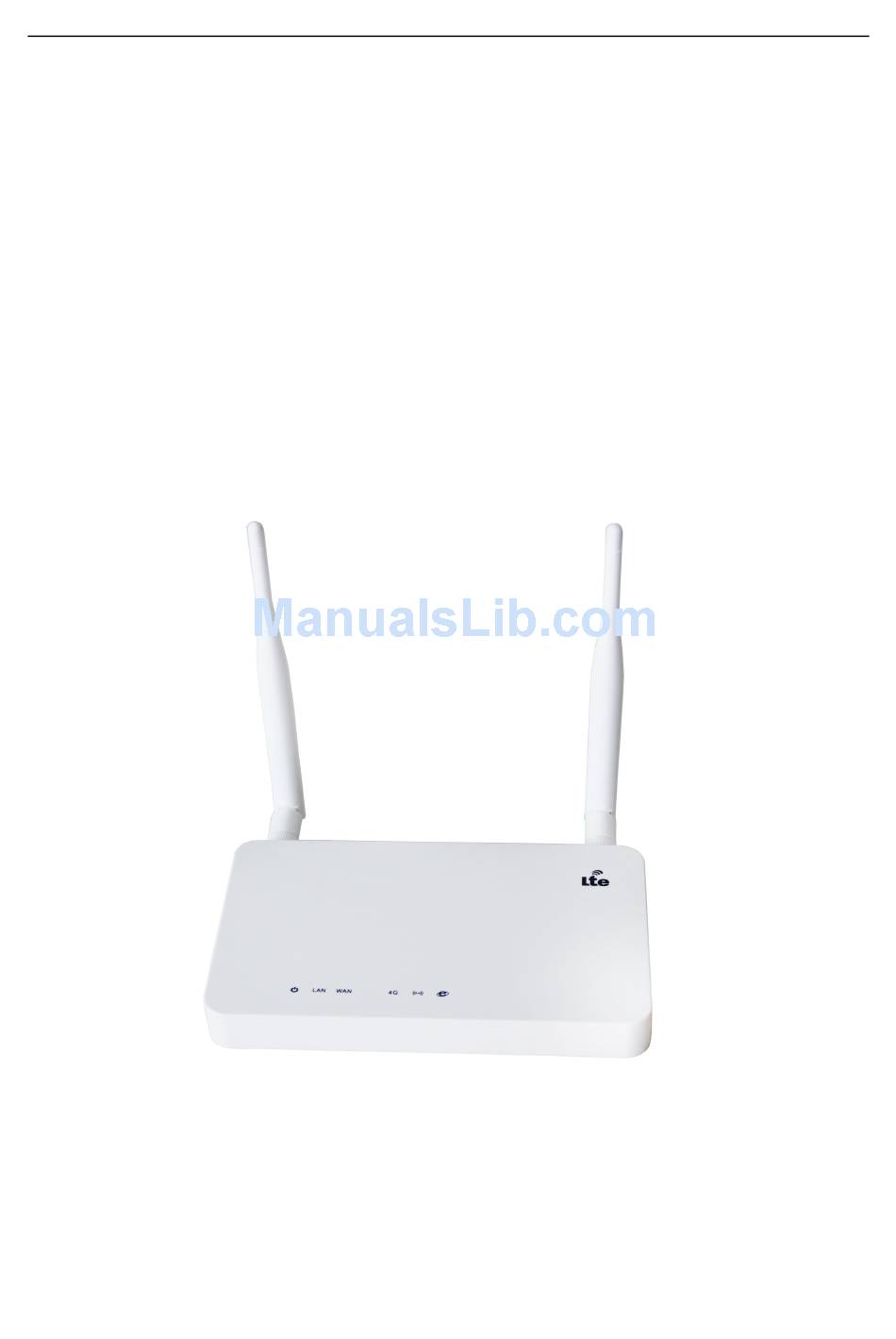

LTE Router
AP1105
Dec. 2013
This manual will indicate you how to set and use your LTE Router: access into router's
WEB interface from computer, choose the right operation mode to meet with your
requirement, and then manage your networking easier and faster.
Advertisement
Related Manuals for LTE LTE-S4
Summary of Contents for LTE LTE-S4
-
Page 1: User Manual
AP1105 Dec. 2013 This manual will indicate you how to set and use your LTE Router: access into router’s WEB interface from computer, choose the right operation mode to meet with your requirement, and then manage your networking easier and faster. - Page 2 Quickly Guider of LTE Router LTE-S4 密级 Pls check Packing details before use it: LTE Router *1; 5dBi antenna *2 DC Power Adapter *2 CD with User Manual *1 LAN Cable *1 Quickly Guider : Port Description and Power on...
- Page 3 Quickly Guider of LTE Router LTE-S4 密级 : Log in 1) Connect LTE Router with computer by LAN cable, showed as P2. 2) Pls check your PC’s IP address and make sure it is Obtain an IP address automatically as follow:...
- Page 4 Quickly Guider of LTE Router LTE-S4 密级 P3. Obtain an IP address automatically 3). Log in: type http://192.168.0.1 in your IE, will pop up P4, pls input admin/admin in User name and Password...
- Page 5 密级 P4. Log in router in wired 4) If you want to log in this router in Wireless, then the SSID: 4G-LTE, Passwords: 66666666, Search this SSID and input passwords to make your PC connected with this router, then type 192.168.0.1 , will pop up a window, then input admin/admin to...
- Page 6 Quickly Guider of LTE Router LTE-S4 密级 P5: Log in Router wirelessly If your computer with build in 802.11b/g/n wireless adapter, but can’t search the available wireless networking after refresh, pls contact with computer supplier or Atten after-sale department after appear following points:...
-
Page 7: Operation Mode
Quickly Guider of LTE Router LTE-S4 密级 Step 3: Operation Mode: After entered the WEB management page, you can set LTE-S4 as your requirement. The default working mode of this device is 3G/4G mode. Following will explain the setting of 3G/4G Operation mode: ... - Page 8 DHCP server setting: in mobile network mode, DHCP server is opened in default Click “next” P9 Lan setting Basic configuration of wireless network: As P2 shows, you can make basic configuration of LTE-S4, include SSID, Regional, password, mode, and channel Then click “ finish”.
- Page 9 Quickly Guider of LTE Router LTE-S4 密级 P 10 Basic configuration of wireless network Confirm the configuration After click “finished” ，as P 13 shows, choose “Sure” in the dialog box, then the system will reboot in few minutes and after reboot the configuration will complete.
- Page 10 Quickly Guider of LTE Router LTE-S4 密级 P12 Advanced setting Bandwidth: It is 20/40MHz matched automatically. RF Output Power: It is 100%，75%，50%，25%，12.5%, user can set it as require. Others: pls set it if professional and in needed, or keep it in default.
- Page 11 Quickly Guider of LTE Router LTE-S4 密级 P13 Status Management Click“Management”to enter into management page, showed as P14 :...
- Page 12 System time：can set router’s time and system optimization time This router can restore to factory default by press the Reset button last more than 10 seconds. Then LTE-S4 will restore to factory default setting after WiFi LED Atten flash off and System reboot.
-
Page 13: Troubleshooting
Forget the login user name Restore to factory default and passwords 1. Pls make sure the PC and LTE Router’s IP Address are in same network segment, can be checked through Ping: PC start--input CMD in Run, then ping 192.168.0.1 2.
