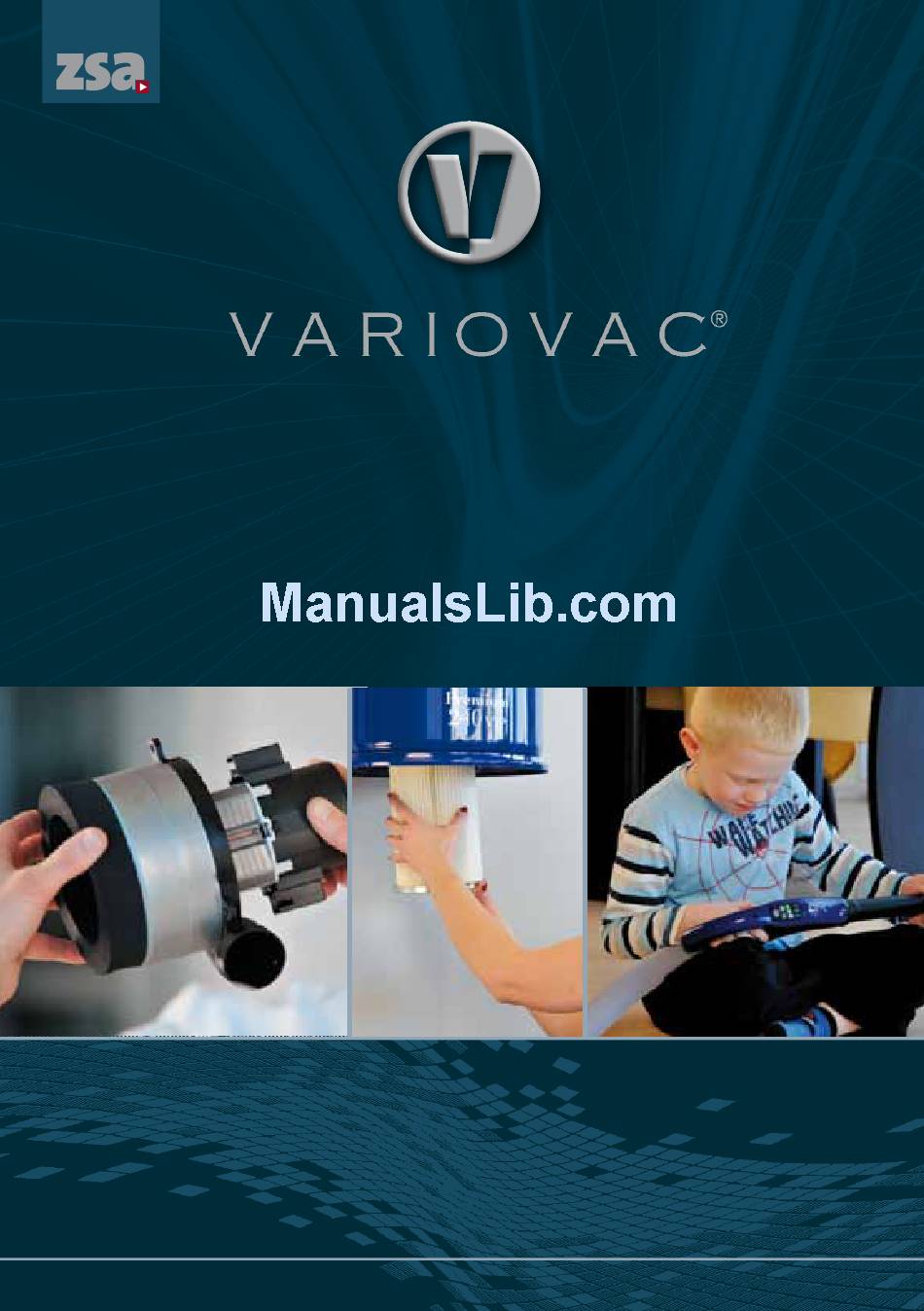

  • Page 1 CENTRAL VACUUM CLEANER O p e r a t i n g a n d I n s t a l l a t i o n I n s t r u c t i o n s...
  • Page 2 I N T R O D U C T I O N Dear Customer We would like to congratulate you on your purchase of your central vacuum cleaner. You have chosen a high quality product “Made in Germany”. Hygienic cleanliness, easy and whisper quiet operation are convincing arguments for choosing this central vacuum system.
  • Page 3 The room must be dry, heated and well ventilated. The central vacuum cleaner is designed for a voltage of 230 Volt / 50 Hz. The electric power circuit has a 16 amp time-lag fuse. Please make sure that the central vacuum cleaner is only powered by the indicated voltage.
  • Page 4 I N S T A L L A T I O N I N S T R U C T I O N S The central vacuum cleaner must be installed in a dry and well-ventilated room. You need a power outlet within range (max. 1 m) of the unit.

  • Page 5: Installation

    If you notice any damage please contact us on our service number located on your central vacuum cleaner. Let us know the extent of damage, date of purchase, and serial number. You will find the serial number on the model plate on the side of the central vacuum cleaner or on the test certificate on page 19 under “Technical Data”.
  • Page 6 7. Connect the 12/24 V control line from the vacuum line to the 24 V control line of the central vacuum cleaner. Plug in the 230 V cable into the insulated ground receptacle. Now the central vacuum cleaner can be...

  • Page 7: Turning Off

    S T A R T I N G T H E A P P L I A N C E STARTING THE APPLIANCE WITH THE STANDARD HOSE The central vacuum cleaner is ready for use after it has been plugged in. Turning on The appliance is switched on when a standard hose is inserted into an inlet valve.
  • Page 8 S T A R T I N G T H E A P P L I A N C E STARTING THE APPLIANCE WITH THE REMOTE CONTROL HOSE The central vacuum cleaner it ready for use after it has been plugged in. Turning on The appliance is turned on when the remote To use the remote control hose, the roll bar on the control hose is inserted into the inlet valve.
  • Page 9 S T A R T I N G T H E A P P L I A N C E STARTING THE APPLIANCE WITH THE REMOTE CONTROL HOSE The central vacuum cleaner is ready for use after the hose is inserted into the inlet valve. Turning on When inserting the VIP remote control hose...
  • Page 10 S T A R T I N G T H E A P P L I A N C E STARTING THE APPLIANCE WITH THE RADIO-CONTROL-HOSE The central vacuum cleaner is ready for use after it has been plugged in. Turning on Insert the Radio-Control hose into the inlet valve.
  • Page 11 S T A R T I N G T H E A P P L I A N C E TEACH-IN PROCESS RADIO-CONTROL-SYSTEM Please make sure that the central vacuum cleaner power plug is plugged in. Indicator light is lit up. Keep the reset button pushed down until the indicator light is lit green.

  • Page 12: Power Control

    C A R E A N D M A I N T E N A N C E Care and Maintenance – VIP System Yellow light – Dirt container symbol The dirt container must be emptied. Please follow directions listed on page 13. After emptying out the dirt container and inserting a new dust bag, press down the reset button on the appliance for 2 seconds.
  • Page 13 The dirt container of your central vacuum cleaner is equipped with a dust bag. The dust and dirt is collected in this bag and must be emptied on a regular basis. Your central vacuum cleaner comes with two spare dust bags.
  • Page 14 10. Plug the appliance back in. Then press 9. The central vacuum cleaner is now closed down the reset button for 2 seconds. and can be turned back on.

  • Page 15: Cleaning The Filter

    C A R E A N D M A I N T E N A N C E Cleaning the filter Your central vacuum cleaner is equipped with a highly effective membrane filter, with 1.37 m filter surface which ensures that the exhaust air is absolutely clean. Through time it may occur that a layer of dust will form on the filter’s surface.
  • Page 16 C A R E A N D M A I N T E N A N C E 5. Set the filter to dry in a well-aired place 6. After the filter has been dried completely, and remove the dust bag. re-install it.
  • Page 17 F I R S T A I D Please disconnect all power from the central vacuum cleaner before cleaning the unit or attempting any care and maintenance work! Problem Possible cause Help aid Weak suction Dirt container full Empty dirt container (page 13)
  • Page 18 F I R S T A I D Please disconnect all power from the central vacuum cleaner before cleaning the unit or attempting any care and maintenance work! Problem Possible cause Help aid Filter-/Dirt container symbol Maintenance steps were not...

  • Page 19: Year Guarantee

    In addition to that we require your sales slip and the filled-in guarantee registration card. You will then receive a new or repaired central vacuum cleaner. The guarantee only covers faults in material and manufacture. Excluded are normal wear and tear, damages due to incorrect use, and effects of damp and other external influences or to the intervention of third parties.

  • Page 20: Inspection Certificate

    T E C H N I C A L D A T A Made in Germany Inspection Certificate: All technical data are factory specifications. Technical data are subject to change.
