INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
Victor: VL71 FLOODLIGHT (IECEx) (ATEX)
Important :
Please read these instructions carefully before installing or maintaining this equipment.
Good electrical practices should be followed at all times and this data should be used
As a guide only.
VL71 IOM IECEx ATEX
Issue 02
May 08
IOM – VL71 FLOODLIGHT
Issue
02
1
Advertisement
Summary of Contents for Victor VL71
- Page 1 IOM – VL71 FLOODLIGHT Issue INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS Victor: VL71 FLOODLIGHT (IECEx) (ATEX) Important : Please read these instructions carefully before installing or maintaining this equipment. Good electrical practices should be followed at all times and this data should be used As a guide only.
-
Page 2: Specification

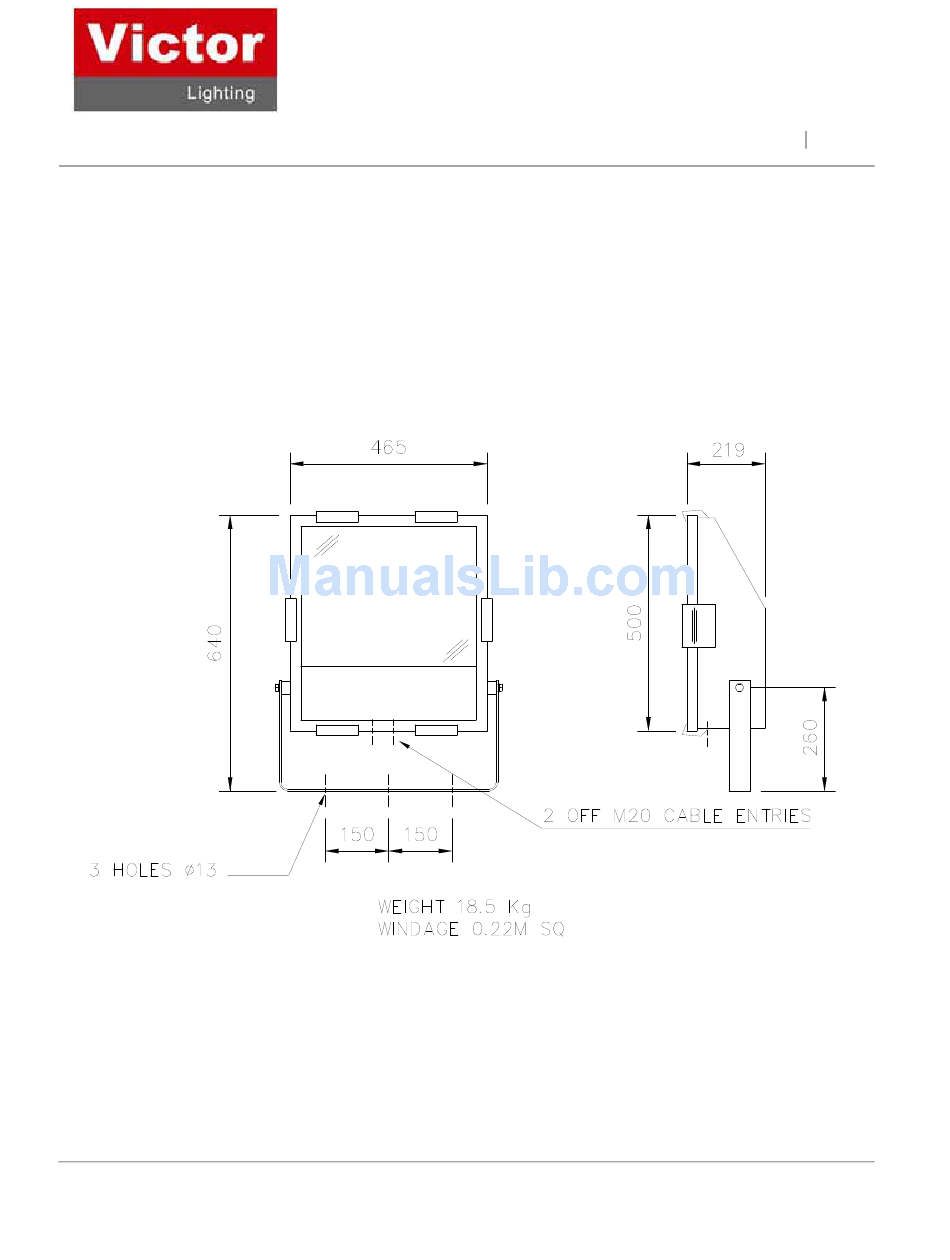

Introduction – VL71 nR FLOODLIGHT. The VL71 Floodlight is designed for all round lighting applications. It is suitable for use with tubular discharge lamps and single ended tungsten halogen lamps. A gear box is used with the low voltage range of 400w HID versions. - Page 3 IOM – VL71 FLOODLIGHT Handling and electrical work associated with this product to be in accordance with the 'Manual Handling Operations Regulations' and 'Electricity at Work Regulations, 1989'. Your attention is drawn to the paragraphs (i) 'Electrical Supplies', (ii) 'Electrical Fault Finding and Replacement' and (iii) 'Inspection and Maintenance'.
- Page 4 IOM – VL71 FLOODLIGHT Lamps The lamps used in this range are of a standardised type, and there is no preference between makes, or in the case of HPS colour. Due to the need to control photometric performance and certification conditions, and avoid incorrect lamps being fitted, the type of lamp and size is specified on the rating plate.
- Page 5 IOM – VL71 FLOODLIGHT removed by releasing four screws. The baffle plate is removed by undoing 2 x M5 nuts at the base. Reselect the voltage tapping if necessary. No more than one single or multiple strand lead shall be connected into either side of any terminal, unless multiple conductors have been joined in a suitable manner, e.g.
- Page 6 IOM – VL71 FLOODLIGHT 4.0 Overhaul The unit is largely made of materials which are very corrosion resistant. This allows the unit to be completely stripped, cleaned then re-built with new electrical components as required. All spares required are available. Please state the model number, lamp and reflector details.
- Page 7 IOM – VL71 FLOODLIGHT 0.0 Tables 0/1/2 Table 0 Lamp Ranges and Temperature Ratings Refer to Section : 1.0 Lamp Wattage Rated Supply T Class T amb Rated Cable Temperature Rise ºC Ambient Cable Above Ambient ºC ºC T/HAL 220-254V SON/T -50ºC...
- Page 8 Registered Office Mitre House 160 Aldersgate Street, London EC1A 4DD Registered No. 669157 Note Victor Lighting reserve the right to amend characteristics of our products and all data is for guidance only. VL71 IOM IECEx ATEX Issue 02 May 08...
