Area Imager IG610/BT Configuration Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Area Imager Bar Code Scanner
C O N F I G U R A T I O N G U I D E
For IG610/BT, IG710/BT, LIBRA L‐7080i, MICA M‐9080i models






Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IG610/BT and is the answer not in the manual?

Questions and answers

Summary of Contents for Area Imager IG610/BT

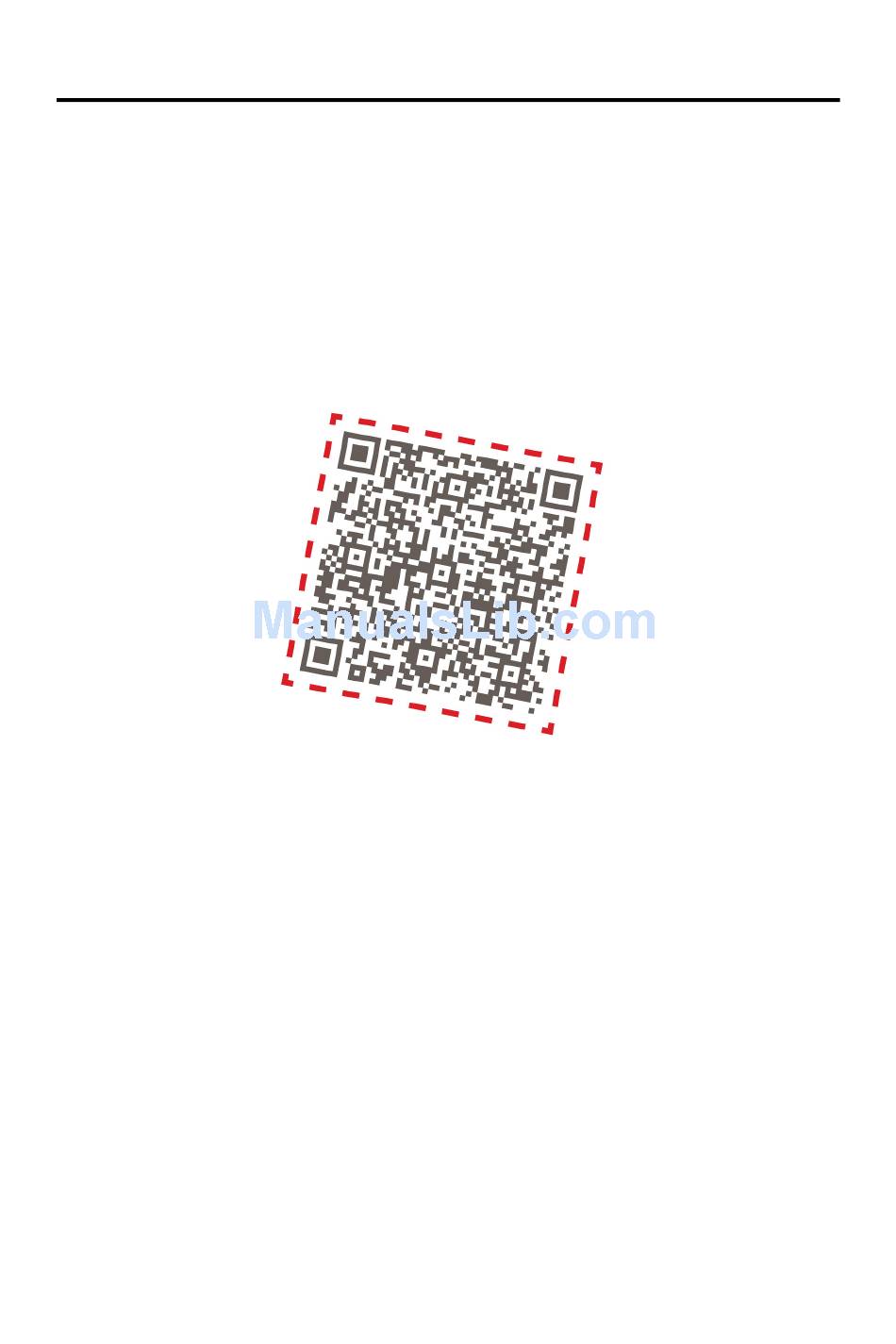

  • Page 1 Area Imager Bar Code Scanner C O N F I G U R A T I O N G U I D E For IG610/BT, IG710/BT, LIBRA L‐7080i, MICA M‐9080i models           ...
  • Page 3 Copyright  2013    This manual is copyrighted, with all right reserved. Under the copyright  laws, this manual may not, in whole or in part, be copied, photocopied,  reproduced, translated or converted to any electronic medium or machine  readable form without prior written consent of maker.    Note: Due to product improvement programs, specifications and features  are subject to change without prior notice.                      P/N: 0145-SIL0061 March 2013 Ver. 2...

  • Page 5: Table Of Contents

    Table of Contents Chapter 1 General Description .......... 1   Chapter 2 Introduction  ............ 2   Chapter 3 User Preferences  ........... 4   RETURN TO DEFAULT  ................ 4   PARAMETER SCANNING ................ 5   BEEPER TONE .................... 6   BEEPER VOLUME .................. 7   BEEPER DURATION .................. 7   TRIGGER MODES .................. 8   POWER MODE .................... 9   TIME DELAY TO LOW POWER MODE  ........... 10  ...
  • Page 6 IMAGE CROPPING .................. 21   CROP TO PIXEL ADDRESSES .............. 22   IMAGE RESOLUTION ................ 23   JPEG IMAGE OPTIONS  ................ 24   JPEG QUALITY AND SIZE VALUE ............ 24   IMAGE FILE FORMAT SELECTOR ............ 25   BITS PER PIXEL  .................. 25   VIDEO VIEW FINDER  ................. 26   TARGET VIDEO FRAME SIZE ...
  • Page 7 IGNORE UNKNOWN CHARACTERS  ............ 41   ASCII CHARACTER SET FOR SERIAL HOSTS ........ 42   Chapter 6 USB Interface  ............ 47   USB HOST PARAMETERS ............... 48   NATIVE API (SNAPI) STATUS HANDSHAKING ........ 50   USB COUNTRY KEYBOARD TYPES (COUNTRY CODES) .... 50   USB KEYSTROKE DELAY ................ 52   USB CAPS LOCK OVERRIDE .............. 52  ...
  • Page 8 CODABAR (NW - 7) .................. 106   MSI ....................... 109   POSTAL CODES .................. 113   GS1 DATABAR .................. 117   COMPOSITE .................... 122   2D SYMBOLOGIES  ................... 127   PDF417  ...................... 127   MICROPDF417 .................. 127   DATA MATRIX ................... 129   MAXICODE .................... 129   QR CODE  .................... 130   REDUNDANCY LEVEL  ................ 130  ...
  • Page 9 SLEEP MODE .................... 147   BATCH MODE  .................... 148   FIRMWARE VERSION : ................ 149   APPENDIX A : STANDARD DEFAULT PARAMETERS ..... 150   APPENDIX B : SYMBOL CODE IDENTIFIERS ........ 159   APPENDIX C : ASCII CHARACTER SET  .......... 166   APPENDIX D : NUMERIC BAR CODES  .......... 179  ...

  • Page 10: Chapter 1 General Description

    Chapter 1 General Description Thank you for purchasing this barcode scanner with an advanced and versatile decoder.The decoder works with variety of barcode types,reading devices, and computer interfaces.It discriminates over twenty different symbologies automatically. This menu provides an easy way to configure the decoding options and interface selections by scan- ning bar codes listed in the menu.

  • Page 11: Chapter 2 Introduction

    Chapter 2 Introduction This document provide an easy way to program the decoding options and interface selections by scanning bar codes listed in this guide. Important Notice 1. This document is in A5 size. Please check your printing setting before printing it out.
  • Page 12 Default Factory Device Settings User Preferences Parameter Default Set Default Parameter All Defaults Parameter Scanning Enable Beeper Tone Medium Beeper Volume High Beeper Duration Long Handheld/Hands-free Scanner Level Trigger Mode Scan Module Presentation Handheld/Hands-free Scanner Low Power Power Mode Scan Module Low Power Time Delay to Low Power Mode 1.0 Sec...

  • Page 13: Chapter 3 User Preferences

    Chapter 3 User Preferences RETURN TO DEFAULT 1. For Desktop and Fixed mount default : (LIBRA L-7080i and MICA M-9080i) You can scan this programming code to restore the scanner’s parameters to  factory default configuration.  Remark: these default setting are associated to configuration in  Chapter 3 to Chapter 8.    2. For Handheld models default : (IG610, IG610BT, IG710 and IG710BT) You can scan this programming code to restore the scanner’s parameters to factory default configuration.

  • Page 14: Parameter Scanning

    3. For Bluetooth’s default: (IG610BT and IG710BT) You can scan this programming code to restore the bluetooth’s  parameters to factory default configuration.  Remark: this default setting is associated to configuration in Chapter  9, no  effect for wired models.    Restore the Bluetooth to Factory Default      PARAMETER SCANNING To disable decoding of parameter bar codes, including the Set All Defaults parameter bar code, scan the Disable Parameter Scanning bar code below. To enable decoding of parameter bar codes, scan Enable Parameter Scanning.

  • Page 15: Beeper Tone

    BEEPER TONE To select a decode beep frequency (tone); scan the Low Frequency, Medium Frequency, or High Frequency bar code. Low Frequency Medium Frequency < High Frequency >...

  • Page 16: Beeper Volume

    BEEPER VOLUME To select a beeper volume, scan the Low Volume, Medium Volume, or High Volume bar code. Low Volume Medium Volume < High Volume > BEEPER DURATION To select the duration for the beeper, scan one of the following bar codes. Short Medium <...

  • Page 17: Trigger Modes

    TRIGGER MODES Level Mode - A trigger event activates decode processing, which continues until the trigger event ends, a valid decode, or the decode session time-out is reached. This scan mode is not available for scan module. Presentation Mode - When the device detects an object in its field of view it triggers and attempts to decode.

  • Page 18: Power Mode

    POWER MODE This parameter determines whether or not power remains on after a decode attempt. In low power mode, the decoder enters into a low power consumption mode to preserve battery life after each decode attempt. In continuous power mode, power remains on after each decode attempt. Continuous On <...

  • Page 19: Time Delay To Low Power Mode

    TIME DELAY TO LOW POWER MODE This parameter sets the time the decoder remains active after decoding. The decoder wakes upon trigger pull or when the host attempts to communicate with the decoder. Note: 1. This parameter only applies when Power Mode is set to Low Power. 2.

  • Page 20: Decode Session Timeout

    DECODE SESSION TIMEOUT This parameter sets the maximum time decode processing continues during a scan attempt. It is programmable in 0.1 second increments from 0.5 to 9.9 seconds. The default timeout is 9.9 seconds. To set a Decode Session Timeout, scan the bar code below. Next, scan two numeric bar codes from Appendix D, Numeric Barcodes that correspond to the desired on time.

  • Page 21: Beep After Good Decode

    BEEP AFTER GOOD DECODE Scan a bar code below to select whether or not the decoder issues a beep signal after a good decode. If selecting Do Not Beep after Good Decode, beeper signals are issued during parameter menu scanning and to indicate error conditions.

  • Page 22: Chapter 4 Imager Preferences

    Chapter 4 Imager Preferences Lists the defaults for imaging preferences options. To change the default values, scan the appropriate bar codes in this guide. Imaging options Default Decoding Auto exposure Enable Decoding Illumination Enable Decode Aiming Pattern Enable (Handheld) Image Capture Auto exposure Enable Image Capture Illumination Enable...
  • Page 23 Signature Capture Bits per Pixel 8 BPP (BPP) Signature Capture Width Signature Capture Height Signature Capture JPEG Quality Video View Finder Disable Video View Finder Image Size 1700 bytes The parameters in this section control image capture characteristics. Image capture occurs in all modes of operation, including decode, video, and snapshot.

  • Page 24: Snapshot Mode

    SNAPSHOT MODE Use Snapshot Mode to capture a high-quality image and transmit it to the host. To temporarily enter this mode scan the Snapshot Mode bar code. While in this mode the decoder blinks the orange LED at 1-second intervals to indicate it is not in standard operating (decode) mode.

  • Page 25: Decoding Auto Exposure

    DECODING AUTO EXPOSURE Select Enable Auto exposure to allow the device to control gain settings and exposure (integration) time to best capture an image for the selected operation mode. Select Disable Auto exposure to manually adjust the gain and exposure time. This option is only recommended for advanced users with difficult image capture situations.

  • Page 26: Decode Aiming Pattern

    DECODE AIMING PATTERN This parameter only applies when in Decode Mode. Select Enable Decode Aiming Pattern to project the aiming pattern during bar code capture, or Disable Decode Aiming Pattern to turn the aiming pattern off. < Enable Decode Aiming Pattern > (Default for handheld scanners.) <Disable Decode Aiming Pattern>...

  • Page 27: Image Capture Illumination

    IMAGE CAPTURE ILLUMINATION Selecting Enable Image Capture Illumination causes the decoder to flash on every image capture. Select Disable Illumination to prevent the decoder from using artificial illumination. Enabling illumination usually results in superior images. The effectiveness of the illumination decreases as the distance to the target increases. <...

  • Page 28: Exposure Time

    EXPOSURE TIME This parameter is only available when Image Capture Auto exposure is disabled. Exposure Time controls the amount of time the CCD is allowed to collect light, much like the shutter speed for a camera. Generally, the brighter the environment is, the shorter the exposure time would be. Set the manual exposure time to one of the following values: 5 ms, 10 ms, 15 ms, 20 ms, 25 ms, or 30 ms.

  • Page 29: Snapshot Mode Timeout

    SNAPSHOT MODE TIMEOUT This parameter sets the amount of time the decoder remains in Snapshot Mode. The decoder exits Snapshot Mode upon a trigger event, or when the Snapshot Mode Timeout elapses. To set this timeout value, scan the bar code below followed by a bar code from Appendix D, Numeric Bar Codes.

  • Page 30: Image Cropping

    IMAGE CROPPING This parameter crops a captured image. If Disable Image Cropping is selected, the full 640 x 480 pixels are presented. If Enable is selected, the decoder crops the image to the pixel addresses set in Crop to Pixel Addresses. Enable Image Cropping <Disable Image Cropping>...

  • Page 31: Crop To Pixel Addresses

    CROP TO PIXEL ADDRESSES If Enable Image Cropping is selected, set the pixel addresses from (0, 0) to (639,479) to crop to. Columns are numbered from 0 to 639, rows from 0 to 479. Specify four values for Top, Left, Bottom, and Right, where Top and Bottom correspond to row pixel addresses, and Left and Right correspond to column pixel addresses.

  • Page 32: Image Resolution

    IMAGE RESOLUTION This option alters image resolution before compression. Multiple pixels are combined to one pixel, resulting in a smaller image containing the original content with reduced resolution. Select one of the following values: Resolution Uncropped Image Value Size Full 752 x 480 376 x 240 188 x 120...

  • Page 33: Jpeg Image Options

    JPEG IMAGE OPTIONS JPEG images can be optimized for either size or for quality. Scan the Quality Selector bar code to enter a quality value; the decoder then selects the corresponding image size. Scan the Size Selector bar code to enter a size value;...

  • Page 34: Image File Format Selector

    IMAGE FILE FORMAT SELECTOR Select an image format appropriate for the system (BMP, TIFF, or JPEG). The decoder stores captured images in the selected format. BMP File Format < JPEG File Format > TIFF File Format BITS PER PIXEL Select the number of significant bits per pixel (BPP) to use when capturing an image.

  • Page 35: Video View Finder

    VIDEO VIEW FINDER Select Enable Video View Finder to project the video view finder while in Image Mode, or Disable Video View Finder to turn the video view finder off. < Disable Video View Finder > Enable Video View Finder TARGET VIDEO FRAME SIZE Select the number of 100-byte blocks to be transmitted per second.

  • Page 36: Chapter 5 Serial Interface

    Chapter 5 Serial Interface Introduction This chapter describes how to set up the decoder with a serial host. The serial interface is used to connect the decoder to point-of sale devices, host computers, or other devices with an available serial port (e.g. com port). Note: The decoder uses TTL signal levels, which interface with most system architectures.

  • Page 37: Serial Parameter Defaults

    SERIAL PARAMETER DEFAULTS The table below lists the defaults for serial host parameters. To change any option, scan the appropriate bar code(s) provided in the Serial Host Parameters section. Note: See Appendix A, Standard Default Parameters for all user preferences, hosts, symbologies, and miscellaneous default parameters.

  • Page 38: Serial Host Types

    SERIAL HOST TYPES To select a serial host interface, scan one of the following bar codes. Enable Serial Host (Standard RS232) *Scanning Enable Serial Host (No Variant) activates the serial driver, but does not change port settings (e.g., parity, data bits, handshaking). Selecting another serial host type bar code changes these settings.

  • Page 39: Baud Rate

    BAUD RATE Baud rate is the number of bits of data transmitted per second. Set the decoder's baud rate to match the baud rate setting of the host device. Otherwise, data may not reach the host device or may reach it in distorted form.

  • Page 40: Parity

    PARITY A parity check bit is the most significant bit of each ASCII coded character. Select the parity type according to host device requirements. Select Odd parity and the parity bit value is set to 0 or 1, based on data, to ensure that an odd number of 1 bits are contained in the coded character.

  • Page 41: Stop Bit Select

    STOP BIT SELECT The stop bit(s) at the end of each transmitted character marks the end of transmission of one character and prepares the receiving device for the next character in the serial data stream. The number of stop bits selected (one or two) depends on the number the receiving terminal is programmed to accommodate.

  • Page 42: Check Receive Errors

    CHECK RECEIVE ERRORS Select whether or not the parity, framing, and overrun of received characters are checked. The parity value of received characters is verified against the parity parameter selected above. < Check For Received Errors > Do Not Check For Received Errors...

  • Page 43: Hardware Handshaking

    HARDWARE HANDSHAKING The data interface consists of a serial port designed to operate either with or without the hardware handshaking lines, Request to Send (RTS), and Clear to Send (CTS). If Standard RTS/CTS handshaking is not selected, scan data is transmitted as it becomes available.
  • Page 44 decoder issues an error indication and discards the data. RTS/CTS Option 3: When Option 3 is selected, the decoder asserts RTS prior to any data transmission, regardless of the state of CTS. The decoder waits up to Host Serial Response Time-out (default) for CTS to be asserted.

  • Page 45: Software Handshaking

    SOFTWARE HANDSHAKING This parameter offers control of the data transmission process in addition to, or instead of, that offered by hardware handshaking. There are five options. If Software Handshaking and Hardware Handshaking are both enabled, Hardware Handshaking takes precedence. None: When this option is selected, data is transmitted immediately. No response is expected from host.
  • Page 46 < None > ACK/NAK ACK/NAK with ENQ XON/XOFF...

  • Page 47: Host Serial Response Time-Out

    HOST SERIAL RESPONSE TIME-OUT This parameter specifies how long the decoder waits for an ACK, NAK, or CTS before determining that a transmission error has occurred. This only applies when in one of the ACK/NAK Software Handshaking modes, or RTS/CTS Hardware Handshaking option.

  • Page 48: Rts Line State

    RTS LINE STATE This parameter sets the idle state of the Serial Host RTS line. Scan a bar code below to select Low RTS or High RTS line state. < Host : Low RTS > Host: High RTS BEEP ON <BEL> When this parameter is enabled, the decoder issues a beep when a <BEL>...

  • Page 49: Intercharacter Delay

    INTERCHARACTER DELAY This parameter specifies the intercharacter delay inserted between character transmissions. < Minimum : 0 msec > Low: 25 msec Medium: 50 msec High: 75 msec Maximum: 99 msec...

  • Page 50: Ignore Unknown Characters

    IGNORE UNKNOWN CHARACTERS Unknown characters are characters the host does not recognize. When Send Bar Codes with Unknown Characters is selected, all bar code data is sent except for unknown characters, and no error beeps sound on the decoder. When Do Not Send Bar Codes With Unknown Characters is selected, bar code data is sent up to the first unknown character and then an error beep will sound on the decoder.

  • Page 51: Ascii Character Set For Serial Hosts

    ASCII CHARACTER SET FOR SERIAL HOSTS The values in the table below can be assigned as prefixes or suffixes for ASCII character data transmission. Prefix/Suffix Values Prefix/Suffix Full ASCII Code 39 ASCII Character Value Encode Character 1000 1001 1002 1003 1004 1005 1006...
  • Page 52 1021 1022 1023 1024 1025 1026 1027 1028 1029 1030 1031 1032 Space Space 1033 1034 " 1035 1036 1037 1038 & 1039 ‘ 1040 1041 1042 1043 1044 1045 1046 1047 1048 1049...
  • Page 53 1050 1051 1052 1053 1054 1055 1056 1057 1058 1059 1060 < 1061 1062 > 1063 1064 1065 1066 1067 1068 1069 1070 1071 1072 1073 1074 1075 1076 1077 1078...
  • Page 54 1079 1080 1081 1082 1083 1084 1085 1086 1087 1088 1089 1090 1091 1092 1093 1094 1095 1096 1097 1098 1099 1100 1101 1102 1103 1104 1105 1106 1107...
  • Page 55 1108 1109 1110 1111 1112 1113 1114 1115 1116 1117 1118 1119 1120 1121 1122 1123 1124 1125 1126 1127 Undefined 7013 ENTER...

  • Page 56: Chapter 6 Usb Interface

    Chapter 6 USB Interface Introduction This chapter describes how to set up the decoder with a USB host. The decoder connects directly to a USB host, or a powered USB hub, and is powered by it. No additional power supply is required. Note: Most computer monitors allow scanning the bar codes directly on the screen.

  • Page 57: Usb Host Parameters

    USB HOST PARAMETERS USB Device Type Select the desired USB device type. Note: When changing USB Device Types, the decoder automatically resets. The decoder issues the standard startup beep sequences. < HID Keyboard Emulation > USB virtual COM port emulation; (requiring driver) Simple COM Port Emulation (requiring driver)
  • Page 58 * Note: Steps for activating CDC COM port emulation (USB virtual COM): 1. Execute the driver (installMOTCDC.exe). If you don’t have the driver, contact your distributor. 2. Connect the scanner USB cable to the host computer. The scanner would give a “Do Re Mi” melody when powered on. 3.

  • Page 59: Native Api (Snapi) Status Handshaking

    NATIVE API (SNAPI) STATUS HANDSHAKING After selecting a SNAPI interface as the USB device type, select whether to enable or disable status handshaking. < Enable SNAPI Status Handshaking > Disable SNAPI Status Handshaking USB COUNTRY KEYBOARD TYPES (COUNTRY CODES) Scan the bar code corresponding to the keyboard type. This setting applies only to the USB HID Keyboard Emulation device.
  • Page 60 French Canadian Windows 2000/XP French Canadian Windows 95/98 Spanish Windows Italian Windows Swedish Window UK English Windows Japanese Windows (ASCII) Portuguese-Brazilian Windows...

  • Page 61: Usb Keystroke Delay

    USB KEYSTROKE DELAY This parameter sets the delay, in milliseconds, between emulated keystrokes. Scan a bar code below to increase the delay when hosts require a slower transmission of data. < No Delay > Medium Delay (20 msec) Long Delay (40 msec) USB CAPS LOCK OVERRIDE This option applies only to the HID Keyboard Emulation device.

  • Page 62: Usb Ignore Unknown Characters

    USB IGNORE UNKNOWN CHARACTERS This option applies only to the HID Keyboard Emulation device and IBM device. Unknown characters are characters the host does not recognize. When Send Bar Codes With Unknown Characters is selected, all bar code data is sent except for unknown characters, and no error beeps sound.

  • Page 63: Usb Keyboard Fn 1 Substitution

    USB KEYBOARD FN 1 SUBSTITUTION This option applies only to the USB HID Keyboard Emulation device. When enabled, this allows replacement of any FN 1 characters in an EAN 128 bar code with a Key Category and value chosen by the user. Enable     < Disable > ...

  • Page 64: Simulated Caps Lock

    SIMULATED CAPS LOCK When enabled, the decoder inverts upper and lower case characters on the bar code as if the Caps Lock state is enabled on the keyboard. This inversion is done regardless of the current state of the keyboard’s Caps Lock state. <...

  • Page 65: Ascii Character Set For Usb

    ASCII CHARACTER SET FOR USB USB Prefix/Suffix Values Full ASCII Code Prefix/ Suffix 39 Encode Keystroke Value Character 1000 CTRL 2 1001 CTRL A 1002 CTRL B 1003 CTRL C 1004 CTRL D 1005 CTRL E 1006 CTRL F 1007 CTRL G CTRL 1008...
  • Page 66 1023 CTRL W 1024 CTRL X 1025 CTRL Y 1026 CTRL Z 1027 CTRL [/ESC 1028 CTRL \ 1029 CTRL ] 1030 CTRL 6 1031 CTRL 1032 Space Space 1033 1034 “ 1035 1036 1037 1038 & 1039 ‘ 1040 1041 1042 1043...
  • Page 67 1052 1053 1054 1055 1056 1057 1058 1059 1060 < 1061 1062 > 1063 1064 1065 1066 1067 1068 1069 1070 1071 1072 1073 1074 1075 1076 1077 1078 1079 1080...
  • Page 68 1081 1082 1083 1084 1085 1086 1087 1088 1089 1090 1091 1092 1093 1094 1095 1096 1097 1098 1099 1100 1101 1102 1103 1104 1105 1106 1107 1108 1109...
  • Page 69 1110 1111 1112 1113 1114 1115 1116 1117 1118 1119 1120 1121 1122 1123 1124 1125 1126 The keystroke in bold is sent only if the “Function Key Mapping” is enabled. Otherwise, the unbolded keystroke is sent.
  • Page 70 USB ALT Key Character Set ALT Keys Keystroke 2064 ALT 2 2065 ALT A 2066 ALT B 2067 ALT C 2068 ALT D 2069 ALT E 2070 ALT F 2071 ALT G 2072 ALT H 2073 ALT I 2074 ALT J 2075 ALT K 2076...
  • Page 71 USB GUI Key Character Set GUI Key Keystroke 3000 Right Control Key 3048 GUI 0 3049 GUI 1 3050 GUI 2 3051 GUI 3 3052 GUI 4 3053 GUI 5 3054 GUI 6 3055 GUI 7 3056 GUI 8 3057 GUI 9 3065 GUI A...
  • Page 72 3081 GUI Q 3082 GUI R 3083 GUI S 3084 GUI T 3085 GUI U 3086 GUI V 3087 GUI W 3088 GUI X 3089 GUI Y 3090 GUI Z Note: GUI Shift Keys - The Apple™ iMac keyboard has an apple key on either side of the space bar.
  • Page 73 USB F Key Character Set F Keys Keystroke 5001 5002 5003 5004 5005 5006 5007 5008 5009 5010 5011 5012 5013 5014 5015 5016 5017 5018 5019 5020 5021 5022 5023 5024...
  • Page 74 USB Numeric Keypad Character Set Numeric Keypad Keystroke 6042 6043 6044 undefined 6045 6046 6047 6048 6049 6050 6051 6052 6053 6054 6055 6056 6057 6058 Enter 6059 Num Lock...
  • Page 75 USB Extended Keypad Character Set Extended Keypad Keystroke 7001 Break 7002 Delete 7003 PgUp 7004 7005 Pg Dn 7006 Pause 7007 Scroll Lock 7008 Backspace 7009 7010 Print Screen 7011 Insert 7012 Home 7013 Enter 7014 Escape 7015 Up Arrow 7016 Down Arrow 7017...

  • Page 76: Chapter 7 Symbologies

    Chapter 7 Symbologies Introduction This chapter describes symbology features and provides the programming bar codes for selecting these features. The device is shipped with the settings shown in the Symbology Default Table If the default values suit requirements, programming is not necessary. There are two ways to change a parameter value: Scan the appropriate bar codes in this guide.

  • Page 77: Symbology Parameter Defaults

    SYMBOLOGY PARAMETER DEFAULTS Table below lists the defaults for all symbologies parameters. To change any option, scan the appropriate barcode(s) provided in the Symbologies Parameters section. Note: See Appendix A, Standard Default Parameters for all user preferences, hosts, and miscellaneous default parameters. Symbology Default Table Parameter Default...
  • Page 78 EAN-8/JAN-8 Extend Disable UCC Coupon Extended Code Disable Code 128 Code 128 Enable UCC/EAN-128 Enable ISBT 128 Enable Code 39 Code 39 Enable Trioptic Code 39 Disable Convert Code 39 to Code 32 Disable (Italian Pharmacy Code) Code 32 Prefix Disable Set Length(s) for Code 39 2 to 55...
  • Page 79 Transmit Code 11 Check Digit(s) Disable Interleaved 2 of 5 (ITF) Interleaved 2 of 5 (ITF) Enable Set Lengths for I 2 of 5 I 2 of 5 Check Digit Verification Disable Transmit I 2 of 5 Check Digit Disable Convert I 2 of 5 to EAN 13 Disable Discrete 2 of 5 (DTF)
  • Page 80 UK Postal Enable Transmit UK Postal Check Digit Enable Japan Postal Enable Australian Postal Enable Dutch Postal Enable Transmit US Postal Check Digit Enable RSS (Reduced Space Symbology) RSS 14 Enable RSS Limited Enable RSS Expanded Enable Convert RSS to UPC/EAN Disable Composite Composite CC-C...
  • Page 81 Data Matrix Enable Maxicode Enable QR Code Enable Symbology-Specific Security Levels Redundancy Level Security Level Inter character Gap Size Normal Report Version Macro PDF Macro PDF Transmit/Decode Mode Symbols Pass through Mode Transmit Macro PDF Control Header Disable Escape Characters None Flush Macro PDF Buffer Abort Macro PDF Entry...

  • Page 82: Upc/Ean

    UPC/EAN Enable/Disable UPC-A To enable or disable UPC-A, scan the appropriate barcode below. < Enable UPC-A > Disable UPC-A Enable/Disable UPC-E To enable or disable UPC-E, scan the appropriate bar code below. < Enable UPC-E > Disable UPC-E...
  • Page 83 Enable/Disable UPC-E1 UPC-E1 is disabled by default. To enable or disable UPC-E1, scan the appropriate bar code below. Note: UPC-E1 is not a UCC (Uniform Code Council) approved symbology. Enable UPC-E1 < Disable UPC-E1 > Enable/Disable EAN-8/JAN-8 To enable or disable EAN-8/JAN-8, scan the appropriate bar code below. <...
  • Page 84 Enable/Disable EAN-13/JAN-13 To enable or disable EAN-13/JAN-13, scan the appropriate bar code below. < Enable EAN-13/JAN-13 > Disable EAN-13/JAN-13 Enable/Disable Bookland EAN To enable/disable Bookland EAN, scan the appropriate barcode below. Enable Bookland EAN Disable Bookland EAN...
  • Page 85 Decode UPC/EAN/JAN Supplementals Supplemental are bar codes appended according to specific format conventions (e.g., UPC A+2, UPC E+2, EAN 13+2). Six options are available. If Decode UPC/EAN/JAN Only With Supplemental is selected, UPC/EAN/JAN symbols without supplemental are not decoded. If Ignore Supplemental is selected, and the decoder is presented with a UPC/EAN/JAN with a supplemental, the UPC/EAN/JAN is decoded and the supplemental bar code is ignored.
  • Page 86 Decode UPC/EAN/JAN Only With Supplemental < lgnore Supplemental > Auto discriminate UPC/EAN/JAN Supplemental Enable 378/379 Supplemental Mode Enable 978 Supplemental Mode Enable Smart Supplemental Mode...
  • Page 87 UPC/EAN/JAN Supplemental Redundancy With Auto discriminate UPC/EAN/JAN Supplemental selected, this option adjusts the number of times a symbol without supplemental is decoded before transmission. The range is from two to thirty times. Five or above is recommended when decoding a mix of UPC/EAN/JAN symbols with and without supplemental, and the auto discriminate option is selected.
  • Page 88 Transmit UPC-E Check Digit The check digit is the last character of the symbol used to verify the integrity of the data. Scan the appropriate bar code below to transmit the bar code data with or without the UPC-E check digit. It is always verified to guarantee the integrity of the data.
  • Page 89 UPC-A Preamble Preamble characters are part of the UPC symbol, and include Country Code and System Character. There are three options for transmitting a UPC-A preamble to the host device: transmit System Character only, transmit System Character and Country Code (“0” for USA), and transmit no preamble. Select the appropriate option to match the host system.
  • Page 90 UPC-E Preamble Preamble characters are part of the UPC symbol, and include Country Code and System Character. There are three options for transmitting a UPC-E preamble to the host device: transmit System Character only, transmit System Character and Country Code (“0” for USA), and transmit no preamble. Select the appropriate option to match the host system.
  • Page 91 UPC-E1 Preamble Preamble characters are part of the UPC symbol, and include Country Code and System Character. There are three options for transmitting a UPC-E1 preamble to the host device: transmit System Character only, transmit System Character and Country Code (“0” for USA), and transmit no preamble. Select the appropriate option to match the host system.
  • Page 92 Convert UPC-E1 to UPC-A Enable this to convert UPC-E1 decoded data to UPC-A format before transmission. After conversion, the data follows UPC-A format and is affected by UPC-A programming selections (e.g., Preamble, Check Digit). When disabled, UPC-E1 decoded data is transmitted as UPC-E1 data, without conversion.
  • Page 93 UCC Coupon Extended Code When enabled, this parameter decodes UPC-A bar codes starting with digit ‘5’, EAN-13 bar codes starting with digit ‘99’, and UPCA/EAN-128 Coupon Codes. UPCA, EAN-13, and EAN-128 must be enabled to scan all types of Coupon Codes.

  • Page 94: Code 128

    CODE 128 Enable/Disable Code 128 To enable or disable Code 128, scan the appropriate bar code below. < Enable Code 128 > Disable Code 128 Enable/Disable UCC/EAN-128 To enable or disable UCC/EAN-128, scan the appropriate bar code below. < Enable UCC/EAN-128 > Disable UCC/EAN-128...
  • Page 95 Enable/Disable ISBT 128 ISBT 128 is a variant of Code 128 used in the blood bank industry. Scan a bar code below to enable or disable ISBT 128. If necessary, the host must perform concatenation of the ISBT data. < Enable ISBT 128 > Disable ISBT 128...

  • Page 96: Code 39

    CODE 39 Enable/Disable Code 39 To enable or disable Code 39, scan the appropriate bar code below. < Enable Code 39 > Disable Code 39 Enable/Disable Trioptic Code 39 Trioptic Code 39 is a variant of Code 39 used in the marking of computer tape cartridges.
  • Page 97 Convert Code 39 to Code 32 Code 32 is a variant of Code 39 used by the Italian pharmaceutical industry. Scan the appropriate bar code below to enable or disable converting Code 39 to Code 32. Note: Code 39 must be enabled for this parameter to function. Enable Convert Code 39 to Code 32 <...
  • Page 98 Set Lengths for Code 39 The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s) the code contains. Set lengths for Code 39 to any length, one or two discrete lengths, or lengths within a specific range. If Code 39 Full ASCII is enabled, Length within a Range or Any Length is the preferred options.
  • Page 99 Code 39 - Length Within Range Code 39 - Any Length Code 39 Check Digit Verification When this feature is enabled, the decoder checks the integrity of all Code 39 symbols to verify that the data complies with specified check digit algorithm. Only Code 39 symbols which include a modulo 43 check digit are decoded.
  • Page 100 Transmit Code 39 Check Digit Scan a bar code below to transmit Code 39 data with or without the check digit. Transmit Code 39 Check Digit (Enable) < Do Not Code 39 Check Digit > (Disable) Note: Code 39 Check Digit Verification must be enabled for this parameter to function.
  • Page 101 Code 39 Buffering (Scan & Store) This feature allows the decoder to accumulate data from multiple Code 39 symbols. Selecting the Scan and Store option (Buffer Code 39) temporarily buffers all Code 39 symbols having a leading space as a first character for later transmission.
  • Page 102 Buffer Data To buffer data, Code 39 buffering must be enabled and a Code 39 symbol must be read with a space immediately following the start pattern. Unless the data overflows the transmission buffer, the decoder issues a lo/hi beep to indicate successful decode and buffering. (For overflow conditions, see Overfilling Transmission Buffer.) The decoder adds the decoded data excluding the leading space to the transmission buffer.

  • Page 103: Overfilling Transmission Buffer

    Note: The Transmit Buffer contains only a plus (+) character. In order to scan this command, be sure Code 39 length is set to include length 1. Overfilling Transmission Buffer The Code 39 buffer holds 200 characters. If the symbol just read results in an overflow of the transmission buffer: The decoder indicates that the symbol was rejected by issuing three long, high beeps.

  • Page 104: Code 93

    CODE 93 Enable/Disable Code 93 To enable or disable Code 93, scan the appropriate bar code below. Enable Code 93 < Disable Code 93 > Set Lengths for Code 93 The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s) the code contains.
  • Page 105 Length Within Range - Select this option to decode a Code 93 symbol with a specific length range. Select lengths using the numeric bar codes in Appendix D, Numeric Bar Codes. For example, to decode Code 93 symbols containing between 4 and 12 characters, first scan Code 93 - Length Within Range.

  • Page 106: Code 11

    CODE 11 To enable or disable Code 11, scan the appropriate bar code below. Enable Code 11 < Disable Code 11 > Set Lengths for Code 11 The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s) the code contains.
  • Page 107 Length Within Range - Select this option to decode a Code 11 symbol with a specific length range. Select lengths using numeric bar codes in Appendix D, Numeric Bar Codes. For example, to decode Code 11 symbols containing between 4 and 12 characters, first scan Code 11 - Length Within Range.
  • Page 108 Code 11 Check Digit Verification This feature allows the decoder to check the integrity of all Code 11 symbols to verify that the data complies with the specified check digit algorithm. This selects the check digit mechanism for the decoded Code 11 bar code. The options are to check for one check digit, check for two check digits, or disable the feature.

  • Page 109: Interleaved 2 Of 5 (Itf)

    INTERLEAVED 2 OF 5 (ITF) Enable/Disable Interleaved 2 of 5 To enable or disable Interleaved 2 of 5, scan the appropriate bar code below, and select an Interleaved 2 of 5 length from the following pages. < Enable Interleaved 2 of 5 > Disable Interleaved 2 of 5 Set Lengths for Interleaved 2 of 5 The length of a code refers to the number of characters (i.e., human readable...
  • Page 110 first scan I 2 of 5 - Length Within Range. Then scan 0, 4, 1, and 2 (single digit numbers must always be preceded by a leading zero). To correct an error or change the selection, scan Cancel barcode. Any Length - Scan this option to decode I 2 of 5 symbols containing any number of characters within the decoder capability.
  • Page 111 I 2 of 5 Check Digit Verification When this feature is enabled, the decoder checks the integrity of all I 2 of 5 symbols to verify the data complies with either the specified Uniform Symbology Specification (USS), or the Optical Product Code Council (OPCC) check digit algorithm.
  • Page 112 Convert I 2 of 5 to EAN-13 Enable this parameter to convert 14-character I 2 of 5 codes to EAN-13, and transmit to the host as EAN-13. To accomplish this, the I 2 of 5 code must be enabled, and the code must have a leading zero and a valid EAN-13 check digit.

  • Page 113: Discrete 2 Of 5 (Dtf)

    DISCRETE 2 OF 5 (DTF) Enable/Disable Discrete 2 of 5 To enable or disable Discrete 2 of 5, scan the appropriate bar code below. Enable Discrete 2 of 5 < Disable Discrete 2 of 5 > Set Lengths for Discrete 2 of 5 The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s) the code contains.
  • Page 114 To correct an error or change the selection, scan Cancel barcode. Any Length - Scan this option to decode D 2 of 5 symbols containing any number of characters within the decoder capability. Note: Due to the construction of the D 2 of 5 symbology, it is possible for a scan line covering only a portion of the code to be interpreted as a complete scan, yielding less data than is encoded in the bar code.

  • Page 115: Codabar (Nw - 7)

    CODABAR (NW - 7) Enable/Disable Codabar To enable or disable Codabar, scan the appropriate bar code below. Enable Codabar < Disable Codabar > Set Lengths for Codabar The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s) the code contains.
  • Page 116 first scan Codabar - Length Within Range. Then scan 0, 4, 1, and 2 (single digit numbers must always be preceded by a leading zero). To correct an error or change the selection, scan Cancel barcode. Any Length - Scan this option to decode Codabar symbols containing any number of characters within the decoder capability.
  • Page 117 CLSI Editing When enabled, this parameter strips the start and stops characters and inserts a space after the first, fifth, and tenth characters of a 14-character Codabar symbol. Enable this feature if the host system requires this data format. Note: Symbol length does not include start and stop characters. Enable CLSI Editing <...

  • Page 118: Msi

    Enable/Disable MSI To enable or disable MSI, scan the appropriate bar code below. Enable MSI < Disable MSI > Set Lengths for MSI The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s) the code contains. Set lengths for MSI to any length, one or two discrete lengths, or lengths within a specific range.
  • Page 119 Any Length - Scan this option to decode MSI symbols containing any number of characters within the decoder capability. Note: Due to the construction of the MSI symbology, it is possible for a scan line covering only a portion of the code to be interpreted as a complete scan, yielding less data than is encoded in the bar code.
  • Page 120 MSI Check Digits With MSI symbols, one check digit is mandatory and always verified by the reader. The second check digit is optional. If the MSI codes include two check digits, scan the Two MSI Check Digits bar code to enable verification of the second check digit.
  • Page 121 MSI Check Digit Algorithm Two algorithms are possible for the verification of the second MSI check digit. Select the bar code below corresponding to the algorithm used to encode the check digit. MOD 10/MOD 11 < MOD 10/MOD 10 >...

  • Page 122: Postal Codes

    POSTAL CODES US Postnet To enable or disable US Postnet, scan the appropriate bar code below. < Enable US Postnet > Disable US Postnet US Planet To enable or disable US Planet, scan the appropriate bar code below. < Enable US Planet > Disable US Planet...
  • Page 123 UK Postal To enable or disable UK Postal, scan the appropriate bar code below. < Enable UK Postal > <Disable UK Postal> Transmit UK Postal Check Digit Select whether to transmit UK Postal data with or without the check digit. <...
  • Page 124 Japan Postal To enable or disable Japan Postal, scan the appropriate bar code below. Enable Japan Postal <Disable Japan Postal > Australian Postal To enable or disable Australia Postal, scan the appropriate barcode below. Enable Australian Postal <Disable Australian Postal >...
  • Page 125 Transmit US Postal Check Digit Select whether to transmit US Postal data with or without the check digit. <Transmit US Postal Check Digit> Do not Transmit US Postal Check Digit...

  • Page 126: Gs1 Databar

    GS1 DATABAR GS1 DataBar types include • GS1 DataBar Omnidirectional • GS1 DataBar Truncated • GS1 DataBar Stacked • GS1 DataBar Stacked Omnidirectional • GS1 DataBar Limited • GS1 DataBar Expanded • GS1 DataBar Expanded Stacked Scan the appropriate bar codes to enable or disable each type of GS1 DataBar.
  • Page 127 GS1 DataBar Limited Enable GS1 DataBar Limited <Disable GS1 DataBar Limited>...
  • Page 128 GS1 DataBar Limited Security Level The decoder offers four levels of decode security for GS1 DataBar Limited bar codes. There is an inverse relationship between security and decoder aggressiveness. Increasing the level of security may result in reduced aggressiveness in scanning, so only choose the level of security necessary.
  • Page 129 GS1 DataBar Expanded Scan the appropriate bar code below to enable or disable the following code types: • GS1 DataBar Expanded • GS1 DataBar Expanded Stacked. <Enable GS1 DataBar Expanded> Disable GS1 DataBar Expaneded...
  • Page 130 Convert GS1 DataBar to UPC/EAN This parameter only applies to GS1 DataBar and GS1 DataBar Limited symbols not decoded as part of a Composite symbol. Enable this to strip the leading '010' from DataBar and DataBar Limited symbols encoding a single zero as the first digit, and report the bar code as EAN-13.

  • Page 131: Composite

    COMPOSITE Composite CC-C Scan a bar code below to enable or disable Composite bar codes of type CC-C. Enable CC-C < Disable CC-C > Composite CC-A/B Scan a bar code below to enable or disable Composite bar codes of type CC-A/B.
  • Page 132 Composite TLC-39 Scan a bar code below to enable or disable Composite bar codes of type TLC-39. Enable TLC39 < Disable TLC39 >...
  • Page 133 UPC Composite Mode UPC symbols can be “linked” with a 2D symbol during transmission as if they were one symbol. There are three options for these symbols: Select UPC Never Linked to transmit UPC bar codes regardless of whether a 2D symbol is detected. Select UPC Always Linked to transmit UPC bar codes and the 2D portion.
  • Page 134 Composite Beep Mode To select the number of decode beeps when a composite bar code is decoded, scan the appropriate bar code. Single Beep after both are decoded < Beep as each code type is decoded > Double Beep after both are decoded...
  • Page 135 UCC/EAN Code 128 Emulation Mode for UCC/EAN Composite Codes Select whether to enable or disable this mode. Enable UCC/EAN Code 128 Emulation Mode for UCC/EAN Composite Codes < Disable UCC/EAN Code 128 Emulation Mode for UCC/EAN Composite Codes >...

  • Page 136: 2D Symbologies

    2D SYMBOLOGIES PDF417 Enable/Disable PDF417 To enable or disable PDF417, scan the appropriate bar code below. < Enable PDF417 > Disable PDF417 MICROPDF417 Enable/Disable MicroPDF417 To enable or disable MicroPDF417, scan the appropriate bar code below. Enable MicroPDF417 < Disable MicroPDF417 >...
  • Page 137 Code 128 Emulation When this parameter is enabled, the device transmits data from certain MicroPDF417 symbols as if it was encoded in Code 128 symbols. Transmit AIM Symbology Identifiers must be enabled for this parameter to work. If Code 128 Emulation is enabled, these MicroPDF417 symbols are transmitted with one of the following prefixes: if the first codeword is 903-907, 912, 914, 915 if the first codeword is 908 or 909...

  • Page 138: Data Matrix

    DATA MATRIX To enable or disable Data Matrix, scan the appropriate barcode below. < Enable Data Matrix > Disable Data Matrix MAXICODE To enable or disable Maxicode, scan the appropriate bar code below. < Enable Maxicode > Disable Maxicode...

  • Page 139: Qr Code

    QR CODE To enable or disable QR Code, scan the appropriate bar code below. < Enable QR Code > Disable QR Code REDUNDANCY LEVEL The decoder offers four levels of decodes redundancy. Select higher redundancy levels for decreasing levels of bar code quality. As redundancy levels increase, the decoder’s aggressiveness decreases.
  • Page 140 Redundancy Level 3 Code types other than the following must be successfully read twice before being decoded. The following codes must be read three times: Code Type Code Length MSI Plessey 4 characters or less D 2 of 5 8 characters or less I 2 of 5 8 characters or less Codabar...

  • Page 141: Security Level

    SECURITY LEVEL The decoder offers four levels of decode security for delta bar codes, which include the Code 128 family, UPC/EAN, and Code 93. Select increasing levels of security for decreasing levels of bar code quality. There is an inverse relationship between security and decoder aggressiveness, so choose only that level of security necessary for any given application.

  • Page 142: Intercharacter Gap Size

    INTERCHARACTER GAP SIZE The Code 39 and Codabar symbologies have an intercharacter gap that is typically quite small. Due to various bar code-printing technologies, this gap can grow larger than the maximum size allowed, preventing the decoder from decoding the symbol. If this problem occurs, scan the Large Intercharacter Gaps parameter to tolerate these out-of-specification bar codes.

  • Page 143: Macro Pdf Features

    MACRO PDF FEATURES Macro PDF is a special feature for concatenating multiple PDF symbols into one file. The decoder can decode symbols that are encoded with this feature, and can store more than 64 kb of decoded data stored in up to 50 Macro PDF symbols.
  • Page 144 Macro PDF Transmit / Decode Mode Symbols Select one of the options below for handling Macro PDF decoding. In Buffer All Symbols the decoder can handle sets of up to 50 maximum-sized Macro PDF symbols. In all other modes there is no limit to the size of the Macro PDF set.
  • Page 145 Transmit Any Symbol in Set / No Particular Order < Pass through All Symbols > Transmit Macro PDF Control Header When enabled, this activates transmission of the control header, which contains the segment index and the file ID, in Macro PDF symbols. For example, the field may be: \92800000\725\120\343.
  • Page 146 Escape Characters This enables the backslash (\) character as an Escape character for systems that can process transmissions containing special data sequences. Scan a bar code below to either format special data according to the GLI (Global Label Identifier) protocol, or to disable this parameter. This parameter only affects the data portion of a Macro PDF symbol transmission;...

  • Page 147: Chapter 8 Miscellaneous Scanner Options

    Chapter 8 Miscellaneous Scanner Options Introduction This chapter includes commonly used bar codes to customize how data is transmitted to the host device. See Appendix A, Standard Default Parameters for all host device and miscellaneous scanner defaults. If the default values suit requirements, programming is not necessary.
  • Page 148 Miscellaneous Scanner Parameter Defaults Table below lists the defaults for miscellaneous scanner options parameters. To change any option, scan the appropriate barcode(s) provided in the Miscellaneous Scanner Parameter. Note: See Standard Default Parameters for all user preferences, hosts, symbologies, and miscellaneous default parameters. Miscellaneous Scanner Options Default Table Parameter Default...

  • Page 149: Transmit Code Id Character

    Miscellaneous Scanner Parameters TRANSMIT CODE ID CHARACTER A Code ID character identifies the code type of a scanned bar code. This is useful when the decoder is decoding more than one code type. In addition to any single character prefix already selected, the Code ID character is inserted between the prefix and the decoded symbol.

  • Page 150: Prefix/Suffix Values

    PREFIX/SUFFIX VALUES A prefix and/or one or two suffixes can be appended to scan data for use in data editing. To set a value for a prefix or suffix, scan a prefix or suffix bar code below, then scan a four-digit number (i.e., four barcodes from Appendix D, Numeric Bar Codes) that corresponds to that value.

  • Page 151: Scan Data Transmission Format

    SCAN DATA TRANSMISSION FORMAT To change the scan data format, scan one of the following eight bar codes corresponding to the desired format. If using this parameter do not use ADF rules to set the prefix/suffix. To set values for the prefix and/or suffix, see Prefix/Suffix Values. <...

  • Page 152: Fn1 Substitution Values

    <PREFIX> <DATA> <SUFFIX 1> <SUFFIX 2> FN1 SUBSTITUTION VALUES The Wedge and USB HID Keyboard hosts support a FN1 Substitution feature. When enabled any FN1 character (0x1b) in an EAN128 bar code is substituted with a value. This value defaults to 7013 (Enter Key). When using host commands to set the FN1 substitution value, set the key category parameter to 1, then set the 3-digit keystroke value.

  • Page 153: Transmit "No Read" Message

    TRANSMIT “NO READ” MESSAGE Scan a bar code below to select whether or not to transmit a No Read message. When enabled, the characters NR are transmitted when a bar code is not decoded. When disabled, if a symbol does not decode, nothing is sent to the host.

  • Page 154: Chapter 9 Bluetooth Configuration

    Chapter 9 Bluetooth Configuration This Chapter is only adaptable for IG610BT and IG710BT.    SCANNER MODE SELECTION < SPP Master Mode > Please follow the steps to setup the communication between the scanner and cradle. 1) The scanner must scan “SPP Master Mode” barcode to set the scanner in master mode.
  • Page 155   HID Slave Mode     To setup the communication between the scanner and Bluetooth HID profile application device, follow the steps. 1) The scanner must scan “HID Slave Mode” barcode to set the scanner in HID slave mode. 2) When control the Bluetooth device to search the scanner, enter pin code to setup pairing.

  • Page 156: Out Of Range

    OUT OF RANGE When “Out of Range” function is enabled, and the scanner is working at out of transmission range, the scanned data will be stored to out-of-range memory. Memory size is approximately 30,000 sets of EAN13 barcode type. The all stored data will be transmitted to device when the link is reconnected, and the all data stored in out-of-range memory will be cleared.

  • Page 157: Batch Mode

    BATCH MODE “***” means “Quick Setting Label”. The function can be executed directly by scanning barcode instead of doing the general programming process. Batch Mode On < Batch Mode Off > *** Batch Data Read *** Batch Data Clear ***Delete Last Data...

  • Page 158: Firmware Version

    FIRMWARE VERSION : Display the firmware version of the scanner, please scan below barcode.   Scanner Firmware Version       Cradle Firmware Version         Scanner MAC Address       Cradle MAC Address  ...

  • Page 159: Appendix A : Standard Default Parameters

    APPENDIX A : STANDARD DEFAULT PARAMETERS Default Parameters Table A-1. Standard Default Parameters Table Parameter Default User Preferences Set Default Parameter All Defaults Parameter Scanning Enable Beeper Tone Medium Beeper Volume High Handheld/hands-free scanner Level Trigger Modes Scan module Presentation Handheld/hands-free scanner Low Power Power Mode...
  • Page 160 Decode Aiming Pattern Enable Image Capture Auto exposure Enable Image Capture Illumination Enable Gain Exposure Time 10 ms Internal LED LED Illumination Illumination Snapshot Mode Timeout 0 (30 seconds) Snapshot Aiming Pattern Enable Image Cropping Disable Crop to Pixel Addresses 0 top, 0 left, 479 bottom, 639 right Image Resolution...
  • Page 161 Target Video Frame Size 2200 bytes Video View Finder Image Size 1700 bytes Event Reporting Decode Event Disable Boot Up Event Disable Parameter Event Disable Serial Host Parameters Serial Host Types SSI Host Baud Rate 9600 Parity Type None Stop Bit Select 1 Stop Bit Data Bits 8-Bit...
  • Page 162 Symbol Native API (SNAPI) Status Handshaking Enable USB Country Keyboard Types (Country Codes) North American USB Keystroke Delay No Delay USB CAPS Lock Override Disable USB Ignore Unknown Characters Enable Emulate Keypad Disable USB FN1 Substitution Disable Function Key Mapping Disable Simulated Caps Lock Disable...
  • Page 163 System UPC-E Preamble Character System UPC-E1 Preamble Character Convert UPC-E to A Disable Convert UPC-E1 to A Disable EAN-8/JAN-8 Extend Disable UCC Coupon Extended Code Disable Code 128 Code 128 Enable UCC/EAN-128 Enable ISBT 128 Enable Code 39 Code 39 Enable Trioptic Code 39 Disable...
  • Page 164 Code 11 Code 11 Disable Set Lengths for Code 11 4 to 55 Code 11 Check Digit Verification Disable Transmit Code 11 Check Digit(s) Disable Interleaved 2 of 5 (ITF) Interleaved 2 of 5 (ITF) Enable Set Lengths for I 2 of 5 I 2 of 5 Check Digit Verification Disable Transmit I 2 of 5 Check Digit...
  • Page 165 Transmit MSI Check Digit Disable MSI Check Digit Algorithm Mod 10/Mod 10 Postal Codes US Postnet Enable US Planet Enable UK Postal Enable Transmit UK Postal Check Digit Enable Japan Postal Enable Australian Postal Enable Dutch Postal Enable Transmit US Postal Check Digit Enable RSS (Reduced Space Symbology) RSS 14...
  • Page 166 Disable UCC/EAN Code 128 Emulation Mode for UCC/EAN Composite Codes 2D Symbologies PDF417 Enable MicroPDF417 Disable Code 128 Emulation Disable Data Matrix Enable Maxicode Enable QR Code Enable Symbology-Specific Security Levels Redundancy Level Security Level Intercharacter Gap Size Normal Report Version Macro PDF Pass through Macro PDF Transmit/Decode Mode Symbols...
  • Page 167 SSI Suffix 1 Value SSI Suffix 2 Value <CR> <CR> Non-SSI Prefix Value <CR><LF> <CR><LF> Non-SSI Suffix 1 Value Non-SSI Suffix 2 Value <CR><LF> Scan Data Transmission Format Data as is FN1 Substitution Values Transmit “No Read” Message Disable...

  • Page 168: Appendix B : Symbol Code Identifiers

    APPENDIX B : SYMBOL CODE IDENTIFIERS Symbol Code Characters Code Character Code Type UPC-A, UPC-E, UPC-E1, EAN-8, EAN-13 Code 39, Code 32 Codabar Code 128 Code 93 Interleaved 2 of 5 Discrete 2 of 5, or Discrete 2 of 5 IATA Code 11 UCC/EAN-128 Bookland EAN...
  • Page 169 US Postnet US Planet Japan Postal UK Postal Dutch Postal Australian Postal UK Postal...
  • Page 170 AIM Code Identifiers Each AIM Code Identifier contains the three-character string ]cm where: ] = Flag Character (ASCII 93) c = Code Character m = Modifier Character Aim Code Characters Code Character Code Type Code 39, Code 39 Full ASCII, Code 32 Code 128, Coupon (Code 128 portion) Data Matrix UPC/EAN, Coupon (UPC portion)
  • Page 171 The modifier character is the sum of the applicable option values based on Table B-3. Modifier Characters Option Code Type Option Value No check character or Full ASCII processing. Reader has checked one check character. Reader has checked and stripped check character.
  • Page 172 transmitted as ]F04123 No options specified at this time. Always transmit Code 93 Example: A Code 93 bar code 012345678905 is transmitted as ]G0012345678905 Check digits are sent. No check digit is sent. Example: An MSI bar code 4123, with a single check digit checked, is transmitted as ]M14123 No options specified at this time.
  • Page 173 Data packet containing the data following an EAN.UCC encoded symbol separator character. Composites Data packet containing the data following an (RSS, escape mechanism character. The data packet UCC/EAN-128, does not support the ECI protocol. 2D portion of Data packet containing the data following an escape mechanism character.
  • Page 174 ECC 200, ECI protocol implemented. ECC 200, FNC1 in first or fifth position, ECI protocol implemented. ECC 200, FNC1 in second or sixth position, ECI protocol implemented. Symbol in Mode 4 or 5. Symbol in Mode 2 or 3. MaxiCode Symbol in Mode 4 or 5, ECI protocol implemented.

  • Page 175: Appendix C : Ascii Character Set

    APPENDIX C : ASCII CHARACTER SET ASCII Value Table Full ASCII Code 39 ASCII Value Keystroke Encode Char 1000 CTRL 2 1001 CTRL A 1002 CTRL B 1003 CTRL C 1004 CTRL D 1005 CTRL E 1006 CTRL F 1007 CTRL G CTRL 1008...
  • Page 176 1018 CTRL R 1019 CTRL S 1020 CTRL T 1021 CTRL U 1022 CTRL V 1023 CTRL W 1024 CTRL X 1025 CTRL Y 1026 CTRL Z 1027 CTRL [ 1028 CTRL \ 1029 CTRL ] 1030 CTRL 6 1031 CTRL 1032 Space...
  • Page 177 1041 1042 1043 1044 1045 1046 1047 1048 1049 1050 1051 1052 1053 1054 1055 1056 1057 1058 1059 1060 < 1061 1062 > 1063...
  • Page 178 1064 1065 1066 1067 1068 1069 1070 1071 1072 1073 1074 1075 1076 1077 1078 1079 1080 1081 1082 1083 1084 1085 1086...
  • Page 179 1087 1088 1089 1090 1091 1092 1093 1094 1095 1096 ‘ 1097 1098 1099 1100 1106 1107 1108 1109...
  • Page 180 1110 1111 1112 1113 1114 1115 1116 1117 1118 1119 1120 1121 1122 1123 1124 1125 1126 The keystroke in bold is sent only if the Function Key Mapping is enabled. Otherwise, the unbold keystroke is sent.
  • Page 181 ALT Key Standard Default Tables ALT Keys Keystroke 2064 ALT 2 2065 ALT A 2066 ALT B 2067 ALT C 2068 ALT D 2069 ALT E 2070 ALT F 2071 ALT G 2072 ALT H 2073 ALT I 2074 ALT J 2075 ALT K 2076...
  • Page 182 USB GUI Key Character Set GUI Key Keystroke 3000 Right Control Key 3048 GUI 0 3049 GUI 1 3050 GUI 2 3051 GUI 3 3052 GUI 4 3053 GUI 5 3054 GUI 6 3055 GUI 7 3056 GUI 8 3057 GUI 9 3065 GUI A...
  • Page 183 3081 GUI Q 3082 GUI R 3083 GUI S 3084 GUI T 3085 GUI U 3086 GUI V 3087 GUI W 3088 GUI X 3089 GUI Y 3090 GUI Z Note: GUI Shift Keys - The Apple™ iMac keyboard has an apple key on either side of the space bar.
  • Page 184 PF Key Standard Default Table PF Keys Keystroke PF 1 PF 2 PF 3 PF 4 PF 5 PF 6 PF 7 PF 8 PF 9 PF 10 PF 11 PF 12 PF 13 PF 14 PF 15 PF 16...
  • Page 185 F key Standard Default Table F Keys Keystroke 5001 5002 5003 5004 5005 5006 5007 5008 5009 5010 F 10 5011 F 11 5012 F 12 5013 F 13 5014 F 14 5015 F 15 5016 F 16 5017 F 17 5018 F 18 5019...
  • Page 186 Numeric Key Standard Default Table Numeric Keypad Keystroke 6042 6043 6044 Undefined 6045 6046 6047 6048 6049 6050 6051 6052 6053 6054 6055 6056 6057 6058 Enter 6059 Num Lock...
  • Page 187 Extended Keypad Standard Default Table Extended Keypad Keystroke 7001 Break 7002 Delete 7003 Pg Up 7004 7005 Pg Dn 7006 Pause 7007 Scroll Lock 7008 Backspace 7009 7010 Print Screen 7011 Insert 7012 Home 7013 Enter 7014 Escape 7015 Up Arrow 7016 Dn Arrow 7017...

  • Page 188: Appendix D : Numeric Bar Codes

      APPENDIX D : NUMERIC BAR CODES For parameters requiring specific numeric values, scan the appropriately numbered bar code(s).
  • Page 189 Cancel To correct an error or change a selection, scan the bar code below. Cancel...

  • Page 190: Appendix E : Readable Symbologies

    APPENDIX E : READABLE SYMBOLOGIES 1D Symbologies Default Symbologies Enable EAN/UPC UPC-A ○ UPC-E ○ Disable UPC-E1 EAN-8/JAN 8 ○ EAN-13/JAN 13 ○ Bookland EAN ○ ISBN-10 Bookland ISBN Format Decode UPC/EAN/JAN Ignore Supplementals (2 and 5 digits) UPC/EAN/JAN Supplemental Redundancy Decode UPC/EAN/JAN Combined...
  • Page 191 Default Symbologies Enable Code 128 Code 128 ○ Any Length Set Length(s) for Code 128 GS1-128 (formerly UCC/EAN-128) ○ ISBT 128 ○ Disable ISBT Concatenation Check ISBT Table ○ ISBT Concatenation Redundancy Code 39 Code 39 ○ Disable Trioptic Code 39 Convert Code 39 to Code 32 Disable (Italian Pharmacy Code)
  • Page 192 Interleaved 2 of 5 (ITF) Interleaved 2 of 5 (ITF) Disable 1 Length; Set Lengths for I 2 of 5 Length = 14 Disable I 2 of 5 Check Digit Verification Disable Transmit I 2 of 5 Check Digit Disable Convert I 2 of 5 to EAN 13 Discrete 2 of 5 (DTF) Disable...
  • Page 193   Korean 3 of 5 Korean 3 of 5 Disable Regular Inverse 1D Postal Codes Disable US Postnet Disable US Planet Transmit US Postal Check Digit ○ Disable UK Postal Transmit UK Postal Check Digit ○ Disable Japan Postal Disable Australia Post Autodiscriminate Australia Post Format...
  • Page 194 Composite Composite CC-C Disable Disable Composite CC-A/B Disable Composite TLC-39 UPC Composite Mode Always Linked Beep As Each Code Composite Beep Mode Type is Decoded GS1-128 Emulation Mode for Disable UCC/EAN Composite Codes 2D Symbologies Default Symbologies Enable PDF417 ○ MicroPDF417 Disable Disable...

This manual is also suitable for:

Ig710/btLibra l-7080iMica m-9080i

Table of Contents
